Allen-Bradley 1771-OBN Relay Output Module | 16-Point DC Control for PLC-5 Systems

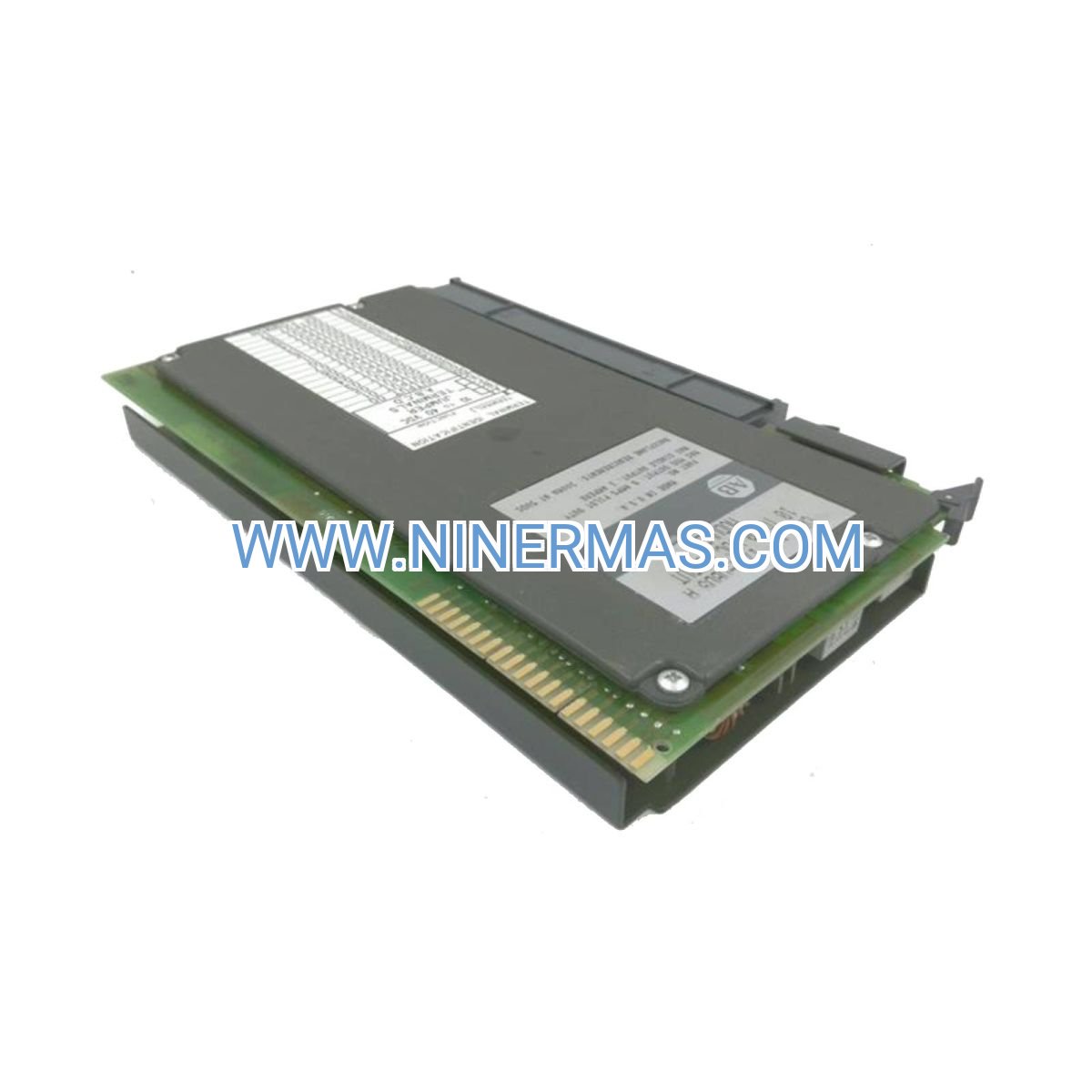

Allen-Bradley 1771-OBN Relay Output Module (Industrial-Grade DC Control Solution)

The Allen-Bradley 1771-OBN is a high-performance 16-point DC relay output module designed for PLC-5 programmable logic controller systems. Through advanced optical isolation technology and robust relay switching architecture, this module delivers reliable discrete output control for industrial automation applications requiring voltage flexibility from 10 to 50 VDC.

Engineered for demanding manufacturing environments including automotive assembly lines, material handling systems, packaging machinery, and process control installations, the 1771-OBN addresses critical challenges such as electrical noise interference, output circuit protection requirements, and the need for versatile voltage compatibility across diverse field devices.

With proven reliability in thousands of installations worldwide, this module combines standardized I/O architecture with field-customizable wiring configurations. The 1771-OBN serves design engineers, system integrators, OEM equipment manufacturers, and plant maintenance teams seeking dependable output control with comprehensive diagnostic capabilities. Contact our application engineers for configuration assistance and technical specifications tailored to your control system requirements.

Core Features & Technical Advantages

• 16-Point Relay Output Architecture
  Provides sixteen independent relay contact outputs with 2A switching capacity per point, enabling direct control of solenoids, contactors, indicator lamps, and other industrial loads without external interface relays.
• Wide Voltage Range Compatibility (10-50 VDC)
  Accommodates diverse field device voltage requirements within a single module, reducing inventory complexity and simplifying system design for mixed-voltage applications common in retrofits and multi-vendor installations.
• Optical Isolation Protection
  Each output channel features 1500V RMS optical isolation between logic circuits and field wiring, protecting sensitive PLC backplane electronics from voltage transients, ground loops, and electrical noise in harsh industrial environments.
• Individual Channel Diagnostics
  Built-in LED indicators provide real-time visual status for each output point, accelerating troubleshooting and reducing mean time to repair (MTTR) during commissioning and maintenance operations.
• Removable Terminal Block Design
  Field wiring terminates to removable screw-clamp connectors, allowing module replacement without disturbing existing wire terminations—minimizing downtime during scheduled maintenance or emergency repairs.
• Proven PLC-5 Platform Integration
  Seamless compatibility with Allen-Bradley PLC-5 chassis and programming software (RSLogix 5), leveraging established configuration tools and extensive installed base support resources for rapid deployment.

Typical Application Scenarios

The 1771-OBN relay output module excels in applications demanding robust discrete control with electrical isolation and diagnostic visibility:

• Automotive Manufacturing & Assembly
  Controls pneumatic actuators, part presence verification gates, and conveyor diverters in body welding lines, paint systems, and final assembly stations where 24VDC control voltage predominates.
• Material Handling & Warehousing
  Operates sortation gates, lift table positioning, and automated storage/retrieval systems requiring reliable switching of DC solenoid valves and motor starters across distribution centers and logistics facilities.
• Packaging & Bottling Lines
  Drives labeling applicators, reject mechanisms, and product diverters in high-speed packaging equipment where coordinated timing and fault detection are critical to maintaining production throughput.
• Water/Wastewater Treatment
  Actuates chemical dosing pumps, valve positioners, and alarm annunciators in municipal and industrial treatment facilities requiring long-term reliability in moisture-prone control panel environments.
• Process Control & Batch Systems
  Interfaces with motor starters, heating elements, and agitator controls in pharmaceutical, food processing, and chemical manufacturing where recipe-driven sequencing demands flexible I/O configuration.

Technical Specifications & Selection Guide

To facilitate accurate system design and procurement, key electrical and mechanical parameters are summarized below:

Selection Considerations: When specifying the 1771-OBN, verify that total connected load current does not exceed module capacity, confirm field device voltage compatibility within 10-50 VDC range, and ensure adequate chassis slot availability and backplane power budget. For applications requiring AC output switching, AC voltage ranges beyond 50VDC, or current ratings exceeding 2A per point, consult alternative 1771-series output modules. Our applications team can provide load calculation worksheets and wiring diagrams upon request.

Extended Capabilities & System Integration

• Distributed I/O Architecture Support
  Compatible with 1771 remote I/O scanner modules, enabling decentralized control panel placement to minimize field wiring runs and reduce installation costs in large facilities.
• Hot-Swap Capability (Chassis Dependent)
  When installed in compatible 1771 chassis with keying hardware, modules can be replaced under power without disrupting adjacent I/O points—critical for high-availability production lines.
• Fused Output Protection (Field-Installed)
  Accepts external fusing on field wiring side for enhanced short-circuit protection, safeguarding both module contacts and connected loads in accordance with NEC/IEC installation codes.
• Integration with HMI/SCADA Systems
  Output status data maps directly to RSLinx/FactoryTalk communication drivers, providing real-time visualization and historical trending through Allen-Bradley PanelView terminals and third-party SCADA platforms.

Delivery, Documentation & Technical Support

Lead Time: Factory-sealed 1771-OBN modules typically ship from stock within 1-3 business days for standard orders; custom-configured systems with pre-wired terminal blocks or integrated chassis assemblies require 7-14 days depending on scope.

Warranty & Service: All modules include a minimum 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty options and advance-replacement service contracts are available for mission-critical applications.

Technical Documentation Package: Each module ships with installation instructions, wiring diagrams, I/O addressing tables, and dimensional drawings. Complete user manuals, RSLogix 5 configuration files (EDS/AOP), and CAD models (STEP/DWG formats) are accessible via download or upon request.

Application Engineering Assistance: Our technical team provides pre-sales consultation for load calculations, chassis configuration, and system architecture design. Post-installation support includes remote diagnostics, on-site commissioning assistance (subject to geographic availability), and troubleshooting guidance.

Frequently Asked Questions (FAQ)

Q: How does the 1771-OBN relay output module integrate with existing PLC-5 control systems?
A: The module installs directly into any available slot within a 1771-series I/O chassis. Configuration is performed through RSLogix 5 programming software using standard discrete output instructions (OTE). The module auto-detects its chassis slot position, and output addressing follows the PLC-5 rack/group/slot convention (e.g., O:012/00 through O:012/15 for a module in slot 2).

Q: What is the maximum number of outputs that can be energized simultaneously?
A: All 16 outputs can be energized concurrently, provided the total connected load does not exceed the module's backplane current budget (150mA @ 5VDC) and field power supply capacity. Each output is independently rated for 2A resistive load; inductive loads should be calculated at 80% of rating with appropriate suppression (flyback diodes recommended).

Q: Can the 1771-OBN control AC-powered devices or higher DC voltages?
A: No. This module is designed exclusively for 10-50 VDC loads. For AC output applications (120/240 VAC), specify the 1771-OAD or 1771-OBD modules. For DC voltages exceeding 50V or current requirements above 2A per point, consider solid-state output modules (1771-OBD) or external interface relays with appropriate ratings.

Q: What environmental protection does the module provide, and are there enclosure requirements?
A: The 1771-OBN is an open-type module requiring installation within a NEMA-rated enclosure (typically NEMA 12 for industrial environments). The module itself is conformal-coated for humidity resistance and operates reliably in 0-60°C ambient temperatures with 5-95% non-condensing humidity. For wash-down areas or corrosive atmospheres, specify NEMA 4X stainless steel enclosures with appropriate IP ratings.

Q: Does the module support remote monitoring and predictive maintenance capabilities?
A: Yes. Output status and diagnostic data are accessible via the PLC-5 processor's communication ports (DH+, ControlNet, or Ethernet/IP with appropriate interface modules). Integration with FactoryTalk View or third-party SCADA systems enables real-time monitoring, alarm notification, and historical data logging. Contact cycle counters can be implemented in ladder logic to track relay life and schedule preventive replacement.

Q: What is the typical relay contact lifespan, and are field-replaceable contact assemblies available?
A: Relay contacts are rated for a minimum of 100,000 mechanical operations at full rated load (2A resistive). Actual lifespan varies with load type, switching frequency, and environmental conditions—inductive loads and high-frequency cycling reduce contact life. The 1771-OBN uses sealed relay assemblies that are not field-serviceable; when contact degradation occurs, the entire module is replaced (facilitated by removable terminal blocks to preserve field wiring).

Request Technical Consultation & Quotation

To receive a detailed application-specific recommendation, pricing quotation, or technical support, please provide the following project information:

• Project name and application description (e.g., conveyor control, pump station, assembly line)
• Number of discrete outputs required and load characteristics (voltage, current, inductive/resistive)
• Existing PLC-5 processor model and chassis configuration (if retrofit/expansion)
• Environmental conditions (temperature range, enclosure type, hazardous area classification if applicable)
• Delivery timeline and quantity requirements

Our application engineers will respond within one business day with a customized solution proposal, including module selection, wiring recommendations, and integration guidance.
