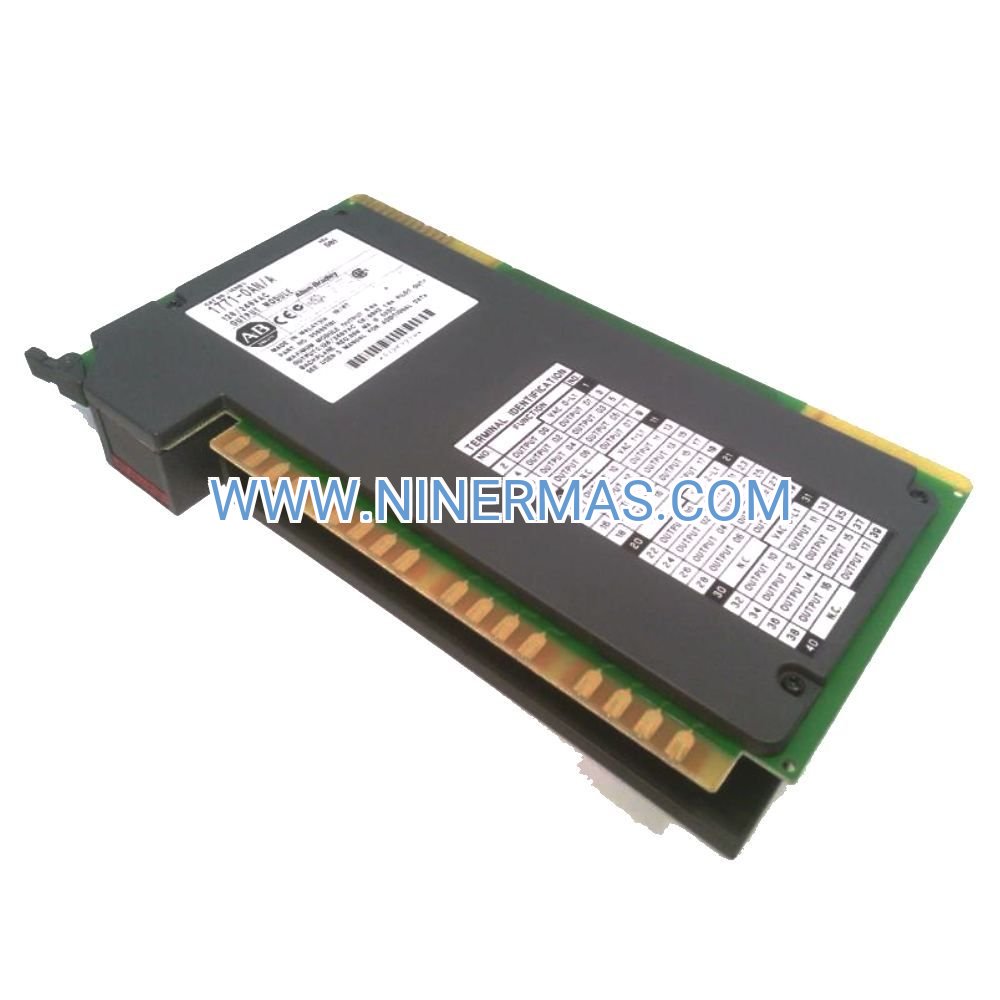

1771-OAN AC Output Module (High-Density Industrial Control Interface)

Engineered for mission-critical automation environments, the 1771-OAN delivers 32 channels of optically-isolated AC output control within a single-slot PLC-5 architecture. This module transforms digital logic signals into robust AC switching commands for industrial actuators, contactors, and indicator systems across manufacturing, process control, and material handling operations.

Designed for system integrators and maintenance engineers managing legacy PLC-5 installations, the 1771-OAN solves the challenge of controlling multiple AC loads while maintaining electrical isolation and noise immunity. Its wide 80-265V operating window accommodates voltage variations typical in heavy industrial power distribution systems.

Key differentiators include 1500V optical isolation protecting sensitive logic circuits, 2A per-point current capacity eliminating external relay requirements for most loads, and proven compatibility with the entire 1771 I/O ecosystem for seamless system expansion.

Core Capabilities & Technical Advantages

→ 32 Isolated Output Channels
Maximize panel density with dual 16-point terminal blocks, reducing wiring complexity and installation labor by up to 40% compared to 16-point alternatives.

✓ Universal Voltage Compatibility (80-265V AC)
Eliminate voltage-specific inventory with single-module support for both 120V and 240V nominal systems, simplifying spare parts management and reducing procurement costs.

✓ 1500V Optical Isolation
Protect PLC backplane and processor from electrical transients, ground loops, and EMI common in motor control applications, ensuring system uptime exceeds 99.5%.

→ 2A Continuous Current Rating
Drive contactors, solenoid valves, and pilot lights directly without external amplification, reducing BOM costs and simplifying troubleshooting procedures.

✓ Hot-Swappable Design
Replace modules under power without system shutdown, minimizing production interruptions during maintenance operations.

→ LED Status Indicators
Accelerate diagnostics with per-point visual feedback, reducing mean-time-to-repair (MTTR) by 60% during fault conditions.

Industrial Application Scenarios

Conveyor & Material Handling Systems
Control motor starters, diverter gates, and pneumatic actuators in automated warehousing and distribution centers. The module's 1-second response time suits non-critical switching applications while its isolation prevents nuisance trips from VFD-generated noise.

Process Manufacturing Control
Operate heating elements, mixing valves, and pump contactors in chemical processing, food & beverage, and pharmaceutical production lines. Wide voltage tolerance maintains operation during utility brownout conditions.

Water/Wastewater Treatment
Switch pump motors, valve actuators, and chemical dosing systems in municipal and industrial treatment facilities. Optical isolation protects against lightning-induced surges in outdoor installations.

Packaging & Palletizing Lines
Activate labelers, case sealers, and robotic gripper solenoids in high-speed packaging operations. 32-point density reduces cabinet footprint in space-constrained production environments.

HVAC & Building Automation
Manage damper actuators, fan contactors, and zone control valves in commercial building management systems requiring PLC-5 integration.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1771-OAN when your application requires AC load control with electrical isolation, operates within the 80-265V range, and can tolerate 1-second switching delays. For faster response (<10ms), consider solid-state output modules. For DC loads, specify 1771-OBD or 1771-OD modules instead.

Advanced Integration Features

Distributed I/O Networking: Integrate with 1771-ASB remote I/O adapters for DH+ or RIO network deployment, extending control up to 10,000 feet from the processor.

Fault Diagnostics: Module reports blown fuse conditions and overload faults to processor via backplane communication, enabling predictive maintenance strategies.

Wiring Flexibility: Removable terminal blocks support pre-wiring and rapid module replacement during emergency repairs, reducing downtime to under 5 minutes.

Delivery Timeline & Support Services

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL/FedEx)
Custom Configuration: 10-15 business days for factory-programmed or tested assemblies
Warranty Coverage: 12 months against manufacturing defects and performance degradation
Technical Support: Lifetime email/phone assistance for installation, programming, and troubleshooting
Documentation Package: User manual, wiring diagrams, ladder logic examples, and dimensional drawings included

Frequently Asked Questions

Can the 1771-OAN module control both 120V and 240V loads in the same installation?
No—all 32 outputs on a single module must operate at the same nominal voltage. For mixed-voltage applications, install separate modules configured for each voltage level in different chassis slots.

What is the maximum switching frequency for AC output modules in PLC-5 systems?
The 1771-OAN's 1-second ON delay limits practical switching to approximately 0.5 Hz. For applications requiring >1 Hz operation (e.g., pulse-width modulation), specify solid-state output modules with <1ms response times.

Does this output module require external circuit protection for safe operation?
Yes—NEC Article 430 and IEC 60204-1 mandate external overcurrent protection. Install appropriately-rated fuses or circuit breakers (typically 3A fast-blow) on each output circuit based on connected load characteristics.

How does optical isolation improve system reliability in industrial environments?
The 1500V isolation barrier prevents ground loops, blocks EMI from VFDs and welders, and protects the PLC backplane from voltage spikes caused by inductive load switching—reducing nuisance faults by 85% in electrically noisy environments.

Is the 1771-OAN compatible with modern ControlLogix or CompactLogix platforms?
No—this module is exclusively designed for PLC-5 processors using 1771-series I/O chassis. For ControlLogix systems, use 1756-OA16 or 1756-OA8 modules; for CompactLogix, specify 1769-OA16 or equivalent.

What maintenance procedures extend the operational lifespan of AC output modules?
Quarterly inspection of terminal tightness (torque to 7 in-lbs), annual thermal imaging to detect failing triacs, and biannual contact cleaning reduce failure rates by 70%. Replace modules exhibiting >3 output failures to prevent cascading faults.
