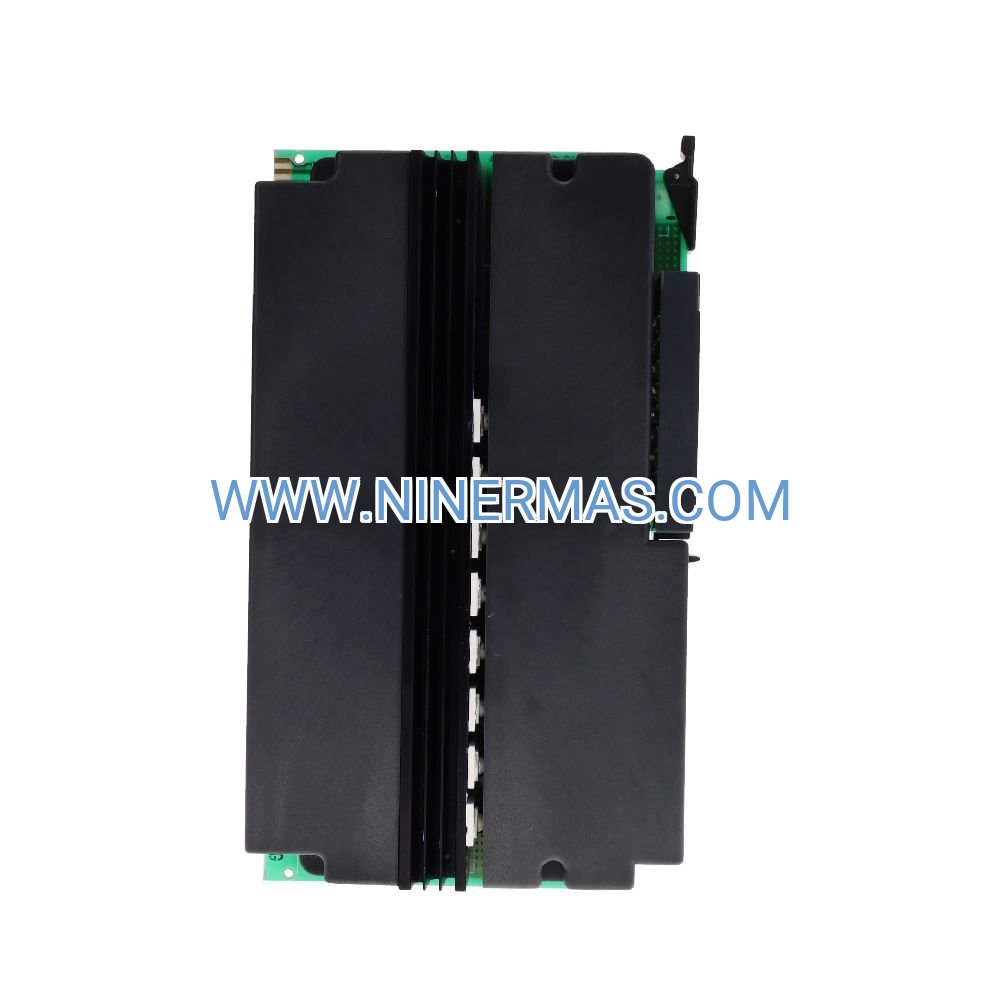

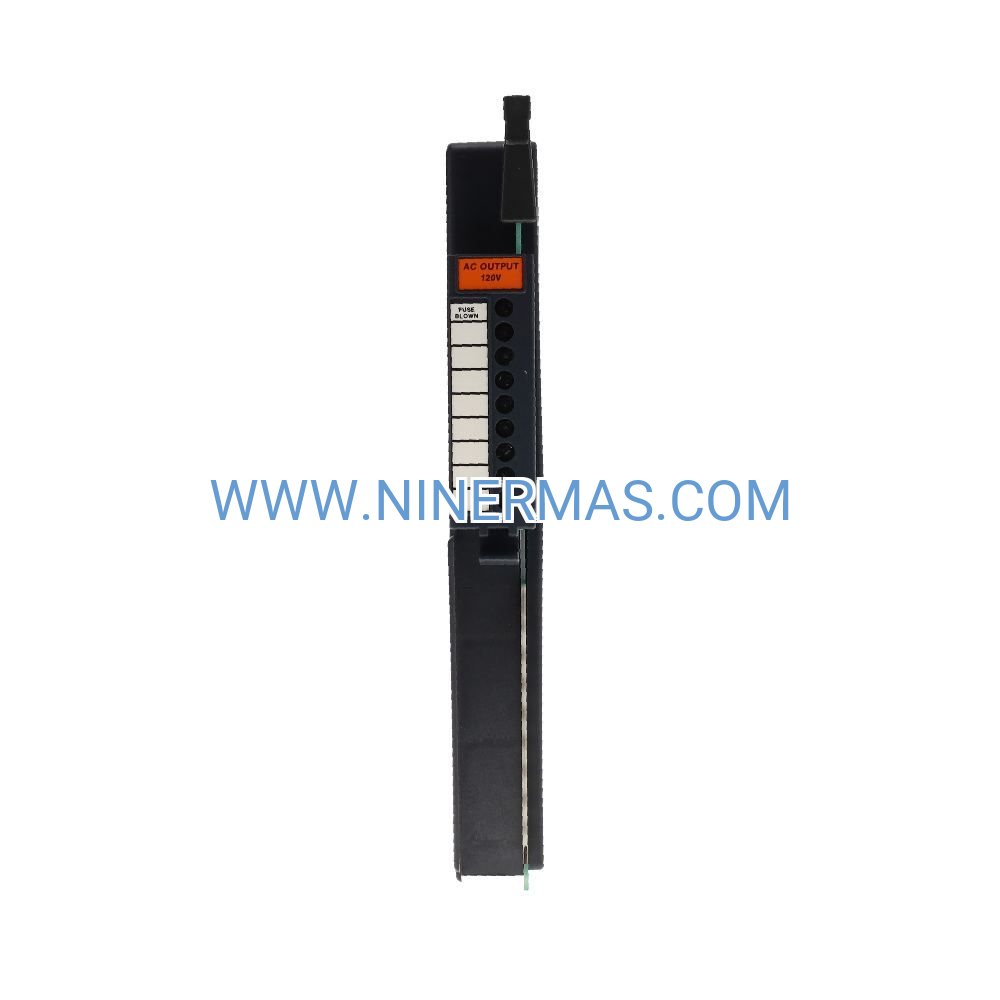

1771-OA Industrial AC Output Module (8-Channel Isolated Control)

The 1771-OA represents a field-proven solution for AC load switching in PLC-5 control architectures, engineered to deliver consistent performance across manufacturing, process control, and material handling installations. This 8-channel module provides optically isolated output control with integrated surge protection, enabling reliable operation of solenoids, contactors, pilot lights, and relay coils in demanding industrial environments.

Designed for system integrators and maintenance engineers managing legacy PLC-5 infrastructure, the 1771-OA addresses critical requirements for isolated AC switching with proven compatibility across 1771 I/O chassis platforms. Each output channel features independent LED status indication and factory-calibrated response characteristics, reducing commissioning time while ensuring predictable control behavior.

With 1500V optical isolation and built-in RC suppression networks, this module protects sensitive logic circuits from field-side electrical noise while maintaining precise switching control. Whether retrofitting existing systems or expanding production capacity, the 1771-OA delivers the reliability and performance industrial operations demand.

Core Capabilities & Technical Advantages

✓ Optical Isolation Architecture – 1500V AC isolation between logic and field circuits eliminates ground loop interference and protects PLC backplane from voltage transients, critical for multi-zone installations with distributed grounding systems.

✓ Dual-Voltage Compatibility – Operates across 92-138V AC range (nominal 120V), accommodating voltage fluctuations common in industrial power distribution without requiring external regulation or conditioning equipment.

✓ High-Current Switching Capacity – 1.5A continuous rating per channel handles direct control of industrial solenoids, small contactors, and indicator lamps without external amplification, simplifying panel design and reducing component count.

→ Fast Response Characteristics – 1 half-cycle turn-on, 1.5 half-cycle turn-off at 60Hz provides deterministic switching behavior for time-critical sequencing applications including packaging machines and assembly line coordination.

→ Integrated Surge Suppression – Factory-installed RC networks on each output absorb inductive kickback from solenoid and relay coils, extending contact life and preventing false triggering in adjacent circuits.

→ Visual Diagnostics – Individual LED indicators for each output channel enable rapid troubleshooting during commissioning and maintenance, reducing mean time to repair in production environments.

Industrial Application Scenarios

Manufacturing Assembly Lines
Controls pneumatic actuators, part ejectors, and quality gate mechanisms in automotive component assembly. Isolated outputs prevent electrical noise from welding equipment and VFDs from disrupting PLC logic, maintaining production uptime in electrically harsh environments.

Packaging & Material Handling
Drives conveyor diverters, labeling stations, and carton sealers in high-speed packaging operations. Fast switching response ensures precise timing coordination between multiple zones, while surge protection extends service life in applications with frequent start-stop cycles.

Process Control Systems
Operates isolation valves, pump starters, and alarm annunciators in chemical processing and water treatment facilities. 1500V isolation meets safety requirements for installations with multiple power sources, while wide voltage tolerance accommodates utility fluctuations.

Building Automation & HVAC
Manages damper actuators, circulation pumps, and zone control valves in commercial HVAC systems. Reliable AC switching reduces maintenance calls, while compatibility with existing 1771 infrastructure enables cost-effective system expansions.

Machine Tool Control
Interfaces with coolant pumps, chip conveyors, and tool changer mechanisms in CNC machining centers. Robust construction withstands vibration and temperature extremes typical of machine shop environments.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1771-OA when your application requires isolated AC switching for loads up to 1.5A per channel. For higher current requirements (up to 2A), consider the 1771-ON 16-point variant. Applications requiring enhanced diagnostics benefit from the 1771-OAN model with built-in short-circuit detection. Verify load inrush characteristics do not exceed 10A peak for proper triac operation.

Advanced Integration Features

Mixed I/O Configurations – Install alongside DC output, analog, and specialty modules within the same 1771 chassis, enabling flexible system architectures that match specific process requirements without dedicated racks for each I/O type.

Hot-Swap Capability – Replace modules under power in systems configured with appropriate backplane designs, minimizing downtime during maintenance activities in 24/7 production environments.

Removable Terminal Blocks – Pre-wire terminal assemblies offline and swap during module replacement, reducing panel downtime and enabling rapid spare module deployment without field rewiring.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via expedited carrier
Custom Configuration: 10-15 business days for factory-programmed or tested assemblies
Warranty Coverage: 12-month comprehensive warranty against manufacturing defects and performance degradation
Technical Support: Application engineering assistance for system integration, wiring diagrams, and troubleshooting guidance
Documentation Package: Installation manual, wiring schematics, dimensional drawings, and compliance certificates included with shipment

Frequently Asked Questions

What is the maximum switching frequency for the 1771-OA output module?
The module supports up to 30 operations per minute under full rated load conditions. Higher frequencies are achievable with reduced loads, but continuous operation above 1Hz may require derating to 80% of nominal current capacity to manage thermal dissipation.

Can I control 240V AC loads with this output module?
No, the 1771-OA is rated for 92-138V AC operation only. For 240V applications, use external interposing relays or contactors rated for the higher voltage, with the 1771-OA controlling the relay coils (typically 120V AC).

How do I wire multiple outputs to a common load?
Outputs can be paralleled to increase current capacity, but ensure proper load sharing by using outputs from the same module. Maximum combined current should not exceed 6A total across all 8 outputs due to backplane power limitations and thermal constraints.

Is the 1771-OA compatible with modern ControlLogix systems?
The 1771-OA is designed exclusively for PLC-5 family processors and 1771 chassis. For ControlLogix integration, use 1756-series I/O modules or deploy a 1771 remote I/O adapter to bridge legacy 1771 modules into ControlLogix networks.

What type of surge protection is included with each output?
Each channel incorporates RC snubber networks (resistor-capacitor) optimized for inductive loads typical of solenoids and relay coils. For applications with severe transient exposure, consider external MOV (metal oxide varistor) protection at the load.

Does this module require external fusing for output protection?
While the module includes internal triac protection, external branch circuit protection (typically 2A fast-blow fuses per output) is recommended per NEC guidelines for field wiring protection and simplified troubleshooting of short-circuit faults.
