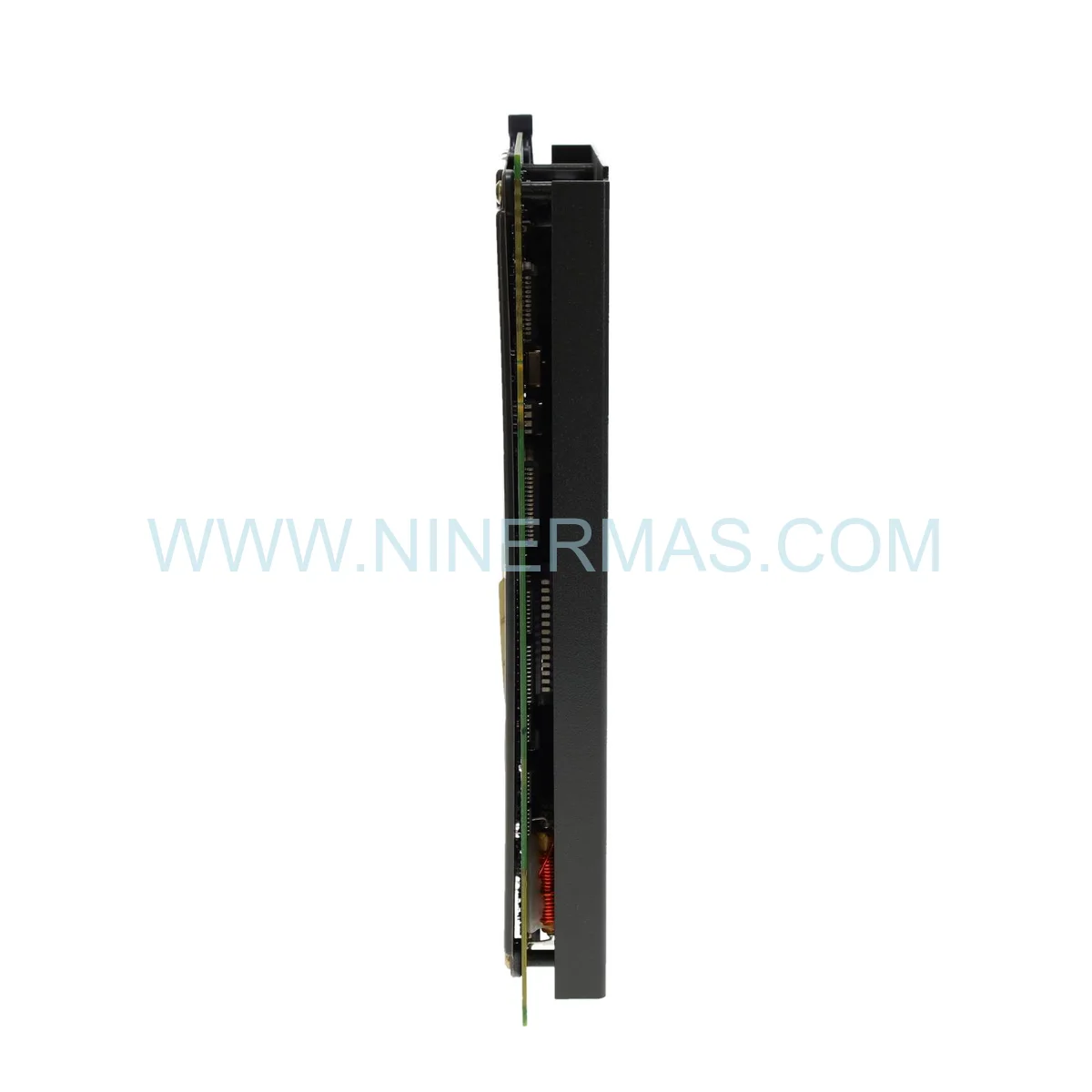

Allen-Bradley 1771-NOC Analog Output Module

Allen-Bradley 1771-NOC Analog Output Module – Industrial Process Solution

From the perspective of a Global Sourcing Manager who has navigated hundreds of critical plant shutdowns, few components carry the operational weight of the Allen-Bradley 1771-NOC. This 4-channel isolated analog output module is the backbone of countless Distributed Control System (DCS) architectures built on the Rockwell Automation PLC-5 platform — a platform that, despite its legacy status, continues to govern mission-critical Process Control loops in refineries, chemical plants, and power generation facilities worldwide. The Allen-Bradley 1771-NOC converts 12-bit digital values from the PLC-5 backplane into precision analog signals (voltage or current), commanding field devices with the accuracy that modern industrial safety demands.

What separates this module from generic alternatives is its deep compatibility with the 1771 I/O chassis ecosystem. Unlike third-party substitutes that introduce Fieldbus timing inconsistencies or backplane handshake failures, the 1771-NOC operates within Rockwell’s validated firmware environment — ensuring zero-compromise integration with RSLogix 5 ladder logic and existing I/O image table mappings. For facilities managing Legacy Components under strict change-management protocols, this distinction is not a preference; it is a compliance requirement.

Original stock of the 1771-NOC is increasingly scarce. As Rockwell Automation has transitioned its portfolio toward ControlLogix and CompactLogix platforms, Factory Sealed units of this module have become a finite resource. Securing genuine inventory now — before the next unplanned outage — is the strategic decision that separates proactive maintenance teams from reactive ones.

Key Technical Highlights

4 Fully Isolated Analog Output Channels — 1500V optical isolation per channel eliminates ground loops in high-EMI DCS Hardware environments.
12-Bit Resolution (1 in 4096) — Delivers ±0.1% full-scale accuracy at 25°C, meeting the precision thresholds of closed-loop Process Control applications.
Configurable Output Ranges — Supports ±10V DC, 0-10V DC, 0-20mA, and 4-20mA; software-selectable via RSLogix 5, eliminating external signal conditioning hardware.
Hot-Swap Capable — Module replacement without full chassis power-down minimizes Mean Time to Repair (MTTR) during emergency maintenance windows.
Redundancy-Ready Architecture — Compatible with PLC-5 redundant processor configurations, supporting high-availability Distributed Control System designs.
Factory Sealed Condition — Each unit sourced through our supply chain is verified original, preserving the calibration baseline and long-term Stability guarantees.
8ms Per-Channel Update Rate — High-speed scan cycle compatibility ensures real-time responsiveness in fast-loop control strategies.

Vertical Industry Applications

Petrochemical & Refining: The 1771-NOC commands proportional control valves and variable-speed pump drives in crude distillation and hydrocracking units. In these environments, a single analog output failure can trigger a Safety Instrumented System (SIS) shutdown — costing upwards of $500,000 per hour. Having a Factory Sealed replacement on-site is not optional; it is a risk mitigation strategy.

Mining & Mineral Processing: Conveyor speed regulation, flotation cell level control, and crusher load management all depend on reliable 4-20mA output signals. The 1771-NOC’s optical isolation is particularly valuable in mining environments where ground potential differences between equipment can corrupt unprotected analog signals.

Marine & Offshore Platforms: Offshore drilling rigs and FPSO vessels operating legacy PLC-5-based automation systems rely on the 1771-NOC for ballast control, thruster management, and process monitoring. The module’s certified operating temperature range and vibration tolerance make it suitable for the harsh marine environment.

Power Generation: Turbine governor control, boiler feedwater regulation, and generator excitation systems in coal, gas, and hydroelectric plants frequently utilize PLC-5 DCS Hardware. The 1771-NOC’s Stability under continuous 24/7 operation is a proven characteristic in this sector.

Pharmaceutical & Food Processing: Batch recipe execution requiring precise dosing, temperature profiling, and mixing speed control depends on the 12-bit resolution of the 1771-NOC. FDA-regulated facilities benefit from the module’s consistent, validated performance within existing qualified systems.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every Allen-Bradley 1771-NOC unit we supply is 100% Original — sourced directly from authorized distribution channels or verified factory-sealed surplus inventory. We do not deal in counterfeit, refurbished-as-new, or unmarked-origin components. Our quality assurance process includes visual inspection, label authentication, and functional verification testing prior to shipment.

Our 12-Month Comprehensive Warranty covers manufacturing defects and operational failures under normal industrial use conditions. Should a unit fail within the warranty period, we provide immediate replacement — not a lengthy RMA process that leaves your production line idle.

For emergency situations, we offer expedited global delivery via DHL Express, FedEx International Priority, and UPS Worldwide Express. Most in-stock orders ship within 24 hours of payment confirmation. We serve customers across North America, Europe, the Middle East, Southeast Asia, and Australia — with customs documentation and export compliance handled by our logistics team.

The Allen-Bradley 1771-NOC is classified as a Critical Part for Industry Safety. Its role in SIS-adjacent control loops means that procurement delays directly translate to operational risk. We maintain strategic buffer stock of this model precisely because lead times from alternative sources can stretch to 16-26 weeks — an unacceptable timeline for any unplanned maintenance scenario.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a 1771-NOC unit is genuinely original and not a counterfeit or refurbished part?
Authentic Allen-Bradley 1771-NOC modules carry a Rockwell Automation holographic label on the module body, a date code stamped on the PCB visible through the ventilation slots, and catalog number silk-screening that matches the official Rockwell product catalog. Our units ship with original packaging where available, and we provide a certificate of authenticity upon request. If a supplier cannot provide traceable documentation, treat the unit as suspect.

Q2: Where can I obtain the official datasheet and wiring diagrams for the 1771-NOC?
The official technical documentation — including the 1771-NOC User Manual (Publication 1771-6.5.87) and wiring diagrams — is available through Rockwell Automation’s Literature Library. We also provide a copy of the relevant technical documentation with every order to support your installation and commissioning team.

Q3: Is the 1771-NOC compatible with all PLC-5 processor variants and chassis sizes?
The 1771-NOC is compatible with all PLC-5 processor families (PLC-5/10, 5/12, 5/15, 5/20, 5/25, 5/30, 5/40, 5/60, 5/80) and all 1771 I/O chassis configurations (4-slot through 16-slot). It occupies a single slot and does not require a dedicated power supply beyond the standard 1771 chassis backplane. Verify your chassis backplane current budget before installation if the chassis is heavily loaded.

Q4: Can the 1771-NOC be used as a direct replacement in a system currently running a different analog output module?
Direct substitution depends on the original module’s I/O image table mapping and output range configuration. If replacing a 1771-NOA or 1771-NOB, minor RSLogix 5 program modifications may be required to account for differences in output scaling and channel addressing. Our technical support team can review your existing program configuration and advise on any required changes at no additional cost.

Q5: What is the typical lead time for emergency orders, and do you support partial shipments?
For in-stock units, emergency orders ship within 24 hours via DHL/FedEx/UPS express services. Estimated transit times range from 1-3 business days for most major industrial regions. We support partial shipments for multi-unit orders when immediate partial delivery reduces your downtime exposure. Contact our team with your required delivery date and we will structure the shipment accordingly.

Q6: Does the 1771-NOC support Fieldbus communication protocols such as PROFIBUS or DeviceNet?
No. The 1771-NOC communicates exclusively via the PLC-5 backplane using Rockwell’s proprietary I/O scan protocol. It is not a Fieldbus node and does not support PROFIBUS, DeviceNet, or EtherNet/IP natively. For systems requiring Fieldbus integration, the 1771-NOC functions as a local I/O module within the PLC-5 rack, with the PLC-5 processor handling any gateway communication to Fieldbus networks via dedicated communication modules.
