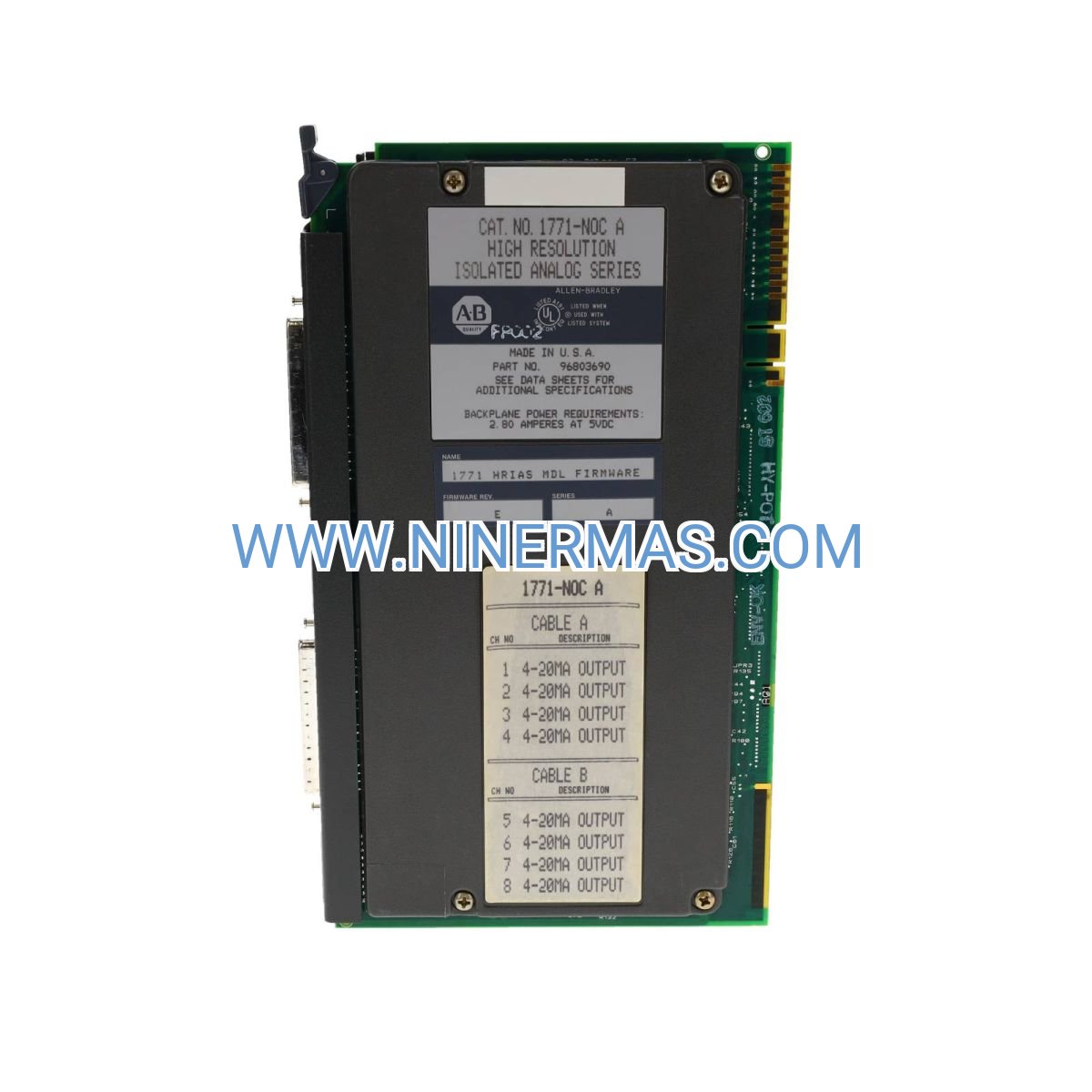

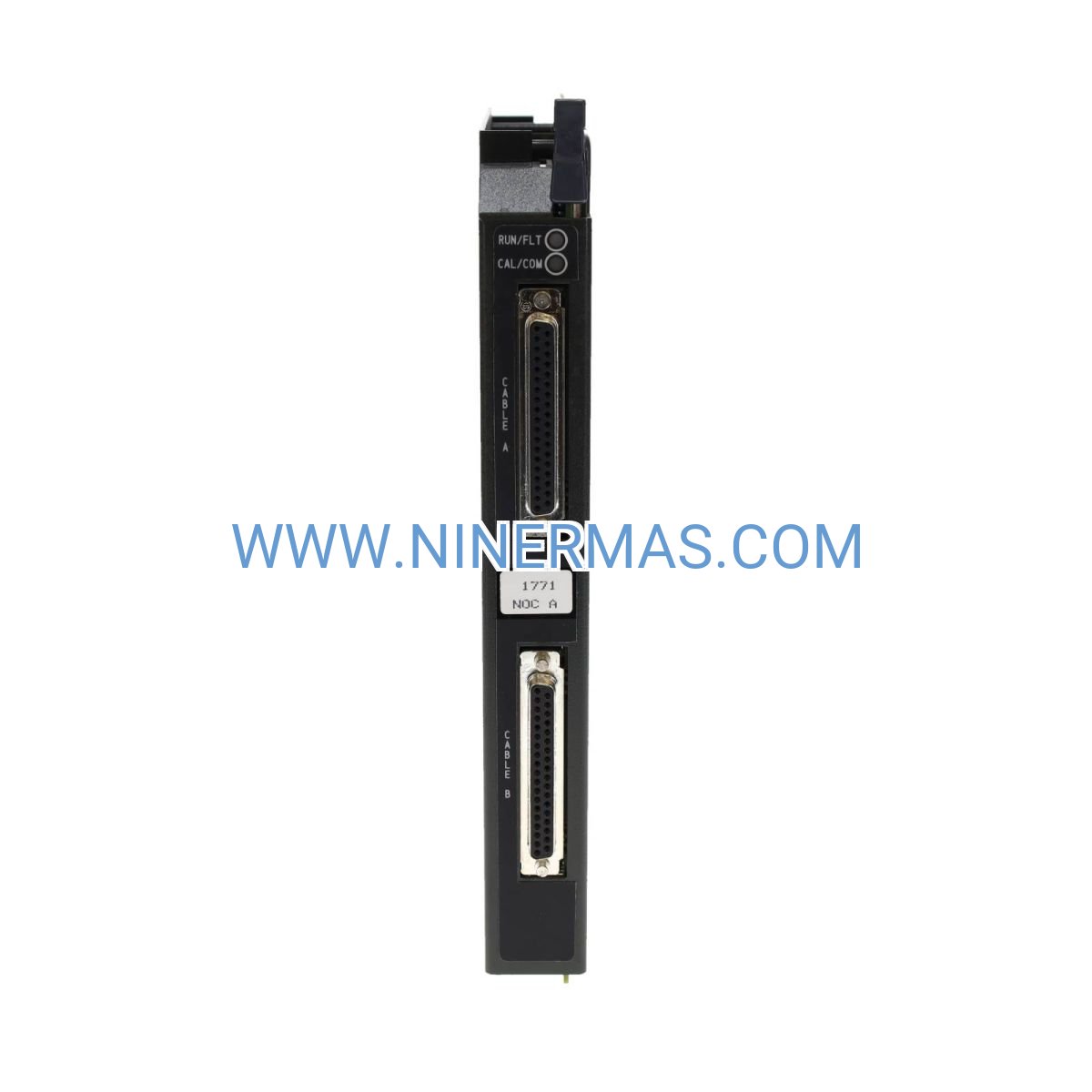

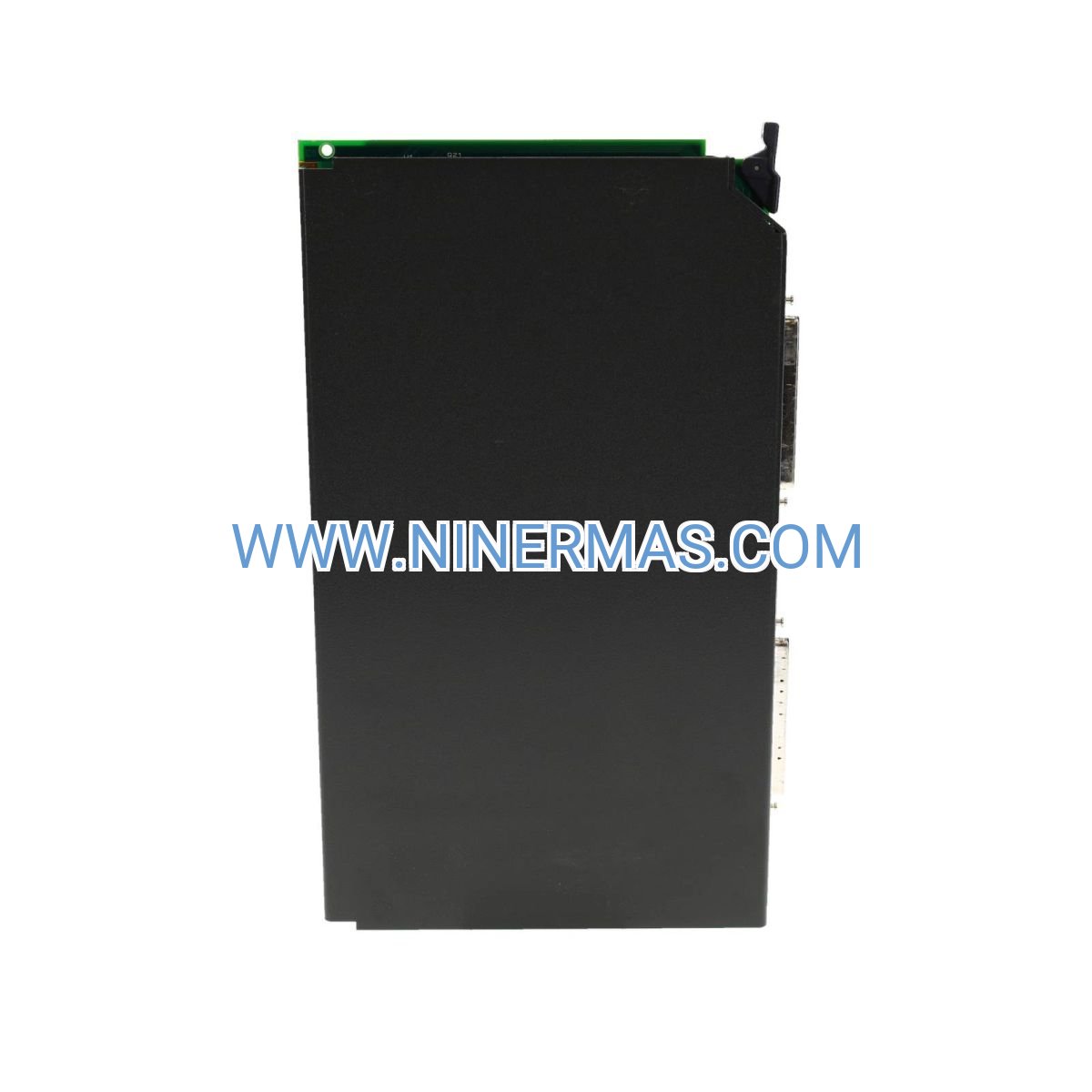

Allen-Bradley 1771-NOC Analog Output Module (Industrial-Grade PLC-5 I/O Solution)

The Allen-Bradley 1771-NOC is a precision analog output module engineered for PLC-5 control systems, delivering reliable 4-channel isolated analog signal conversion through advanced 12-bit D/A technology. This industrial-grade I/O card enables accurate control of field devices such as variable frequency drives, control valves, actuators, and instrumentation by converting digital PLC data into industry-standard ±10V voltage or 0-20mA current signals.

Designed for demanding industrial environments including process automation, SCADA systems, manufacturing control networks, and building management systems, the 1771-NOC addresses critical challenges such as signal interference, grounding issues, output drift, and multi-device coordination. Each channel features galvanic isolation to prevent ground loops and enhance noise immunity in electrically harsh installations.

Through field-proven design and comprehensive diagnostic capabilities, this module offers exceptional signal accuracy, thermal stability, hot-swappable installation, and seamless integration with existing PLC-5 architectures. Ideal for system integrators, control engineers, OEM manufacturers, and plant maintenance teams requiring dependable analog control with minimal commissioning time. Contact our application engineers for configuration assistance, wiring diagrams, and project-specific recommendations.

Core Features & Technical Advantages

Four Independent Isolated Channels
Each output channel provides electrical isolation up to 1500V AC, eliminating ground loop interference and protecting sensitive field devices from voltage transients common in industrial power distribution systems.

Dual Output Range Flexibility
Supports both voltage mode (±10V DC) and current loop mode (0-20mA or 4-20mA), allowing direct connection to a wide variety of actuators, positioners, and analog instruments without external signal conditioning.

High-Resolution 12-Bit Conversion
Delivers 4096 discrete output steps for precise control resolution, ensuring smooth modulation of process variables such as flow rate, pressure, temperature, and motor speed with minimal quantization error.

Comprehensive Fault Detection
Built-in diagnostics monitor open-circuit conditions, short-circuit faults, and over-range errors, with status indicators and PLC-readable fault registers to accelerate troubleshooting and reduce unplanned downtime.

Hot-Swap Capability & Modular Design
Conforms to PLC-5 chassis standards with keyed backplane connectors, enabling module replacement during system operation without disrupting other I/O or requiring full controller shutdown, critical for high-availability processes.

Industrial Environmental Ratings
Operates reliably across -40°C to +70°C ambient temperature range with conformal coating protection against moisture, dust, and chemical exposure, meeting UL508, CE, and RoHS compliance for global deployment.

Typical Application Scenarios

The 1771-NOC analog output module is engineered for applications demanding stable, isolated analog control signals with high reliability and diagnostic transparency:

Process Automation & Chemical Manufacturing
Controls pneumatic control valves, motorized dampers, and variable speed pumps in batch reactors, distillation columns, and blending systems where precise flow and pressure regulation directly impact product quality and safety compliance.

HVAC & Building Management Systems
Modulates chilled water valves, VAV box actuators, and fan speed controllers in commercial buildings, data centers, and pharmaceutical cleanrooms, maintaining tight environmental setpoints while optimizing energy consumption through proportional control strategies.

Water & Wastewater Treatment Plants
Drives chemical dosing pumps, pH adjustment systems, and aeration blowers in municipal and industrial treatment facilities, ensuring regulatory discharge compliance through closed-loop feedback control with flow and level transmitters.

Manufacturing Automation & Material Handling
Interfaces with servo amplifiers, tension controllers, and proportional hydraulic valves in packaging lines, conveyor systems, and robotic work cells, synchronizing multi-axis motion and force control for consistent production throughput.

Energy & Utilities Infrastructure
Regulates turbine governor systems, transformer tap changers, and substation voltage regulators in power generation and distribution networks, supporting grid stability and load balancing through real-time analog command signals.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, review the following technical parameters when specifying the 1771-NOC module for your application:

Key Electrical Parameters:

• Number of Channels: 4 independent isolated outputs
• Output Voltage Range: ±10V DC (20V span), 10mA max per channel
• Output Current Range: 0-20mA or 4-20mA (software selectable), 600Ω max load
• Resolution: 12-bit (1 in 4096), ±0.1% full-scale accuracy
• Isolation Voltage: 1500V AC continuous between channels and backplane
• Update Rate: Configurable from 1ms to 1000ms per channel via PLC program
• Power Consumption: 4.5W typical at 5V DC from PLC-5 backplane

Mechanical & Environmental:

• Mounting: Single-slot 1771 I/O chassis compatible (1771-A1B, A2B, A3B, A4B series)
• Termination: Removable 20-pin terminal block with screw-clamp connections
• Operating Temperature: 0°C to +60°C (32°F to 140°F) standard, -25°C to +70°C extended
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 5% to 95% non-condensing
• Vibration: 2G peak, 10-500Hz per IEC 60068-2-6
• Shock: 30G operational, 50G non-operational per IEC 60068-2-27

Selection Considerations:
When configuring your system, evaluate the following project-specific factors: maximum output current requirements and load impedance, required signal isolation level based on electrical noise environment, ambient temperature range and enclosure ventilation, available backplane slot positions and power budget, and compatibility with existing PLC-5 processor firmware revision. For custom configurations, extended temperature variants, or conformal coating options, consult with our application engineering team by providing system architecture diagrams, I/O point lists, and environmental specifications.

Advanced Integration Capabilities

Multi-Protocol Communication Support
Seamlessly integrates with RSLogix 5 programming software for configuration, calibration, and real-time diagnostics. Supports remote monitoring via DH+, ControlNet, or Ethernet/IP gateways when paired with compatible communication adapters, enabling centralized SCADA visualization and predictive maintenance analytics.

Scalable Channel Expansion
Multiple 1771-NOC modules can be installed in the same chassis to support large-scale control systems requiring dozens of analog outputs. Distributed I/O architectures using remote I/O racks extend analog control to field-mounted enclosures up to 10,000 feet from the main controller, reducing wiring costs and installation complexity.

Calibration & Maintenance Tools
Factory-calibrated to NIST-traceable standards with stored calibration coefficients in non-volatile memory. Field recalibration supported through RSLogix software interface using precision voltage/current references, with calibration certificates available upon request for regulated industries (FDA 21 CFR Part 11, ISO 9001).

Delivery, Service & Quality Assurance

Inventory & Lead Time:
Standard 1771-NOC modules typically ship from stock within 1-3 business days. Custom-configured units with extended temperature ratings or special certifications require 10-15 business days. Expedited shipping options available for critical project timelines and emergency replacement scenarios.

Warranty & Technical Support:
All modules include a comprehensive 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty programs and advance replacement services available for mission-critical installations. Our technical support team provides remote diagnostics, configuration assistance, and on-site commissioning support (subject to geographic availability and service agreement terms).

Documentation & Compliance:
Each module ships with complete technical documentation including installation manual, wiring diagrams, terminal block layout, I/O addressing tables, and RSLogix configuration examples. Compliance certifications include UL508 (Industrial Control Equipment), CE Mark (EMC Directive 2014/30/EU), RoHS (Restriction of Hazardous Substances), and ATEX/IECEx documentation available for hazardous location installations.

Training & Integration Services:
Customized training programs available for maintenance personnel and system integrators covering module installation, troubleshooting procedures, and advanced programming techniques. System integration services include I/O panel design, pre-wired terminal assemblies, and factory acceptance testing (FAT) for turnkey control panel solutions.

Frequently Asked Questions (FAQ)

Q: How do I interface the 1771-NOC analog output module with existing field devices?
A: The module connects via a removable 20-pin terminal block with clearly labeled screw terminals. For voltage mode outputs (±10V), connect the output terminal and common ground to your device's analog input. For current loop mode (4-20mA), configure the channel via RSLogix software and wire in series with your load (max 600Ω). Detailed wiring diagrams are provided in the installation manual, and our engineers can review your specific device datasheets to confirm compatibility and recommend proper shielding techniques for noisy environments.

Q: What is the maximum number of 1771-NOC modules supported in a single PLC-5 chassis?
A: The quantity depends on your chassis model and available backplane power budget. Each 1771-NOC consumes approximately 4.5W from the 5V DC backplane supply. For example, a 1771-A4B chassis with 50W available power can support up to 10 modules (40W total), leaving margin for other I/O cards. Always verify total power consumption using the RSLogix chassis configuration tool to prevent backplane overload and ensure reliable operation.

Q: What energy savings and control accuracy improvements can I expect compared to relay-based control?
A: Analog proportional control via the 1771-NOC typically delivers 20-40% energy reduction in variable-load applications (pumps, fans, valves) compared to on/off relay control, by matching output precisely to demand rather than cycling at full capacity. The 12-bit resolution (0.024% of span) enables smooth modulation without hunting or oscillation, extending actuator lifespan and improving process stability. Actual savings depend on load profile, duty cycle, and baseline system efficiency—our application engineers can perform energy audits and ROI calculations based on your specific process data.

Q: What are the environmental requirements for installing the 1771-NOC module?
A: The module operates reliably in 0°C to +60°C ambient temperature (extended range -25°C to +70°C available) with 5-95% non-condensing humidity. Install in NEMA 12 or IP54-rated enclosures minimum to protect against dust and moisture. Ensure adequate ventilation—maintain 2 inches clearance above and below the chassis for convective cooling. For harsh environments (chemical exposure, extreme vibration), specify conformal-coated versions and use vibration-damping chassis mounts. The module meets IEC 60068 standards for industrial shock and vibration, suitable for factory floor installations.

Q: Does the 1771-NOC support remote monitoring and data logging for predictive maintenance?
A: Yes, when integrated with PLC-5 processors equipped with communication modules (1771-KG, 1771-ACN, or Ethernet/IP adapters), the module's diagnostic data and output values can be accessed via DH+, ControlNet, or Ethernet networks. This enables SCADA systems, historians (such as Rockwell FactoryTalk, Wonderware, or Ignition), and cloud-based analytics platforms to log output trends, detect drift or calibration issues, and trigger maintenance alerts. The module supports standard Rockwell Automation communication protocols including EDS files for seamless integration with third-party HMI and MES systems.

Request Technical Support & Custom Solutions

To receive detailed application engineering support, custom configuration recommendations, or project quotations, please provide the following information to our technical team:

• Project name and application overview (process type, industry sector)
• Number of analog output points required and signal types (voltage/current)
• Field device specifications (input impedance, signal range, manufacturer/model)
• PLC-5 processor model and chassis configuration (slots available, backplane power)
• Environmental conditions (temperature range, enclosure type, hazardous area classification)
• Communication requirements (local I/O, remote I/O, network integration)
• Delivery timeline and quantity requirements

Our certified application engineers will provide one-on-one consultation including system architecture review, I/O point allocation, wiring diagrams, parts lists with pricing, and commissioning support recommendations tailored to your project requirements.
