Allen-Bradley 1771-KE ASCII Interface Module | PLC-5 Serial Communication & Data Acquisition

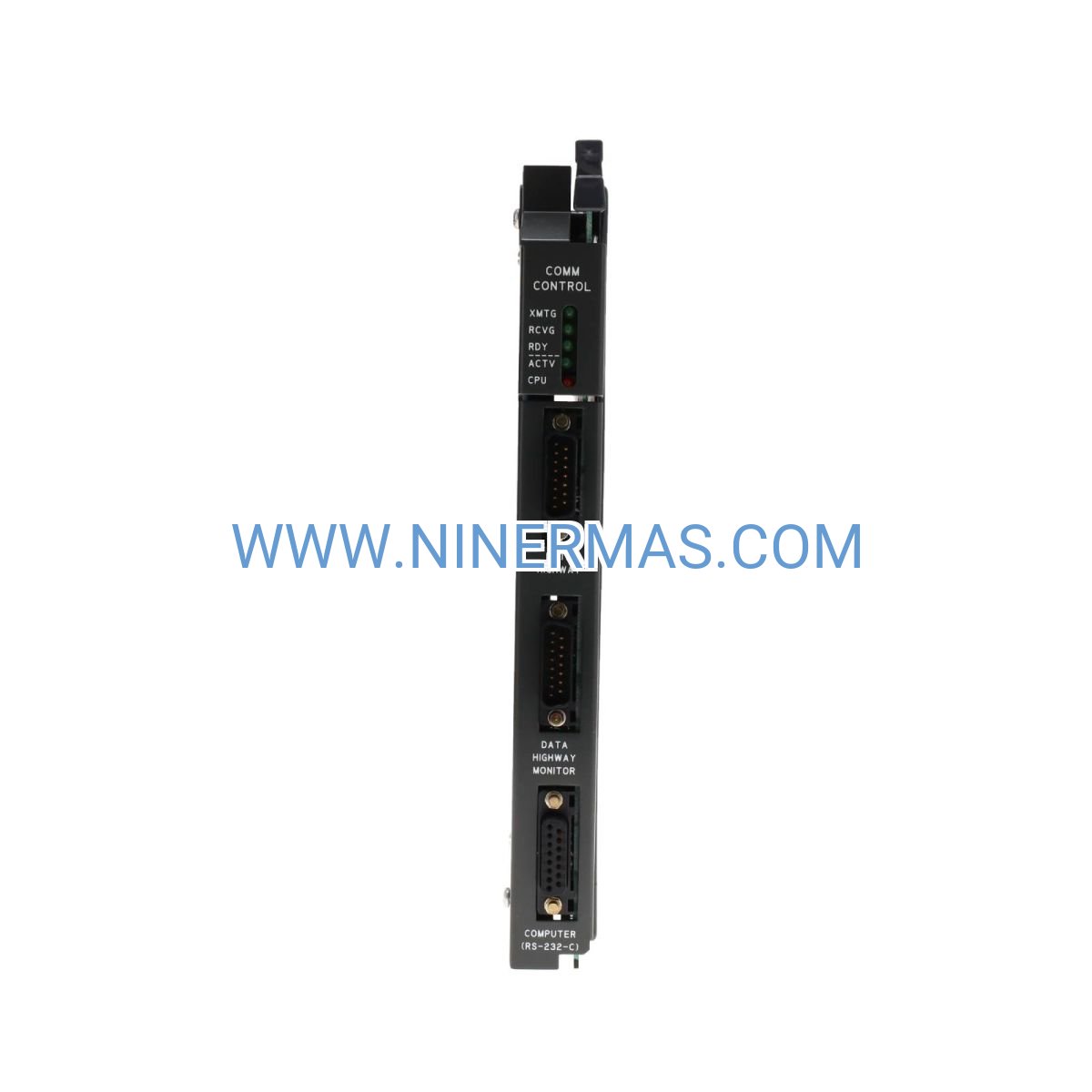

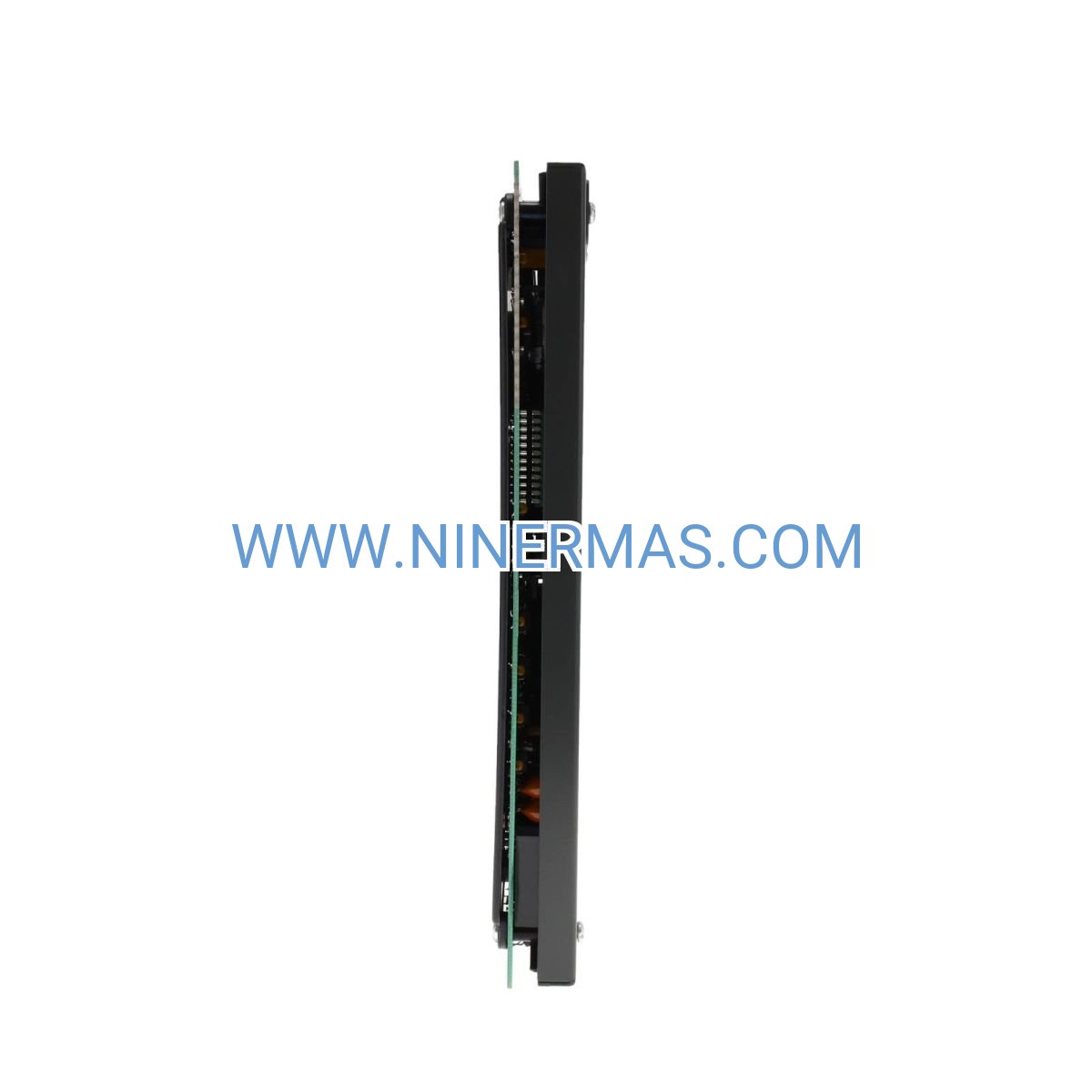

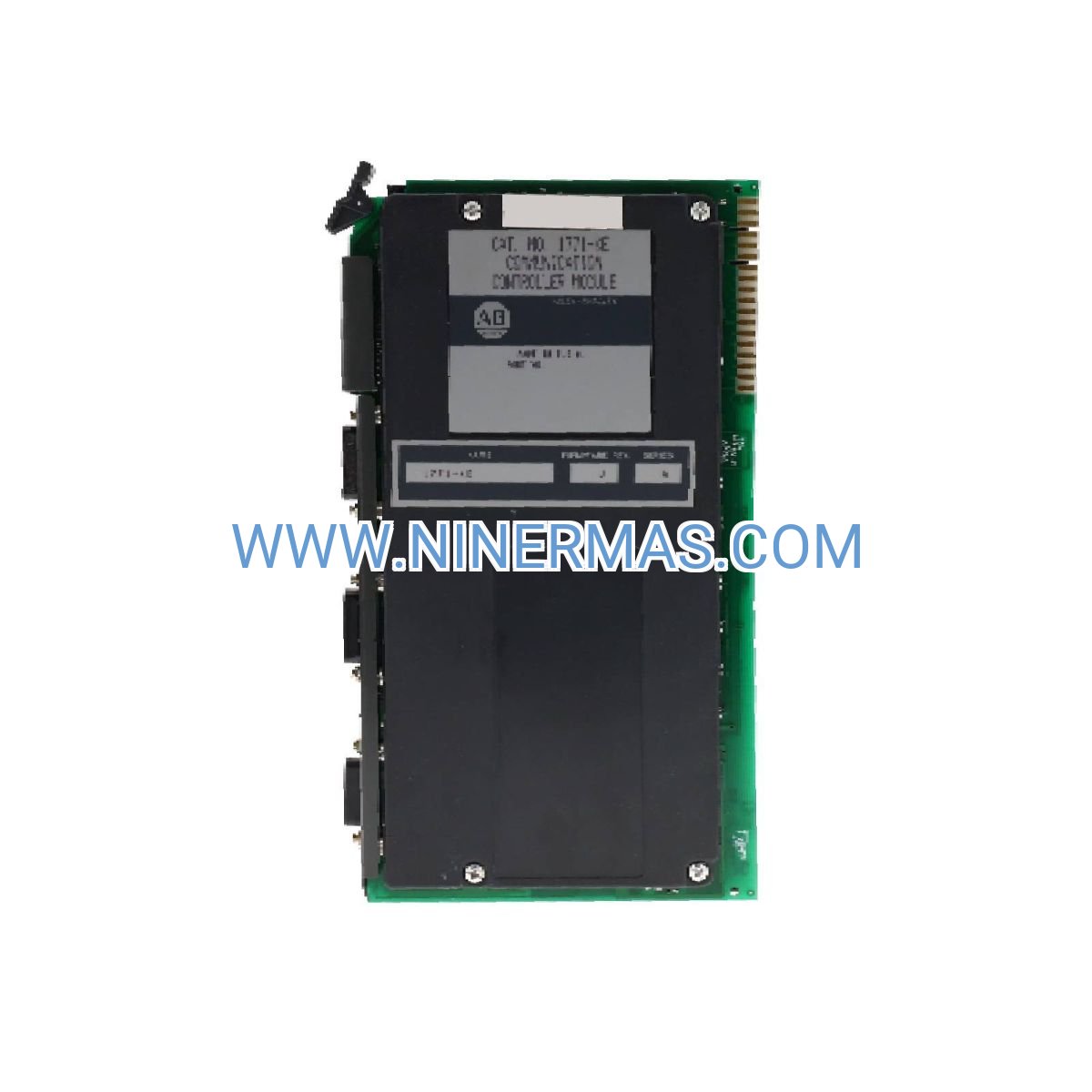

Allen-Bradley 1771-KE ASCII Interface Module (Industrial Serial Communication System)

The Allen-Bradley 1771-KE is a specialized ASCII communication interface module designed for PLC-5 programmable logic controller systems. Through RS-232/RS-422 serial communication protocols and intelligent data processing capabilities, it enables seamless connectivity between PLC-5 controllers and external ASCII-based devices such as barcode scanners, label printers, weighing instruments, and legacy industrial equipment.

Ideal for manufacturing automation, warehouse management systems, process control applications, and industrial data acquisition scenarios, this module addresses critical challenges including incompatible communication protocols, unreliable data transmission, complex manual configuration requirements, and limited diagnostic capabilities for serial device integration.

Built on proven Allen-Bradley engineering standards with flexible configuration options, the 1771-KE delivers reliable serial communication, energy-efficient operation, simplified maintenance procedures, and broad compatibility with third-party ASCII devices. It serves design engineers, system integrators, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for configuration assistance and technical quotations.

Core Features & Advantages

• Dual Serial Interface Support
  Equipped with both RS-232 and RS-422 communication ports, supporting full-duplex and half-duplex modes with data rates up to 19.2 kbps, ensuring stable long-distance transmission and reducing electromagnetic interference in industrial environments.
• Flexible ASCII Protocol Handling
  Compared to fixed-protocol modules, the 1771-KE offers programmable message formatting, delimiter configuration, and error-checking options, reducing integration complexity and accelerating commissioning timelines for diverse ASCII devices.
• Seamless PLC-5 Integration
  Occupies a single slot in 1771 I/O chassis, shares backplane power and communication resources, and integrates directly with RSLogix 5 programming software for unified system configuration and real-time data monitoring.
• Comprehensive Diagnostic Capabilities
  Features built-in status indicators for power, communication activity, and fault conditions, plus software-accessible error codes and buffer status, minimizing troubleshooting time and reducing unplanned downtime.
• Industrial-Grade Reliability
  Conformal-coated circuitry withstands harsh factory environments including temperature extremes (-40°C to +70°C storage), vibration, and electrical noise, ensuring continuous operation in demanding industrial applications.
• Proven Legacy Device Connectivity
  Enables integration of existing barcode readers, RFID terminals, analytical instruments, and custom ASCII equipment without costly hardware replacement, protecting capital investment and extending equipment lifecycle.

Typical Application Scenarios

This module is specifically designed for applications requiring reliable ASCII data exchange, real-time device monitoring, and seamless integration with PLC-5 control systems, particularly in:

• Automated Material Handling & Warehousing
  Connects barcode scanners and RFID readers to PLC-5 controllers for real-time inventory tracking, automated sorting operations, and shipping verification, reducing manual data entry errors and improving warehouse throughput efficiency.
• Manufacturing Process Data Acquisition
  Interfaces with weighing scales, temperature controllers, analytical instruments, and quality inspection devices to capture production data, enabling statistical process control (SPC) and automated quality documentation in pharmaceutical, food processing, and automotive assembly operations.
• Industrial Printing & Labeling Systems
  Drives thermal transfer printers, inkjet markers, and label applicators with dynamic data from PLC-5 programs, supporting variable product information, serialization requirements, and compliance labeling in packaging and logistics applications.
• Legacy Equipment Modernization
  Provides communication bridge between modern PLC-5 control systems and older ASCII-based equipment including CNC machines, test stands, and proprietary industrial devices, enabling phased automation upgrades without complete system replacement.
• Remote Terminal & HMI Connectivity
  Supports connection to ASCII-based operator terminals, data loggers, and custom display panels for distributed control applications in water treatment facilities, power generation plants, and building automation systems.

Technical Specifications & Selection Guide

To facilitate engineering design and product selection, we provide standardized electrical, communication, and environmental specifications. Custom configurations available for specialized project requirements.

Selection Recommendations: When specifying the 1771-KE module, consider the following project parameters: required baud rate and data format of connected ASCII devices, maximum cable distance (RS-232: 15m typical; RS-422: 1200m), available slot positions in existing 1771 chassis, environmental conditions at installation location, and programming software version compatibility. For application assistance, please provide device communication specifications, system architecture diagrams, and environmental conditions. Our application engineers will recommend optimal configuration and provide integration support.

Advanced Configuration Options

• Message Formatting & Delimiters: Programmable start/end characters, field separators, and checksum algorithms to match specific device protocols
• Handshaking Protocols: Configurable hardware (RTS/CTS) and software (XON/XOFF) flow control for reliable data transfer
• Error Handling: Timeout detection, parity error checking, and buffer overflow protection with programmable response actions
• Multi-Drop Networking: RS-422 mode supports multi-point configurations for connecting multiple devices on shared communication lines
• Ladder Logic Integration: Pre-built function blocks and sample code available for common ASCII device types, accelerating programming development

Delivery, Service & Quality Assurance

Standard catalog items typically ship from stock within 1-3 business days; custom-configured solutions or large-volume orders require 5-10 business days lead time. All modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Technical support includes remote configuration assistance, on-site commissioning services (subject to location and project scope), and access to comprehensive documentation packages.

Each module ships with complete technical documentation including product specifications, wiring diagrams, RS-232/RS-422 pinout details, configuration worksheets, sample ladder logic programs, and troubleshooting guides. Documentation facilitates rapid installation, system integration, and ongoing maintenance operations.

Frequently Asked Questions (FAQ)

Q: How does the 1771-KE ASCII interface module connect to existing PLC-5 control systems?
A: The module installs in any available slot of a 1771 I/O chassis and communicates via the backplane with the PLC-5 processor. Configuration is performed through RSLogix 5 software using standard I/O configuration procedures. External ASCII devices connect via DB9 connector (RS-232) or terminal block (RS-422) on the module front panel.

Q: What is the maximum number of ASCII devices that can be connected to one 1771-KE module?
A: Each module provides one RS-232 port and one RS-422 port, supporting one device per port in point-to-point mode. RS-422 mode can support multi-drop configurations with up to 32 devices on a shared bus, though this requires compatible devices and appropriate addressing protocols.

Q: What communication speed and reliability can be expected in typical industrial environments?
A: The module supports baud rates from 300 to 19,200 bps. In electrically noisy environments, RS-422 mode is recommended for distances beyond 15 meters, providing differential signaling that rejects common-mode noise. Typical applications achieve >99.9% message delivery reliability when properly configured with appropriate cable shielding and grounding practices.

Q: What are the environmental requirements and protection ratings for installation?
A: The 1771-KE is an open-type module designed for installation in enclosed 1771 chassis. Operating temperature range is 0°C to +60°C with 5-95% relative humidity (non-condensing). The chassis enclosure should provide appropriate NEMA or IP rating based on installation environment. Conformal coating on the module PCB provides additional protection against moisture and contaminants.

Q: Does the module support remote monitoring, data logging, or network connectivity?
A: The 1771-KE handles serial ASCII communication only. For Ethernet connectivity, remote monitoring, or data historian integration, the PLC-5 system requires additional networking modules such as 1771-SDN (DeviceNet) or 1785-ENET (Ethernet). ASCII data received by the 1771-KE can be processed by the PLC-5 program and forwarded to these network modules for enterprise-level connectivity.

Q: Is the module compatible with newer ControlLogix or CompactLogix platforms?
A: The 1771-KE is specifically designed for PLC-5 systems using 1771 I/O chassis. For ControlLogix platforms, consider the 1756-EWEB or 1756-EN2T modules with ASCII protocol support. For CompactLogix, the 1769-ASCII module provides equivalent functionality. Migration from PLC-5 to newer platforms may require communication architecture redesign.

Request Technical Support & Quotation

To receive detailed configuration recommendations, application-specific pricing, or technical consultation, please provide the following project information: application description and industry sector, connected ASCII device specifications (manufacturer, model, protocol), required communication parameters (baud rate, data format, cable distance), existing PLC-5 system configuration (processor model, chassis type, available slots), installation environment conditions (temperature, humidity, electrical noise sources), and project timeline requirements. Our application engineering team will provide personalized selection guidance and comprehensive technical support.
