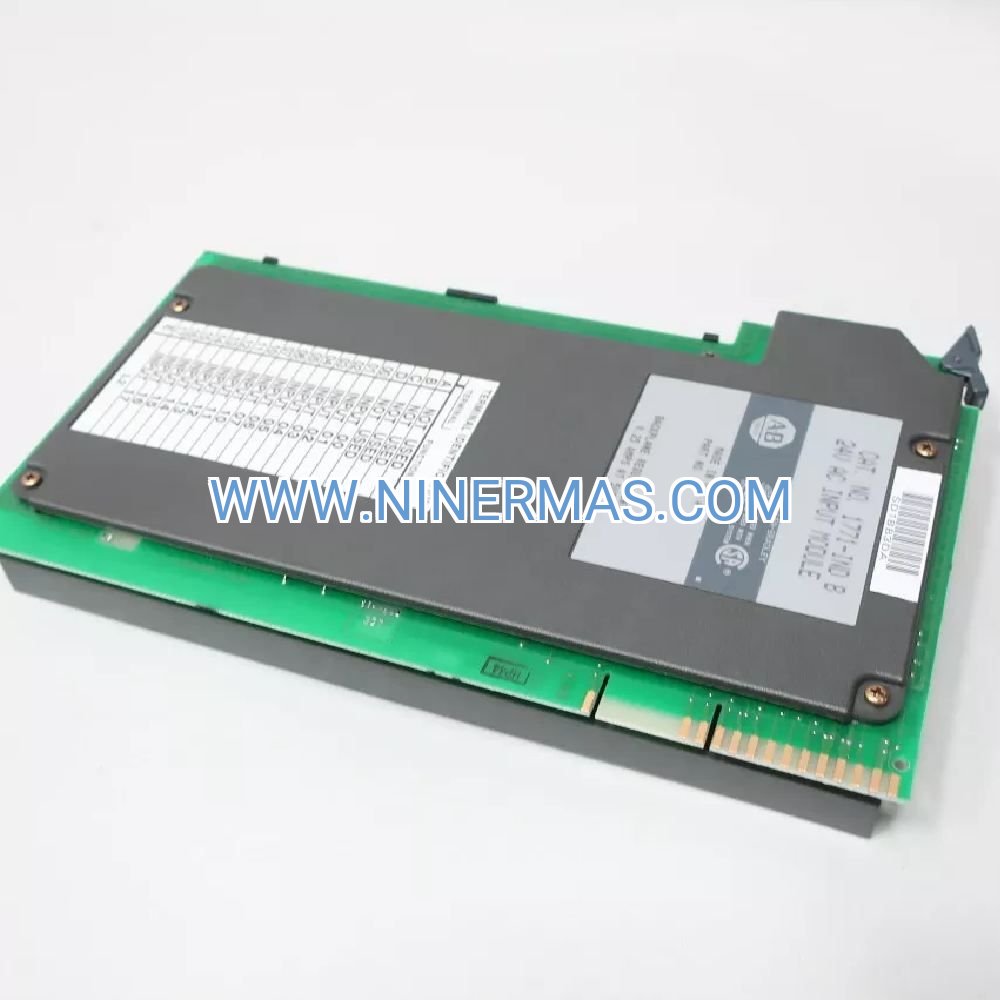

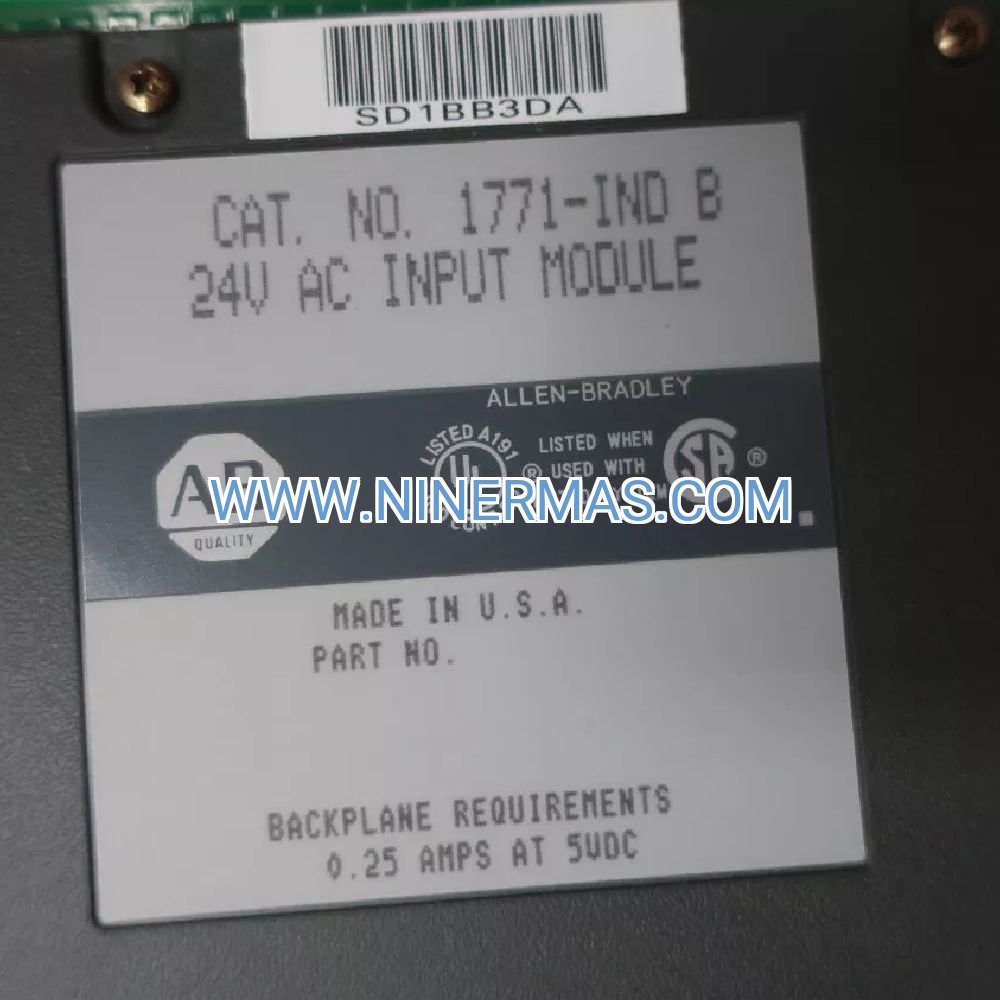

1771-IND 16-Point AC/DC Input Module (Industrial-Grade Signal Acquisition)

The 1771-IND represents a proven solution for discrete signal monitoring in Allen-Bradley PLC-5 control architectures. Engineered with dual AC/DC input capability and 1500V optical isolation, this 16-channel digital input card delivers dependable field device interfacing for manufacturing automation, process control installations, and machine safety systems where signal integrity and system uptime are non-negotiable.

Designed for integration into legacy and hybrid control environments, the 1771-IND addresses the challenge of consolidating mixed-voltage sensor networks while maintaining electrical isolation and diagnostic visibility. Plant engineers and system integrators rely on this module to bridge proximity sensors, limit switches, photoelectric devices, and relay contacts into a unified PLC-5 I/O framework.

With hot-swap capability, LED-based channel diagnostics, and compatibility across the 1771-A series chassis family, the 1771-IND minimizes planned downtime and accelerates fault resolution—critical advantages in continuous production and high-availability applications.

Core Features & Benefits

→ Dual-Voltage Input Flexibility
Accepts both 24V AC (20-28V range) and 24V DC (10-30V range) signals on any channel, eliminating the need for separate AC-only or DC-only modules and reducing spare parts inventory.

→ 1500V Optical Isolation
Protects PLC backplane circuitry from field-side voltage transients, ground loops, and electrical noise—essential for installations with long cable runs or electrically harsh environments.

→ Hot-Swap Serviceability
Supports module replacement under power without disrupting adjacent I/O or halting the control program, reducing mean time to repair (MTTR) by up to 40% compared to non-hot-swap designs.

✓ Per-Channel LED Diagnostics
Real-time visual indication of input state for each of the 16 points accelerates troubleshooting and eliminates guesswork during commissioning or fault isolation.

✓ RC Filtering & Debounce
Built-in signal conditioning suppresses contact bounce and high-frequency noise, ensuring clean state transitions and preventing false triggering in relay-based or mechanical switch applications.

✓ PLC-5 Ecosystem Compatibility
Seamlessly integrates with 1771-A1B through 1771-A4B chassis and communicates via the PLC-5 backplane protocol, preserving existing infrastructure investments and programming logic.

Application Scenarios

Automated Assembly & Packaging Lines
Monitor part-present sensors, conveyor position switches, and safety interlocks across multi-station assembly cells. The 1771-IND's dual-voltage capability accommodates mixed sensor types without additional interface hardware, simplifying panel design and reducing wiring complexity.

Material Handling & Sortation Systems
Interface with photoelectric sensors, inductive proximity switches, and limit switches in high-speed sortation conveyors. Optical isolation prevents ground-loop-induced errors in systems with distributed motor drives and VFDs.

Process Control & SCADA Integration
Acquire discrete status signals from valve position indicators, pump run confirmations, and alarm contacts in water treatment, chemical processing, or oil & gas facilities. The module's industrial temperature rating (0-60°C) supports installation in non-climate-controlled equipment rooms.

Machine Tool & CNC Integration
Capture tool-change confirmations, door interlocks, and emergency stop signals in machining centers and robotic work cells. Fast 10ms response time ensures timely detection of safety-critical events.

Retrofit & Modernization Projects
Extend the operational life of PLC-5 systems during phased migration to newer platforms. The 1771-IND maintains compatibility with legacy field wiring while supporting modern diagnostic and maintenance practices.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-IND when your application requires flexible AC/DC input capability in a single module. For AC-only applications with 120V sensors, consider the 1771-IAN. For DC-only high-density requirements, evaluate the 1771-IBD. Verify that your PLC-5 processor supports the total I/O count after adding this module.

Extended Functions

Distributed I/O Expansion: Combine with 1771-ASB remote I/O adapters to extend input monitoring across multiple control cabinets or remote equipment locations via RIO (Remote I/O) communication.

Redundancy & Fault Tolerance: Deploy in redundant PLC-5 configurations using dual-channel wiring schemes to maintain signal acquisition during single-point failures in mission-critical applications.

Custom Filtering Options: Field-configurable RC time constants allow tuning of input filtering to match specific sensor types—from fast-acting photoelectric sensors to slow mechanical float switches.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-2 business days. Custom-configured or bulk orders typically fulfill within 5-7 business days.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications.

Technical Support: Direct access to application engineers for wiring diagrams, configuration assistance, and integration troubleshooting. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Each module includes installation instructions, wiring diagrams, I/O addressing tables, and compatibility matrices. Full technical manuals and CAD drawings available for download.

Frequently Asked Questions

How does the 1771-IND handle mixed AC and DC wiring on the same module?
All 16 inputs share a common return terminal, but each channel independently detects AC or DC signals. Ensure proper isolation of AC and DC field power supplies to prevent cross-contamination. Consult wiring diagram 1771-IND-WD01 for recommended practices.

What input current does the module draw from connected sensors?
Typical input impedance results in 7mA draw at 24V DC. This low current consumption allows interfacing with solid-state sensors, relay contacts, and switch closures without requiring external amplification.

Can I replace a Series A module with this Series B version?
Yes, Series B is form-fit-function compatible with Series A. The Series B offers improved EMI filtering and extended temperature range but maintains identical pinout and electrical characteristics. No programming changes required.

Does the module support remote monitoring or predictive maintenance features?
While the 1771-IND provides LED-based local diagnostics, advanced remote monitoring requires integration with PLC-5 processor diagnostic routines or third-party SCADA systems that poll I/O health status via the backplane.

What is the maximum cable length for field device connections?
Recommended maximum is 300 meters (1000 feet) for shielded twisted-pair cable in electrically noisy environments. For clean installations, up to 500 meters may be acceptable. Always verify signal integrity during commissioning.

Is this module suitable for SIL-rated safety applications?
The 1771-IND is an industrial-grade I/O module but is not certified for safety-instrumented systems (SIS). For SIL 2/3 applications, specify Allen-Bradley GuardPLC or safety-rated I/O modules with appropriate certifications.

Ready to Optimize Your PLC-5 I/O Architecture?

Contact our application engineering team for system design consultation, compatibility verification, or volume pricing. We provide technical pre-sales support to ensure the 1771-IND meets your specific automation requirements.
