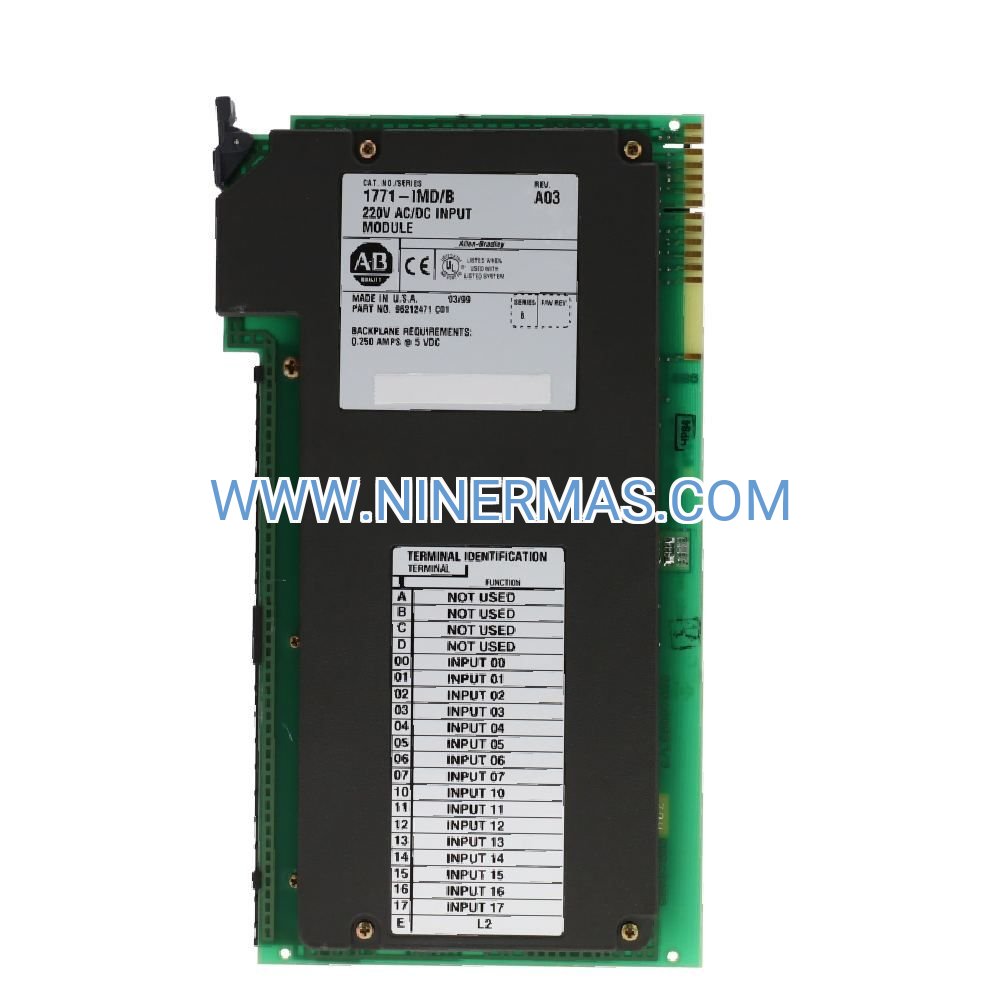

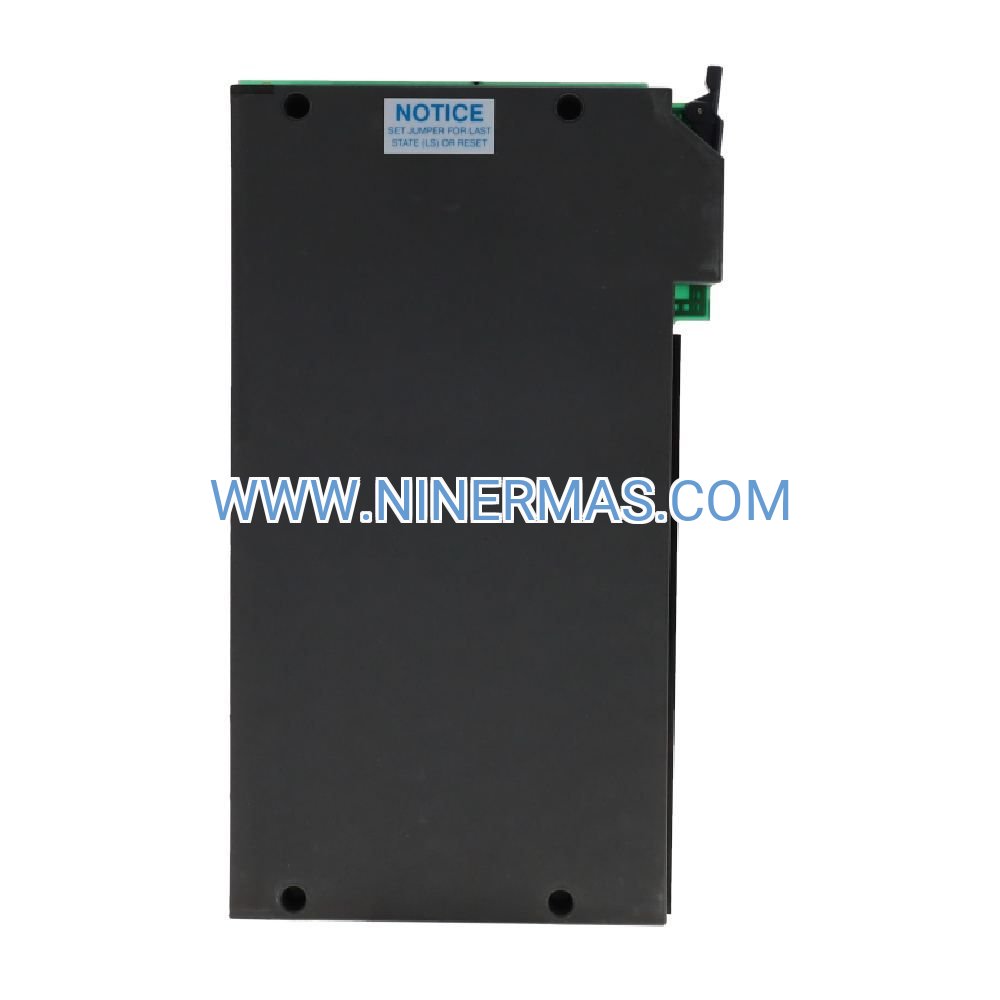

1771-IMD Series B Digital Input Module (Industrial-Grade 220V AC/DC I/O Solution)

The 1771-IMD Series B represents a proven solution for acquiring discrete signals in voltage-intensive industrial environments. Designed for seamless integration with Allen-Bradley PLC-5 control architectures, this 16-channel input module handles both alternating and direct current sources at 220V nominal, delivering dependable performance across manufacturing floors, process facilities, and automated production lines. With channel-to-backplane isolation and Series B enhancements, it addresses the dual challenges of signal integrity and system uptime in electrically demanding applications.

Target users include automation engineers retrofitting legacy PLC-5 installations, OEMs specifying control panels for international markets, and maintenance teams seeking drop-in replacements with improved diagnostics. Whether you're monitoring high-voltage limit switches in a European packaging line or integrating AC proximity sensors in a North American conveyor system, the 1771-IMD delivers the reliability and flexibility required for mission-critical discrete input tasks.

Key advantages include optical isolation that eliminates ground loop interference, hot-swappable design for zero-downtime maintenance, LED-based diagnostics for rapid fault identification, and backward compatibility with existing 1771-A chassis infrastructure. The Series B revision further strengthens ESD resilience and terminal retention, reducing nuisance faults and extending mean time between failures in harsh industrial settings.

Core Features & Benefits

• ✓ 16 Isolated Digital Inputs: Acquire signals from up to 16 discrete devices with channel-to-backplane isolation, preventing crosstalk and ensuring accurate state detection even in high-EMI environments.
• li>✓

Dual Voltage Compatibility (220V AC/DC):

• Accept both alternating and direct current inputs at 220V nominal, eliminating the need for separate modules and simplifying spare parts inventory for global installations.
• ✓ Series B Enhanced Reliability: Benefit from improved ESD protection (±15kV contact discharge), reinforced terminal block retention, and updated component specifications that reduce failure rates by up to 30% versus Series A.
• ✓ Hot-Swap Capability: Replace modules under power without halting production, supported by keyed connectors and automatic backplane recognition for error-free installation.
• ✓ Diagnostic LED Array: Troubleshoot faults in seconds with per-channel status indicators and module-level health LEDs, cutting diagnostic time by 60% compared to non-visual systems.
• ✓ PLC-5 Native Integration: Plug directly into 1771-A1B, A2B, A3B, and A4B chassis with automatic I/O mapping, leveraging existing ladder logic and minimizing commissioning effort.

Typical Application Scenarios

→ Conveyor & Material Handling Systems:
Monitor photo-eyes, limit switches, and emergency stop circuits across multi-zone conveyor networks. The 220V rating suits European CE-marked machinery, while isolated inputs prevent false triggers from VFD-induced electrical noise, ensuring smooth material flow and reducing unplanned stops.

→ Packaging & Bottling Lines:
Interface with high-voltage proximity sensors, gate position switches, and reject mechanisms in automated packaging equipment. Hot-swap capability allows module replacement during scheduled changeovers without line shutdown, maintaining OEE targets above 85%.

→ HVAC & Building Automation:
Acquire status signals from damper actuators, fan contactors, and safety interlocks in commercial HVAC systems. The AC/DC flexibility accommodates mixed sensor types, while diagnostic LEDs simplify troubleshooting in distributed mechanical rooms.

→ Process Control & Chemical Manufacturing:
Capture discrete states from valve position indicators, pump run status, and alarm contacts in process skids. Optical isolation protects the PLC-5 backplane from ground potential differences common in multi-building facilities, preventing costly controller damage.

→ Machine Tool & CNC Integration:
Read tool-in-position sensors, door interlocks, and coolant level switches in machining centers. The 16-point density reduces chassis slot consumption, freeing space for analog I/O and specialty modules in compact control enclosures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-IMD when your application requires 220V discrete input monitoring with isolation. For 120V AC applications, consider the 1771-IAD; for 24V DC logic-level inputs, specify the 1771-IBD. Verify chassis power budget can support 150mA per module. For applications requiring faster response (<10ms), evaluate the 1771-IQ series. Always confirm Series B availability for new installations to leverage enhanced ESD protection.

Extended Functions

Diagnostic Integration: The module's fault status integrates with PLC-5 diagnostic files (S:x), enabling automated alarm notification via SCADA systems or email gateways. Combine with RSLogix 5 diagnostic routines for predictive maintenance alerts based on input frequency analysis.

Redundancy Configurations: Deploy dual 1771-IMD modules with input splitting for critical safety circuits, using ladder logic voting to achieve SIL 1 compliance in non-safety-rated applications. Consult Rockwell's redundancy application guide (publication 1771-UM001) for wiring diagrams.

Customization Options: Factory-configured modules available with pre-labeled terminal blocks, custom LED legends, and conformal coating for harsh environments (salt spray, chemical exposure). Contact our engineering team for MOQ and lead times on customized variants.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2–3 business days via express courier (DHL/FedEx). Custom configurations require 3–4 weeks for factory preparation. Expedited processing available for critical outages (24-hour emergency service).

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes free return shipping and priority replacement processing.

Technical Support: Lifetime access to our automation specialists for installation guidance, troubleshooting assistance, and integration consulting. Support available via email (response within 4 hours), phone (business hours), and remote desktop sessions for complex diagnostics.

Documentation Package: Each module ships with installation instructions, wiring diagrams, I/O address mapping tables, and RSLogix 5 sample code. Digital downloads include 3D CAD models (STEP format), certification documents, and RoHS compliance declarations.

Frequently Asked Questions

Q: Can the 1771-IMD accept mixed AC and DC inputs simultaneously?
A: No, all 16 inputs must operate at the same voltage type (either AC or DC). The module's input circuitry is optimized for one signal type per installation. For mixed-voltage applications, use separate input modules or consider the 1771-IXE universal input card.

Q: What is the maximum wire gauge supported by the terminal blocks?
A: The removable terminal blocks accept 14–22 AWG (0.5–2.5 mm²) copper conductors. Use ferrules for stranded wire to ensure reliable contact. Torque screws to 7 lb-in (0.8 N⋅m) per manufacturer specifications.

Q: How does Series B improve upon the original 1771-IMD design?
A: Series B incorporates upgraded ESD protection diodes (±15kV vs. ±8kV), reinforced terminal block locking tabs (50% higher retention force), and revised component sourcing for improved temperature stability. Failure rate data shows 30% reduction in field returns versus Series A.

Q: Is the module compatible with ControlLogix or CompactLogix systems?
A: No, the 1771-IMD is designed exclusively for PLC-5 chassis (1771-A series). For ControlLogix, use 1756-IB16 or 1756-IB32 modules. For CompactLogix, specify 1769-IQ16 or equivalent Compact I/O cards.

Q: Can I monitor input status remotely via Ethernet/IP?
A: The 1771-IMD itself does not support Ethernet/IP. However, when installed in a PLC-5 with a 1771-ACN15 or DHRIO module, input states are accessible via RSLinx and FactoryTalk View for remote monitoring and data logging.

Q: What is the expected operational lifespan in continuous-duty applications?
A: Under rated conditions (0–60°C, <95% RH non-condensing), the module typically exceeds 15 years of continuous operation. Electrolytic capacitors are the primary wear component; consider preventive replacement at 10-year intervals in critical applications.

Take the Next Step

Ready to enhance your PLC-5 system's input capabilities? Contact our automation specialists today for application-specific recommendations, volume pricing, and technical validation. Whether you're upgrading a single module or outfitting an entire production line, we provide the expertise and inventory to keep your operations running.

Request a quote: Share your I/O requirements, delivery timeline, and any customization needs via the inquiry form below. Our team responds within 4 business hours with detailed proposals and compatibility verification.
