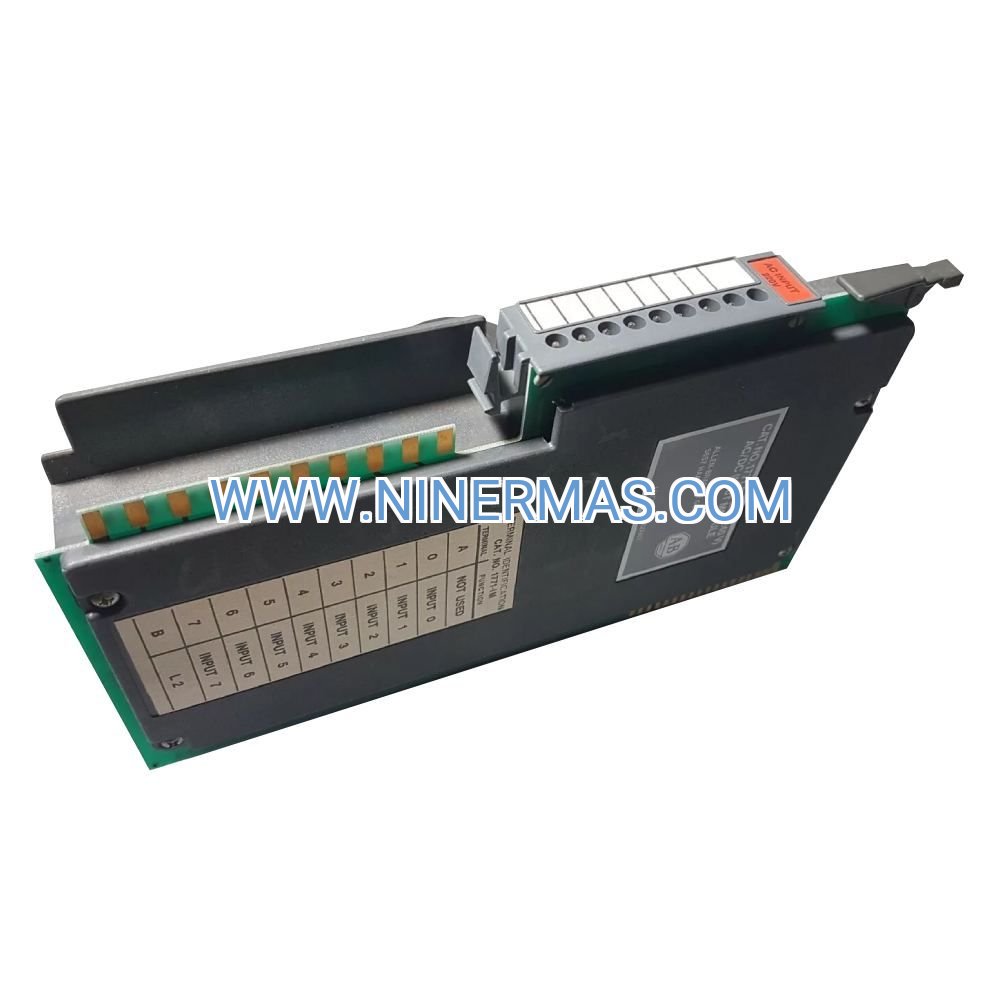

1771-IM High-Voltage Input Module (Industrial-Grade Signal Conditioning)

The 1771-IM is a precision-engineered digital input module that bridges high-voltage AC/DC field devices to Allen-Bradley PLC-5 control architectures. Built for 1771 I/O chassis environments, this module transforms 220/240V nominal signals into controller-compatible logic states, enabling seamless integration of motors, contactors, and power distribution equipment into your automation network.

Industrial facilities face constant challenges monitoring high-voltage equipment status without compromising controller safety. The 1771-IM addresses this through factory-calibrated optical isolation barriers that protect PLC backplane circuitry from voltage transients, ground loops, and electromagnetic interference common in heavy industrial settings.

Designed for mission-critical applications, this module combines hot-swap capability with visual diagnostics to minimize unplanned downtime. Whether you're retrofitting legacy systems or designing new control panels, the 1771-IM delivers proven reliability backed by UL certification and comprehensive technical documentation.

Core Features & Benefits

→ Dual-Voltage Compatibility
Accepts both 220V AC and 240V DC nominal inputs through universal signal conditioning circuitry, eliminating the need for separate modules in mixed-voltage installations. Reduces spare parts inventory and simplifies panel design.

→ Galvanic Isolation Protection
Optical isolation technology creates a 2500V barrier between field wiring and controller logic, safeguarding expensive PLC components from voltage spikes, surges, and ground potential differences. Extends system lifespan and reduces maintenance costs.

→ Hot-Swappable Architecture
Replace modules during live operation without powering down the entire chassis or interrupting adjacent I/O points. Maintenance windows shrink from hours to minutes, directly improving production uptime metrics.

✓ LED Status Indicators
Front-panel diagnostics display input state and module health at a glance, accelerating troubleshooting during commissioning and reducing mean time to repair (MTTR) by up to 40%.

✓ Wide Operating Temperature Range
0°C to 60°C (32°F to 140°F) specification supports installation in non-climate-controlled environments including factory floors, outdoor enclosures, and process areas with variable ambient conditions.

✓ Standards-Compliant Design
UL Listed and CE marked for global deployment, meeting North American and European safety regulations without additional certification costs or engineering reviews.

Typical Application Scenarios

Motor Control Centers (MCCs)
Monitor contactor auxiliary contacts, overload relay status, and disconnect switch positions in 480V motor starters. The 1771-IM's high-voltage rating eliminates the need for intermediate control relays, reducing panel complexity and potential failure points.

Conveyor & Material Handling Systems
Track emergency stop circuits, safety gate interlocks, and zone transfer signals across multi-section conveyor lines. Optical isolation prevents ground loop issues common in distributed systems spanning hundreds of meters.

HVAC & Building Automation
Interface with rooftop unit contactors, damper actuator feedback, and chiller status contacts in commercial facilities. The module's wide temperature tolerance supports installation in mechanical rooms and rooftop equipment enclosures.

Process Control & Batch Systems
Acquire valve limit switch positions, pump run status, and level switch signals in chemical processing, water treatment, and food production environments where equipment operates at elevated voltages.

Packaging & Assembly Lines
Capture machine cycle complete signals, product presence sensors, and quality gate approvals in high-speed packaging operations requiring deterministic I/O response and minimal electrical noise susceptibility.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-IM when your application requires monitoring 220/240V AC or DC signals in PLC-5 systems. For 120V AC applications, consider the 1771-IAN module. For DC-only inputs at lower voltages (10-30V), the 1771-IBN series offers higher point density. Always verify voltage compatibility with field devices and ensure chassis slot availability before ordering.

Extended Functions

Distributed I/O Integration: Deploy in remote I/O configurations using 1771 communication adapters, extending high-voltage input capability to distant process areas without dedicated controller hardware.

Redundancy Support: Pair with redundant PLC-5 processors and dual-chassis configurations for critical infrastructure applications requiring fault-tolerant architectures.

Legacy System Modernization: Retrofit existing 1771 installations with minimal engineering effort, preserving panel layouts and wiring infrastructure while upgrading controller platforms.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom configurations or large quantity orders may require 2-4 weeks—contact our team for expedited options.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Warranty includes free replacement and return shipping for confirmed failures.

Technical Support: Access to application engineers for pre-sales sizing, post-installation troubleshooting, and configuration assistance via phone, email, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module ships with installation instructions, wiring diagrams, and quick-start guide. Full user manuals, CAD drawings, and sample ladder logic available for download from our technical library.

Frequently Asked Questions

Can the 1771-IM interface with ControlLogix or CompactLogix systems?
No, this module is engineered exclusively for PLC-5 controllers with 1771 I/O chassis. For ControlLogix platforms, specify 1756-series input modules; for CompactLogix, use 1769-series I/O.

What is the maximum cable length between field devices and the input module?
Recommended maximum is 300 meters (1000 feet) using shielded twisted-pair cable. Longer runs may require signal conditioning or intermediate relays to maintain noise immunity.

Does this module support both AC and DC inputs simultaneously on different channels?
Yes, the 1771-IM's universal input circuitry automatically adapts to AC or DC signals on a per-point basis within the 220/240V nominal range. No jumper configuration required.

How do I verify module operation during commissioning?
Front-panel LEDs indicate power status and individual input states. Use a multimeter to confirm field voltage at terminal blocks, then observe corresponding LED illumination. Programming software displays real-time input status in the controller's data table.

What maintenance procedures are recommended for optimal lifespan?
Inspect terminal block connections quarterly for tightness (torque to specification in manual). Clean module exterior and chassis ventilation annually. Monitor input current draw—significant deviations may indicate field device issues.

Is the module suitable for hazardous location installations?
The 1771-IM carries Class I Division 2 (Groups A, B, C, D) certification for use in non-incendive circuits. For Division 1 areas, consult factory for intrinsically safe barrier requirements or explosion-proof enclosure specifications.

Ready to Upgrade Your PLC-5 System?

Contact our automation specialists for application-specific guidance, volume pricing, or technical compatibility verification. We provide same-day quotations and can coordinate with your preferred integrator or panel builder for turnkey installations.

Request a quote: sale@ninermas.com | Phone: +0086 187 5021 5667
