1771-IL Isolated Analog Input Module | Allen-Bradley PLC-5 | 4-Channel 12-Bit

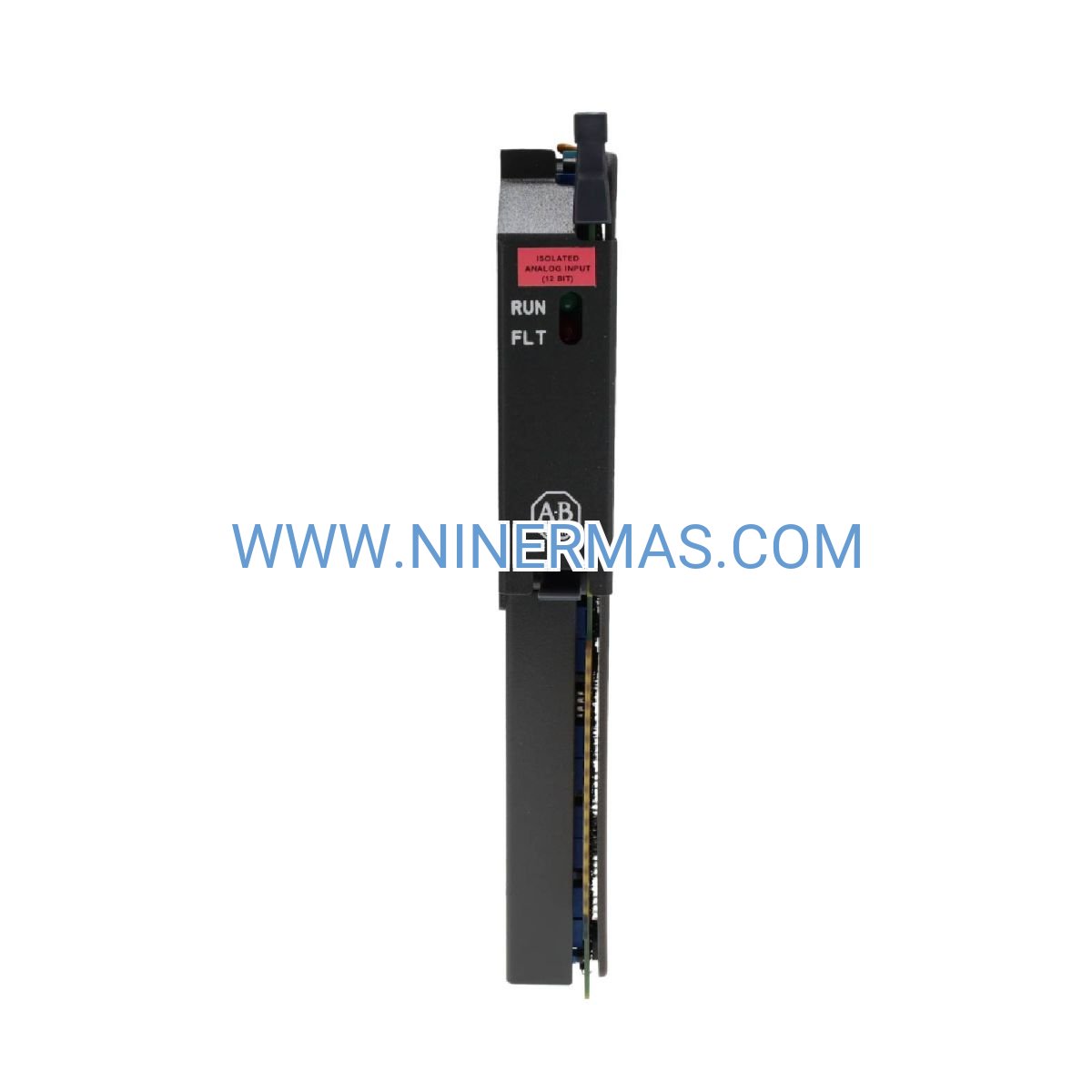

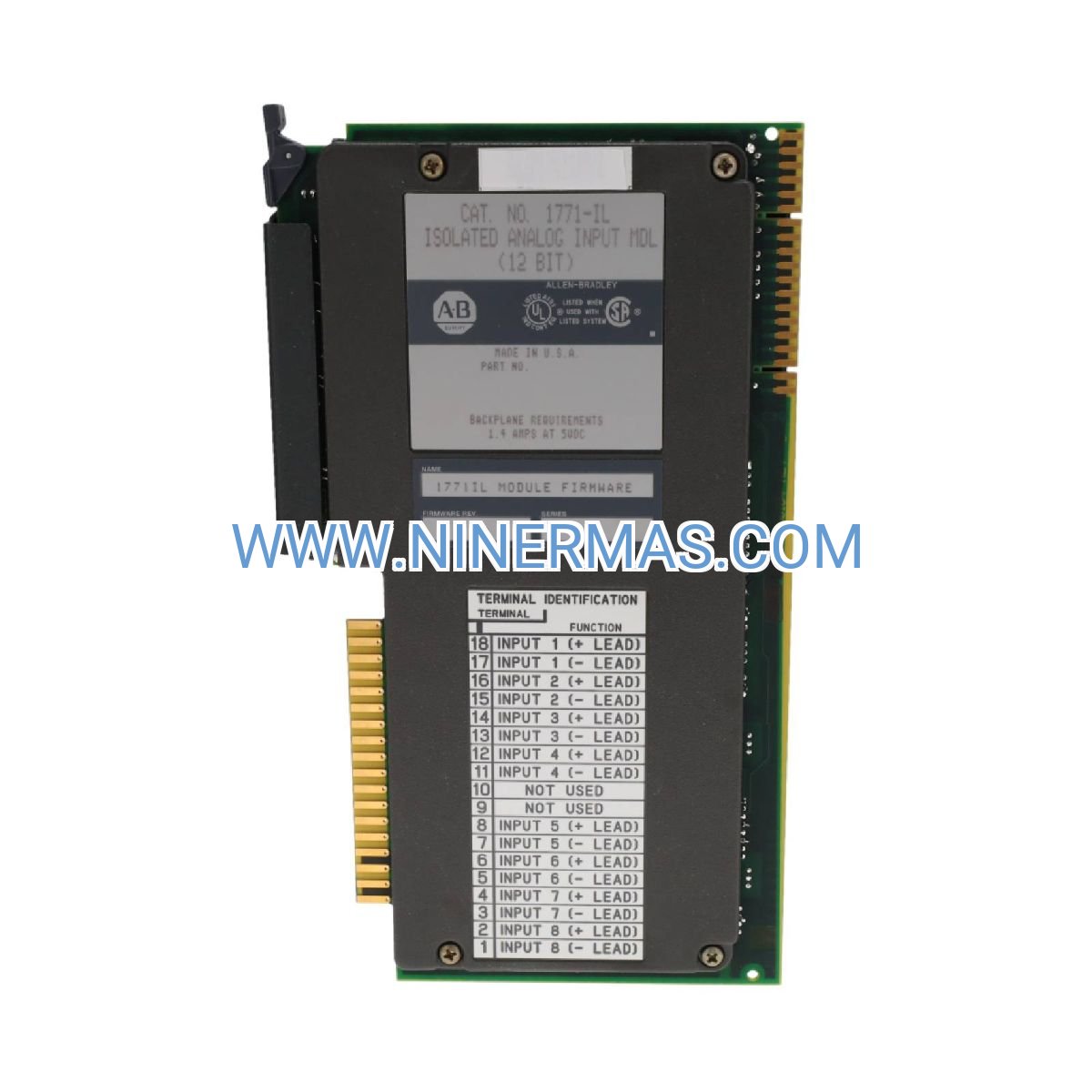

1771-IL Isolated Analog Input Module (Industrial-Grade PLC-5 I/O Solution)

The Allen-Bradley 1771-IL is a high-performance isolated analog input module designed for PLC-5 control systems, delivering precise signal acquisition through 4-channel, 12-bit resolution with 1500V optical isolation. By leveraging advanced isolation technology and differential input architecture, this module ensures accurate data conversion in electrically noisy industrial environments, enabling reliable monitoring of voltage and current signals from field instruments.

Ideal for process control applications, power generation facilities, chemical processing plants, water treatment systems, and hazardous area installations, the 1771-IL addresses critical challenges including ground loop interference, common-mode noise, transient voltage spikes, and signal integrity degradation. It provides robust protection for both field devices and PLC backplane circuitry while maintaining measurement accuracy.

Through standardized PLC-5 chassis integration and flexible input configuration options, this module offers superior noise immunity, simplified wiring architecture, extended MTBF (Mean Time Between Failures), and seamless compatibility with RSLogix 5 programming software. Suitable for design engineers, system integrators, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for configuration assistance, technical datasheets, and project-specific recommendations.

Core Features & Technical Advantages

• 1500V Optical Isolation Protection
  Each input channel features transformer-based isolation barriers that eliminate ground loops, protect against voltage surges up to 1500V, and prevent fault propagation between field wiring and PLC backplane, significantly reducing system downtime risks.
• 12-Bit High-Resolution Conversion
  Provides 4096-count resolution across configurable input ranges (±10V, 0-10V, 0-5V, 4-20mA), delivering measurement precision of ±0.1% full scale, suitable for critical process variables requiring tight control tolerances.
• 4-Channel Differential Input Architecture
  Supports simultaneous acquisition of four independent analog signals with differential input topology, effectively rejecting common-mode noise up to 120dB and ensuring accurate readings in high-EMI industrial environments.
• Comprehensive Diagnostic Capabilities
  Built-in self-diagnostics monitor channel health, open-circuit detection, over-range conditions, and module communication status, with fault indicators accessible via RSLogix 5 software for rapid troubleshooting and predictive maintenance.
• Hot-Swappable Design & Modular Installation
  Conforms to 1771 I/O chassis standards with keying options, allowing online module replacement without system shutdown, minimizing production interruptions and simplifying spare parts management.
• Wide Operating Temperature Range
  Rated for 0°C to 60°C (32°F to 140°F) ambient operation with conformal coating options for harsh environments, suitable for outdoor enclosures, high-humidity areas, and temperature-cycling applications.

Typical Application Scenarios

The 1771-IL module is engineered for demanding industrial environments requiring galvanic isolation and high signal integrity:

• Process Control & SCADA Systems
  Monitors pressure transmitters, temperature sensors, flow meters, and level instruments in chemical reactors, distillation columns, and batch processing equipment where ground potential differences exist between field devices and control rooms.
• Power Generation & Distribution
  Acquires analog signals from generator excitation systems, turbine control loops, and substation monitoring equipment, providing isolation against high-voltage transients and ensuring personnel safety in utility-scale installations.
• Water & Wastewater Treatment
  Interfaces with pH sensors, dissolved oxygen probes, turbidity meters, and chlorine analyzers in municipal treatment plants, protecting sensitive instrumentation from lightning-induced surges and pump motor noise.
• Oil & Gas Production Facilities
  Supports wellhead monitoring, pipeline pressure measurement, and separator level control in hazardous classified areas (Class I, Division 2 when properly installed), meeting intrinsic safety requirements through isolation barriers.
• Metal Processing & Manufacturing
  Integrates with load cells, position transducers, and temperature controllers in rolling mills, heat treatment furnaces, and automated assembly lines where welding equipment and VFDs generate severe electrical noise.

Technical Specifications & Selection Guide

To facilitate system design and procurement, key specifications are summarized below:

Selection Recommendations: When specifying the 1771-IL, consider maximum signal voltage/current from field devices, required measurement accuracy, environmental conditions (temperature, humidity, vibration), and available backplane power budget. For applications requiring more than 4 channels, multiple modules can be installed in the same chassis. If current loop powering is needed, verify external 24V DC supply availability. For hazardous area installations, consult NEC Article 504 and IEC 60079 standards for proper barrier selection and installation practices.

Advanced Configuration Options

• Software-Configurable Input Scaling
  RSLogix 5 programming allows custom engineering unit conversion, offset adjustment, and linearization for non-linear sensors (e.g., thermocouples, RTDs), eliminating external signal conditioners.
• Alarm & Limit Monitoring
  Programmable high/high-high and low/low-low alarm thresholds with hysteresis settings enable proactive process control and automated shutdown sequences without additional hardware.
• Data Logging & Trending Integration
  Compatible with FactoryTalk View SE, RSView32, and third-party HMI/SCADA platforms via DH+, ControlNet, or Ethernet/IP gateways for historical data archiving and regulatory compliance reporting.
• Redundancy & Failover Support
  Can be deployed in redundant PLC-5 configurations with automatic switchover, ensuring continuous operation in mission-critical applications such as emergency shutdown systems (ESD) and fire & gas detection.

Delivery, Service & Quality Assurance

Standard stock items ship within 1-3 business days; refurbished/tested surplus units available with 3-5 day lead time. All modules undergo functional testing including isolation voltage verification, linearity calibration, and communication diagnostics prior to shipment. Products are backed by a 12-month warranty covering manufacturing defects and workmanship issues.

Technical support includes remote configuration assistance via phone/email, on-site commissioning services (subject to location and project scope), and access to wiring diagrams, I/O connection drawings, and RSLogix 5 sample code. Complete documentation package includes installation instructions, user manual (Publication 1771-UM001), and certificate of conformity upon request.

For international shipments, we provide HS code classification, commercial invoices, and export compliance documentation. Expedited shipping options (overnight, 2-day) available for emergency replacements and unplanned outages.

Frequently Asked Questions (FAQ)

Q: How does the 1771-IL isolated analog input module integrate with existing PLC-5 systems?
A: The module installs directly into any 1771 I/O chassis slot and communicates via the backplane with the PLC-5 processor. Configuration is performed through RSLogix 5 software by adding the module to the I/O configuration tree and assigning input file addresses. No special interface cards or gateways are required. Verify chassis power supply capacity can support the additional 4.5W load.

Q: What is the maximum number of 1771-IL modules supported in a single chassis?
A: A standard 1771 chassis can accommodate up to 8 I/O modules (depending on chassis size: 4-slot, 8-slot, 12-slot, or 16-slot models). The actual number of 1771-IL modules is limited by available backplane power (each module draws ~900mA at 5V DC) and I/O addressing capacity of the PLC-5 processor. Consult chassis power supply specifications and processor I/O limits.

Q: What energy savings or efficiency improvements can be achieved with isolated analog input modules?
A: While the module itself does not directly reduce energy consumption, the 1500V isolation eliminates the need for external isolation amplifiers, signal conditioners, and redundant grounding infrastructure, reducing overall system component count by 15-25%. Additionally, improved signal accuracy enables tighter process control, which can optimize energy usage in applications like boiler control (2-5% fuel savings) and motor speed regulation.

Q: What are the environmental and installation requirements for the 1771-IL module?
A: The module requires installation in a NEMA 12 (IP54) or better-rated enclosure to protect against dust and moisture. Operating temperature range is 0-60°C with 5-95% non-condensing humidity. Avoid mounting near high-heat sources (>70°C) or strong magnetic fields (>500 gauss). For optimal performance, maintain ambient temperature below 50°C and ensure adequate ventilation. Conformal coating option available for corrosive atmospheres (chemical plants, marine environments).

Q: Does the 1771-IL support remote monitoring and data acquisition protocols?
A: Yes, when used with appropriate communication adapters. The PLC-5 processor can interface with DH+ networks, ControlNet, DeviceNet, or Ethernet/IP via 1771-ACN, 1771-SDN, or third-party gateways. This enables integration with modern SCADA systems, cloud-based IoT platforms, and mobile monitoring applications. The module supports standard Modbus RTU/TCP mapping through protocol converters for legacy system integration.

Q: Can the 1771-IL be used in hazardous area (Class I, Division 2) installations?
A: Yes, when installed in a properly rated enclosure (NEMA 7/9 or ATEX-certified) and used with approved intrinsically safe barriers or galvanic isolators on field wiring. The module itself is not intrinsically safe but provides 1500V isolation that supports hazardous area wiring practices per NEC 501.10 and IEC 60079-11. Consult a certified electrical engineer for area classification and barrier selection.

Request Technical Support & Custom Solutions

To obtain detailed configuration recommendations, pricing quotations, or application engineering support, please provide the following project information: application description, number of analog input points required, signal types and ranges (voltage/current), environmental conditions (temperature, humidity, hazardous area classification), existing PLC-5 processor model, and preferred delivery timeline. Our technical team will respond within 24 hours with tailored solutions, wiring diagrams, and budget estimates.
