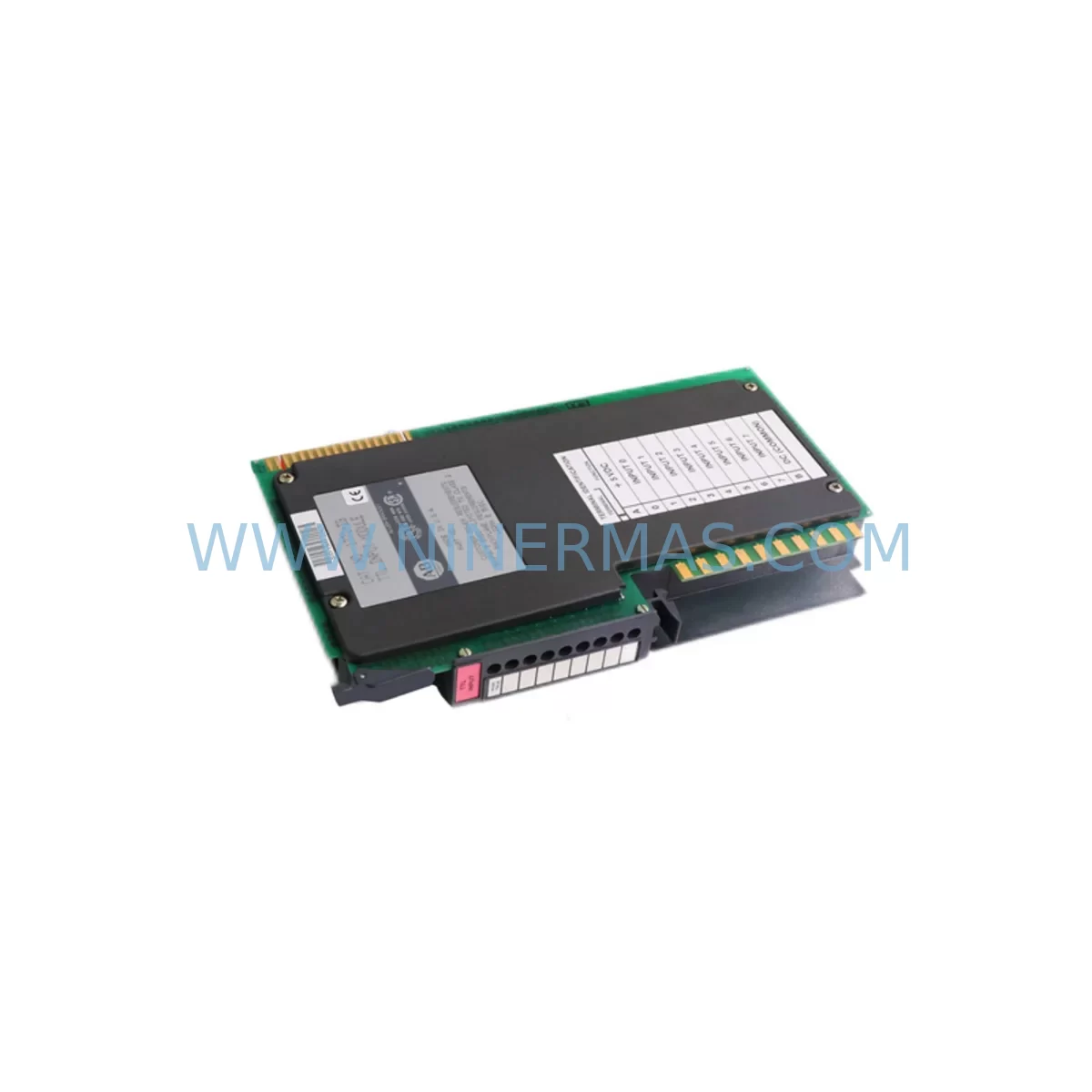

The Allen-Bradley 1771-IG is a 16-Point DC Input Module designed for the PLC-5 programmable controller platform — one of the most widely deployed control architectures in discrete manufacturing, process automation, and heavy industry. As production lines age and OEM support windows close, maintaining a verified stock of the 1771-IG becomes a critical element of any proactive maintenance strategy. Whether you are managing a scheduled annual shutdown, responding to an unplanned fault, or building a long-term spare parts inventory for an aging PLC-5 rack, sourcing a service-ready 1771-IG from a reliable supplier directly reduces mean time to repair (MTTR) and protects production continuity.

The 1771-IG module occupies a single slot in the 1771 I/O chassis and accepts 16 discrete DC input signals, interfacing field devices — proximity sensors, limit switches, pushbuttons, and encoder outputs — directly to the PLC-5 processor. Its robust design supports a wide DC input voltage range and provides optical isolation between field wiring and the backplane, protecting the processor from transient surges common in industrial environments. For maintenance engineers managing legacy systems, the 1771-IG remains a non-negotiable component: no equivalent software workaround exists when a failed input module takes a production line offline.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1771-IG DC input module fails or shows signs of degradation — intermittent input reads, stuck bits, or LED fault indicators — the replacement process should be treated as an opportunity for a broader control cabinet inspection. Experienced maintenance engineers know that a single failed I/O module rarely exists in isolation: the surrounding electrical environment often reveals contributing factors that, if left unaddressed, will cause the next failure within weeks.

Begin by verifying the 24V DC field power supply feeding the input module’s wiring arm. A sagging or noisy DC bus is one of the most common root causes of premature input module failure. If the cabinet uses a dedicated 1771-P4S or 1771-P7 power supply for the I/O chassis, check its output voltage under load and inspect the capacitors for signs of bulging or leakage. A failing chassis power supply will stress every module in the rack simultaneously.

Next, inspect the 1771-WN or 1771-WB wiring arm connected to the 1771-IG. Corroded or loose terminal connections at the wiring arm are a frequent source of intermittent input faults that are often misdiagnosed as module failures. Clean and re-torque all field wiring terminals before installing the replacement module. If the wiring arm itself shows signs of heat damage or cracked insulation, replace it as part of the same maintenance event.

For systems where the 1771-IG shares a chassis with 1771-OBD or 1771-OW16 output modules, verify that output-side inductive loads — solenoids, motor starters, and relay coils — are properly suppressed with flyback diodes or RC snubbers. Unsuppressed inductive transients couple through the backplane and can corrupt input module logic, leading to nuisance faults that are difficult to trace without an oscilloscope.

If the PLC-5 system includes a 1771-SDN DeviceNet Scanner Module or a 1771-KF2 DH+ Communication Module, confirm that the communication network is operating without excessive error counts. A degraded communication module can cause the processor to misread I/O status, producing symptoms that mimic a failed input module. Pull the communication module’s diagnostic counters before condemning the 1771-IG.

For facilities running mixed I/O racks, also inspect any 1771-IFE Analog Input Modules or 1771-OFE Analog Output Modules in adjacent slots. Analog modules are sensitive to ground loops introduced by poorly terminated field cables, and a ground fault on an analog channel can inject noise into the DC input module’s optical isolation stage. Verify chassis ground continuity and field cable shielding termination at the same time.

Finally, if the system includes a PanelView 550 or PanelView 900 HMI communicating over DH+ or RS-232, verify that the HMI is not generating excessive polling traffic that could delay the PLC-5 scan time. An overloaded processor scan can cause input modules to appear to miss transitions, particularly on high-speed discrete inputs. Reducing HMI poll rates or upgrading the communication driver configuration often resolves these latent issues without any hardware replacement.

Procurement engineers should note that the 1771 I/O platform is in a mature lifecycle phase. Sourcing verified, service-ready spare modules from a specialist supplier — rather than relying on spot-market availability at the time of failure — is the most effective way to control both cost and downtime risk. Maintaining a minimum stock of two 1771-IG modules per active PLC-5 rack is a widely adopted industry benchmark for facilities with continuous production requirements.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the failed 1771-IG, document the current I/O map in the PLC-5 program to confirm the module’s slot address and input bit assignments. Take a photograph of the wiring arm terminal connections for reference during reinstallation.

Step 2 — Safe Isolation: Place the PLC-5 processor in Program mode via the keyswitch or programming terminal. De-energize the field power supply feeding the wiring arm. Do not remove the module with field power applied — the 1771 backplane does not support hot-swap on standard I/O modules.

Step 3 — Module Removal: Disconnect the wiring arm from the module by releasing the locking tab. Slide the 1771-IG out of the chassis slot. Inspect the backplane connector on the chassis for bent pins or contamination before installing the replacement.

Step 4 — Replacement Installation: Slide the service-ready 1771-IG into the same slot. Reconnect the wiring arm and verify that all field terminals are correctly seated. Re-energize the field power supply.

Step 5 — Functional Verification: Return the processor to Run mode. Verify that all 16 input LEDs respond correctly to field device states. Force individual inputs in the programming terminal to confirm bit-level integrity across the full module. Clear any latched faults in the processor fault table.

Step 6 — Documentation Update: Record the replacement in the maintenance log, including the date, technician, module serial number, and any observations about the failed module’s condition. Update the spare parts inventory to trigger a replenishment order for the consumed 1771-IG.

This workflow applies equally to planned annual maintenance replacements and emergency fault recovery scenarios. The total replacement time for a trained technician is typically 15–30 minutes, making the 1771-IG one of the fastest field-replaceable units in the PLC-5 architecture — provided a verified spare is on hand.
