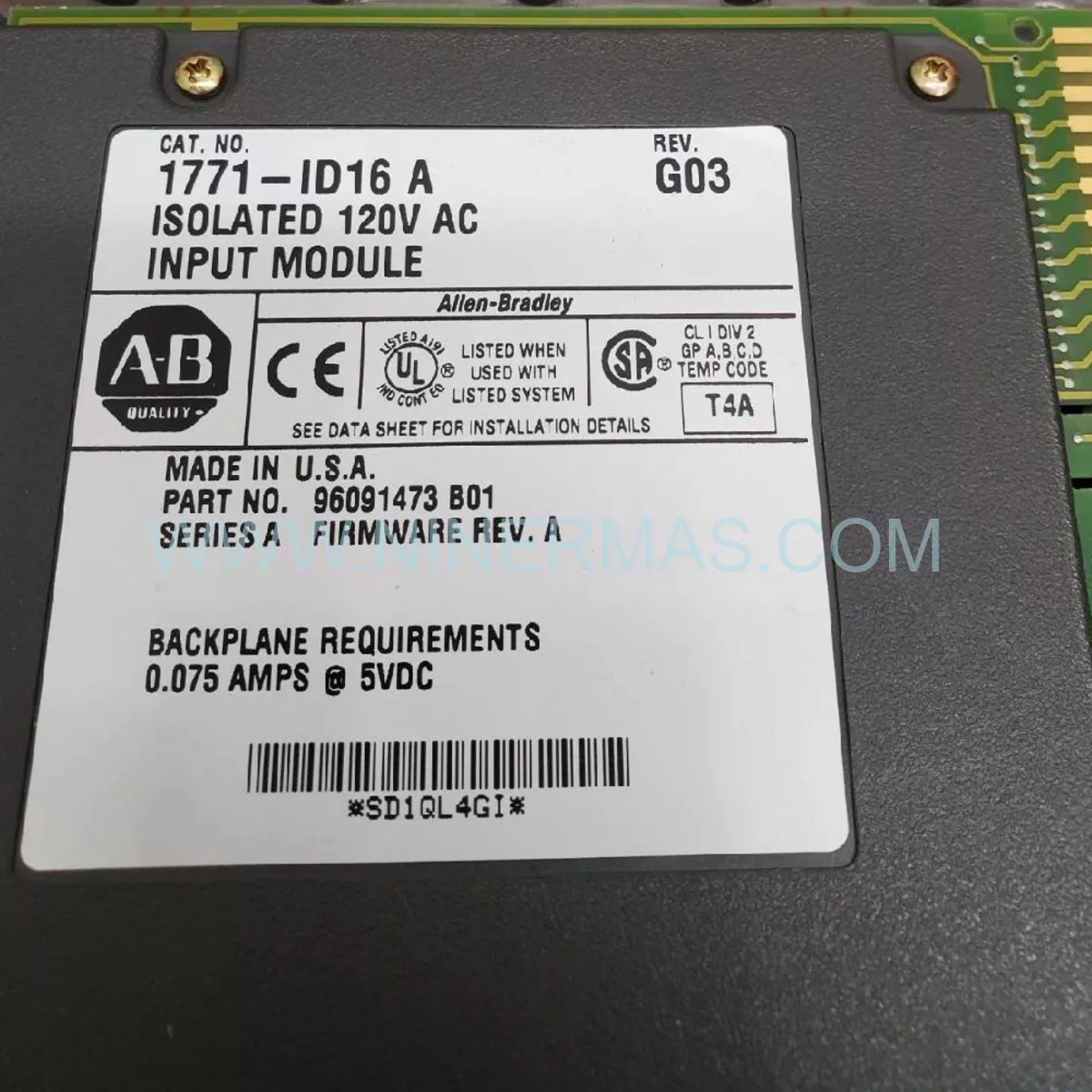

1771-ID16 Digital Input Module (Industrial-Grade Isolated I/O Solution)

The 1771-ID16 represents a field-proven digital input solution engineered for PLC-5 control architectures where signal integrity and electrical isolation are non-negotiable. This 16-channel isolated input module bridges the gap between field devices and your automation backbone, delivering reliable discrete signal acquisition across mixed AC/DC environments without compromising system safety or performance.

Designed for industrial operators managing complex manufacturing lines, process control installations, or material handling systems, the 1771-ID16 eliminates the risk of ground loops and voltage transients that plague conventional input cards. Whether you're monitoring limit switches on a high-speed packaging line or tracking valve positions in a chemical processing facility, this module provides the electrical separation and signal conditioning your critical applications demand.

With channel-to-channel isolation and universal 74-138V AC/DC compatibility, the 1771-ID16 simplifies panel design, reduces wiring errors, and accelerates commissioning timelines—delivering measurable ROI through reduced installation costs and enhanced system uptime.

Core Features & Benefits

✓ Optical Isolation Technology
Each of the 16 input channels incorporates dedicated optical isolation circuitry, creating an electrical barrier between field wiring and the PLC-5 backplane. This architecture protects your processor investment from voltage spikes, electrical noise, and ground potential differences—common culprits in unplanned shutdowns and processor failures.

✓ Universal AC/DC Input Acceptance
Operate with both alternating and direct current field devices across a 74-138V range without additional interface hardware. This dual-mode capability reduces spare parts inventory, simplifies maintenance procedures, and provides design flexibility when integrating legacy equipment with modern sensors.

✓ Removable Terminal Block Design
Field wiring terminates to a detachable connector assembly, enabling pre-wiring during panel fabrication and tool-free module replacement during maintenance windows. Swap modules in under 60 seconds without disturbing field connections—minimizing mean time to repair (MTTR) and production losses.

✓ Visual Status Indication
Front-panel LED indicators provide instant visibility into input state and module health, accelerating troubleshooting and reducing diagnostic time during commissioning or fault conditions.

✓ Proven PLC-5 Ecosystem Integration
Seamless compatibility with the entire Allen-Bradley PLC-5 processor family and 1771 I/O chassis infrastructure ensures drop-in installation within existing control systems without firmware updates or configuration complexity.

Application Scenarios

→ Automotive Assembly Operations
Monitor robotic cell safety gates, part presence sensors, and fixture clamps across mixed-voltage zones. The 1771-ID16's isolation prevents ground loops between welding equipment and control systems, eliminating nuisance trips that halt production.

→ Food & Beverage Processing Lines
Track conveyor jam sensors, fill-level switches, and sanitary valve positions in washdown environments where electrical noise from VFD-driven motors can corrupt input signals. Optical isolation ensures accurate state detection even during high-frequency motor switching.

→ Water/Wastewater Treatment Facilities
Interface with float switches, flow sensors, and pump status contacts distributed across geographically separated pump stations. The module's wide voltage tolerance accommodates voltage drop over extended cable runs without signal degradation.

→ Material Handling & Distribution Centers
Aggregate input signals from sortation systems, diverter gates, and safety light curtains operating on different power distribution circuits. Isolation eliminates cross-talk between zones, preventing false triggers that compromise throughput.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-ID16 when your application requires electrical isolation between input circuits, when monitoring field devices operating at different ground potentials, or when input signals traverse electrically noisy environments (near VFDs, welders, or high-power switching equipment). For standard 120V AC applications without isolation requirements, consider the 1771-IAN as a cost-effective alternative.

Extended Functions

Distributed I/O Architecture Support: Deploy the 1771-ID16 in remote I/O configurations using 1771-ASB adapter modules, extending input acquisition capabilities up to 10,000 feet from the processor via RIO communication links. This distributed approach reduces copper costs and enables modular machine design.

Redundant System Integration: The module's deterministic response characteristics and proven reliability make it suitable for redundant PLC-5 configurations where input signal integrity directly impacts safety-rated control functions.

Retrofit & Modernization Projects: Maintain compatibility with legacy PLC-5 installations while upgrading I/O infrastructure. The 1771-ID16's form factor and electrical specifications match original equipment, enabling phased modernization without complete system replacement.

Delivery & Service Assurance

Lead Time: Stock units ship within 1-3 business days via expedited carriers. Custom-configured modules or bulk orders (10+ units) typically ship within 5-7 business days.

Warranty Coverage: All 1771-ID16 modules include a comprehensive 12-month warranty against manufacturing defects and workmanship failures. Warranty covers replacement parts and return shipping.

Technical Support: Access to application engineers with PLC-5 expertise for wiring guidance, configuration assistance, and troubleshooting support via email and phone during business hours (GMT+8).

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and digital access to full technical specifications and programming examples.

Frequently Asked Questions

Q: What wiring practices ensure optimal isolated input module performance?
A: Use shielded twisted-pair cable with shield grounded at the field device end only (single-point grounding). Maintain separation from AC power conductors and route cables through dedicated conduit or cable tray. Maximum recommended cable length is 300 meters (1000 feet) for reliable signal integrity.

Q: Can I mix AC and DC field devices on the same 1771-ID16 module?
A: Yes, the universal input design accepts both AC and DC signals within the 74-138V range on any combination of the 16 input points. Each channel operates independently, allowing complete flexibility in field device selection.

Q: How does the isolated input module improve system reliability compared to standard input cards?
A: Optical isolation prevents ground loops, voltage transients, and electrical noise from propagating into the PLC backplane. This protection reduces nuisance trips by up to 80% in electrically harsh environments and extends processor lifespan by eliminating voltage stress on sensitive logic circuits.

Q: What diagnostic capabilities does the 1771-ID16 provide for troubleshooting?
A: Front-panel LEDs indicate individual input status (ON/OFF state) and module power/fault conditions. Programming software provides additional diagnostics including input forcing, real-time status monitoring, and historical fault logging for predictive maintenance.

Q: Is the 1771-ID16 suitable for safety-critical applications?
A: While the module provides high reliability and isolation, it is not safety-rated for SIL or PLr applications. For safety functions, consult Allen-Bradley's GuardPLC or safety-rated I/O product lines designed to meet IEC 61508 and ISO 13849 standards.

Q: What energy efficiency benefits does isolated I/O provide?
A: The 1771-ID16's low 7mA input current draw per channel reduces heat generation and backplane power consumption compared to higher-current input modules. In large systems (100+ I/O points), this translates to measurable reductions in panel cooling requirements and energy costs.

Take the Next Step

Ready to enhance your PLC-5 system's reliability and reduce electrical noise-related downtime? Contact our industrial automation specialists for application-specific guidance, volume pricing, or technical consultation. Request a detailed quotation or discuss your project requirements—our team responds within 4 business hours.
