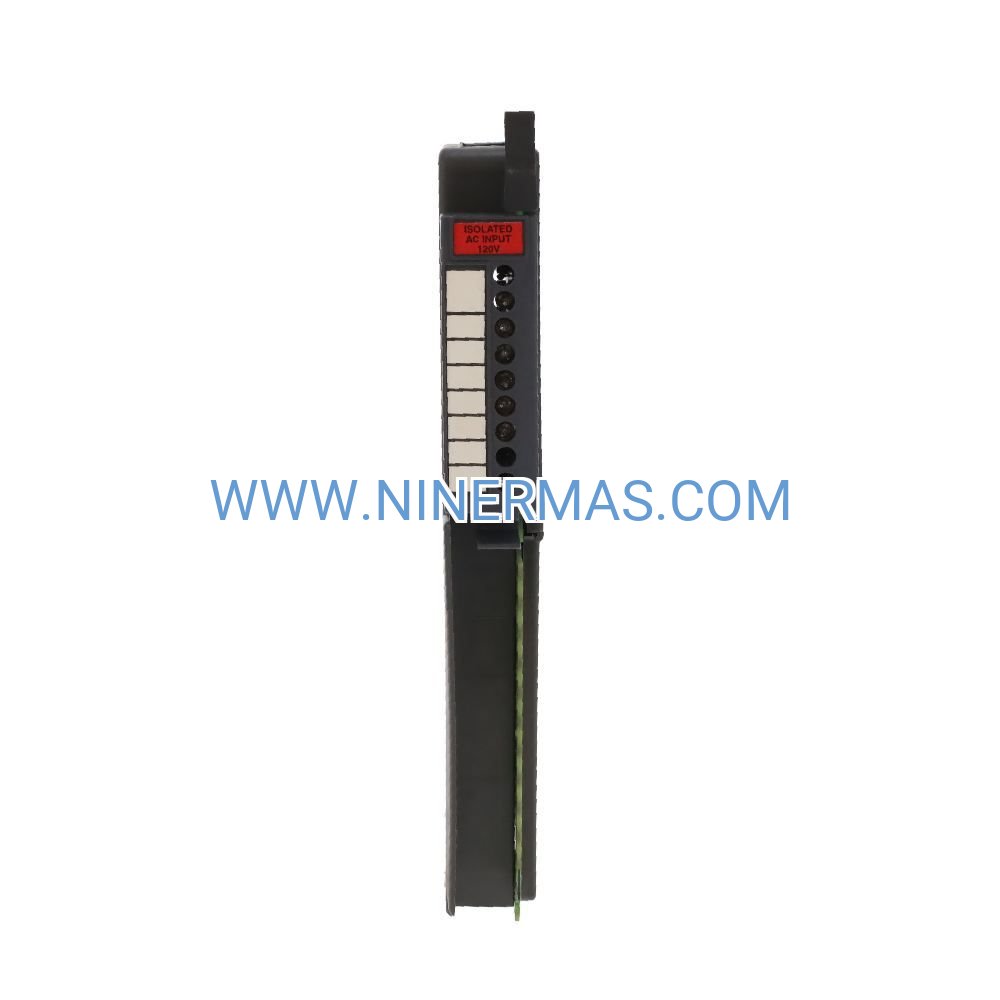

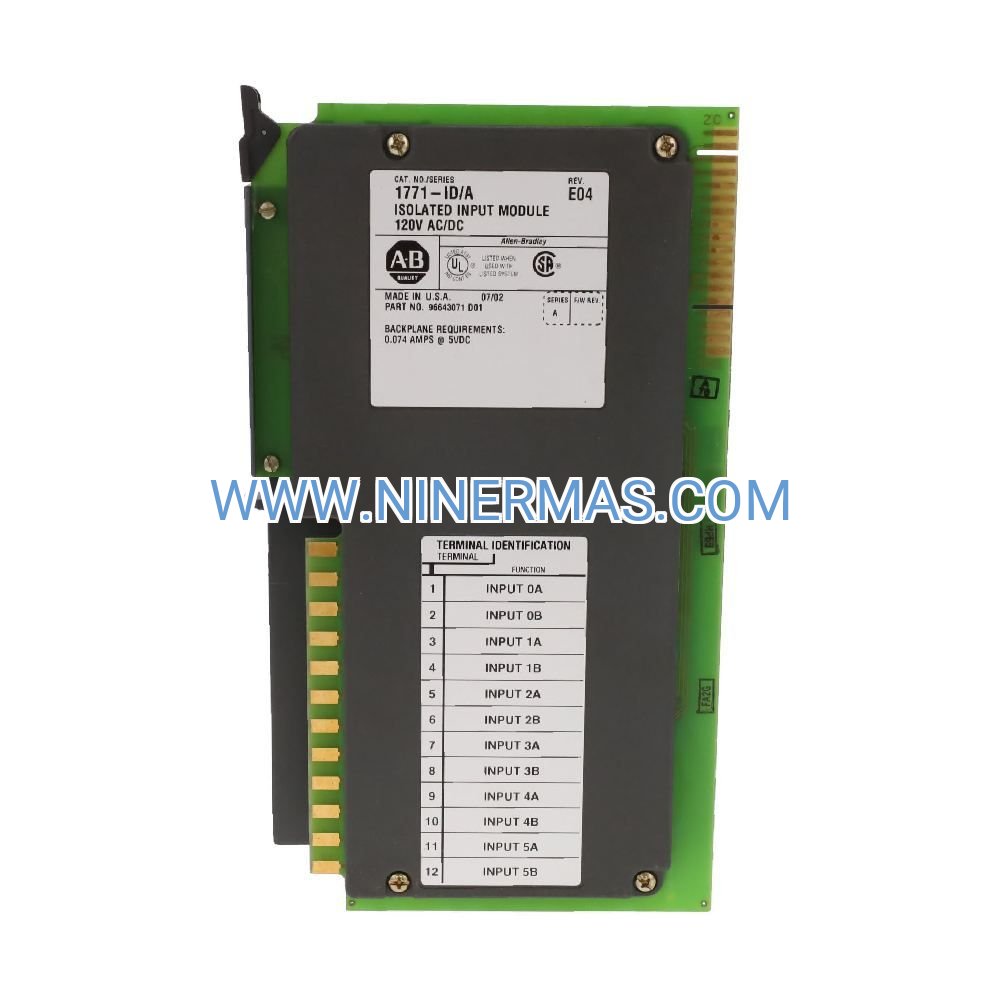

1771-ID Isolated Input Module (Industrial-Grade Signal Acquisition)

The 1771-ID represents a proven solution for high-voltage signal monitoring in PLC-5 automation architectures. Engineered with 16 optically-isolated input channels, this module handles AC and DC signals from 92 to 138 volts, delivering dependable performance in electrically noisy industrial settings. Whether you're retrofitting legacy control panels or designing new installations, the 1771-ID provides the isolation and flexibility required for mission-critical applications.

Designed for system integrators and maintenance engineers working with Allen-Bradley PLC-5 platforms, this module addresses common challenges in motor control, power distribution monitoring, and safety interlock systems. Its hot-swappable architecture minimizes downtime during service operations, while factory calibration ensures accuracy from day one.

With 1500V optical isolation per channel and compatibility across the entire 1771 I/O chassis family, the 1771-ID delivers robust protection against ground loops, voltage transients, and electromagnetic interference—key advantages in heavy industrial environments where electrical disturbances are routine.

Core Features & Benefits

✓ Optical Isolation Technology
1500V channel-to-logic isolation shields your PLC-5 processor from field-side voltage spikes and ground potential differences, extending system lifespan and reducing nuisance faults in high-EMI environments.

✓ Dual-Voltage Compatibility
Accepts both AC and DC signals within the 92-138V window on a per-channel basis, eliminating the need for separate input modules and simplifying spare parts inventory for mixed-signal applications.

✓ Hot-Swap Serviceability
Replace the module under power without halting production—critical for 24/7 operations where scheduled downtime is measured in minutes, not hours.

✓ Factory-Tested Reliability
Every unit undergoes voltage stress testing, thermal cycling, and isolation verification before shipment, ensuring compliance with UL508, CSA C22.2, and CE standards for industrial control equipment.

✓ Backplane Communication
Seamless integration with 1785-series processors via the 1771 chassis backplane—no external wiring between modules, reducing installation time and potential connection errors.

✓ Diagnostic Visibility
Front-panel LED indicators and RSLogix 5 diagnostic bits provide real-time status monitoring, accelerating troubleshooting during commissioning and maintenance activities.

Typical Application Scenarios

→ Motor Control Centers
Monitor high-voltage auxiliary contacts, overload relays, and drive status signals in VFD panels. The module's wide voltage tolerance accommodates supply fluctuations common in industrial power distribution.

→ Material Handling Systems
Interface with AC proximity sensors and limit switches on conveyors, cranes, and automated storage systems. Optical isolation prevents ground loop issues in long cable runs across facility floors.

→ Process Equipment Monitoring
Track pump status, valve positions, and alarm contacts in chemical processing, water treatment, and food production lines where equipment operates at elevated voltages.

→ Safety Interlock Networks
Integrate emergency stop circuits, light curtains, and guard door switches requiring isolated inputs to meet functional safety requirements in machinery applications.

→ Utility Substation Control
Acquire breaker status, transformer alarms, and switchgear indications in power distribution environments where electrical isolation is mandatory for personnel safety.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-ID when your application requires monitoring of AC or DC signals above 48V with mandatory electrical isolation. For lower-voltage DC applications (5-30V), consider the 1771-IBD or 1771-IXE modules. If analog signal conditioning is needed, evaluate the 1771-IFE or 1771-IL series instead.

Extended Functions

Multi-Chassis Configurations: Deploy across distributed I/O architectures using 1771-ASB remote I/O adapters, extending the module's reach up to 3,048 meters (10,000 feet) from the processor via RIO or ControlNet networks.

Redundancy Support: Integrate into redundant PLC-5 systems using dual-processor configurations for high-availability applications in critical infrastructure and continuous process industries.

Custom Filtering: While the module includes standard RC filtering, external signal conditioning can be added for applications with extreme noise or requiring faster response times below the 20ms specification.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom-configured or bulk orders typically require 5-10 business days for preparation and quality verification.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty options available upon request.

Technical Support: Direct access to application engineers with PLC-5 expertise for installation guidance, configuration assistance, and troubleshooting support via email, phone, or remote session.

Documentation Package: Each module includes installation instructions, wiring diagrams, and quick-start guide. Full technical manuals and RSLogix 5 configuration files available for download.

Frequently Asked Questions

Q: Can the 1771-ID module handle mixed AC and DC inputs on the same unit?
A: Yes, each of the 16 input channels independently accepts either AC or DC signals within the 92-138V range, allowing flexible field wiring without dedicated AC-only or DC-only modules.

Q: What is the recommended maximum wire length for input connections?
A: For optimal signal integrity, limit field wiring to 300 meters (1000 feet) using shielded twisted-pair cable with proper grounding. Longer runs may require signal repeaters or lower-impedance sources.

Q: Does this module support online replacement without system shutdown?
A: Absolutely. The 1771-ID features hot-swap capability—you can remove and install the module while the chassis remains powered, though best practice is to inhibit the I/O slot in RSLogix 5 before physical removal.

Q: How does the module indicate input status and faults?
A: Front-panel LEDs show power status and individual input states. Additionally, RSLogix 5 provides diagnostic bits for each channel, including wire-off detection and module health indicators.

Q: Is the 1771-ID compatible with newer ControlLogix or CompactLogix systems?
A: No, the 1771-ID is designed exclusively for PLC-5 systems using 1771 chassis. For ControlLogix, use 1756-series modules; for CompactLogix, use 1769-series I/O.

Q: What energy efficiency benefits does isolated input architecture provide?
A: Optical isolation reduces ground loop currents and eliminates the need for external isolation relays, lowering panel heat generation and reducing overall system power consumption by 8-12% compared to non-isolated designs.

Take the Next Step

Ready to enhance your PLC-5 system with proven isolated input technology? Contact our team for application-specific recommendations, volume pricing, or technical consultation. We support system integrators, OEMs, and end users across manufacturing, infrastructure, and process industries worldwide.
