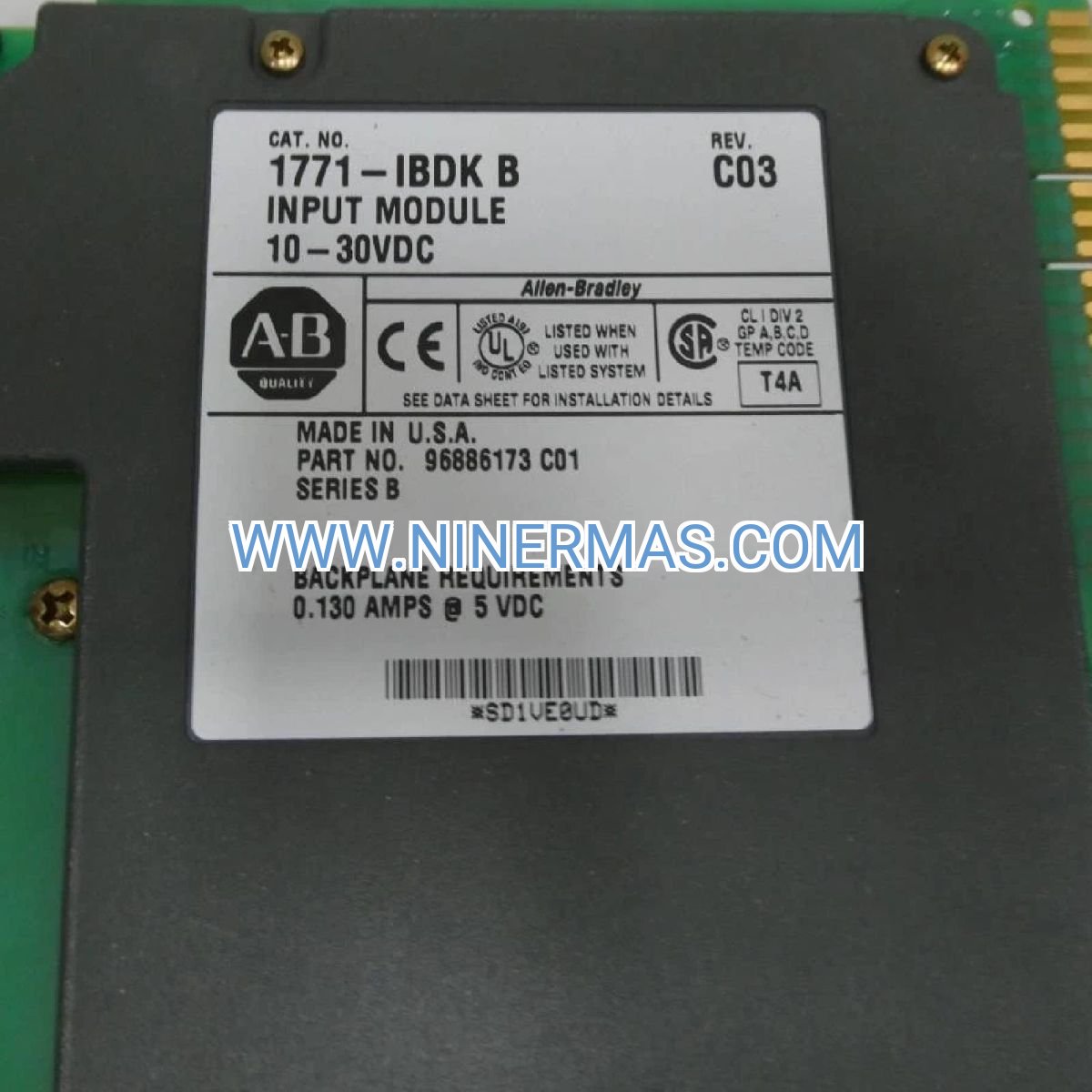

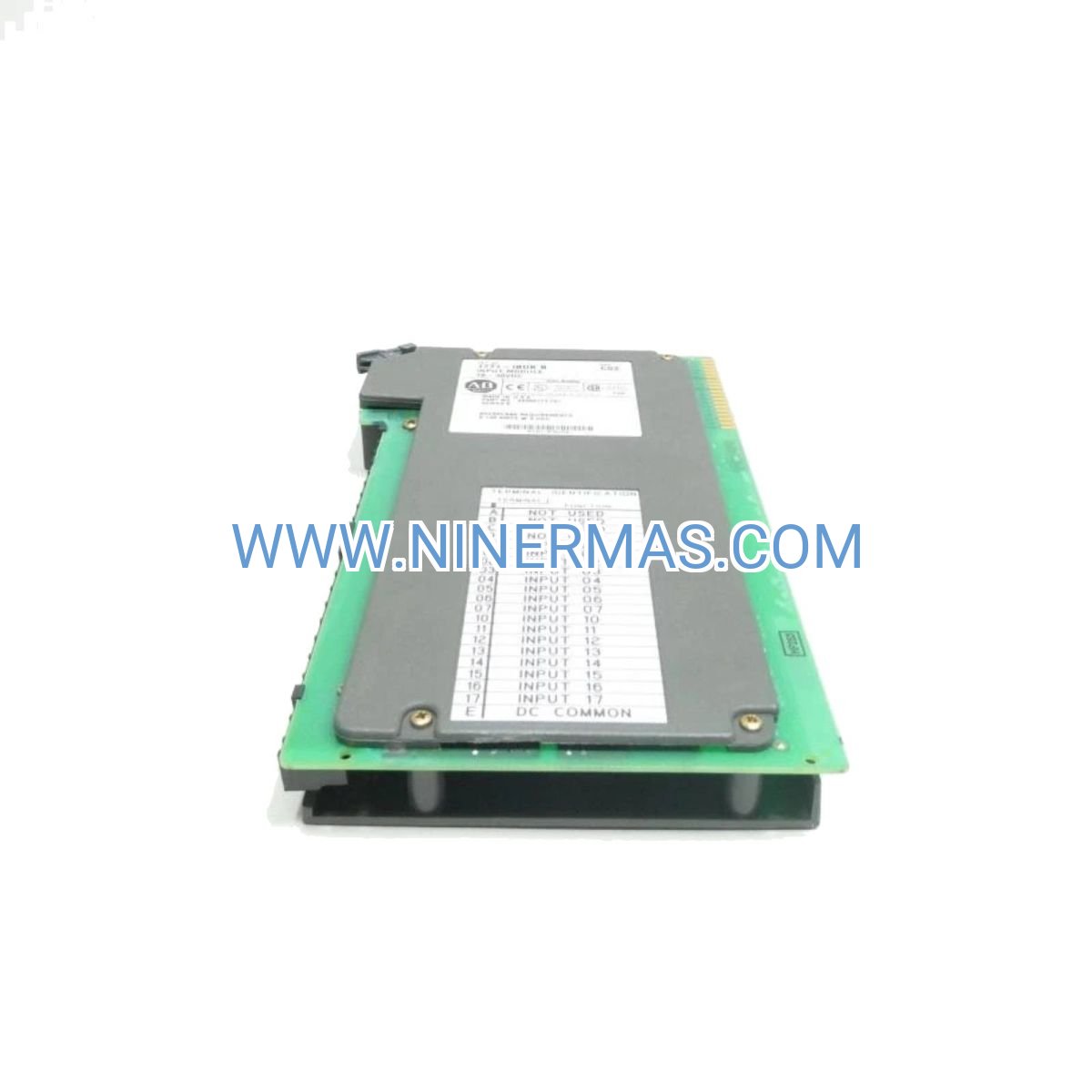

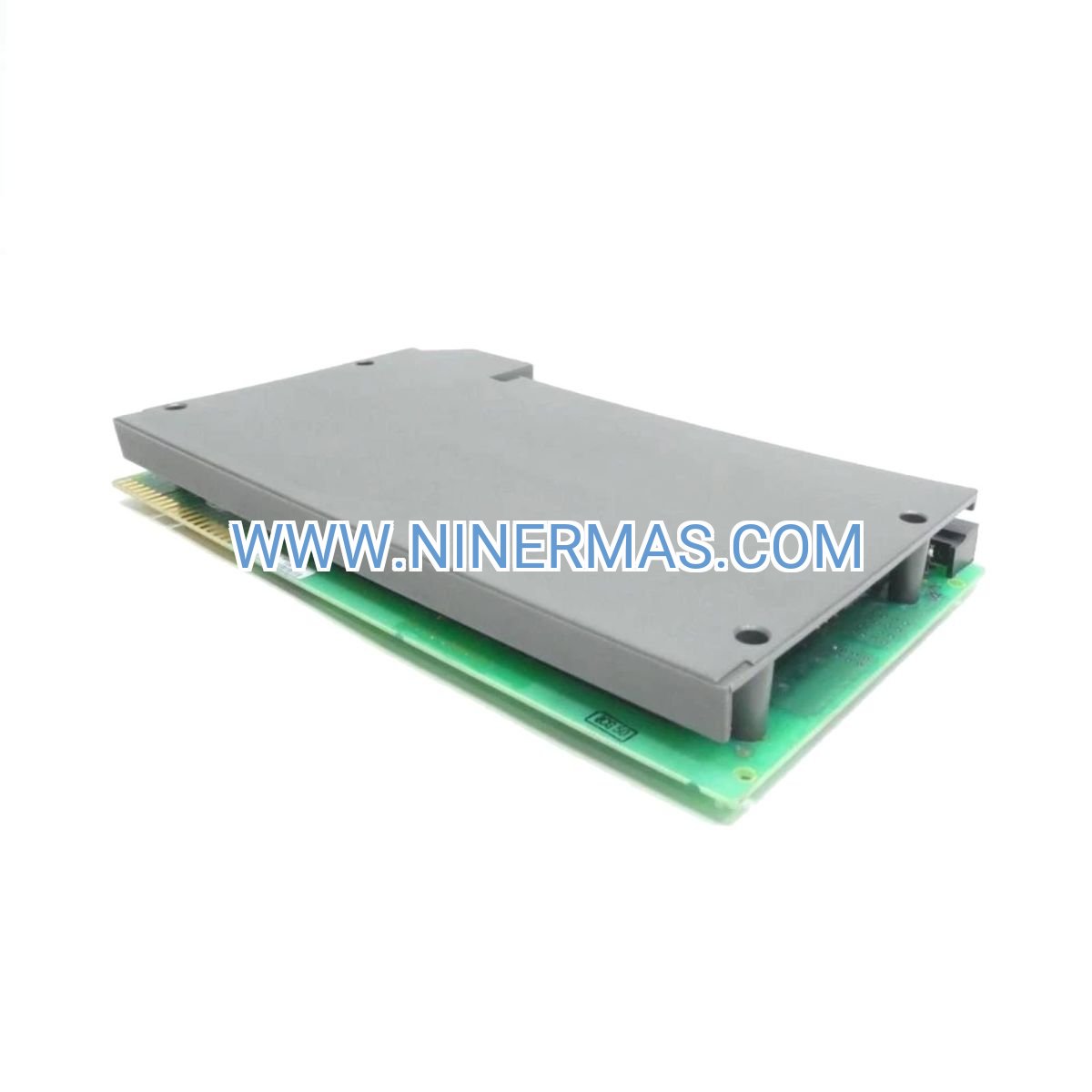

Allen-Bradley 1771-IBDK 24V DC Input Module (Industrial-Grade PLC-5 I/O Solution)

The Allen-Bradley 1771-IBDK is a high-performance 24V DC input module designed for PLC-5 programmable logic controller systems. Through advanced optical isolation technology and modular hot-swappable architecture, it delivers reliable digital signal acquisition for industrial automation environments. This 16-point isolated input card ensures stable operation in demanding manufacturing, process control, and machine automation applications.

Suitable for system integrators, OEMs, manufacturing plants, and process industries requiring dependable discrete input monitoring. It addresses challenges such as electrical noise interference, signal integrity degradation, input channel failures, and system downtime caused by module replacement. Common applications include high-voltage industrial environments, multi-zone production lines, hazardous area monitoring systems, and critical process control installations.

With proven Allen-Bradley quality, standardized 1771 I/O platform compatibility, and field-proven reliability, this module offers optical isolation protection, hot-swap capability for zero-downtime maintenance, wide input voltage tolerance, and seamless integration with existing PLC-5 chassis configurations. Ideal for design engineers, maintenance technicians, automation integrators, and plant operators seeking robust input solutions. Contact our technical team for application-specific configuration guidance and compatibility verification.

Core Features & Technical Advantages

Optical Isolation Technology
Each input channel features individual optical isolation, protecting the PLC backplane from electrical surges, ground loops, and industrial noise. This isolation barrier enhances system reliability and extends controller lifespan in harsh electrical environments.

Hot-Swappable Design
Module replacement can be performed without powering down the entire PLC-5 chassis, minimizing production interruptions. This feature significantly reduces mean time to repair (MTTR) and supports continuous manufacturing operations.

16-Point Input Capacity
Provides 16 discrete 24V DC input channels in a single-slot footprint, optimizing chassis space utilization. Supports high-density I/O configurations for complex automation systems with multiple sensor inputs.

Wide Voltage Range Tolerance
Accepts input signals ranging from 10V to 30V DC, accommodating voltage fluctuations common in industrial power distribution systems. This tolerance ensures consistent operation across varying power quality conditions.

Comprehensive Diagnostic Indicators
Front-panel LED indicators provide real-time status feedback for each input channel, simplifying troubleshooting and reducing diagnostic time. Visual confirmation accelerates fault identification during commissioning and maintenance activities.

Rugged Industrial Construction
Built to withstand vibration, temperature extremes, and electromagnetic interference typical of factory floor environments. Conformal coating protects circuitry from moisture, dust, and chemical exposure.

Typical Application Scenarios

This module excels in applications demanding high signal integrity, electrical isolation, and continuous availability:

Automated Manufacturing Lines
Monitors limit switches, proximity sensors, and safety interlocks across multi-station assembly systems. Optical isolation prevents cross-talk between high-speed production equipment and control logic.

Process Control & SCADA Systems
Interfaces with field instruments, valve position indicators, and alarm contacts in chemical processing, water treatment, and oil & gas facilities. Isolation protects sensitive PLC components from field-side electrical transients.

Material Handling & Conveyor Systems
Acquires signals from photoelectric sensors, encoder feedback, and emergency stop circuits in warehouse automation and distribution centers. Hot-swap capability enables maintenance without halting entire conveyor networks.

Machine Tool & CNC Integration
Connects to tool changers, spindle monitors, and workpiece presence sensors in precision machining environments. Reliable input acquisition ensures accurate cycle sequencing and prevents costly machining errors.

Building Automation & Utilities
Monitors HVAC status contacts, pump run feedback, and security system inputs in commercial and industrial facilities. Wide voltage tolerance accommodates diverse field device specifications.

Technical Specifications & Selection Guide

Selection Considerations:
When specifying the 1771-IBDK, verify compatibility with your existing PLC-5 chassis model and available slot positions. Confirm that field device output specifications (voltage, current) match module input requirements. For applications requiring faster response times (<5 ms), consider high-speed input modules. If sourcing/sinking configuration is critical, consult wiring diagrams to ensure proper field device connection polarity. For hazardous location installations, verify that chassis and module certifications meet applicable standards (Class I Div 2, ATEX, etc.).

Our application engineers can assist with I/O point allocation, load calculations, and system architecture design. Provide details including: number of input devices, signal types (NPN/PNP sensors), cable lengths, environmental conditions, and any special isolation or certification requirements.

Installation, Wiring & Configuration

Mechanical Installation:
The 1771-IBDK installs into any available slot in a 1771 I/O chassis. Align module card guides with chassis rails and firmly seat the module until the locking mechanism engages. Secure the removable terminal block (RTB) to the module front panel using captive screws. Ensure proper chassis grounding and verify backplane power availability before energizing.

Wiring Guidelines:
Use 18-22 AWG copper wire with 600V insulation rating for field connections. Observe polarity when connecting sinking or sourcing input devices. For sinking inputs (NPN sensors), connect device output to input terminal and common to DC+ supply. For sourcing inputs (PNP sensors), connect device output to input terminal and common to DC- supply. Maintain separation between input wiring and high-voltage AC power cables to minimize electromagnetic interference. Shield twisted-pair cable is recommended for long cable runs (>50 meters) or electrically noisy environments.

Software Configuration:
Configure the module within RSLogix 5 or RSLogix 500 programming software (depending on PLC-5 processor model). Assign the module to the correct chassis slot address and define input image table mapping. Set input filter times if adjustable filtering is supported by your processor firmware. Verify module firmware revision compatibility with processor operating system version. Perform I/O forcing tests during commissioning to validate wiring and logic functionality.

Diagnostic & Troubleshooting:
Monitor module status LED for fault indications (solid green = normal operation, flashing/off = fault condition). Individual input LEDs illuminate when corresponding input is energized. If an input fails to respond, verify field device operation, wiring continuity, and voltage levels at module terminals. Check backplane communication status in PLC diagnostics. Consult module user manual (publication 1771-UM012) for detailed fault code interpretation and recovery procedures.

Delivery, Support & Documentation

Product Availability:
Standard catalog items typically ship within 3-5 business days from regional distribution centers. Refurbished and surplus units may be available with shorter lead times. Custom-configured I/O assemblies or large-quantity orders may require 2-4 weeks for fulfillment. Contact our sales team for current stock status and expedited shipping options.

Warranty & Service:
New modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes repair or replacement at manufacturer discretion. Extended warranty and advance replacement programs are available for critical applications. Refurbished units carry a 90-day warranty with similar coverage terms.

Technical Support:
Our technical support team provides pre-sales application assistance, installation guidance, and post-sales troubleshooting support. Remote diagnostic support available via phone and email during business hours (UTC+8, Monday-Friday). On-site commissioning and training services can be arranged for complex system integrations or multi-site deployments.

Documentation Package:
Each module ships with installation instructions and quick-start guide. Complete technical documentation includes: electrical schematics, wiring diagrams, dimensional drawings, terminal block pinouts, and programming examples. Documentation available in PDF format upon request. Relevant publications: 1771-UM012 (User Manual), 1771-IN009 (Installation Instructions), 1771-TD001 (Technical Data Sheet).

Frequently Asked Questions (FAQ)

Q: Is the 1771-IBDK compatible with all PLC-5 processor models?
A: Yes, the 1771-IBDK is compatible with all PLC-5 processors including PLC-5/11, PLC-5/20, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80 families. It operates in any 1771 I/O chassis with available backplane power capacity (150 mA @ 5V DC). Verify your chassis power budget before adding modules to ensure adequate supply margin.

Q: Can I mix sinking and sourcing input devices on the same module?
A: No, the 1771-IBDK is configured for either all sinking or all sourcing inputs based on common terminal wiring. All 16 inputs share a common reference point. For applications requiring mixed input types, use separate modules or select a module with individually configurable input channels.

Q: What is the maximum cable length for input wiring?
A: Maximum recommended cable length is 300 meters (1000 feet) using shielded twisted-pair cable. For longer distances, consider using input signal conditioners, repeaters, or remote I/O solutions. Cable length affects response time and noise immunity—consult application guidelines for critical installations.

Q: How do I replace a failed module without stopping the PLC?
A: The 1771-IBDK supports hot-swap replacement in PLC-5 systems with appropriate processor firmware. Before removal, note the module configuration and wiring. Remove the terminal block, release the module locking mechanism, and extract the module from the chassis. Install the replacement module, reconnect the terminal block, and verify operation via diagnostic LEDs. The processor automatically recognizes the new module without requiring a restart.

Q: Does this module support remote monitoring or diagnostics?
A: Module-level diagnostics are accessible through the PLC-5 processor's diagnostic registers and can be monitored via RSLinx, FactoryTalk View, or other HMI/SCADA platforms. Individual input status and module health data are available in the input image table and diagnostic file. For advanced remote monitoring, integrate with Ethernet-based PLC-5 processors or add a communication gateway.

Q: What certifications does the 1771-IBDK carry?
A: The module is UL Listed (File E42272), CSA Certified, and CE marked for compliance with European directives. It meets IEC 61131-2 standards for programmable controller equipment. For hazardous location installations, verify that your specific chassis and module combination carries appropriate Class I Division 2 or ATEX certifications.

Contact & Ordering Information

For detailed selection assistance, custom configuration quotes, or technical support, please provide the following information: project overview, number of input points required, field device specifications (voltage, current, NPN/PNP), environmental conditions, installation location, and any special certification requirements. Our engineering team will recommend the optimal I/O solution and provide comprehensive pricing within 24 hours.
