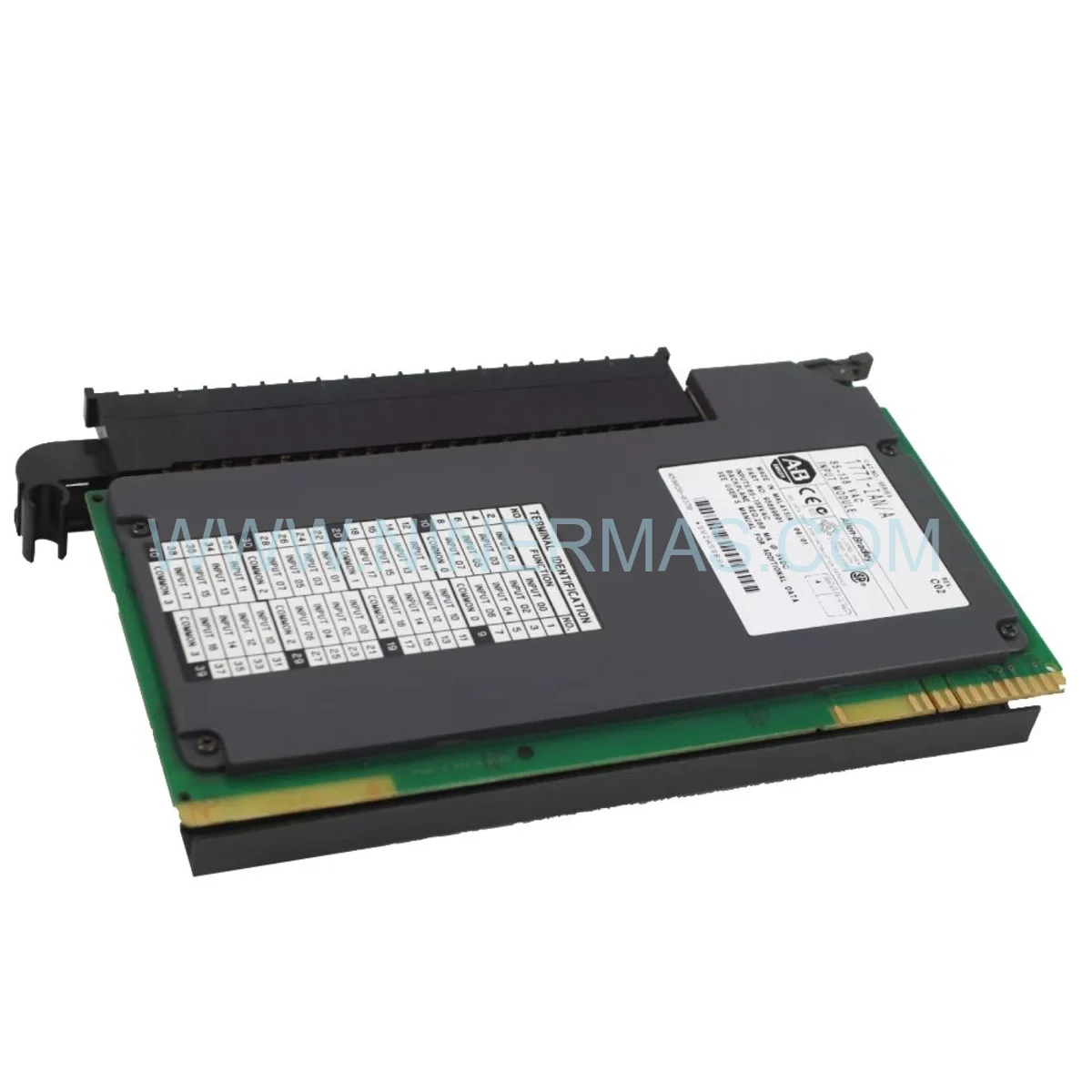

Allen-Bradley 1771-IAN 32-Point 120V AC Input Module | PLC-5 I/O

Allen-Bradley 1771-IAN 32-Point AC Input Module | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Allen-Bradley 1771-IAN stands as a cornerstone I/O module for sustaining system availability in mission-critical PLC-5 control architectures. Deployed across manufacturing lines, packaging systems, and process control networks, the 1771-IAN delivers deterministic signal acquisition across 32 individually isolated AC input channels inimizing unplanned downtime and supporting operational excellence in high-demand environments. Its role in process optimization is well-established: consistent, noise-immune input scanning ensures that upstream field device states are accurately reflected in the controller’s logic scan, a prerequisite for any automation component operating at production-grade SLAs.

Engineered for durability in harsh industrial environments, the 1771-IAN operates reliably across a 85-138V AC input range with 1500V AC optical isolation between field wiring and backplane logic. Installation demands attention to proper grounding, cable segregation from high-voltage runs, and torque-controlled terminal termination (12-22 AWG copper, 7mm strip). Thermal management within the 1771 chassis must account for the module’s 150mA backplane draw, particularly in densely populated I/O racks where aggregate current budgets are tight.

As production lines age and OEM support windows close, maintaining a verified stock of legacy I/O modules becomes a strategic imperative. The 1771-IAN, as an end-of-life (EOL) component in many facilities, is increasingly difficult to source through standard distribution channels. Holding certified spare units directly reduces mean time to repair (MTTR) and protects against extended lead times that can translate into days of lost production capacity.

Key Operational Features

32 Isolated Input Channels — Individual optical isolation per point eliminates cross-channel interference, supporting high-availability system designs.
120V AC Nominal Operation — Optimized for North American and international 120V AC field device ecosystems; operational range 85-138V AC.
1500V AC Optical Isolation — Robust field-to-logic barrier ensures signal integrity in electrically noisy industrial environments.
Seamless PLC-5 Integration — Auto-configures via 1771 backplane; compatible with all 1785-series processors for frictionless system integration.
Removable Terminal Blocks — Enables rapid field wiring changes and module swap without full rewiring, reducing maintenance windows.
Real-Time Diagnostic LEDs — Per-channel status indication accelerates fault isolation and supports predictive maintenance workflows.
Compact High-Density Footprint — 32 points per slot reduces chassis slot consumption, optimizing rack utilization in space-constrained control panels.

Maintenance & Performance Benchmarks

The 1771-IAN is architected to integrate into both small-scale standalone PLC-5 systems and large distributed I/O networks spanning multiple 1771 chassis. In multi-rack configurations, the module communicates via the 1771 I/O chassis backplane, with the PLC-5 processor managing scan time allocation across all installed modules. Typical I/O scan contribution per module is sub-millisecond, preserving overall system throughput even in high-point-count installations.

For facilities running redundant control architectures, the 1771-IAN supports mirrored I/O configurations when paired with appropriate PLC-5 redundancy processors. Periodic maintenance benchmarks recommend annual insulation resistance testing on field wiring, visual inspection of terminal block seating, and LED functional verification during scheduled outages. Mean time between failures (MTBF) for properly installed units in controlled environments exceeds 100,000 hours under standard industrial duty cycles.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1771-IAN unit dispatched from our facility is supplied in original factory packaging with full OEM labeling and documentation intact. For time-sensitive maintenance scenarios, same-day dispatch is available on confirmed in-stock units when orders are placed before the daily logistics cutoff. Our global supply network specializes in EOL and legacy automation components, ensuring that facilities running long-lifecycle PLC-5 systems can source verified, traceable modules without compromising on authenticity or quality.

All units are subject to pre-shipment functional verification and visual inspection. Export documentation, country-of-origin certification (USA), and customs harmonization support are provided as standard for international shipments. Worldwide express logistics partnerships ensure delivery to major industrial hubs across North America, Europe, Southeast Asia, and the Middle East within competitive lead times.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1771-IAN in a PLC-5 chassis?
A: De-energize the chassis before insertion. Align the module with the chassis guides, seat firmly until the locking tabs engage, then connect field wiring to the removable terminal block. Power up the chassis and verify per-channel LED status against known field device states before enabling processor scan.

Q2: Which PLC-5 firmware versions are compatible with the 1771-IAN?
A: The 1771-IAN is compatible with all PLC-5 processor firmware revisions that support the 1771 I/O chassis platform. No firmware-specific configuration is required he module is auto-recognized by the processor during I/O configuration. Consult your processor’s release notes for any chassis slot restrictions.

Q3: Can the 1771-IAN be used in a 240V AC field wiring environment?
A: No. This module is rated for 120V AC nominal (85-138V AC operating range). For 240V AC applications, the correct selection is the 1771-IAD. Applying 240V AC to the 1771-IAN will cause immediate module damage and potential safety hazards.

Q4: What is the warranty coverage and claim process?
A: All units carry a 12-month comprehensive warranty covering manufacturing defects, component failure, and performance non-conformance under normal operating conditions. To initiate a warranty claim, contact our technical support team with the unit serial number, purchase documentation, and a description of the observed fault. Replacement or repair is processed within standard lead times.

Q5: Is hot-swap module replacement supported during live system operation?
A: Hot-swapping is not supported or recommended for the 1771-IAN. Always follow LOTO (Lockout/Tagout) procedures and de-energize the affected chassis section before module removal or insertion to prevent data corruption, equipment damage, or personnel injury.

Q6: How do I verify module authenticity upon receipt?
A: Inspect the OEM label for correct part number (1771-IAN), date code, and Allen-Bradley/Rockwell Automation branding. Cross-reference the serial number with factory documentation if provided. Our pre-shipment inspection report is available upon request for traceability purposes.
