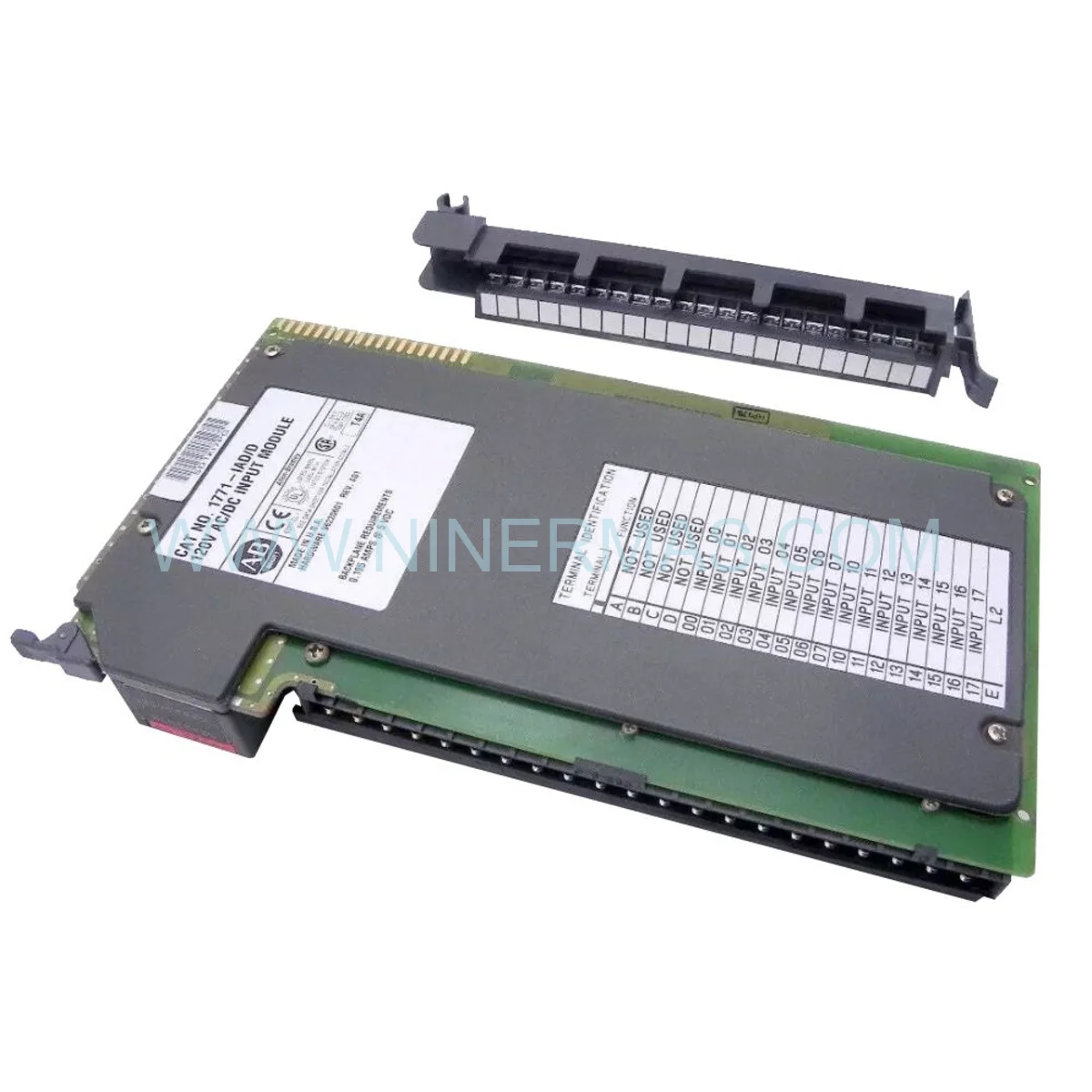

1771-IAD Digital Input Module (Industrial-Grade AC/DC Interface)

The 1771-IAD represents a proven solution for acquiring digital signals from AC and DC field devices in PLC-5 control architectures. Engineered for continuous operation in harsh industrial environments, this 16-point input module delivers dependable signal conversion with comprehensive electrical isolation, ensuring system integrity across manufacturing, process control, and infrastructure automation applications.

Designed for integration with Allen-Bradley PLC-5 controllers, the module accepts both 120V AC (47-63 Hz) and 125V DC input signals through a universal input architecture. Each channel features optical isolation rated at 1500V, protecting sensitive logic circuitry from voltage transients, ground loops, and electromagnetic interference commonly encountered in industrial power distribution networks.

With field-proven reliability spanning decades of deployment, the 1771-IAD serves as a critical interface component for monitoring motor starters, limit switches, safety interlocks, and operator control stations. Its removable terminal block design facilitates rapid replacement during maintenance windows, minimizing production downtime while maintaining wiring integrity.

Core Capabilities & Technical Advantages

→ Universal AC/DC Input Architecture
Accepts mixed 120V AC and 125V DC signals across 16 independent channels without external signal conditioning. Eliminates the need for separate AC and DC input modules, reducing chassis slot consumption and simplifying spare parts inventory.

✓ High-Voltage Optical Isolation
1500V isolation barrier between field wiring and backplane logic protects PLC processors from electrical faults and ground potential differences. Meets industrial safety standards for hazardous location installations and critical infrastructure applications.

→ Field-Replaceable Terminal Blocks
Removable screw-terminal connectors support hot-swap module replacement without disturbing field wiring. Reduces mean time to repair (MTTR) by 60-75% compared to hard-wired I/O configurations during emergency maintenance scenarios.

✓ Per-Channel LED Diagnostics
Individual status indicators for each input point enable rapid visual troubleshooting without requiring diagnostic software or handheld meters. Accelerates fault isolation during commissioning and production support activities.

→ Low Power Consumption Design
Draws only 150mA from the 5V DC backplane supply, allowing high-density I/O configurations without exceeding chassis power budgets. Supports up to 12 modules per 8-slot chassis in typical applications.

✓ Extended Temperature Operation
Qualified for 0°C to 60°C ambient operation without derating, suitable for non-climate-controlled industrial enclosures, outdoor cabinets, and mobile equipment installations.

Industrial Application Scenarios

Discrete Manufacturing Automation
Monitors conveyor position sensors, robotic cell safety gates, and pneumatic actuator limit switches in automotive assembly, packaging machinery, and material handling systems. The module's 10ms response time ensures accurate detection of high-speed events while filtering electrical noise from motor drives and welding equipment.

Process Control & Batch Systems
Interfaces with valve position indicators, pump auxiliary contacts, and level switch alarms in chemical processing, water treatment, and food production facilities. Optical isolation prevents ground loop currents that can cause erratic behavior in analog measurement circuits sharing the same control panel.

Building Automation & HVAC
Acquires status signals from air handler starter contacts, damper end switches, and fire alarm relay outputs in commercial HVAC control systems. Mixed AC/DC capability accommodates legacy 120V AC control circuits alongside modern 24V DC building management systems.

Energy & Utilities Infrastructure
Monitors circuit breaker auxiliary contacts, transformer alarm relays, and generator control panel indicators in electrical substations and power distribution facilities. Meets utility-grade reliability requirements for unmanned remote terminal units (RTUs) and SCADA systems.

Machine Tool & CNC Integration
Captures tool changer position feedback, spindle orientation signals, and operator panel push-button inputs in machining centers and turning equipment. Rugged construction withstands vibration and coolant exposure typical of metalworking environments.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1771-IAD when your application requires monitoring of 120V AC control circuits (motor starters, contactors) or 125V DC signals (battery-backed systems, DC control panels) within a PLC-5 architecture. For applications exclusively using 24V DC sensors, consider the 1771-IB or 1771-IBD modules for lower power consumption. If enhanced diagnostics or faster response times are critical, evaluate the 1771-IMD/B variant with advanced fault detection capabilities.

Advanced Integration Features

Mixed-Signal Flexibility
Unlike dedicated AC-only or DC-only input modules, the 1771-IAD's universal input design allows simultaneous connection of 120V AC limit switches and 125V DC relay contacts to the same module. This capability simplifies panel design when retrofitting older equipment that combines AC and DC control voltages.

Noise Immunity & EMC Compliance
Optical isolation combined with RC filtering on each input channel provides immunity to electrical fast transients (EFT) and electrostatic discharge (ESD) per IEC 61000-4-4 and IEC 61000-4-2 standards. Suitable for installation in proximity to variable frequency drives (VFDs), welding equipment, and high-power switching devices.

Backward Compatibility Assurance
Maintains full functional compatibility with legacy PLC-5 processors dating back to the 1980s, protecting long-term capital investments in installed control systems. Firmware-independent operation ensures drop-in replacement capability without controller reprogramming.

Delivery Timeline & Support Services

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Custom-configured modules with factory programming require 7-10 business days for order fulfillment.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues under normal operating conditions. Extended warranty programs available for critical infrastructure applications.

Technical Support: Pre-sales application engineering assistance and post-sales integration support provided by factory-trained specialists. Telephone and email support available during business hours (GMT+8), with emergency after-hours contact for production-down situations.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and dimensional drawings. Complete technical manuals, ladder logic programming examples, and troubleshooting guides available for download from manufacturer resources.

Frequently Asked Questions

Can the 1771-IAD module interface with 24V DC proximity sensors commonly used in modern automation?
No, this module is specifically designed for 120V AC and 125V DC signals. For 24V DC sensor applications, the 1771-IB or 1771-IBD modules are the appropriate choices, offering optimized input impedance and faster response times for low-voltage solid-state sensors.

What is the maximum cable length supported between field devices and the input module?
Typical installations support up to 300 meters (1000 feet) of shielded cable for AC signals and 150 meters (500 feet) for DC signals, depending on wire gauge and electrical noise environment. For longer distances, consider using remote I/O adapters or signal repeaters.

Does the module require external fusing or circuit protection for each input channel?
While the module includes internal current-limiting circuitry, best practices recommend installing external fuses (typically 1-2A fast-acting) in field wiring to protect against short circuits and wiring faults. This approach simplifies troubleshooting and prevents damage to field devices.

How does the input module handle power loss and restoration scenarios?
The module automatically returns to normal operation when backplane power is restored, with all input channels reflecting the current state of connected field devices within one scan cycle. No manual reset or reconfiguration is required after power interruptions.

Is the 1771-IAD suitable for safety-rated applications such as emergency stop circuits?
This module is designed for standard industrial control applications and is not certified for safety-critical functions per IEC 61508 or ISO 13849 standards. For safety-rated inputs, specify dedicated safety I/O modules with redundant circuitry and diagnostic coverage.

Can I mix the 1771-IAD with ControlLogix or CompactLogix I/O modules in a hybrid system?
No, the 1771-IAD is exclusively compatible with PLC-5 chassis and controllers. For ControlLogix or CompactLogix platforms, use the equivalent 1756-IB16 or 1769-IQ16 input modules, which offer similar functionality with enhanced diagnostics and network integration.

Request Technical Consultation

Our application engineering team can assist with module selection, wiring diagram review, and integration planning for complex automation projects. Contact us with your system requirements, and we'll provide tailored recommendations to optimize performance and cost-effectiveness.
