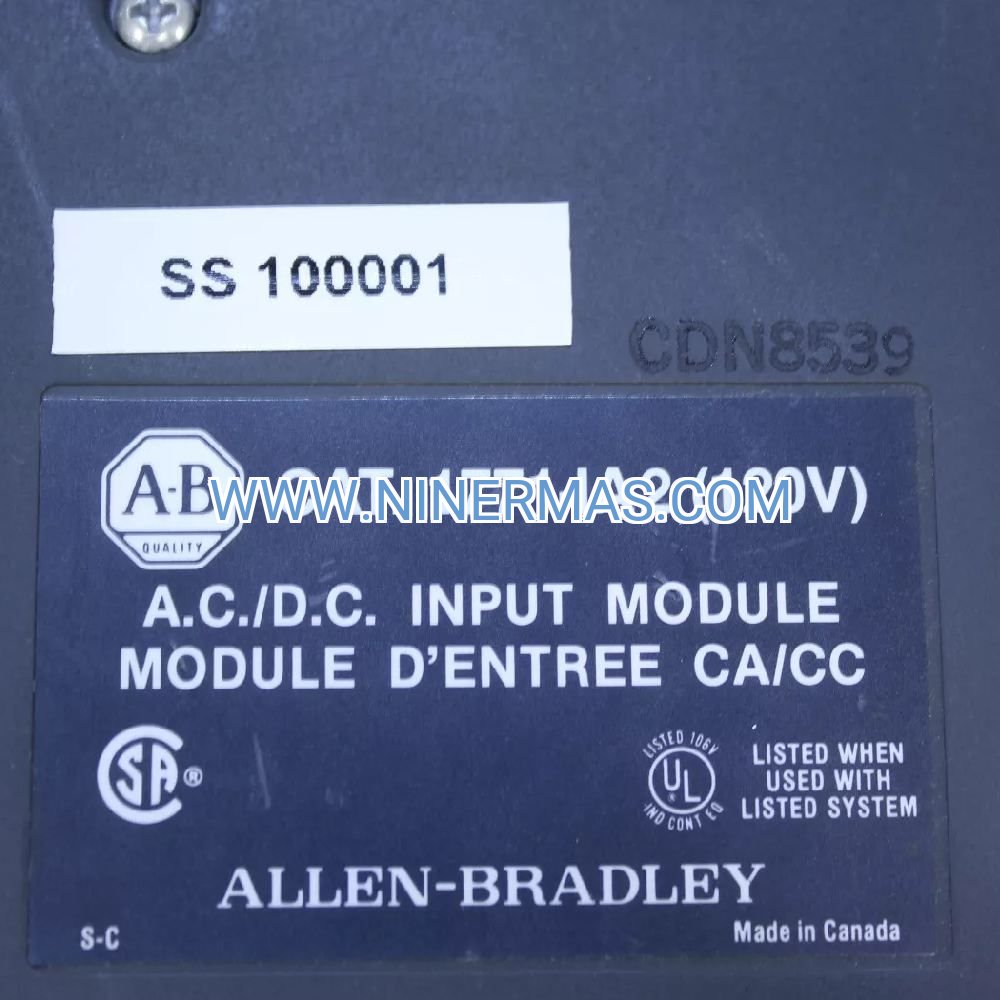

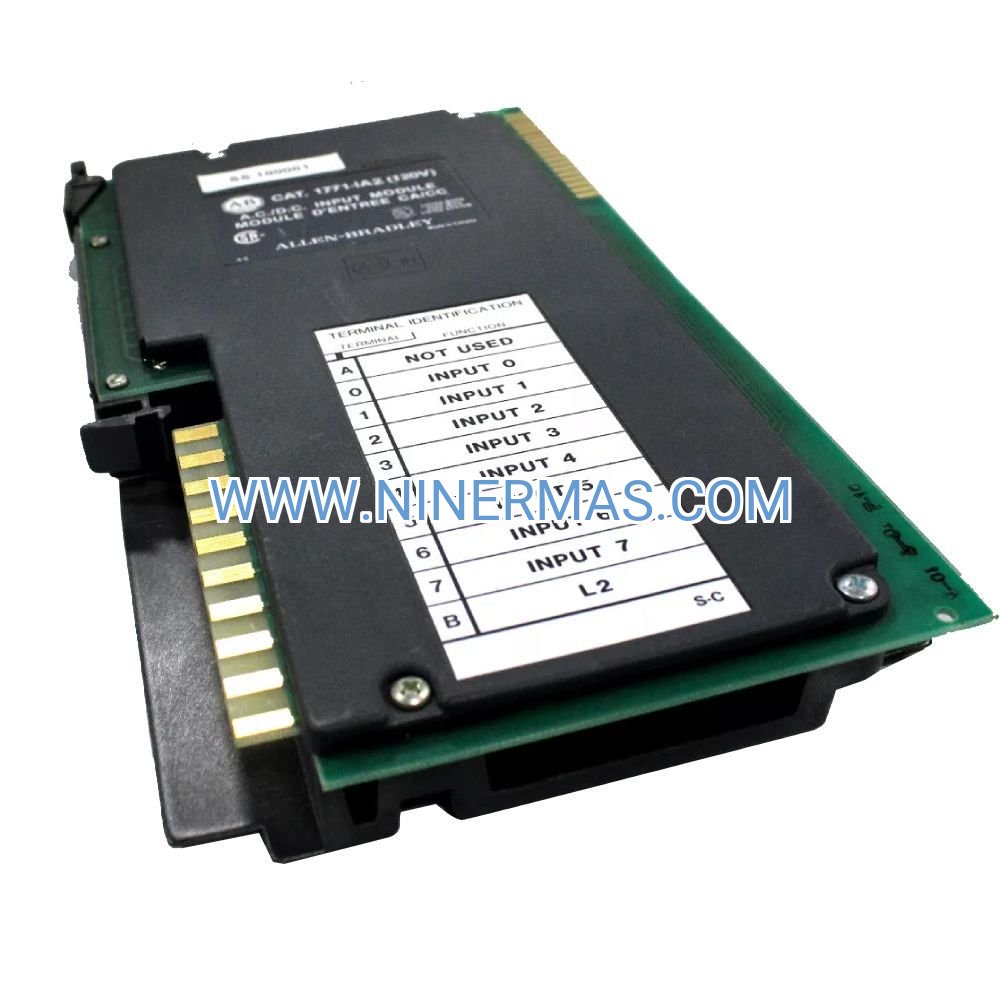

1771-IA2 Dual-Voltage Input Module (Industrial-Grade PLC-5 Interface)

The 1771-IA2 is a precision-engineered digital input module designed for Allen-Bradley PLC-5 control architectures. Accepting both 120V AC and 125V DC nominal signals across 16 isolated channels, this module eliminates voltage-specific hardware requirements while delivering enterprise-grade reliability in manufacturing, process control, and infrastructure automation environments.

Built for system integrators and plant engineers managing mixed-voltage installations, the 1771-IA2 solves the challenge of consolidating AC and DC signal acquisition into a single, hot-swappable platform. Its optical isolation architecture protects critical PLC logic from field-side electrical disturbances, while LED diagnostics accelerate commissioning and troubleshooting workflows.

With conformal coating for harsh environments, removable terminal blocks for rapid maintenance, and proven Allen-Bradley quality standards, this module delivers measurable uptime improvements and simplified inventory management for industrial control systems.

Core Features & Business Value

✓ Dual-Voltage Flexibility: Accepts 120V AC (47-63 Hz) and 125V DC inputs on the same module, reducing SKU proliferation by up to 50% and simplifying spare parts management.

✓ 1500V Optical Isolation: Field-to-logic isolation protects sensitive PLC circuitry from voltage spikes, ground loops, and electromagnetic interference—critical for high-reliability applications.

✓ Hot-Swap Architecture: Replace modules under power without system shutdown, minimizing production interruptions and enabling predictive maintenance strategies.

✓ Per-Channel LED Indicators: Real-time status visualization reduces troubleshooting time by 60-70%, accelerating fault diagnosis during commissioning and operation.

✓ Removable Terminal Blocks: Pre-wire replacement modules offline, then swap terminal assemblies in under 2 minutes—ideal for scheduled maintenance windows.

✓ Conformal Coating Protection: Resists moisture, dust, and chemical exposure in demanding industrial environments (0°C to 60°C operating range).

Typical Application Scenarios

→ Manufacturing Automation: Monitor limit switches, proximity sensors, and safety interlocks across assembly lines where both AC pilot devices and DC sensors coexist. The dual-voltage capability eliminates the need for voltage-specific input cards, reducing installation complexity.

→ Process Control Systems: Interface with field instruments in chemical, pharmaceutical, and food processing plants where mixed-voltage signals are standard. Optical isolation ensures signal integrity in electrically noisy environments with VFDs and motor starters.

→ Material Handling & Conveyor Systems: Acquire status signals from photoelectric sensors, inductive proximity switches, and mechanical limit switches in distribution centers and warehouses. Hot-swap capability supports 24/7 operations with minimal downtime.

→ Building Management Systems: Integrate HVAC status signals, access control inputs, and fire alarm monitoring in commercial facilities. The module's wide voltage tolerance accommodates aging infrastructure with voltage fluctuations.

→ Water/Wastewater Treatment: Monitor pump status, valve positions, and level switches in municipal and industrial treatment facilities where harsh environmental conditions demand conformal-coated electronics.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1771-IA2 when your application requires mixed AC/DC signal acquisition, optical isolation for noise immunity, or hot-swap capability for high-availability systems. For DC-only applications with lower voltage requirements, consider the 1771-IBD (24V DC). For higher-density installations, evaluate the 1771-IAD (32-point AC/DC).

Extended Functions

System Integration: The 1771-IA2 integrates seamlessly with RSLogix 5 programming software for ladder logic development and diagnostic monitoring. Module configuration is stored in the PLC processor, enabling rapid replacement without reprogramming.

Diagnostic Capabilities: Per-channel LED indicators provide instant visual feedback on input status. When combined with PLC diagnostic routines, the module supports predictive maintenance strategies by logging intermittent faults and signal quality issues.

Customization Options: While the standard 1771-IA2 meets most industrial requirements, custom terminal block configurations and extended temperature variants are available for specialized applications through Allen-Bradley's engineering services.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom configurations require 4-6 weeks for factory fulfillment.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to certified automation engineers for installation guidance, configuration assistance, and troubleshooting support via email, phone, and remote diagnostics.

Documentation Package: Each module includes installation instructions, wiring diagrams, technical specifications, and RSLogix 5 configuration examples. Complete product manuals available for download.

Frequently Asked Questions

Can the 1771-IA2 handle simultaneous AC and DC inputs on different channels?
Yes, the module accepts mixed AC and DC signals across its 16 input points. Each channel is independently isolated, allowing flexible signal routing without voltage-specific grouping requirements.

What is the maximum cable length for field wiring connections?
Recommended maximum cable length is 300 meters (1000 feet) for shielded twisted-pair wiring in industrial environments. Longer runs may require signal conditioning or repeaters depending on electrical noise levels.

Does this module support remote monitoring and diagnostics?
When integrated with PLC-5 processors and Ethernet communication modules, the 1771-IA2 enables remote status monitoring via RSLinx and FactoryTalk View HMI platforms. Real-time input states and diagnostic data are accessible through standard PLC data tables.

Is the 1771-IA2 compatible with newer ControlLogix or CompactLogix systems?
No, the 1771 series is designed exclusively for PLC-5 chassis. For ControlLogix applications, specify 1756-series input modules. For CompactLogix, use 1769-series I/O modules.

What maintenance procedures are recommended for optimal performance?
Inspect terminal connections quarterly for tightness and corrosion. Verify LED operation during routine system checks. Clean module exterior annually with approved electronics cleaner. Replace modules showing intermittent faults or physical damage.

Can this module operate in hazardous location environments?
The standard 1771-IA2 is rated for general industrial use. For Class I Division 2 hazardous locations, consult Allen-Bradley's hazardous location product catalog for certified alternatives or purged enclosure solutions.

Get Started Today

Upgrade your PLC-5 system with proven dual-voltage input technology. Contact our automation specialists for technical consultation, volume pricing, or custom configuration assistance. Fast shipping available for in-stock items.
