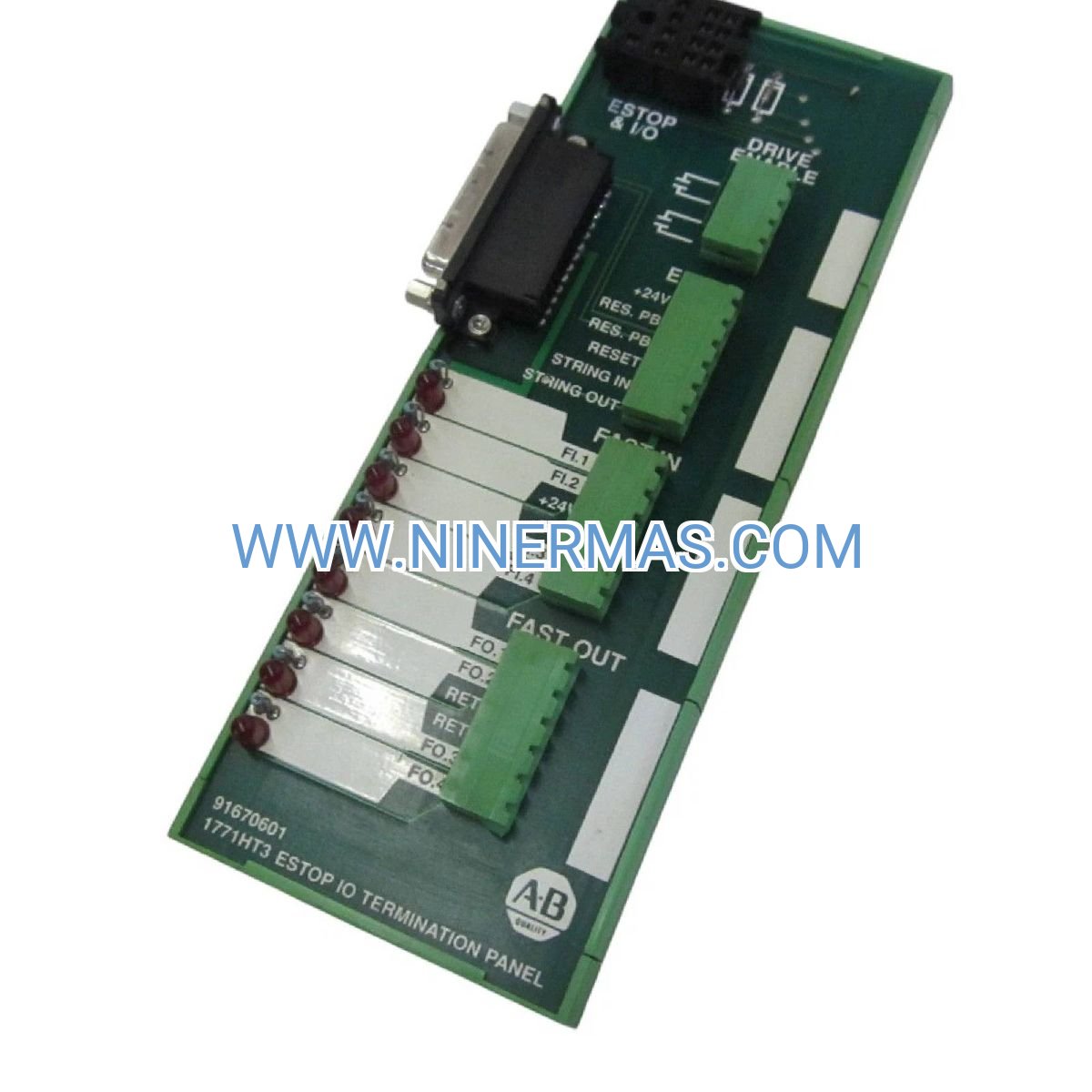

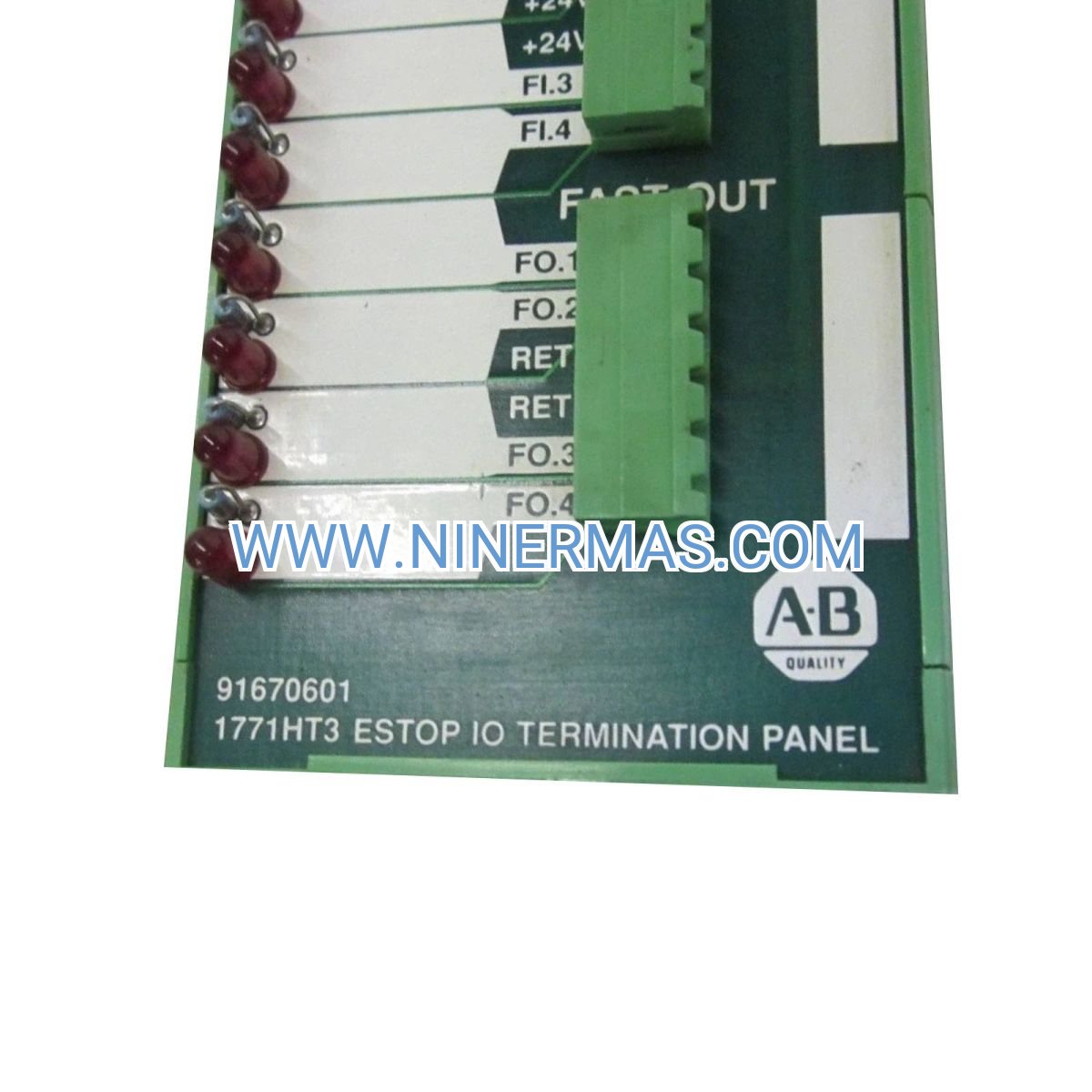

Allen-Bradley 1771-HT3 Termination Panel (Industrial-Grade I/O Wiring Solution)

The Allen-Bradley 1771-HT3 termination panel is a professional-grade wiring interface designed specifically for PLC-5 I/O systems. Through standardized screw-clamp terminal blocks and modular DIN-rail mounting architecture, it enables rapid, reliable field wiring connections while maintaining signal integrity and system safety. This panel serves as the critical bridge between field devices and PLC-5 I/O modules, ensuring secure electrical connections in demanding industrial environments.

Engineered for system integrators, control panel builders, and plant maintenance teams working with legacy PLC-5 installations or retrofit projects. It addresses common challenges including inconsistent wiring practices, time-consuming installation procedures, difficult troubleshooting access, and inadequate strain relief that can lead to intermittent faults or system downtime.

Built on Allen-Bradley's proven design standards with UL/cUL certification, the 1771-HT3 delivers tool-free DIN-rail installation, clearly labeled terminal positions, integrated wire management channels, and compatibility with standard 14-22 AWG field wiring. Ideal for OEMs, retrofit specialists, industrial electricians, and facility engineers requiring dependable termination solutions. Contact our application engineers for system integration guidance and technical specifications.

Core Features & Advantages

• Rapid Installation & Commissioning
  Pre-configured terminal layout matches 1771 I/O module pinouts exactly, eliminating wiring errors. DIN-rail snap-mount design enables installation in under 2 minutes per panel, reducing labor costs by approximately 40% compared to traditional point-to-point wiring methods.
• Enhanced System Reliability
  Industrial-grade screw-clamp terminals rated for 300V, 10A provide vibration-resistant connections. Integrated strain relief channels prevent wire fatigue and accidental disconnection, minimizing unplanned downtime in high-vibration environments such as manufacturing lines and process equipment.
• Simplified Troubleshooting & Maintenance
  Clearly marked terminal numbers corresponding to I/O module channels enable technicians to quickly identify and verify connections. Removable terminal blocks (on select models) allow pre-wiring and hot-swap capability during maintenance windows without disrupting adjacent circuits.
• Comprehensive Safety Compliance
  UL Listed and cUL certified to North American electrical standards. Finger-safe terminal design with integrated barriers prevents accidental contact with live conductors, meeting OSHA and NEC requirements for industrial control panels.
• Flexible System Integration
  Compatible with entire 1771 I/O family including digital, analog, and specialty modules. Supports mixed-voltage applications with proper isolation. Standard 35mm DIN-rail mounting fits all major enclosure manufacturers, facilitating both new installations and brownfield upgrades.
• Professional Documentation Support
  Each panel ships with detailed terminal assignment diagrams, wiring specifications, and dimensional drawings. Color-coded terminal groups (where applicable) align with industry-standard wiring practices, reducing training time for new technicians.

Typical Application Scenarios

The 1771-HT3 termination panel is engineered for environments demanding high wiring density, frequent maintenance access, and long-term reliability:

• Manufacturing Automation & Assembly Lines
  Provides organized termination for sensors, actuators, and safety devices connected to PLC-5 controllers. Facilitates rapid changeovers and equipment modifications in automotive, electronics, and consumer goods production facilities where downtime directly impacts throughput.
• Process Control & SCADA Systems
  Serves as field wiring interface for analog transmitters, valve positioners, and motor starters in chemical processing, water treatment, and oil & gas applications. Supports 4-20mA loops and discrete signals with proper grounding and shielding termination points.
• Building Automation & Infrastructure
  Connects HVAC controls, lighting systems, and access control devices to centralized PLC-5 controllers in commercial buildings, hospitals, and data centers. Enables structured wiring practices that simplify future expansions and system upgrades.
• Retrofit & Legacy System Upgrades
  Essential component when modernizing older PLC-5 installations with new field devices or expanding I/O capacity. Maintains compatibility with existing 1771 hardware while improving wiring organization and documentation standards to current best practices.
• Machine Builder & OEM Panel Fabrication
  Standardizes wiring methodology across multiple machine builds, reducing engineering time and improving quality consistency. Pre-wired terminal panels can be tested independently before final integration, accelerating commissioning schedules.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, the 1771-HT3 termination panel is designed with the following specifications:

Selection Considerations: When specifying the 1771-HT3 or equivalent termination panel, evaluate the following project parameters: total I/O point count and module types, field wiring gauge and insulation type, available panel space and DIN-rail length, environmental conditions (temperature, humidity, vibration), and applicable electrical codes (NEC, IEC). For complex systems involving mixed analog/digital signals or high-density I/O, consult with a certified system integrator to ensure proper grounding, shielding, and isolation practices. Our engineering team can provide layout drawings and bill-of-materials assistance based on your P&ID or I/O list.

Extended Capabilities

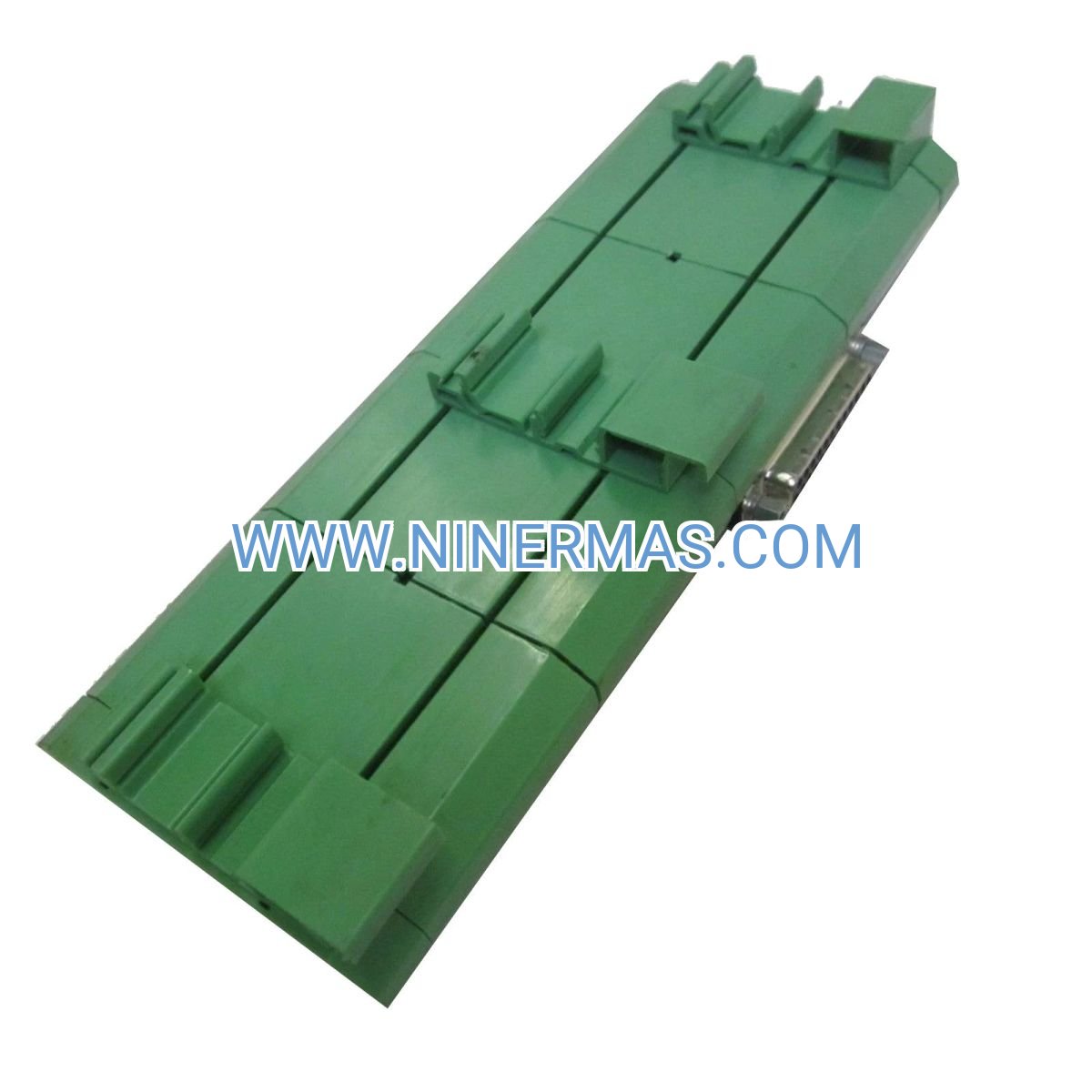

• Modular Expansion: Multiple panels can be mounted side-by-side on continuous DIN-rail for large I/O configurations, maintaining consistent terminal spacing and wire routing paths.
• Labeling & Identification: Compatible with standard label printers and adhesive terminal markers. Some models include integrated label strips for permanent identification.
• Grounding & Shielding: Dedicated ground terminals and shield termination points support best practices for noise immunity in analog and high-speed digital applications.
• Spare Terminal Provision: Additional uncommitted terminals facilitate future expansions without panel replacement or major rewiring efforts.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom configurations or large quantity orders may require 2-3 weeks; expedited service available upon request.

Warranty: Backed by Allen-Bradley's standard 1-year limited warranty covering defects in materials and workmanship. Extended warranty and service agreements available through authorized distributors.

Technical Support: Comprehensive support including pre-sales application engineering, installation guidance, and post-commissioning troubleshooting. Remote diagnostic assistance and on-site service coordination available depending on geographic location and service contract terms.

Documentation Package: Each shipment includes product datasheet, dimensional drawings, terminal assignment diagrams, wiring specifications, and compliance certificates. CAD files (DXF, STEP) and 3D models available for panel design integration. Installation manuals provided in PDF format with multilingual support.

Frequently Asked Questions (FAQ)

Q: How does the 1771-HT3 termination panel integrate with existing PLC-5 I/O systems?
A: The panel mounts on standard 35mm DIN-rail adjacent to your 1771 I/O modules. Field wiring connects to the panel's screw terminals, then short jumper wires (typically 6-12 inches) link the panel terminals to the corresponding I/O module screw terminals or connector blocks. This creates a clean separation between field wiring and module connections, simplifying troubleshooting and module replacement. Verify your specific 1771 module series for terminal compatibility; consult wiring diagrams provided with the panel.

Q: What is the maximum number of I/O points one termination panel can accommodate?
A: The 1771-HT3 typically provides termination for one 1771 I/O module, which ranges from 8 to 32 points depending on module type (e.g., 1771-IAD 16-point input, 1771-OBD 16-point output). For larger systems, multiple panels are installed in parallel. Each panel is independently removable for maintenance without affecting adjacent circuits.

Q: What energy savings or efficiency improvements can be expected?
A: While the termination panel itself does not directly reduce energy consumption, it significantly improves installation efficiency—reducing wiring labor by approximately 40% and minimizing commissioning errors that can cause system inefficiencies or downtime. Proper termination also ensures optimal signal integrity for analog I/O, which can improve process control accuracy and reduce waste in manufacturing or process applications.

Q: What are the environmental and installation requirements?
A: The panel is rated IP20 and must be installed inside a NEMA-rated enclosure (typically NEMA 12 or higher for industrial environments). Operating temperature range is 0°C to +60°C; for extreme environments, consider enclosure climate control. DIN-rail must be securely mounted to a grounded backplane. Ensure adequate wire bending radius and strain relief per NEC Article 430 for motor circuits or Article 725 for control circuits.

Q: Does the panel support remote monitoring or data acquisition protocols?
A: The termination panel is a passive wiring interface and does not include communication capabilities. However, it facilitates connections to PLC-5 I/O modules that communicate via the 1771 backplane to the PLC-5 processor, which supports protocols such as DH+, Remote I/O, ControlNet, or Ethernet/IP (via communication adapters). For modern SCADA integration, consider pairing with Allen-Bradley communication gateways or upgrading to ControlLogix platforms with native Ethernet/IP support.

Q: Can the panel be used with other PLC brands or I/O systems?
A: While physically compatible with standard DIN-rail mounting, the terminal layout and labeling are optimized for Allen-Bradley 1771 I/O modules. Using with other brands may require custom wiring documentation and will not benefit from the pre-matched terminal assignments. For mixed-vendor systems, consult with a system integrator to ensure proper isolation, grounding, and signal compatibility.

Request Technical Support & Quotation

To receive a detailed selection guide, pricing quotation, or application engineering support, please provide the following project information: project name and timeline, application type (manufacturing, process control, building automation, etc.), total I/O point count and module types, field device specifications (voltage levels, signal types), electrical supply parameters (voltage, phase, frequency), and enclosure dimensions or space constraints. Our engineering team will respond within one business day with tailored recommendations, wiring diagrams, and commercial terms.
