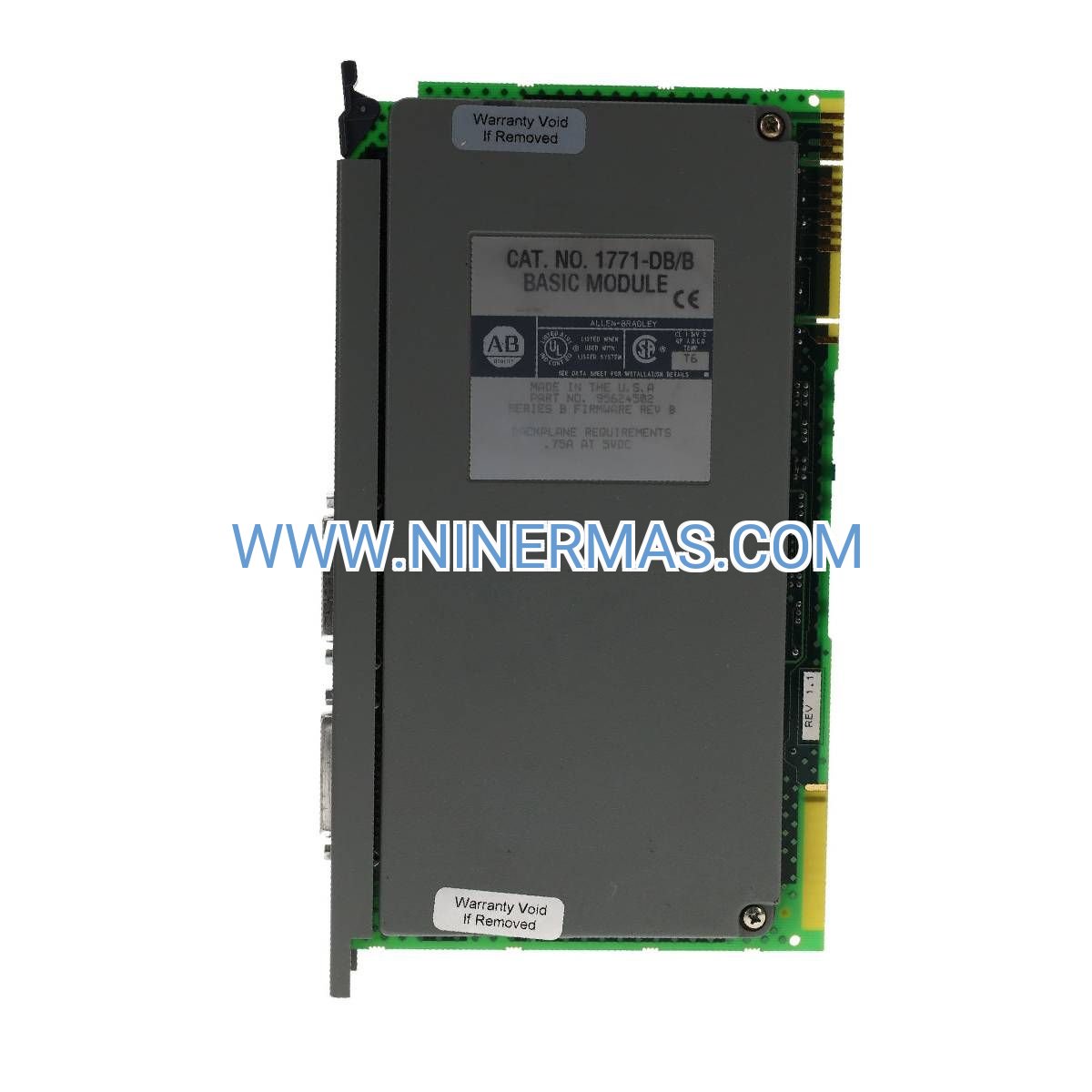

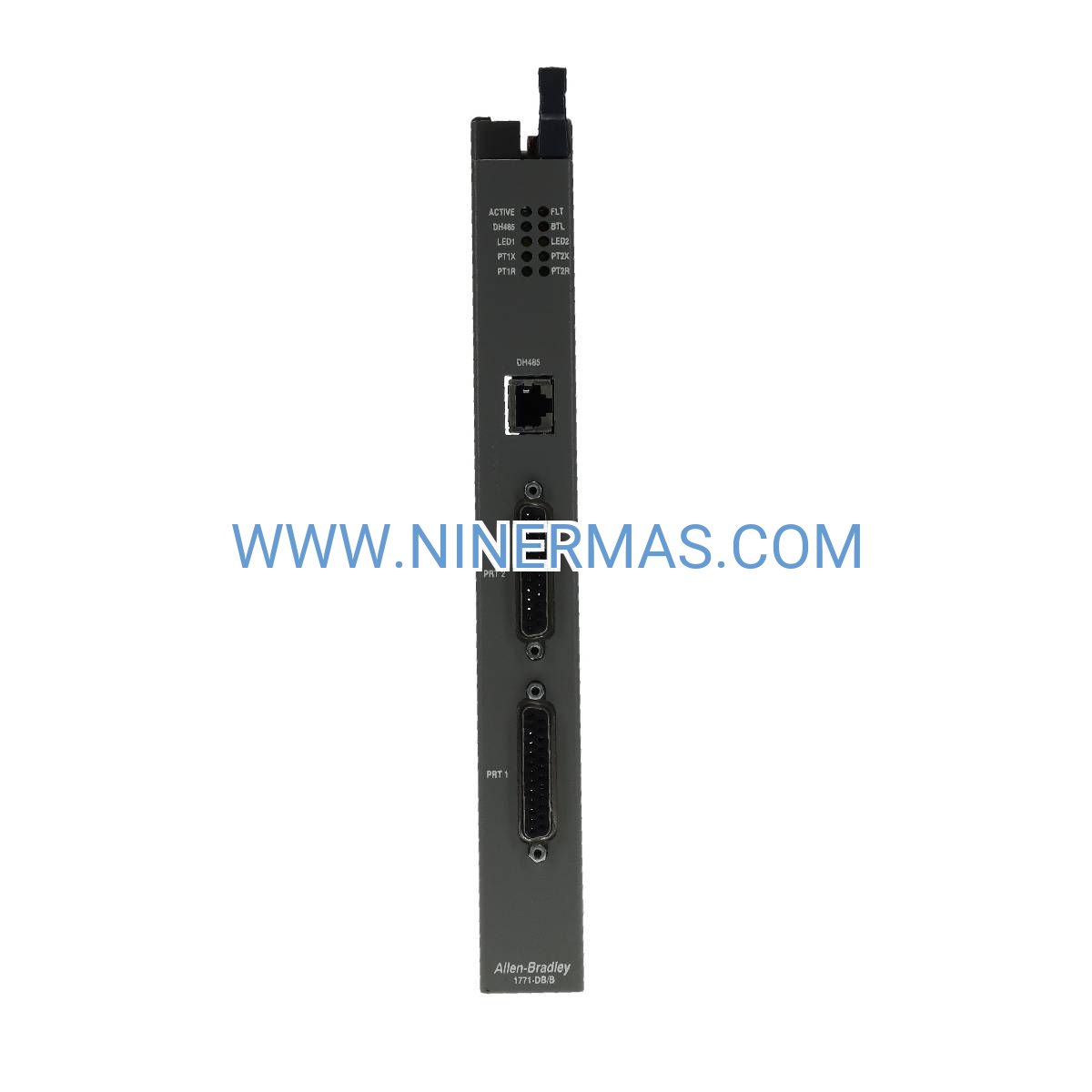

1771-DB BASIC Programming Module (Industrial-Grade PLC-5 Computational Engine)

The 1771-DB represents a specialized computational interface designed to extend PLC-5 control systems beyond conventional ladder logic constraints. This BASIC interpreter module transforms your automation platform into a versatile data processing hub, enabling custom algorithm development, complex mathematical operations, and proprietary protocol implementation—all within the proven reliability framework of Allen-Bradley's 1771 I/O architecture.

Engineered for manufacturing environments where standard PLC instruction sets prove limiting, the 1771-DB bridges the gap between rigid automation logic and flexible computational requirements. Process engineers gain the ability to implement adaptive control strategies, statistical quality monitoring, and real-time recipe management without external computing hardware. The module integrates seamlessly into existing PLC-5 chassis configurations, drawing power and communication directly from the backplane infrastructure.

Whether you're modernizing legacy equipment interfaces, developing custom batch control sequences, or implementing advanced data logging capabilities, the 1771-DB delivers industrial-grade performance with the programming flexibility of a high-level language environment. Factory-tested to OEM specifications and backed by comprehensive technical support, this module represents a proven solution for automation challenges that demand more than standard PLC functionality.

Core Capabilities & Technical Advantages

✓ Extended Programming Environment
Full BASIC language interpreter with mathematical functions, string manipulation, and array handling capabilities that surpass ladder logic limitations. Develop custom algorithms for quality control, process optimization, and data transformation without external computing resources.

→ Seamless System Integration
Direct backplane communication with PLC-5 processors enables real-time data exchange through shared memory tables. No additional wiring, network configuration, or communication modules required—simply install in any available 1771 chassis slot and configure through standard programming software.

✓ Expandable Memory Architecture
Program storage capacity supports complex applications with battery backup retention capability. Store multiple program files, data tables, and configuration parameters with non-volatile preservation during power interruptions when paired with chassis battery systems.

→ Co-Processor Operation Model
Executes BASIC routines independently while your main PLC-5 processor maintains standard scan cycle performance. Parallel processing architecture prevents computational bottlenecks in time-critical control applications.

✓ Industrial Environmental Specification
0°C to 60°C operating range with electromagnetic compatibility certification for harsh manufacturing environments. Conformal coating and robust construction ensure reliable operation in conditions where commercial computing equipment fails.

→ Comprehensive Development Toolset
Programming through RSLogix 5 or AI Series software with offline development, simulation, and debugging capabilities. Upload/download programs via standard PLC-5 communication interfaces without production interruption.

Industrial Application Scenarios

Statistical Process Control Implementation
Manufacturing facilities requiring real-time SPC calculations can implement control chart algorithms, capability analysis, and trend detection directly within the PLC-5 system. The 1771-DB processes measurement data streams, calculates statistical parameters (Cp, Cpk, standard deviation), and triggers alarms when process drift exceeds tolerance thresholds—eliminating the latency and complexity of external SPC software integration.

Legacy Equipment Protocol Translation
Integrate proprietary or obsolete communication protocols without specialized gateway hardware. The BASIC programming environment enables custom protocol parsers for ASCII-based instruments, barcode scanners, weigh scales, and legacy PLCs that use non-standard data formats. Bi-directional translation occurs in real-time, presenting standardized data to your PLC-5 control logic.

Dynamic Recipe Management Systems
Food processing, pharmaceutical, and chemical batch operations benefit from flexible recipe storage and parameter adjustment capabilities. Store hundreds of product formulations with ingredient ratios, process setpoints, and timing sequences. The module enables operator recipe selection, automatic parameter loading, and real-time adjustment based on feedback from quality sensors or operator input.

Advanced Data Logging & Reporting
Capture time-stamped production data, equipment performance metrics, and alarm histories with formatted output to printers, file systems, or SCADA interfaces. Generate shift reports, batch documentation, and compliance records without dedicated data acquisition hardware. Custom formatting ensures compatibility with enterprise reporting systems and regulatory documentation requirements.

Adaptive Process Optimization
Implement self-tuning control algorithms, fuzzy logic controllers, or neural network models that adapt to changing process conditions. The computational flexibility supports advanced control strategies that continuously optimize energy consumption, product quality, or throughput based on real-time performance feedback.

Technical Specifications & Selection Criteria

Selection Guidance: Verify your PLC-5 chassis has available slot capacity and sufficient backplane power budget (minimum 1.0A @ 5V DC). For applications requiring program retention during power loss, ensure chassis is equipped with battery backup module (1771-WB recommended). Confirm your programming software version supports BASIC module configuration—RSLogix 5 version 6.0 or later, or AI Series software with BASIC programming package.

Extended Integration Capabilities

IoT & Industry 4.0 Connectivity: While the 1771-DB operates within the PLC-5 ecosystem, its data processing capabilities enable preparation of production data for modern IoT platforms. Format sensor readings, aggregate performance metrics, and structure data packets for transmission to cloud analytics systems via your existing SCADA or HMI infrastructure.

Custom Function Block Development: Create reusable BASIC subroutines that function as custom instruction blocks for your ladder logic programs. Encapsulate complex calculations, data validation routines, or communication protocols into callable functions that simplify main program development and improve code maintainability.

Multi-Module Coordination: In systems with multiple 1771-DB modules, implement distributed processing architectures where each module handles specialized computational tasks. Coordinate batch sequencing, quality monitoring, and data logging across multiple modules through shared PLC-5 data tables.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via your preferred carrier. Expedited shipping options available for time-critical projects.

Custom Configuration: Pre-programmed modules with your application code can be prepared within 5-7 business days. Contact our engineering team to discuss custom configuration requirements.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and functional performance issues. Warranty includes replacement module shipment and return shipping for defective units.

Technical Support: Unlimited access to our automation specialists for application consultation, programming assistance, and troubleshooting guidance. Support available via email, phone, and remote desktop sessions during business hours (GMT+8, 9:00-18:00).

Documentation Package: Each module includes installation guide, programming reference manual, sample code library, and integration examples. Additional resources available through our technical documentation portal.

Frequently Asked Questions

How does the 1771-DB BASIC module interface with existing ladder logic programs?
The module operates as a co-processor that exchanges data with your PLC-5 ladder logic through shared memory tables (N-files, B-files, or custom data tables). Your ladder logic can trigger BASIC program execution, pass input parameters, and retrieve calculated results through standard data table read/write operations. This architecture allows seamless integration without modifying your core control logic structure.

What programming expertise is required to develop BASIC applications for the 1771-DB?
Basic proficiency in BASIC programming language and understanding of PLC-5 data table structures are sufficient to begin development. The module supports standard BASIC syntax with extensions for PLC-5 data access, making it accessible to engineers familiar with procedural programming concepts. Sample code libraries and application templates accelerate initial development for common use cases.

Can the 1771-DB module handle real-time control tasks with deterministic timing requirements?
While the module executes BASIC programs efficiently, it operates asynchronously from the PLC-5 scan cycle and is best suited for computational tasks rather than time-critical I/O control. For applications requiring deterministic response times under 10ms, implement core control logic in ladder logic and use the 1771-DB for data processing, calculations, and communication tasks that can tolerate variable execution times.

What is the maximum program size and data storage capacity of the 1771-DB?
Program memory capacity varies by module firmware revision but typically supports 8K to 32K of combined program and data storage. Large applications can be segmented into multiple program files that are loaded dynamically based on operational mode. Contact our technical team with your specific application requirements for capacity planning assistance.

Is the 1771-DB compatible with modern PLC-5 replacement strategies using ControlLogix systems?
While the 1771-DB is designed for PLC-5 platforms, migration strategies to ControlLogix can preserve your BASIC application logic through conversion to Structured Text (ST) in RSLogix 5000. Our engineering services team can assist with code migration planning and testing to ensure functional equivalence during platform upgrades.

Does the module support communication with external devices via serial ports or Ethernet?
The 1771-DB communicates exclusively through the PLC-5 backplane. For external device communication, the module can format data and coordinate with PLC-5 communication modules (such as 1771-KG or 1771-ACN) through shared data tables. This architecture maintains the security and reliability advantages of centralized PLC-5 communication management.

Start Your Advanced Automation Project

Transform your PLC-5 system capabilities with the computational flexibility of the 1771-DB BASIC module. Our automation specialists are ready to discuss your application requirements, provide programming consultation, and ensure successful integration into your control architecture.

Contact our engineering team today: Share your project specifications for personalized application guidance, sample code recommendations, and integration planning support. We're committed to helping you leverage advanced programming capabilities while maintaining the proven reliability of your Allen-Bradley automation infrastructure.
