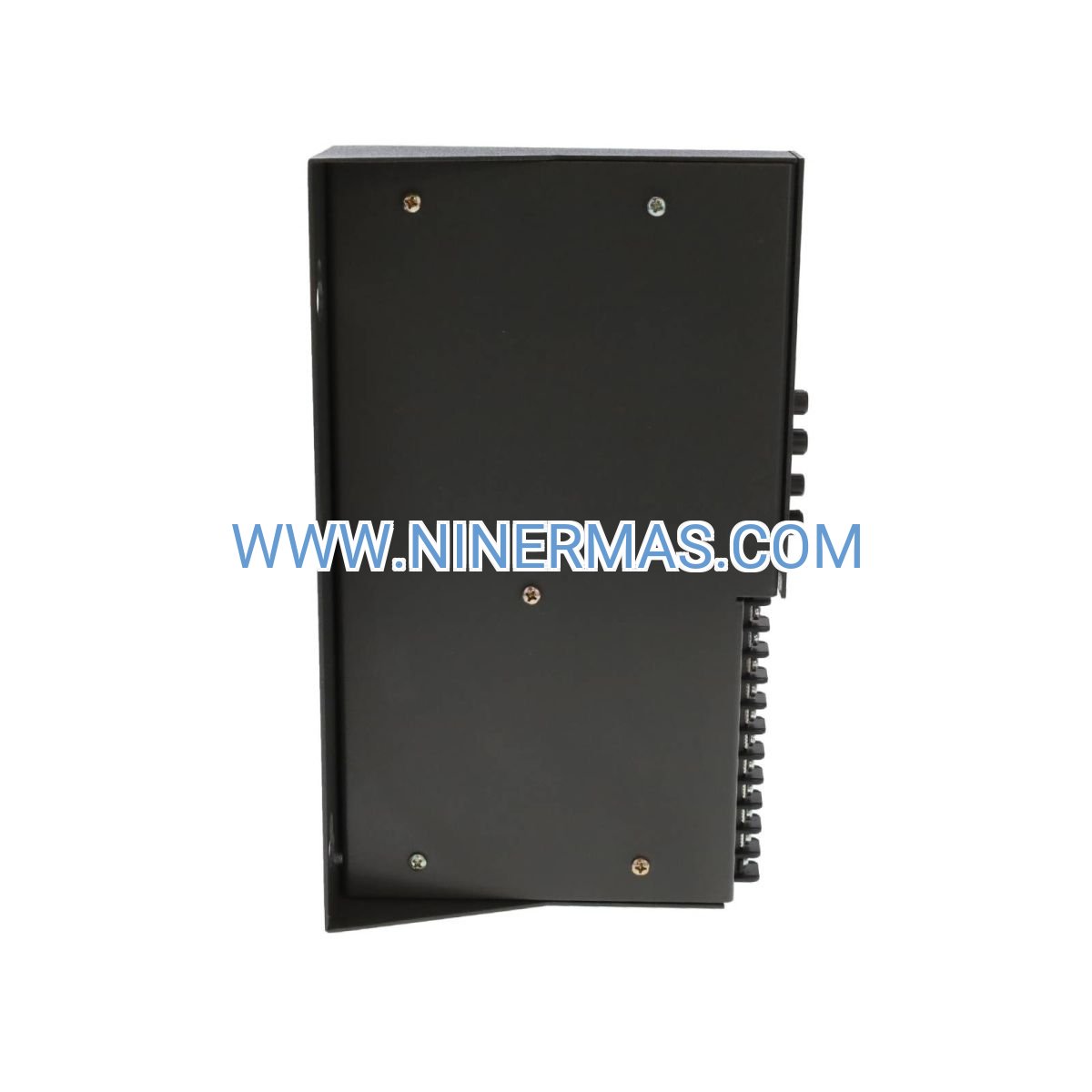

Allen-Bradley 1771-AF1 Fiber Optic Converter Module (Industrial-Grade Communication Interface)

The Allen-Bradley 1771-AF1 is a high-performance fiber optic converter module designed for PLC-5 programmable controller systems. Through advanced fiber optic transmission technology and industrial-grade circuit design, it enables reliable, long-distance data communication between remote I/O racks and processor units, ensuring EMI-immune signal integrity in electrically noisy industrial environments.

Ideal for manufacturing plants, process control facilities, power distribution systems, and hazardous area installations where electrical isolation and extended communication distances are critical. This module addresses common challenges including electromagnetic interference, ground loop issues, lightning surge protection, and the need for secure data transmission across separate electrical zones.

Leveraging standardized Allen-Bradley architecture with field-proven reliability, the 1771-AF1 delivers seamless integration, straightforward installation, and long-term operational stability. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for system compatibility verification and technical specifications.

Core Features & Technical Advantages

• Extended Transmission Distance
  Supports fiber optic communication up to 2 kilometers (1.24 miles) using multimode fiber, enabling remote I/O placement without signal degradation or the need for repeaters.
• Complete Electrical Isolation
  Fiber optic medium provides inherent galvanic isolation between connected equipment, eliminating ground loops, reducing lightning damage risk, and protecting sensitive electronics from voltage transients.
• Superior EMI/RFI Immunity
  Immune to electromagnetic interference, radio frequency interference, and electrical noise commonly found in industrial environments with VFDs, welding equipment, motors, and high-voltage switchgear.
• Plug-and-Play Installation
  Direct mounting into 1771 I/O chassis with standard backplane connection; minimal configuration required. Compatible with existing PLC-5 system architecture without processor firmware modifications.
• Diagnostic LED Indicators

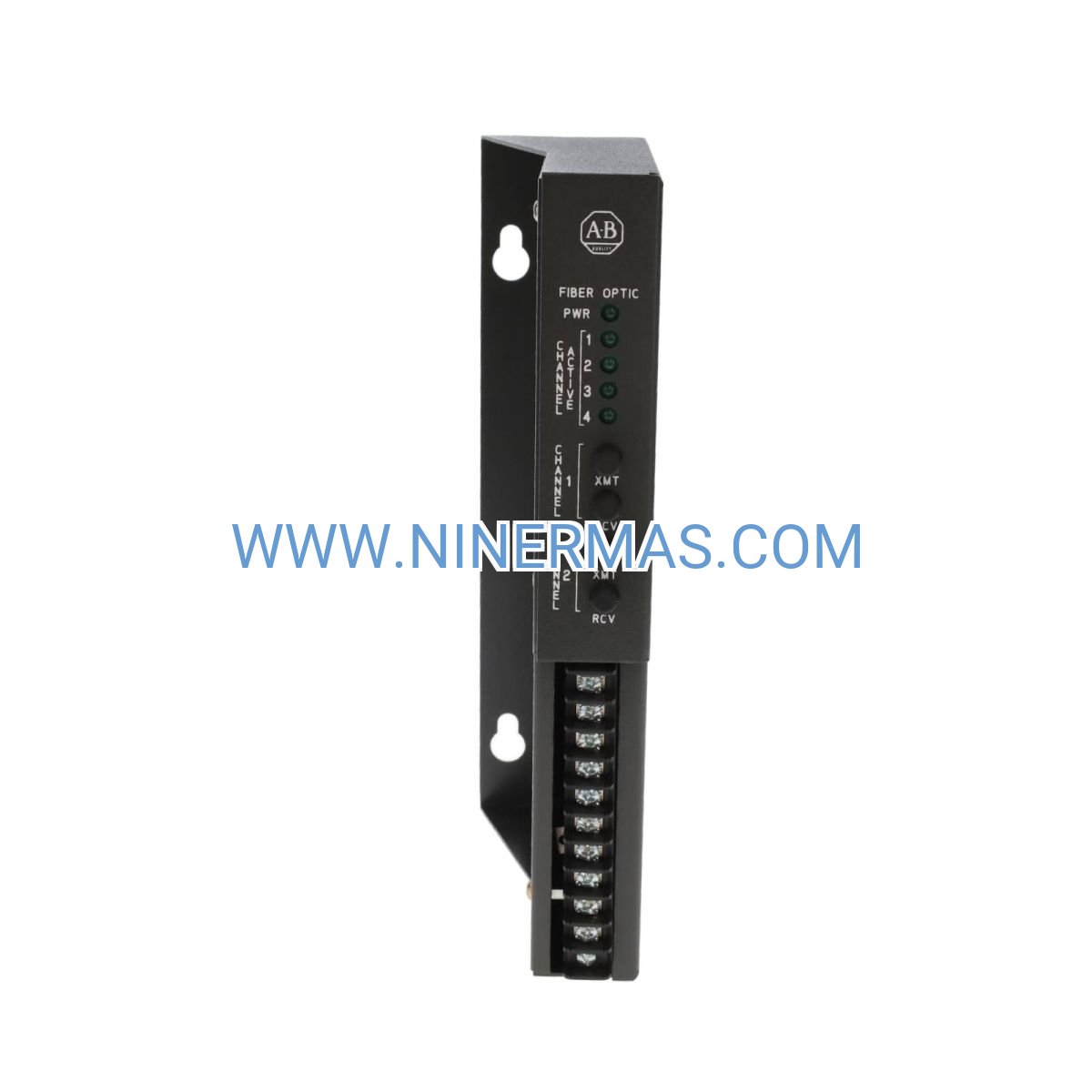

  Front-panel status LEDs provide real-time indication of module power, fiber link status, and communication activity, simplifying troubleshooting and reducing downtime during commissioning or maintenance.
• Rugged Industrial Construction
  Designed to withstand harsh factory conditions including temperature extremes, vibration, and dust. Conformal-coated circuitry ensures reliable operation in demanding industrial control cabinets.

Typical Application Scenarios

This fiber optic converter module is engineered for industrial control applications requiring robust, interference-free communication over extended distances:

• Manufacturing & Assembly Lines
  Connect remote I/O racks to central PLC-5 processors across large production floors, isolating control zones from welding stations, motor drives, and high-power machinery that generate electrical noise.
• Process Industries & Chemical Plants
  Enable safe data communication between control rooms and hazardous area field equipment, providing intrinsic electrical isolation that enhances safety compliance in explosive atmospheres (when used with appropriate barriers).
• Power Generation & Distribution
  Link substation control equipment and remote terminal units (RTUs) to supervisory systems, protecting sensitive electronics from high-voltage transients and ensuring reliable SCADA communication.
• Water/Wastewater Treatment Facilities
  Establish communication between pump stations, treatment basins, and central control systems spread across large sites, overcoming distance limitations of copper-based networks while resisting moisture and corrosion.
• Mining & Heavy Industry
  Deploy in environments with extreme EMI from crushers, conveyors, and mobile equipment, maintaining consistent PLC communication where traditional copper cabling would fail or require extensive shielding.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, please review the following technical parameters:

Selection Considerations: When specifying the 1771-AF1, confirm your PLC-5 processor model compatibility, required communication distance, fiber cable type availability, and environmental conditions. For distances exceeding 2 km or single-mode fiber requirements, consult factory for extended-range options. Our engineering team can assist with fiber budget calculations, cable specifications, and system integration planning.

System Integration & Configuration Support

The 1771-AF1 integrates seamlessly into existing Allen-Bradley control architectures:

• Backplane Communication: Automatic recognition by PLC-5 processor upon installation; module configuration via RSLogix 5 programming software
• Fiber Optic Cabling: Requires duplex multimode fiber cable with ST connectors (cable sold separately); follow TIA/EIA-568 fiber installation standards
• Redundancy Options: Can be deployed in redundant communication topologies when paired with appropriate PLC-5 redundancy modules
• Network Diagnostics: Supports online diagnostics through RSLogix software for link quality monitoring and fault isolation

Delivery, Service & Technical Support

Standard catalog items ship from stock within 1-3 business days; custom-configured systems or bulk orders typically require 5-10 business days. All modules include a minimum 12-month manufacturer warranty covering defects in materials and workmanship.

Comprehensive technical documentation package includes: installation instructions, wiring diagrams, fiber optic cable specifications, RSLogix configuration examples, and troubleshooting guides. Remote technical support available via phone and email; on-site commissioning assistance can be arranged for complex installations (subject to location and project scope).

Our application engineers provide complimentary pre-sales consultation to verify system compatibility, recommend fiber cable specifications, and assist with network topology design.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1771-AF1 fiber optic converter to my existing PLC-5 system?
A: The module installs directly into any available slot in your 1771 I/O chassis. Connect duplex fiber optic cables (with ST connectors) between paired 1771-AF1 modules at each end of the link. Configure communication parameters in RSLogix 5 software to match your RIO network settings. Detailed installation procedures are provided in the technical manual.

Q: What type of fiber optic cable is required for the 1771-AF1?
A: The module requires multimode fiber optic cable (62.5/125 μm or 50/125 μm core/cladding diameter) with ST-style duplex connectors. Cable length up to 2 km is supported. Ensure fiber cable meets TIA/EIA-568 standards and is rated for your installation environment (indoor/outdoor, plenum, industrial).

Q: Can the 1771-AF1 be used in hazardous (classified) locations?
A: The module itself is designed for general industrial use (non-hazardous locations). For hazardous area applications, the 1771-AF1 must be installed in an appropriately rated enclosure located in a safe area, with only the fiber optic cable extending into the classified zone. Consult NEC Article 500 and local electrical codes; work with certified electrical engineers for hazardous location designs.

Q: What is the maximum communication distance achievable with this module?
A: With standard multimode fiber, the 1771-AF1 supports distances up to 2 kilometers (approximately 1.24 miles). Actual distance may vary based on fiber quality, number of connectors/splices, and environmental factors. For longer distances or single-mode fiber applications, contact our technical team for extended-range solutions.

Q: Does the 1771-AF1 support remote monitoring or SCADA integration?
A: The module provides transparent fiber optic communication for the Allen-Bradley Remote I/O (RIO) protocol. SCADA integration and remote monitoring are achieved through the connected PLC-5 processor's communication capabilities (Ethernet, DH+, etc.), not directly through the 1771-AF1. The module functions as a physical layer converter to extend RIO networks over fiber.

Q: What diagnostic features are available for troubleshooting communication issues?
A: Front-panel LED indicators show module power status, fiber link integrity, and communication activity. RSLogix 5 software provides detailed diagnostic information including link quality, error counters, and module status. Common issues such as fiber cable damage, incorrect connector polarity, or configuration mismatches can be quickly identified using these tools.

Request Technical Consultation & Quotation

For detailed application engineering support, system compatibility verification, or project-specific quotations, please provide the following information to our technical sales team:

• Project name and application description
• Existing PLC-5 processor model and I/O chassis configuration
• Required communication distance and site layout
• Environmental conditions (temperature, humidity, electrical noise sources)
• Quantity required and delivery timeline
• Any special certifications or compliance requirements

Our application engineers will respond with tailored recommendations, fiber cable specifications, and comprehensive pricing within one business day.
