1771-A3B Industrial-Grade I/O Chassis (12-Slot PLC-5 Platform)

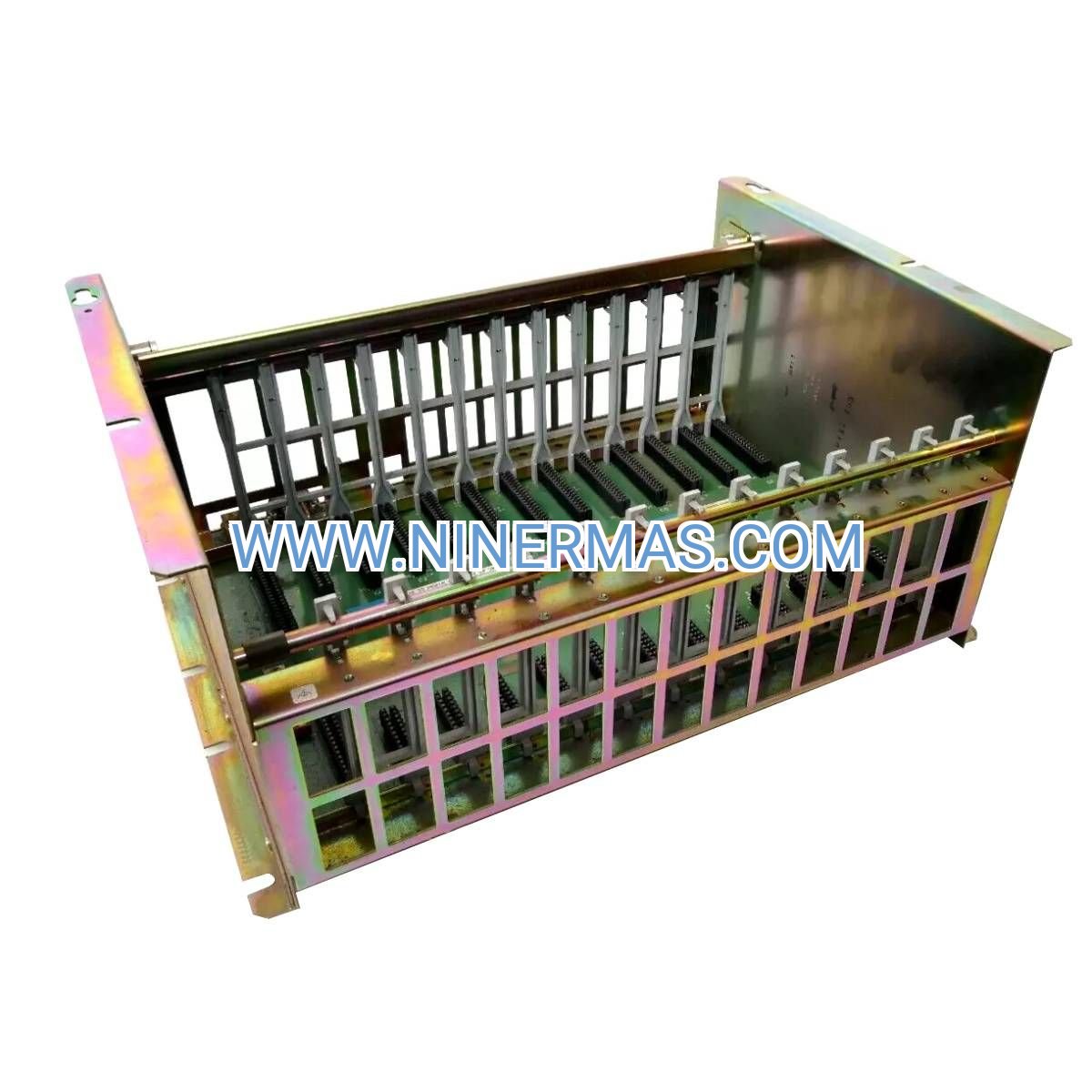

The 1771-A3B represents Allen-Bradley's field-proven solution for expanding PLC-5 control systems with reliable, high-density I/O capacity. Designed for mission-critical industrial environments, this 12-slot chassis delivers seamless integration with the complete 1771 module family while maintaining signal integrity across distributed control networks. Whether you're scaling legacy automation infrastructure or building redundant control architectures, the 1771-A3B provides the mechanical stability and electrical performance demanded by modern manufacturing operations.

Built to withstand harsh factory conditions, this chassis serves as the backbone for process control, material handling, and production line automation where system uptime directly impacts operational efficiency. The robust backplane architecture ensures consistent power distribution and data communication across all mounted modules, while the standardized form factor simplifies installation in existing control cabinets and panel configurations.

With factory-calibrated connections and UL-listed construction, the 1771-A3B eliminates compatibility concerns when integrating analog I/O, digital modules, specialty cards, and communication adapters. This chassis empowers maintenance teams to execute rapid module replacements and system expansions without extended downtime or complex reconfiguration procedures.

Core Capabilities & Technical Advantages

✓ 12-Slot Modular Architecture – Accommodates any combination of 1771 series I/O modules, power supplies, and communication cards for flexible system design tailored to specific application requirements.

✓ Integrated Backplane Technology – Factory-engineered power distribution and signal routing ensure reliable module-to-module communication with minimal electrical noise and voltage drop across all slots.

✓ Hot-Swap Module Support – Many module types can be replaced during operation (following proper safety protocols), reducing mean time to repair and maintaining production continuity during maintenance windows.

✓ Universal Mounting Options – Panel-mount and rack-mount configurations adapt to diverse cabinet layouts, from compact control enclosures to large-scale SCADA integration points.

✓ Wide Environmental Tolerance – Operates reliably across 0°C to 60°C temperature range with 5-95% humidity resistance, suitable for climate-controlled facilities and semi-exposed industrial zones.

✓ Global Compliance Certification – UL Listed, CE marked, and RoHS compliant construction meets international safety and environmental standards for multinational deployment.

Industrial Application Scenarios

→ Automotive Assembly Lines
Coordinates robotic welding stations, conveyor systems, and quality inspection points through distributed I/O networks. The 12-slot capacity handles mixed analog/digital signals from sensors, actuators, and vision systems while maintaining microsecond-level response times critical for synchronized production sequences.

→ Chemical Processing Plants
Manages temperature control loops, flow measurement, and safety interlock systems across reactor vessels and distillation columns. The chassis supports redundant power supplies and failsafe I/O modules required for SIL-rated process safety applications.

→ Food & Beverage Packaging
Integrates filling machines, labeling equipment, and palletizing robots through centralized PLC-5 control. Hot-swappable modules enable rapid replacement during sanitation cycles without halting adjacent production lines.

→ Water Treatment Facilities
Connects pump stations, valve actuators, and level transmitters across multi-stage filtration systems. The corrosion-resistant construction withstands high-humidity environments typical of municipal water infrastructure.

→ Legacy System Modernization
Expands existing PLC-5 installations with additional I/O capacity for new production equipment, eliminating the need for complete control system replacement and preserving validated ladder logic programs.

Technical Specifications & Selection Criteria

Selection Guidelines: Calculate total module current draw to determine appropriate power supply sizing (1771-P4S, 1771-P5E, or 1771-P7). For remote I/O applications, reserve slot 0 for scanner modules (1771-ASB). In high-vibration environments, consider additional chassis mounting brackets beyond standard panel clips. Verify cabinet depth accommodates 203mm chassis depth plus cable bend radius clearance.

Advanced Integration Features

Remote I/O Network Capability – When equipped with 1771-ASB or equivalent scanner modules, the chassis functions as a remote I/O drop on DeviceNet, ControlNet, or proprietary Allen-Bradley networks, enabling distributed control architectures that reduce wiring costs and improve system scalability.

Mixed Module Configuration – Supports simultaneous installation of AC input/output modules, DC I/O cards, analog signal conditioners, and specialty modules (thermocouple, RTD, high-speed counter) within the same chassis, eliminating the need for separate racks for different signal types.

Redundant Power Supply Support – Dual power supply configurations provide failover protection for critical control applications, with automatic load sharing and alarm signaling when primary supply performance degrades.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (expedited shipping available)
Custom Configuration: 7-10 business days for pre-loaded chassis with specified modules
Warranty Coverage: 12-month comprehensive warranty against manufacturing defects and functional failures
Technical Support: Lifetime access to configuration assistance, compatibility verification, and troubleshooting guidance
Documentation Included: Installation manual, backplane wiring diagrams, module slot allocation guidelines, and dimensional drawings

Frequently Asked Questions

Can the 1771-A3B chassis accommodate ControlLogix 1756 series modules?
No, the 1771-A3B uses a PLC-5 backplane architecture incompatible with ControlLogix modules. ControlLogix systems require 1756 chassis with different electrical and mechanical specifications. For migration projects, consider parallel installation or phased replacement strategies.

What is the maximum current capacity per slot in this chassis?
Slot current capacity depends on the installed power supply module. The 1771-P5E provides 8A at 5V DC and 2A at 24V DC total across all slots. Calculate individual module current requirements and sum totals to ensure power supply adequacy. Refer to Rockwell Automation Publication 1771-UM001 for detailed power budgeting procedures.

Does this chassis support hot-swapping of I/O modules during operation?
Many 1771 I/O modules support hot-swap replacement when proper safety protocols are followed (lockout/tagout, controlled shutdown of affected circuits). However, power supply modules and processor cards typically require full chassis power-down. Consult module-specific documentation and facility safety procedures before attempting live replacements.

How do I configure the chassis for remote I/O applications?
Install a 1771-ASB adapter module in slot 0 (leftmost position) and connect to the remote I/O scanner via shielded twisted-pair cable. Configure the scanner's I/O mapping table to match the physical slot arrangement. The chassis can support up to 11 additional I/O modules when operating as a remote drop.

What mounting hardware is included with the chassis?
Standard shipments include panel-mount clips for DIN rail or flat surface installation. Rack-mount ear brackets are available separately (part number 1771-RMK). Verify cabinet rail compatibility (35mm DIN or proprietary profiles) before installation.

Can I mix AC and DC I/O modules in the same 1771-A3B chassis?
Yes, the backplane supports mixed module types provided appropriate power supplies are installed. AC modules typically require separate 120/240V AC power supplies (1771-P4S), while DC modules use 24V DC supplies (1771-P5E). Ensure total current draw does not exceed power supply ratings and follow slot allocation guidelines to minimize electrical interference.

Ready to Expand Your PLC-5 System?

Contact our automation specialists for compatibility verification, system design assistance, or volume pricing on multi-chassis orders. We provide technical consultation to ensure optimal configuration for your specific application requirements.
