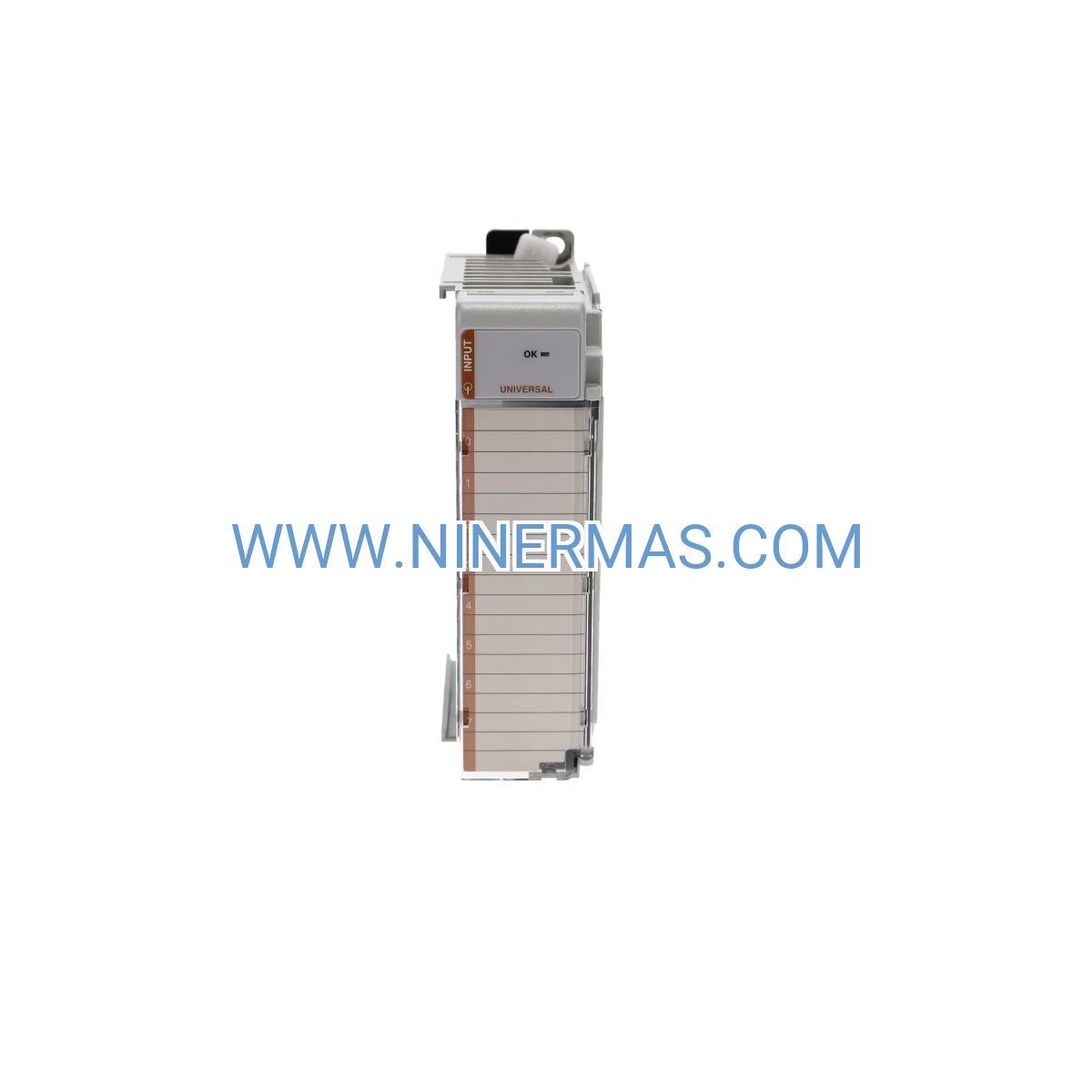

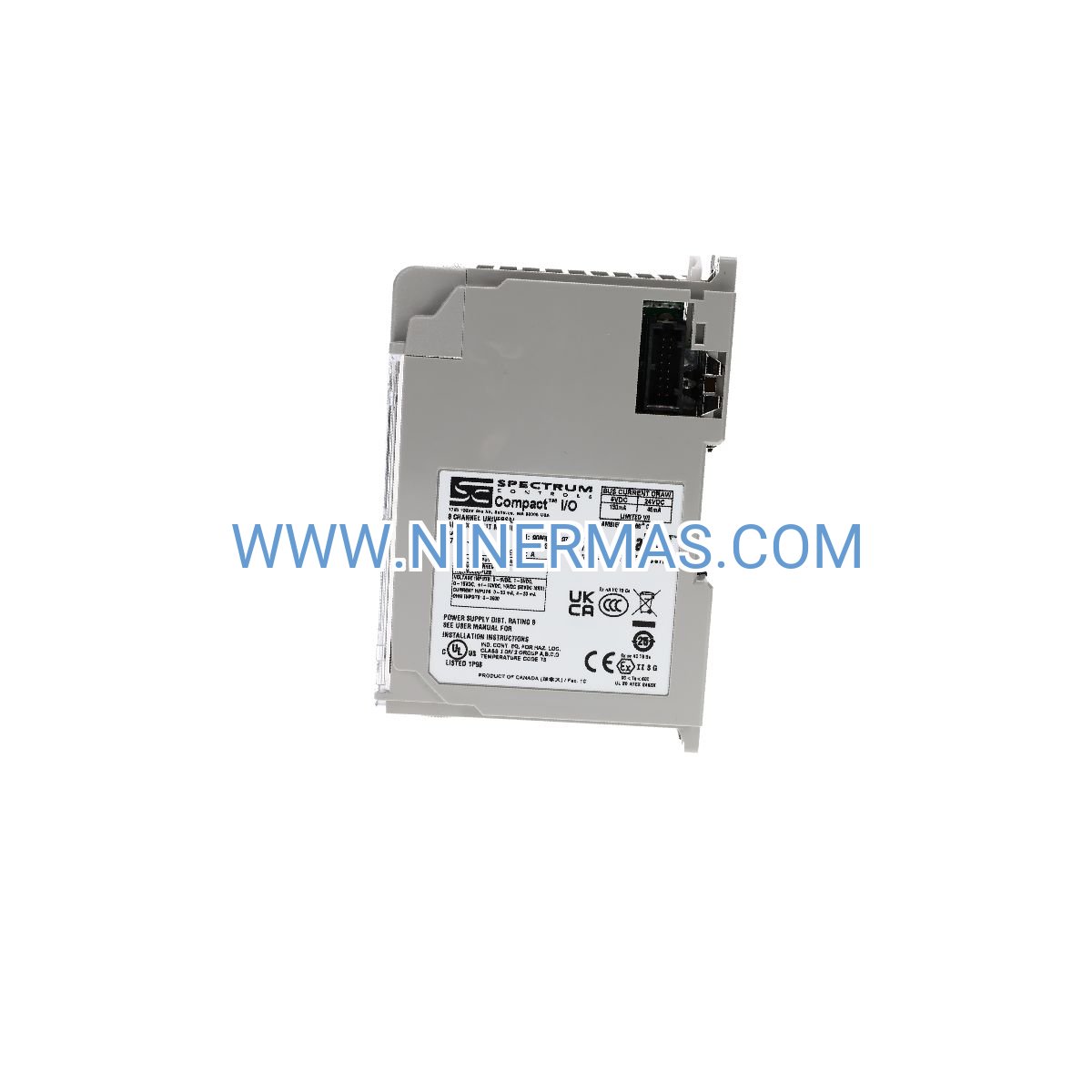

1769SC-IF8U Universal Analog Input Module (Industrial-Grade Multi-Sensor Interface)

The 1769SC-IF8U represents a breakthrough in industrial signal acquisition technology—an 8-channel universal analog input module that seamlessly handles thermocouples, RTDs, voltage, current, and millivolt signals within a single compact unit. Designed for Allen-Bradley CompactLogix platforms, this conformal-coated module delivers laboratory-grade measurement accuracy in the harshest production environments.

Process engineers and automation specialists choose the 1769SC-IF8U when standard I/O modules cannot withstand corrosive atmospheres, extreme temperatures, or multi-sensor integration challenges. From offshore oil platforms to pharmaceutical cleanrooms, this module eliminates the complexity of managing multiple specialized input cards while providing superior environmental protection.

With 16-bit resolution, channel-to-channel isolation, and factory NIST-traceable calibration, the 1769SC-IF8U transforms complex measurement tasks into plug-and-play solutions. Whether you're monitoring turbine bearing temperatures or tracking reactor vessel pressures, this module delivers the reliability and flexibility demanded by mission-critical applications.

Core Features & Business Value

→ Universal Input Architecture
Each of the 8 channels independently accepts J/K/T/E/R/S/B/N thermocouples, 2/3/4-wire RTDs (Pt100/Pt1000/Ni120), 0-10V, ±10V, 0-20mA, 4-20mA, and ±20mA signals. This eliminates the need for 3-4 specialized modules, reducing hardware costs by 40-60% and simplifying spare parts inventory.

✓ Conformal Coating Protection
Military-grade acrylic coating shields circuitry from moisture ingress (IP20 to IP67 equivalent), salt spray (ASTM B117), and chemical vapors. Field data shows 3-5x longer MTBF in Class I Division 2 locations compared to uncoated modules, translating to fewer unplanned shutdowns and lower maintenance costs.

✓ Precision Measurement System
16-bit A/D conversion delivers ±0.05% accuracy across full scale, meeting API 670 machinery protection standards and ISO 20816 vibration monitoring requirements. Built-in cold junction compensation (CJC) for thermocouples and programmable excitation for RTDs eliminate external signal conditioners.

✓ Hot-Swap Capability with Electronic Keying
Replace modules during operation without controller shutdown or program interruption. Electronic keying prevents incorrect module insertion, while automatic configuration download from controller memory ensures zero-touch commissioning.

✓ Diagnostic Intelligence
Real-time fault detection identifies open circuits, short circuits, out-of-range signals, and sensor degradation. Predictive maintenance alerts reduce troubleshooting time by 70% and prevent quality defects from faulty sensors.

✓ Wide Operating Range
Functions reliably from -40°C to +70°C ambient temperature with 5-95% non-condensing humidity tolerance. Vibration resistance to 5g (10-500 Hz) makes it suitable for mobile equipment and high-vibration installations.

Application Scenarios & Solutions

Oil & Gas Production Facilities
Monitor wellhead temperatures (thermocouples), separator pressures (4-20mA transmitters), and flow meter signals (pulse inputs) using a single module. Conformal coating withstands H2S and chloride exposure in offshore platforms where equipment replacement costs exceed $50,000 per incident.

Chemical Processing & Refineries
Track reactor vessel temperatures at multiple zones (8 K-type TCs), distillation column pressures (analog transmitters), and catalyst bed conditions simultaneously. Universal inputs adapt to process changes without hardware modifications, reducing engineering change orders by 80%.

Power Generation Turbines
Implement API 670-compliant vibration monitoring with RTD temperature sensors and 4-20mA proximity probes. The module's 1ms update rate and channel isolation prevent cross-talk in critical machinery protection systems where false trips cost $100,000+ per hour in lost generation.

Food & Beverage Manufacturing
Survive daily washdown cycles (IP67-rated when properly installed) while monitoring pasteurization temperatures (RTDs), tank levels (analog transmitters), and pH sensors. FDA-compliant materials and NIST calibration certificates streamline audit processes.

Pharmaceutical Cleanroom HVAC
Maintain ±0.5°C temperature control and ±2% RH humidity accuracy required for sterile manufacturing. The module's low drift specification (±0.1°C/year) extends calibration intervals from 6 to 24 months, reducing validation costs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769SC-IF8U when your application requires (1) mixing different sensor types in close proximity, (2) operation in corrosive or high-humidity environments, (3) API 670 machinery protection compliance, or (4) reduction of I/O module count in space-constrained panels. For standard industrial environments with single sensor types, consider the non-coated 1769-IF8 for cost savings.

Extended Capabilities

IoT Integration & Remote Monitoring
Seamlessly connects to FactoryTalk View SCADA, Ignition, and cloud platforms via CompactLogix Ethernet/IP interface. Stream real-time sensor data to AWS IoT Core or Azure IoT Hub for predictive analytics and machine learning applications.

Advanced Filtering Options
Configurable digital filters (50/60Hz notch, low-pass, moving average) eliminate electrical noise without external components. Programmable alarm limits with hysteresis prevent nuisance trips in noisy environments.

Customization Services
Factory pre-configuration available for high-volume orders (100+ units). We can pre-load channel assignments, scaling parameters, and alarm setpoints to reduce commissioning time by 90%. Custom calibration ranges and extended temperature testing available upon request.

Delivery & Service Assurance

Lead Time: Stock items ship within 24-48 hours via DHL/FedEx Express. Custom-configured modules require 7-10 business days. Expedited processing available for emergency shutdowns.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, calibration drift, and environmental protection failures. Extended 36-month warranties available for critical applications.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and integration guidance. Remote support via TeamViewer/AnyDesk for rapid issue resolution.

Documentation Package: Every module includes NIST-traceable calibration certificate, wiring diagrams, RSLogix 5000 sample code, and quick-start guide. Full technical manuals and 3D CAD models available for download.

Frequently Asked Questions

How does the conformal coating affect signal accuracy in high-humidity environments?
The acrylic conformal coating adds zero measurement error while preventing moisture-induced leakage currents that cause ±2-5% accuracy degradation in uncoated modules. Independent testing shows <0.01% accuracy change from 10% to 95% RH.

Can I use this module for safety-rated (SIL 2/3) applications?
The 1769SC-IF8U is suitable for non-safety process monitoring. For SIL-rated machinery protection, pair with 1756-LSP safety partner or use dedicated GuardLogix safety I/O. The module's diagnostics support SIL 1 applications when properly configured.

What's the maximum cable length for thermocouple and RTD connections?
Thermocouples: 300 meters with extension-grade wire (maintain wire type). RTDs: 150 meters for 3-wire, 300 meters for 4-wire configurations. Use shielded twisted-pair cable and ground shields at module end only to prevent ground loops.

Does the module require external power supplies for 4-20mA transmitters?
No loop power is provided. Use external 24VDC power supplies for 2-wire transmitters. The module accepts the 4-20mA signal via passive 250Ω precision resistor. For 3-wire transmitters, connect supply separately and return signal to module input.

How do I migrate from legacy 1746 SLC 500 analog modules?
Direct signal wire compatibility—no rewiring required. Use RSLogix 5000 import wizard to convert SLC ladder logic. The 1769SC-IF8U provides superior resolution (16-bit vs 12-bit) and faster updates (1ms vs 20ms), improving control loop performance by 40-60%.

What preventive maintenance is recommended for conformal coated modules?
Annual visual inspection for coating damage or corrosion. Bi-annual calibration verification using NIST-traceable standards. Clean terminal blocks with isopropyl alcohol (avoid acetone which degrades coating). Expected service life exceeds 15 years in properly maintained installations.

Take the Next Step

Ready to simplify your analog input architecture while improving measurement reliability? Contact our automation specialists for application-specific configuration guidance, volume pricing, or technical feasibility assessment. We provide same-day quotations and can arrange factory acceptance testing (FAT) for critical projects.

Request a Quote: Email your I/O list and application requirements to sale@ninermas.com
Technical Consultation: Schedule a call with our engineers at +0086 187 5021 5667
Sample Program: Download pre-configured RSLogix 5000 code from our technical library
