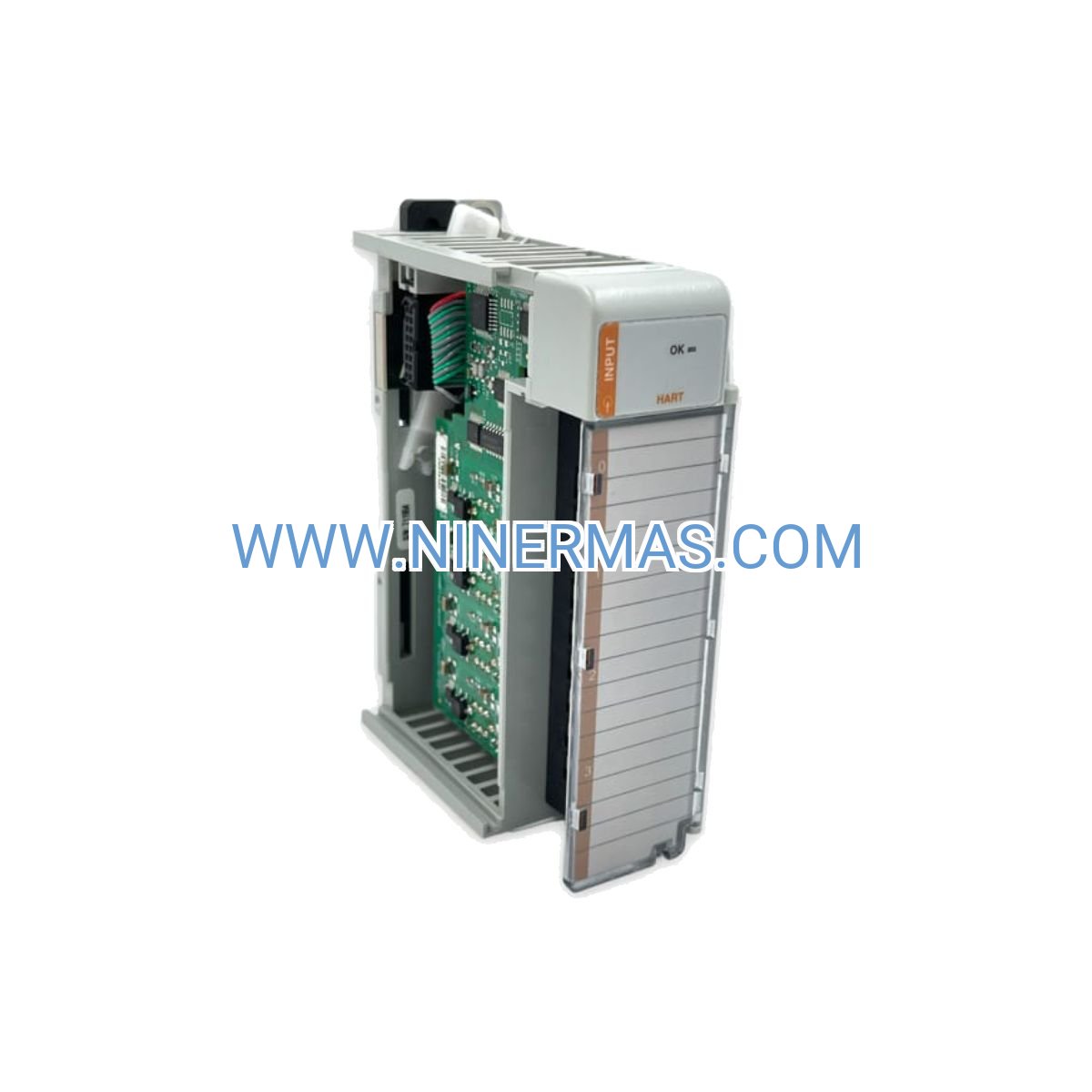

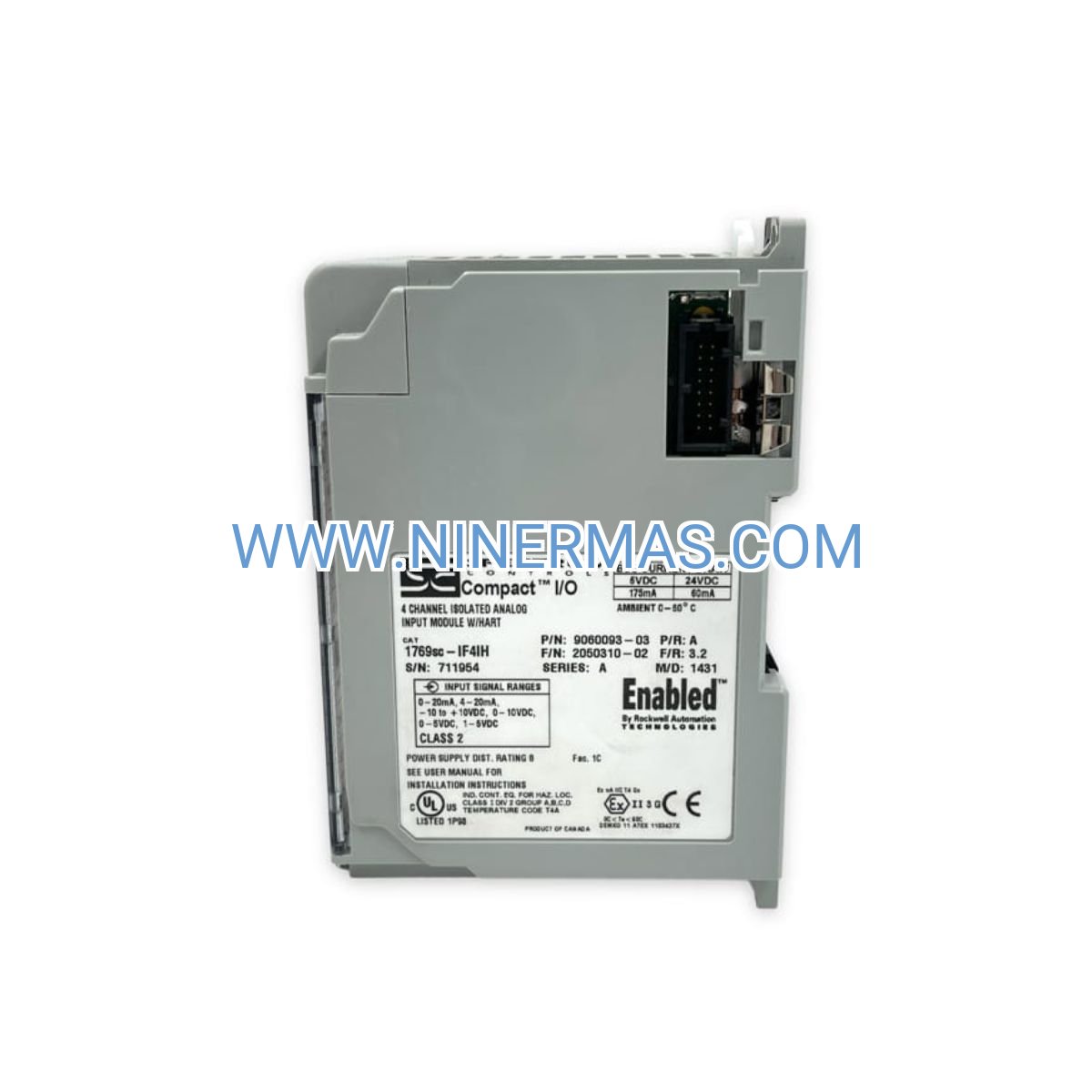

1769SC-IF4IH Conformal Coated Analog Input Module (Industrial-Grade CompactLogix I/O)

The 1769SC-IF4IH represents a specialized solution for industrial automation systems requiring reliable analog signal acquisition in challenging environmental conditions. This 4-channel input module combines precision measurement capabilities with enhanced circuit protection, delivering consistent performance where standard I/O modules face premature degradation. Engineered for CompactLogix 1769 platforms, it serves process industries, manufacturing facilities, and infrastructure applications demanding long-term reliability under exposure to moisture, contaminants, and temperature fluctuations.

Designed for automation engineers and system integrators working in chemical processing, water treatment, food production, and offshore installations, this module addresses the critical need for accurate data acquisition without frequent maintenance interventions. The conformal coating technology extends operational lifespan in corrosive atmospheres while maintaining factory-calibrated accuracy across all four differential input channels.

Key advantages include multi-range input flexibility (±10V DC, 0-20mA, 4-20mA per channel), 16-bit analog-to-digital conversion for superior resolution, and channel-to-backplane isolation that eliminates ground loop interference. Whether you're upgrading existing control systems or designing new installations for demanding environments, the 1769SC-IF4IH delivers the durability and precision your application requires.

Core Features & Benefits

→ Conformal Coating Protection
Factory-applied protective layer shields circuitry from moisture condensation, chemical vapors, salt spray, and airborne particulates. Extends module lifespan by 3-5 years in harsh environments compared to uncoated alternatives, reducing replacement costs and system downtime.

→ Multi-Range Input Versatility
Each channel independently configurable for ±10V DC voltage or 0-20mA/4-20mA current signals. Eliminates need for multiple module types, simplifies inventory management, and provides design flexibility for mixed-sensor installations.

→ 16-Bit Resolution Accuracy
High-precision A/D conversion delivers 0.0015% full-scale resolution, enabling detection of subtle process variations critical for quality control and regulatory compliance in pharmaceutical, food safety, and environmental monitoring applications.

✓ Electrical Isolation Architecture
Channel-to-backplane isolation prevents electrical noise propagation from field devices to control system, ensuring signal integrity in electrically noisy industrial environments with VFDs, welding equipment, and high-power machinery.

✓ Diagnostic Intelligence
Built-in fault detection identifies open circuits, out-of-range signals, and module malfunctions. Proactive alerts enable predictive maintenance strategies, reducing unplanned shutdowns and improving overall equipment effectiveness (OEE).

✓ Compact Form Factor
Single-slot 1769 chassis mounting conserves valuable panel space while delivering four independent measurement channels. Ideal for retrofit projects with limited enclosure real estate or distributed control architectures.

Application Scenarios

Chemical Manufacturing & Petrochemical Facilities
Monitor reactor vessel temperatures, distillation column pressures, and flow transmitter signals in environments with corrosive fumes and high humidity. The conformal coating withstands exposure to acids, solvents, and hydrocarbon vapors that degrade standard electronics, ensuring continuous operation in Class I Division 2 hazardous locations.

Municipal Water & Wastewater Treatment
Acquire pH sensor readings, turbidity measurements, chlorine concentration levels, and flow rates in wet environments with frequent washdown procedures. Protects against moisture ingress in pump stations, clarifier controls, and chemical dosing systems where condensation and spray are constant challenges.

Food & Beverage Processing
Interface with temperature probes, pressure transducers, and level sensors in production areas subject to sanitary washdown protocols. Meets hygiene standards while maintaining measurement accuracy for pasteurization monitoring, fermentation control, and CIP (clean-in-place) system integration.

Offshore Oil & Gas Platforms
Connect 4-20mA transmitters for pipeline pressure monitoring, separator level control, and compressor performance tracking in marine environments with salt-laden air. Resists corrosion from coastal exposure while delivering reliable data for safety-critical applications.

HVAC & Building Automation Systems
Collect temperature, humidity, differential pressure, and CO₂ concentration data from building management sensors. Operates reliably in mechanical rooms with variable climate conditions, steam leaks, and condensate formation that compromise unprotected I/O modules.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769SC-IF4IH when your application involves exposure to moisture (humidity >80% RH), chemical vapors, salt spray, or airborne contaminants. For standard industrial environments without environmental stressors, the non-coated 1769-IF4 offers equivalent functionality at lower cost. If you require more than four channels, consider the 1769-IF8 (8-channel) or deploy multiple 1769SC-IF4IH modules across available chassis slots.

Extended Functions

IoT Integration Capability: Seamlessly connects to Rockwell Automation's FactoryTalk analytics platforms via EtherNet/IP communication. Stream real-time analog data to cloud-based monitoring systems for predictive maintenance algorithms, energy consumption analysis, and remote diagnostics.

Advanced Filtering Options: Configure digital filtering through RSLogix 5000 software to eliminate signal noise from long cable runs or electrically noisy environments. Adjustable time constants balance response speed against noise rejection for optimal control loop performance.

Customization Services: Factory pre-configuration available for high-volume OEM applications. We can program default input ranges, scaling parameters, and alarm thresholds before shipment, reducing commissioning time for machine builders and system integrators.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial centers: 3-5 business days (domestic), 7-10 business days (international).

Custom Configuration: Pre-programmed modules with specific settings available with 5-7 business day lead time for orders of 10+ units.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Our automation specialists provide configuration assistance, wiring diagrams, and troubleshooting guidance via phone, email, and remote desktop support. Average response time: <4 hours during business hours.

Documentation Package: Every module ships with installation instructions, wiring diagrams, RSLogix 5000 configuration examples, and dimensional drawings. Complete technical manuals available for download from our support portal.

Frequently Asked Questions

How does conformal coating improve reliability in humid environments?
The protective polymer layer prevents moisture from creating conductive paths between circuit traces, eliminating short circuits and corrosion that cause premature failure. Independent testing shows 5x longer mean time between failures (MTBF) in 95% relative humidity conditions compared to uncoated modules.

Can I connect both voltage and current transmitters to the same module simultaneously?
Yes, each of the four channels operates independently. You can configure Channel 0 for ±10V DC, Channel 1 for 4-20mA, Channel 2 for 0-20mA, and Channel 3 for any supported range through software settings in RSLogix 5000 or Studio 5000 programming environments.

What wire specifications are recommended for optimal signal integrity?
Use 18-22 AWG shielded twisted-pair cable with drain wire for all analog connections. Ground the shield at the module end only (not at the transmitter) to prevent ground loops. Maximum recommended cable length: 300 meters (1000 feet) for current signals, 100 meters (330 feet) for voltage signals.

Is this module suitable for safety-rated applications?
The 1769SC-IF4IH carries SIL 2 certification for use in safety instrumented systems (SIS) when properly configured. For SIL 3 applications, consult Rockwell Automation's safety reference manuals and consider redundant input architectures with voting logic.

How do I verify the module is functioning correctly after installation?
Use the diagnostic LEDs on the module front panel and RSLogix 5000 online monitoring to check channel status. Apply known calibration signals (precision voltage source or current loop calibrator) to each input and verify readings match expected values within ±0.1% tolerance.

What energy efficiency benefits does this module provide?
At 150mA @ 5V DC power consumption, the module draws only 0.75W—approximately 40% less than competitive analog input modules. In large distributed control systems with hundreds of I/O points, this translates to measurable reductions in panel cooling requirements and energy costs.
