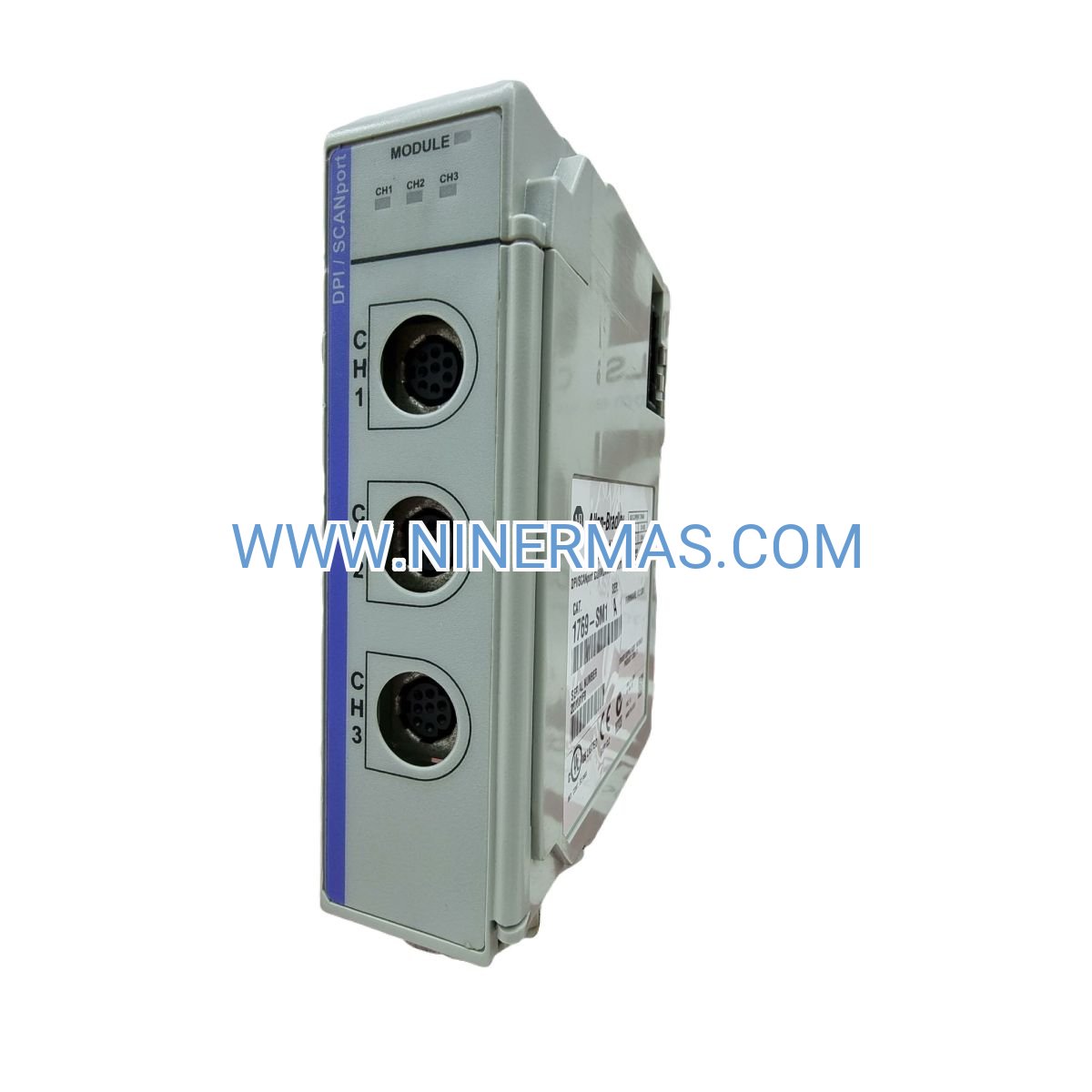

1769-SM1 Communication Interface Module (Industrial-Grade DeviceNet Connectivity)

The 1769-SM1 represents a proven solution for establishing robust communication links between CompactLogix I/O platforms and DeviceNet field networks. This industrial-grade interface module addresses the critical need for reliable data exchange in automated production environments where downtime translates directly to revenue loss.

Designed for system integrators and plant engineers managing distributed control architectures, the 1769-SM1 eliminates communication bottlenecks while providing diagnostic transparency through intuitive LED status indicators. Whether you're retrofitting legacy equipment or deploying greenfield automation projects, this module delivers the connectivity foundation your operation demands.

Key advantages include hot-swap capability for maintenance without production interruption, factory calibration for immediate deployment, and compliance with global industrial standards. The compact DIN-rail form factor optimizes valuable panel space while maintaining full compatibility with the CompactLogix 1769 ecosystem.

Core Features & Benefits

✓ Multi-Protocol Communication Support
Native DeviceNet and DPI (Device Peripheral Interface) protocols enable seamless integration with sensors, drives, and actuators from multiple vendors. Supports data rates up to 500 kbps for high-speed applications.

✓ Real-Time Diagnostic Visibility
Integrated LED indicators provide instant status feedback for network health, module operation, and fault conditions—reducing troubleshooting time by up to 40% compared to non-diagnostic alternatives.

✓ Zero-Downtime Maintenance
Hot-swappable architecture allows module replacement during live operation. Maintain production schedules while performing preventive maintenance or emergency repairs.

✓ Optimized Power Efficiency
Typical consumption of 150mA @ 5V DC minimizes heat generation and reduces overall system power requirements—critical for large-scale installations with hundreds of I/O points.

✓ Ruggedized Industrial Construction
Operates reliably across 0°C to 60°C temperature range with UL/cUL/CE/RCM certifications. Built to withstand vibration, electrical noise, and harsh factory floor conditions.

Application Scenarios

→ Automotive Assembly Lines
Coordinate robotic welding cells, torque tools, and vision inspection systems via DeviceNet backbone. The 1769-SM1 handles high-frequency I/O updates required for synchronized multi-station operations, ensuring cycle time consistency and quality control.

→ Food & Beverage Processing
Interface with DeviceNet-enabled flow meters, temperature sensors, and pneumatic valve manifolds in sanitary production environments. Supports recipe management and batch tracking through centralized CompactLogix control.

→ Pharmaceutical Packaging
Connect serialization printers, checkweighers, and reject mechanisms in high-speed blister packaging lines. Provides the deterministic communication required for regulatory compliance and track-and-trace functionality.

→ Water Treatment Facilities
Link distributed pump stations, chemical dosing systems, and level transmitters across extended DeviceNet networks. The module's diagnostic capabilities simplify remote monitoring and predictive maintenance programs.

→ Material Handling Systems
Integrate conveyor drives, barcode scanners, and sortation diverters in warehouse automation applications. Supports both peer-to-peer messaging and master-slave topologies for flexible system architectures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-SM1 when your application requires DeviceNet connectivity for CompactLogix systems. For EtherNet/IP applications, consider the 1769-AENTR module. For ControlLogix platforms, specify 1756-series communication modules instead. Verify that your DeviceNet network operates within the module's supported baud rate and cable distance specifications.

Extended Functions

Advanced Network Configuration
The module supports explicit messaging for complex data exchanges beyond standard I/O updates. Configure custom communication paths using RSNetWorx for DeviceNet software to optimize bandwidth allocation and message prioritization.

Integration with SCADA/HMI Systems
When paired with CompactLogix processors running FactoryTalk View or third-party HMI platforms, the 1769-SM1 enables real-time visualization of DeviceNet device status, diagnostic counters, and network utilization metrics.

Customization Options
While the standard 1769-SM1 serves most applications, consult with our engineering team for specialized requirements such as conformal coating for extreme environments or integration with proprietary DeviceNet device profiles.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom configurations or bulk orders (50+ units) typically require 2-4 weeks—contact our sales team for expedited options.

Warranty Coverage: Every 1769-SM1 module includes a comprehensive 12-month manufacturer warranty against defects in materials and workmanship. Warranty service includes advance replacement to minimize operational disruption.

Technical Support: Access to our certified automation specialists for installation guidance, network troubleshooting, and configuration assistance. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and links to complete technical manuals. RSLogix 5000 Add-On Instruction (AOI) libraries available for download to accelerate programming.

Frequently Asked Questions

Q: What is the maximum DeviceNet cable length supported by the 1769-SM1 module?
A: DeviceNet cable distance depends on baud rate selection: 500 meters (thick cable) at 125 kbps, 250 meters at 250 kbps, or 100 meters at 500 kbps. Use approved DeviceNet trunk and drop cables to maintain signal integrity.

Q: Can I hot-swap the 1769-SM1 without disrupting other modules in the chassis?
A: Yes, the module supports electronic keying and hot-swap functionality. The CompactLogix controller will detect module removal/insertion and automatically re-establish communication without affecting adjacent I/O modules.

Q: Which programming software is required for DeviceNet network configuration?
A: Use RSNetWorx for DeviceNet (standalone tool) to configure network parameters, device addresses, and I/O mapping. Controller logic programming requires RSLogix 5000 or Studio 5000 Logix Designer software.

Q: Does the 1769-SM1 support remote monitoring and diagnostics?
A: When connected to a CompactLogix processor with Ethernet capability, you can access DeviceNet diagnostic data remotely through FactoryTalk View or web-based HMI interfaces. The module itself does not have embedded web server functionality.

Q: Is this module suitable for hazardous location installations?
A: The standard 1769-SM1 is rated for general industrial use (Class I, Division 2 when properly installed). For Class I, Division 1 or Zone 0/1 applications, specify explosion-proof enclosures or intrinsically safe alternatives from the Allen-Bradley catalog.

Q: What is the typical energy consumption impact of adding this communication module?
A: At 150mA draw from the 5V backplane, the module consumes approximately 0.75W. For a typical 1769-PA2K power supply (20W capacity), you can support 20+ modules including this communication interface without exceeding power budget.

Take the Next Step

Ready to enhance your CompactLogix system with reliable DeviceNet connectivity? Contact our automation specialists today for technical consultation, volume pricing, or integration support. We provide same-day quotations and can coordinate with your preferred logistics provider for global delivery.

Request a Quote: Email sale@ninermas.com with your project requirements
Technical Inquiries: Call +0086 187 5021 5667 (GMT+8 business hours)
Bulk Orders: Volume discounts available for orders of 10+ units
