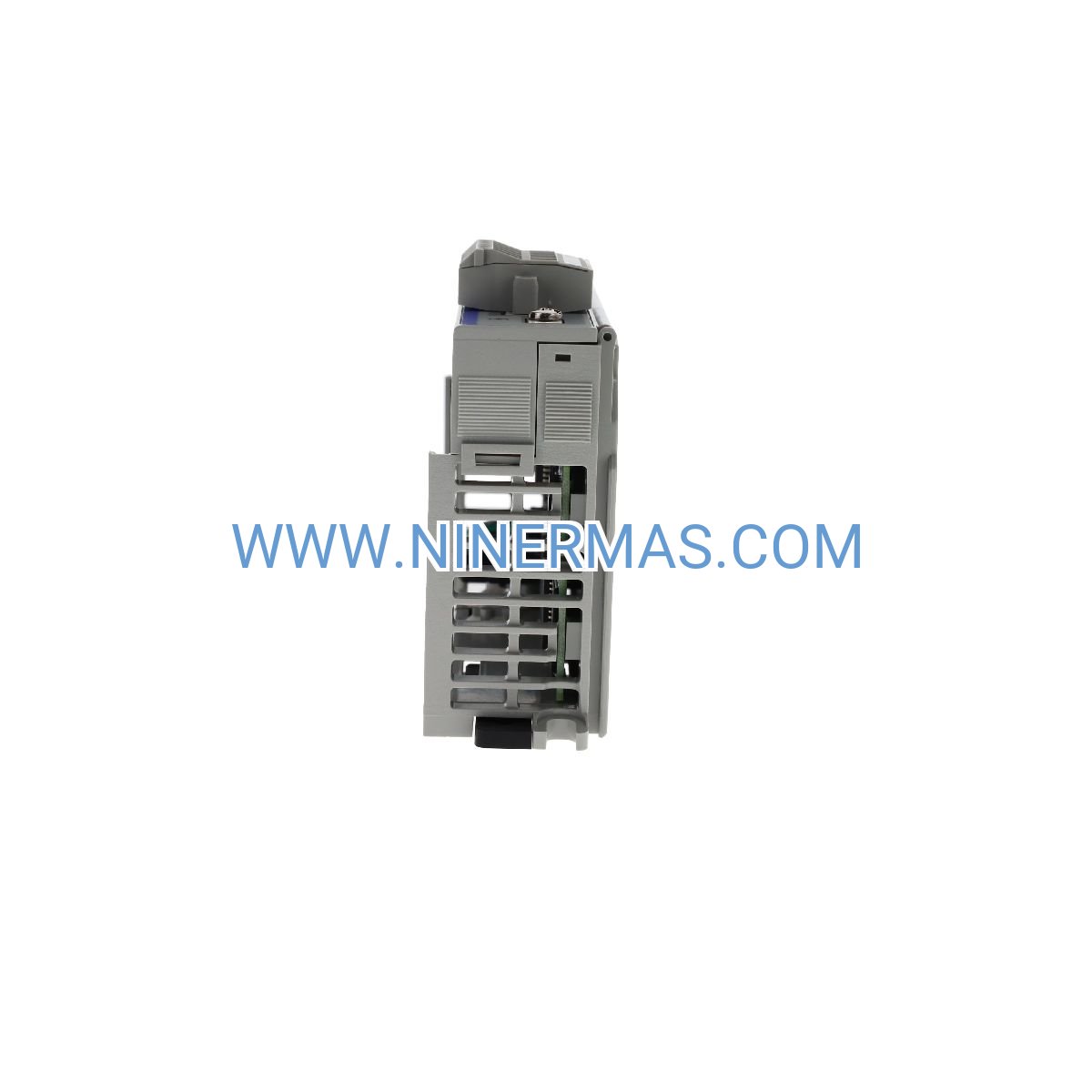

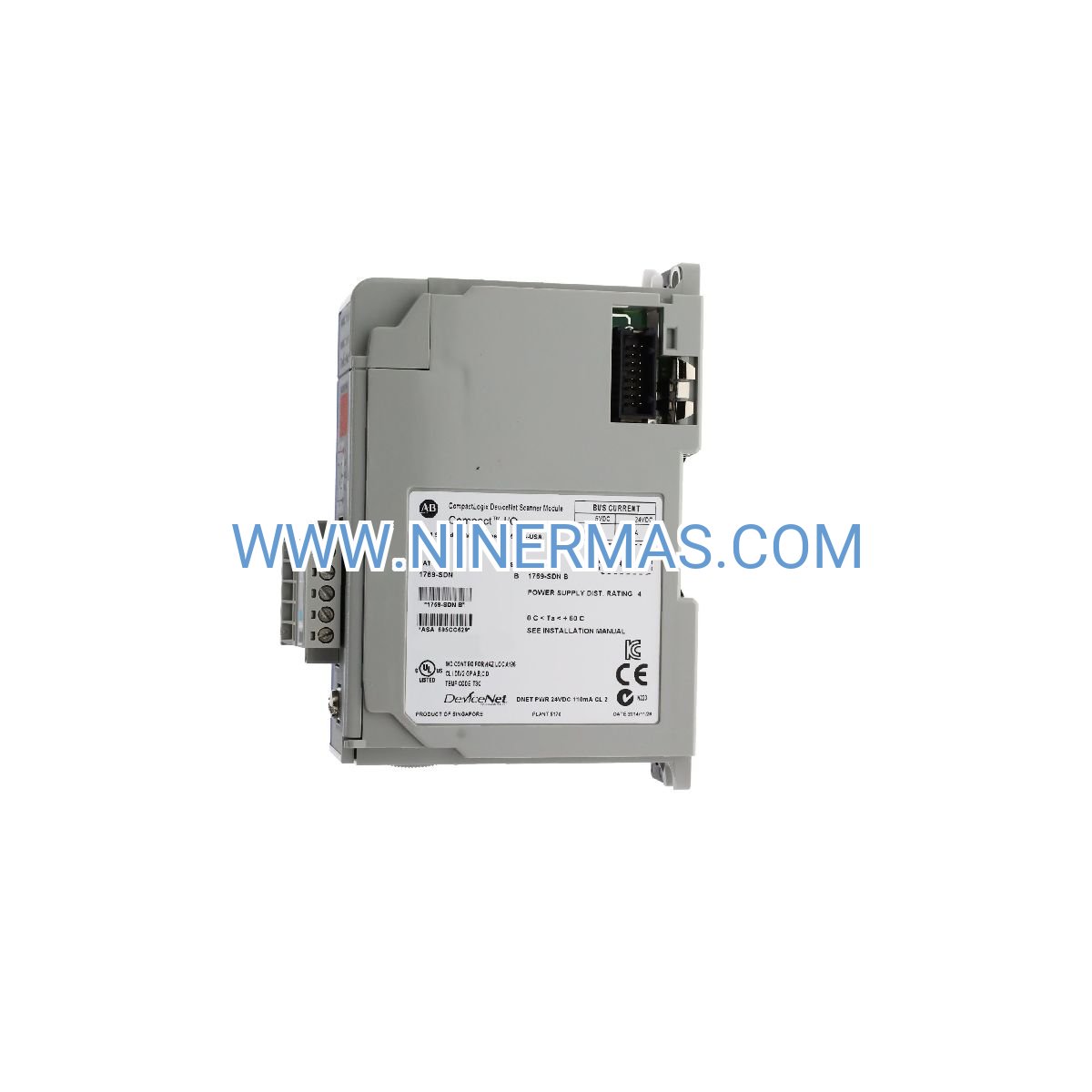

1769-SDN DeviceNet Scanner Module (Industrial-Grade Network Interface)

The 1769-SDN represents a proven solution for establishing reliable DeviceNet communication within CompactLogix control architectures. Engineered to bridge your controller with distributed field devices, this scanner module delivers deterministic data exchange across industrial networks where timing precision and fault tolerance are non-negotiable.

Designed for system integrators and automation engineers managing multi-vendor equipment ecosystems, the 1769-SDN eliminates proprietary communication barriers while maintaining the performance standards demanded by modern manufacturing operations. Whether you're retrofitting legacy DeviceNet infrastructure or designing greenfield installations, this module provides the connectivity backbone for coordinated machine control.

With support for up to 64 network nodes and auto-configurable baud rates, the scanner adapts to diverse application requirements without manual intervention. Factory-tested optical isolation and industrial temperature ratings ensure operational continuity in harsh production environments where downtime translates directly to revenue loss.

Core Capabilities & Technical Advantages

→ Multi-Speed Auto-Detection: Automatically identifies and synchronizes with 125 kbps, 250 kbps, or 500 kbps network speeds, eliminating configuration errors during commissioning and reducing startup time by up to 40% compared to manual setup protocols.

✓ High-Density Node Capacity: Connects up to 64 intelligent devices per scanner module, enabling centralized control of distributed sensors, drives, and actuators while maintaining sub-10ms scan cycle performance for time-critical applications.

→ Electrical Isolation Protection: 1500V DC optical isolation safeguards your CompactLogix backplane from ground loop faults and electrical noise common in motor drive environments, reducing nuisance trips and extending controller lifespan.

✓ Hot-Swap Serviceability: Electronic keying permits module replacement under power when properly configured, minimizing production interruptions during preventive maintenance or emergency repairs—critical for 24/7 operations.

→ Standards-Based Interoperability: Full ODVA DeviceNet compliance ensures plug-and-play compatibility with 2,000+ certified products from global manufacturers, protecting your investment in existing field devices and future expansions.

✓ Diagnostic Intelligence: Real-time network health monitoring through RSNetWorx software provides instant visibility into device status, communication errors, and bandwidth utilization—enabling predictive maintenance strategies.

Industrial Application Scenarios

Automotive Assembly Lines: Coordinate robotic welding cells, torque tools, and vision systems across distributed workstations. The 1769-SDN's deterministic messaging ensures synchronized operations where cycle time variations of even 50ms can impact production throughput and quality metrics.

Food & Beverage Packaging: Integrate servo-driven filling stations, checkweighers, and labeling equipment into unified control systems. DeviceNet's producer-consumer architecture reduces network overhead by 60% compared to polling-based protocols, critical for high-speed packaging lines exceeding 300 units/minute.

Material Handling Conveyors: Network photo-eyes, barcode scanners, and diverter actuators across warehouse sortation systems. The module's 64-node capacity supports complex routing logic while maintaining the real-time responsiveness required for zero-gap product tracking.

Chemical Process Control: Connect remote valve manifolds, flow transmitters, and analyzer systems in hazardous area installations. Optical isolation prevents ground potential differences from corrupting analog signals in multi-building facilities with separated electrical services.

Machine Tool Networks: Link CNC controllers, tool changers, and coolant management systems for coordinated machining operations. Hot-swap capability allows technicians to replace failed modules during shift changeovers without halting adjacent production cells.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1769-SDN when your application requires DeviceNet connectivity within CompactLogix systems. For ControlLogix platforms, specify the 1756-DNB instead. Verify your chassis power budget can accommodate the 800mA @ 5V DC draw—critical when populating high-density I/O configurations. For networks exceeding 64 nodes, deploy multiple scanner modules with segmented network architecture.

Advanced Integration Features

RSNetWorx Configuration Environment: Leverage graphical network design tools for drag-and-drop device placement, automatic I/O mapping, and offline simulation. Import Electronic Data Sheets (EDS) from device manufacturers to access vendor-specific parameters without manual register programming.

Predictive Diagnostics: Monitor network health metrics including bus-off events, CRC errors, and node timeout conditions through embedded web servers or SCADA integration. Set threshold-based alarms to trigger maintenance notifications before communication failures impact production.

Redundancy Options: Implement dual-scanner architectures for mission-critical applications requiring fault-tolerant communication. Automatic failover logic maintains process continuity during primary scanner failures or scheduled maintenance windows.

Delivery Timeline & Support Services

Standard Lead Time: In-stock units ship within 24-48 hours via express carriers. Custom configurations or bulk orders (10+ units) typically require 5-7 business days for quality verification and documentation preparation.

Warranty Protection: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended service agreements available for critical infrastructure applications requiring guaranteed replacement inventory.

Technical Resources: Each module includes installation quick-start guide, wiring diagrams, and RSLogix programming examples. Access to application engineers for integration support during commissioning phase—no additional fees for standard configurations.

Documentation Package: Certificate of conformity, test reports, and firmware revision notes provided with every shipment. Traceability documentation available upon request for regulated industries (FDA 21 CFR Part 11, ISO 9001 environments).

Frequently Asked Questions

What cable type is required for DeviceNet installations with the 1769-SDN?
Use DeviceNet thick cable (Belden 3082A or equivalent) for trunk lines up to 500 meters at 125 kbps, or thin cable (Belden 3084A) for drop connections. Both network ends require 121-ohm termination resistors. Avoid mixing cable types on the same network segment to prevent impedance mismatches.

Can the 1769-SDN communicate with safety-rated DeviceNet devices?
The standard 1769-SDN handles non-safety DeviceNet traffic. For safety applications (SIL 2/3, PLd/e), integrate GuardLogix controllers with safety-rated DeviceNet products following ODVA Safety Network guidelines. Contact our engineering team for safety system architecture reviews.

How many 1769-SDN modules can be installed in a single CompactLogix chassis?
The quantity is limited by available chassis slots and power budget. A typical 1769-PB4 power supply (10W @ 5V DC) supports 12 scanner modules theoretically, but practical installations rarely exceed 4 scanners due to network segmentation best practices and backplane bandwidth considerations.

Does the module support firmware updates in the field?
Yes, firmware can be updated via ControlFLASH utility without removing the module from the chassis. Always verify compatibility between scanner firmware, RSLogix 5000 software version, and connected device profiles before initiating updates to avoid communication disruptions.

What is the maximum network cable length for reliable DeviceNet operation?
Maximum trunk length varies by baud rate: 500 meters @ 125 kbps, 250 meters @ 250 kbps, 100 meters @ 500 kbps. Drop cables (thick to thin transitions) are limited to 6 meters cumulative per node. Use repeaters for installations exceeding these distances.

Is the 1769-SDN compatible with legacy SLC 500 DeviceNet scanners?
While both use DeviceNet protocol, the 1769-SDN is platform-specific to CompactLogix. Existing DeviceNet field devices from SLC 500 networks can be reused, but the scanner module itself must match the controller platform (1747-SDN for SLC 500, 1769-SDN for CompactLogix).

Start Your Integration Project

Ready to deploy the 1769-SDN in your control system? Our technical sales team can assist with network sizing calculations, cable specifications, and compatibility verification for your specific application. Contact us with your project requirements for same-day quotations and lead time confirmation.
