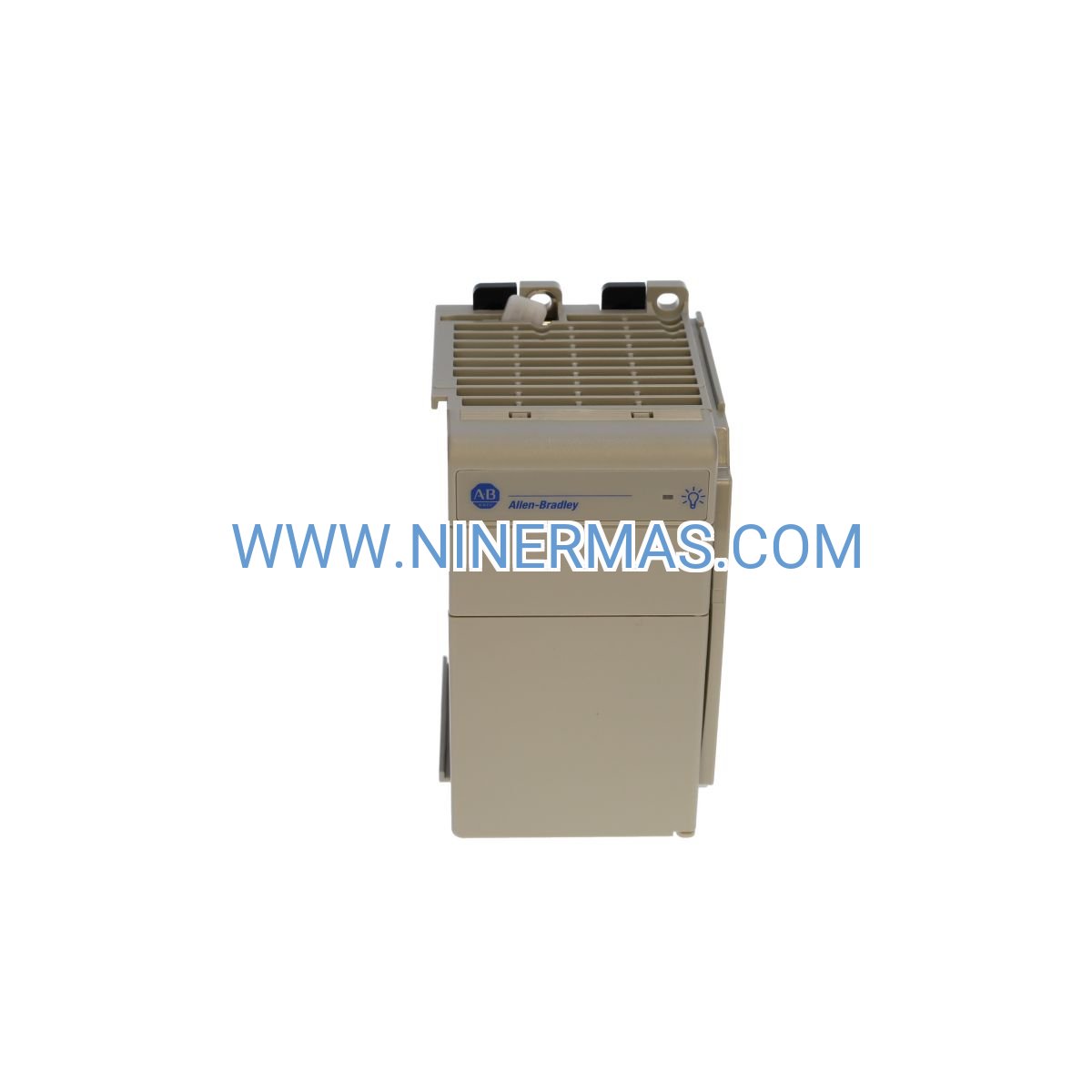

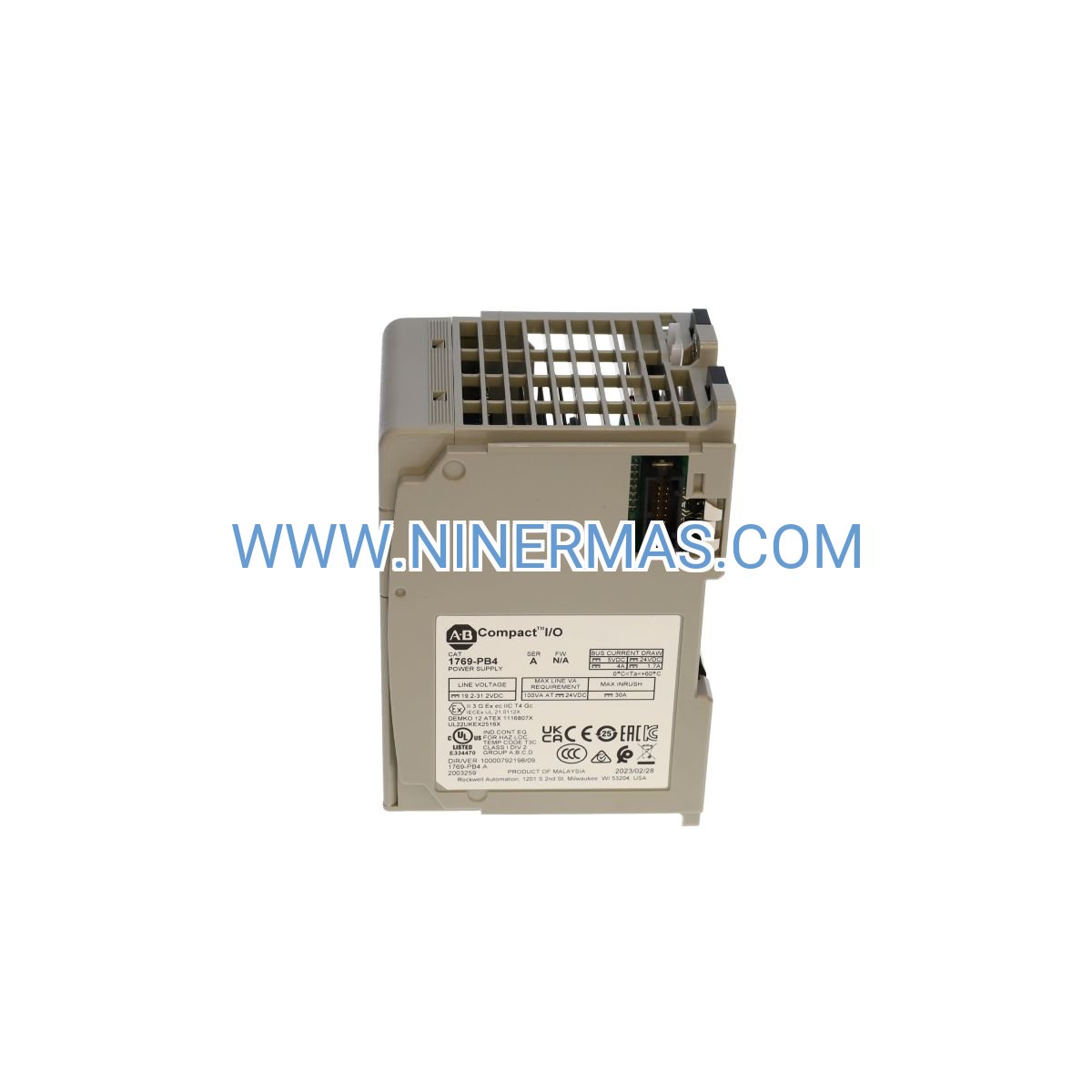

1769-PB4 DC Power Module (Industrial-Grade CompactLogix Supply)

The 1769-PB4 is a precision-engineered DC power distribution module designed specifically for Allen-Bradley CompactLogix automation platforms. Delivering selectable 4-amp or 2-amp output capacity, this industrial power supply ensures uninterrupted operation in mission-critical control environments where voltage stability and thermal performance are paramount.

Built for manufacturers and system integrators managing complex automation infrastructure, the 1769-PB4 addresses common challenges in distributed control architectures: fluctuating input voltages, thermal constraints in compact enclosures, and the need for rapid serviceability without system shutdown. Its dual-current configuration adapts to evolving I/O requirements as production lines scale.

Key differentiators include hot-swap capability for zero-downtime maintenance, integrated diagnostics via LED indicators, and seamless backplane integration that eliminates external wiring complexity. Whether retrofitting legacy systems or deploying greenfield installations, the 1769-PB4 provides the foundation for reliable 24VDC power distribution across your CompactLogix ecosystem.

Core Capabilities & Business Value

✓ Adaptive Current Selection
Switch between 4A and 2A output modes to match system load requirements. Optimize power efficiency in low-density configurations or maximize module capacity in high-density racks—reducing both energy costs and heat generation.

✓ Wide Input Voltage Tolerance
Accepts 19.2V to 32V DC input range, compensating for voltage drops in long cable runs or unstable power sources. Maintains regulated output even during brownout conditions, protecting downstream logic and I/O modules from undervoltage faults.

✓ Hot-Swappable Architecture
Replace failed units without powering down the entire control system. Minimize production interruptions and eliminate costly scheduled downtime—critical for 24/7 operations in automotive, food processing, and pharmaceutical manufacturing.

✓ Integrated Protection Circuits
Built-in overcurrent, short-circuit, and thermal shutdown safeguards prevent cascading failures. Automatically recovers from transient faults, reducing nuisance trips and extending component lifespan across the entire I/O chain.

✓ Compact DIN Rail Form Factor
Occupies minimal panel space while delivering maximum power density. Mounts directly to standard 1769 chassis rails with tool-free installation—ideal for space-constrained retrofit projects or mobile equipment applications.

✓ Visual Diagnostics
Dual-color LED indicators provide instant status feedback: green for normal operation, red for fault conditions. Accelerate troubleshooting during commissioning and reduce mean time to repair (MTTR) by up to 40% compared to non-indicating power supplies.

Industrial Application Scenarios

→ Automated Assembly Lines
Powers distributed I/O networks controlling robotic welding cells, vision inspection systems, and conveyor interlocks. The 4A output mode supports up to 8 high-speed digital modules, while the wide operating temperature range (0-60°C) handles heat buildup in densely packed control cabinets.

→ Process Control & SCADA Integration
Provides stable power for analog input modules monitoring temperature, pressure, and flow sensors in chemical processing plants. The 50V DC isolation between input and backplane prevents ground loop interference that can corrupt 4-20mA signal accuracy.

→ Material Handling & Warehousing
Supports CompactLogix controllers managing automated storage/retrieval systems (AS/RS) and sortation equipment. Hot-swap capability enables preventive maintenance during second-shift operations without halting order fulfillment workflows.

→ Packaging Machinery
Delivers clean DC power to high-speed motion control modules in form-fill-seal machines and cartoning systems. The 2A mode reduces power consumption during changeover periods, lowering operational costs in multi-SKU production environments.

→ Water/Wastewater Treatment
Operates reliably in harsh environments with temperature fluctuations and electrical noise from VFDs and pump starters. UL/CE certifications ensure compliance with municipal infrastructure standards and utility regulations.

Technical Specifications & Selection Guide

Selection Criteria:

• Calculate Total Load: Sum the current draw of all connected I/O modules. Select 4A mode if total exceeds 2A, or use 2A mode for energy efficiency in smaller systems.
• Verify Input Source: Ensure your DC power source maintains 19.2-32V under full load. For AC-powered systems, pair with a suitable AC/DC converter rated for industrial environments.
• Thermal Management: In ambient temperatures above 50°C, derate output current by 2.5% per degree Celsius or implement forced-air cooling to maintain performance.
• Redundancy Planning: For critical applications, deploy dual 1769-PB4 modules in parallel with diode isolation to achieve N+1 redundancy without custom circuitry.

Advanced Integration Features

Backplane Power Distribution
The 1769-PB4 supplies power directly through the CompactLogix backplane connector, eliminating point-to-point wiring between modules. This architecture reduces installation time by up to 60% compared to traditional terminal-block power distribution and improves system reliability by minimizing connection points.

Scalable System Expansion
As your automation requirements grow, simply add I/O modules to the chassis—the 1769-PB4 automatically distributes power to new modules via the backplane. Supports mixed analog/digital configurations without reconfiguration, enabling agile response to production changes.

Compatibility Matrix
Fully compatible with all 1769 CompactLogix controllers (L16ER, L18ER, L24ER series), 1769 Compact I/O modules, and 1734 POINT I/O adapters. Interoperates seamlessly with EtherNet/IP, DeviceNet, and ControlNet communication modules for multi-protocol network integration.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial hubs: 3-5 business days (North America/Europe), 5-7 business days (Asia-Pacific).

Custom Configuration: Pre-tested assemblies with specific I/O module combinations available with 7-10 business day lead time. Contact our engineering team for bill-of-materials (BOM) optimization and panel layout assistance.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for OEM integrators and high-volume purchasers.

Technical Support: Lifetime access to our applications engineering team for installation guidance, troubleshooting, and system design consultation. Average response time: <4 hours for critical issues.

Documentation Package: Every shipment includes installation manual, wiring diagrams, dimensional drawings (DXF/PDF), and compliance certificates. Digital resources available via QR code for mobile access on the factory floor.

Frequently Asked Questions

How many I/O modules can the 1769-PB4 power in 4A mode?
Typically 6-8 standard digital I/O modules or 4-5 analog modules, depending on individual module current draw. High-density modules (32-point) may consume 400-600mA each, while basic 16-point digital modules draw 150-250mA. Always verify total load using the CompactLogix Selection Guide or contact our team for load calculations.

What is the difference between 1769-PB4 and 1769-PA4 power supplies?
The 1769-PB4 accepts DC input (19.2-32V DC), making it ideal for systems with existing DC infrastructure or battery-backed UPS systems. The 1769-PA4 uses AC input (85-265V AC) and includes an internal rectifier—better suited for direct connection to facility mains power. Both provide identical output performance.

Can I use the 1769-PB4 in hazardous location applications?
The standard 1769-PB4 is rated for general industrial use (Class I, Division 2 when properly installed). For Class I, Division 1 or ATEX Zone 1 environments, specify Allen-Bradley's XM-series explosion-proof enclosures or consult our hazardous location specialists for compliant system designs.

Does the module support remote monitoring or diagnostics?
While the 1769-PB4 itself does not have embedded Ethernet connectivity, its status is accessible via the CompactLogix controller's diagnostic registers. Integrate with FactoryTalk View or third-party SCADA platforms to monitor power supply health, output current, and fault conditions in real time.

What maintenance is required for optimal performance?
The 1769-PB4 is a solid-state device with no moving parts or consumable components. Recommended maintenance: quarterly visual inspection of LED indicators, annual verification of terminal torque (7-9 in-lb), and thermal imaging during preventive maintenance shutdowns to detect abnormal heat patterns.

Is the 1769-PB4 compatible with legacy 1769 systems from the early 2000s?
Yes, the 1769-PB4 maintains full backward compatibility with original CompactLogix chassis and modules. However, verify firmware compatibility if integrating with controllers running firmware versions older than v16.x—contact Rockwell Automation for legacy system integration guidance.
