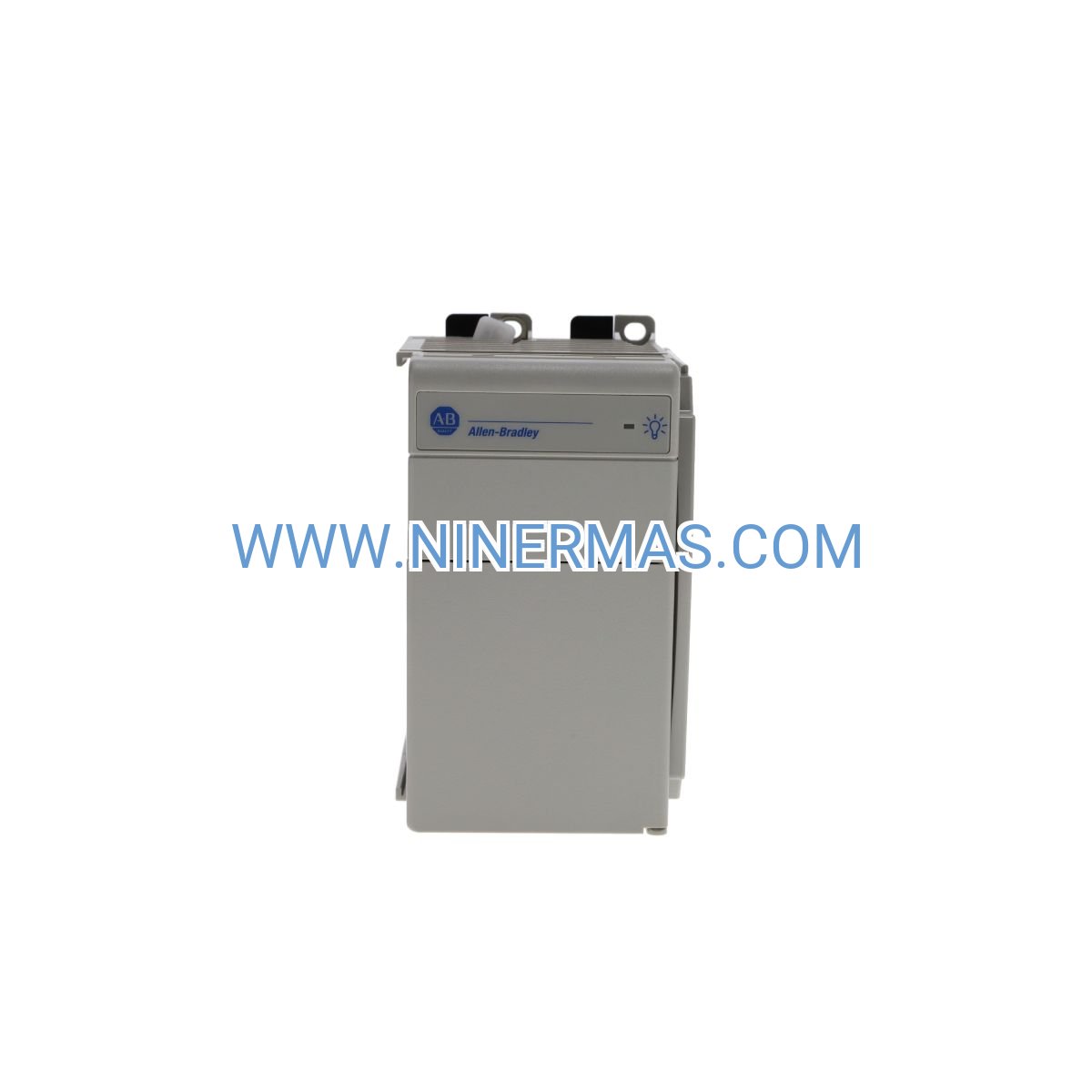

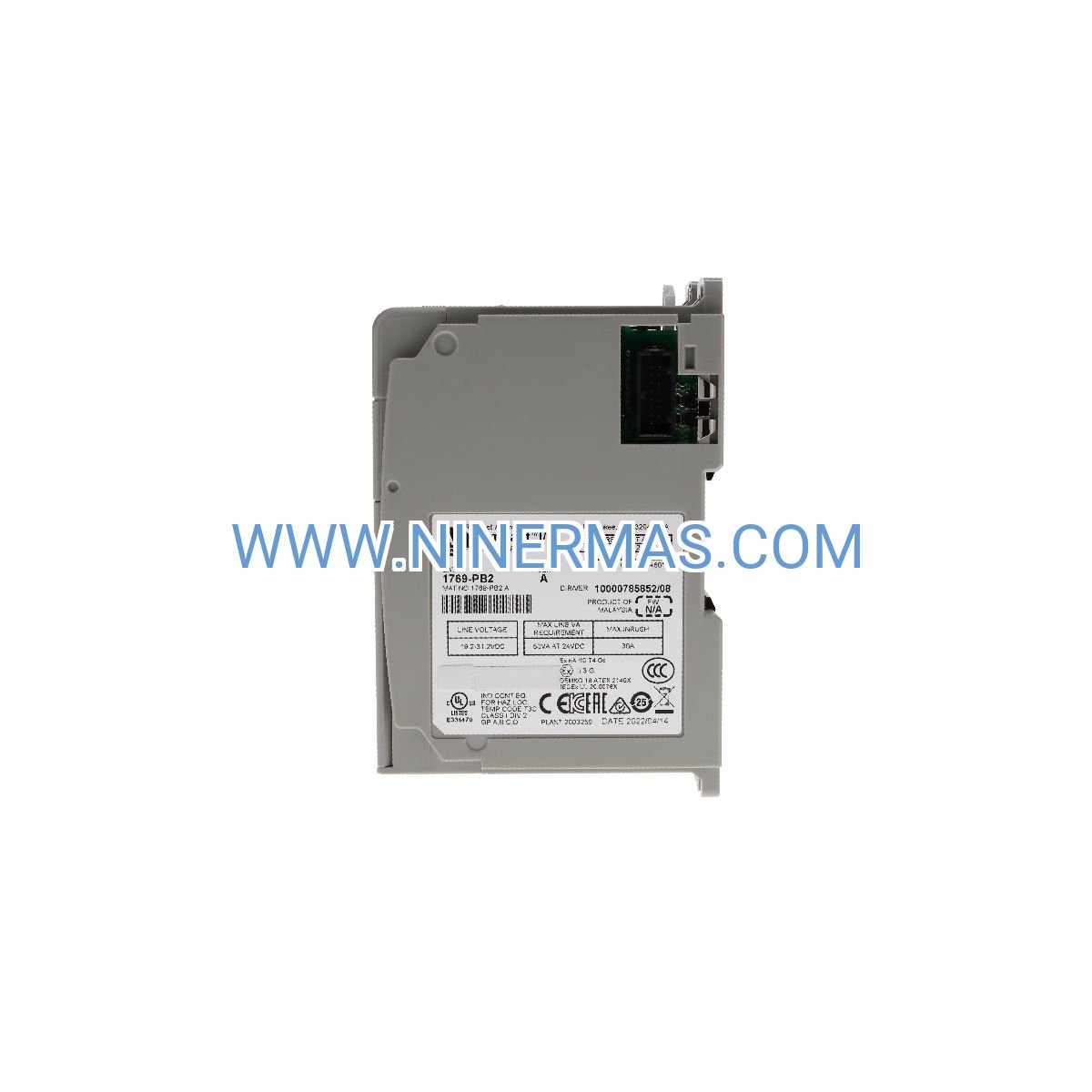

1769-PB2 Dual-Output DC Power Supply (Industrial-Grade CompactLogix Module)

The 1769-PB2 represents a critical infrastructure component for Allen-Bradley CompactLogix automation platforms, engineered to deliver stable dual-rail power distribution in mission-critical industrial environments. This compact DC power module combines universal input voltage acceptance (85-265V AC / 19.2-31.2V DC) with simultaneous 5V logic and 24V I/O outputs, ensuring reliable operation across diverse manufacturing and process control applications.

Designed for system integrators and plant engineers managing distributed control architectures, the 1769-PB2 addresses the fundamental challenge of maintaining consistent power delivery to sensitive PLC components while accommodating global voltage standards. Its hot-swappable architecture and built-in protection circuits minimize unplanned downtime, making it an essential element in high-availability automation systems.

Key advantages include universal voltage compatibility eliminating regional power supply variants, integrated overcurrent/thermal protection safeguarding connected modules, and DIN rail mounting for rapid panel integration. LED diagnostics provide instant visual confirmation of operational status, accelerating troubleshooting workflows during commissioning and maintenance cycles.

Core Features & Technical Advantages

✓ Dual-Rail Power Architecture
Simultaneous 2A @ 5V DC (logic power) and 0.8A @ 24V DC (I/O power) outputs support mixed-voltage CompactLogix configurations without external converters, reducing panel complexity and wiring costs.

✓ Universal Input Voltage Range
85-265V AC (47-63 Hz) or 19.2-31.2V DC input acceptance enables deployment across North American, European, and Asian electrical standards, streamlining global equipment standardization initiatives.

✓ Industrial-Grade Protection Systems
Built-in overcurrent limiting, short-circuit protection, and automatic thermal shutdown preserve module integrity during fault conditions, extending service life in harsh industrial environments (0-60°C operating range).

→ Hot-Swap Capability
Field-replaceable design allows power module exchange without system shutdown, critical for 24/7 manufacturing operations where downtime costs exceed $10,000/hour in automotive and pharmaceutical sectors.

→ Compact Form Factor
87mm × 35mm × 118mm dimensions (0.18 kg weight) optimize control panel real estate, particularly valuable in retrofit projects with space-constrained enclosures.

→ Compliance & Certification
UL Listed (File E117184), CE marked per EN 61131-2, and RoHS compliant, meeting North American and European regulatory requirements for industrial control equipment.

Industrial Application Scenarios

Automotive Assembly Lines
Powers CompactLogix controllers managing robotic welding cells and conveyor systems. The 1769-PB2's universal input voltage supports equipment relocation between plants in different countries without electrical modifications, reducing capital expenditure on duplicate inventory.

Food & Beverage Processing
Supplies stable power to I/O modules monitoring temperature, pressure, and flow sensors in pasteurization and packaging lines. Hot-swap capability enables preventive maintenance during scheduled sanitation shutdowns without disrupting adjacent production zones.

Water Treatment Facilities
Drives CompactLogix systems controlling pump stations and chemical dosing equipment. Wide operating temperature range (0-60°C) accommodates outdoor enclosures and unheated pump houses in municipal infrastructure applications.

Material Handling & Warehousing
Energizes distributed I/O networks in automated storage/retrieval systems (AS/RS) and sortation conveyors. Compact DIN rail mounting simplifies installation in mobile equipment and vertical lift modules with limited panel space.

Machine Tool & CNC Operations
Provides clean power to CompactLogix motion controllers and servo drives in precision machining centers. Overcurrent protection prevents cascade failures when tool collision events trigger emergency stops.

Technical Parameters & Selection Criteria

Selection Guidelines: Calculate total system current draw by summing all CompactLogix module requirements from technical data sheets. The 1769-PB2 suits small-to-medium configurations (typically 4-8 I/O modules). For systems exceeding 2A @ 5V DC or 0.8A @ 24V DC, consider the 1769-PB4 (4A/2A) or multiple power supplies with load distribution. Verify input voltage availability at installation site—AC input is standard for fixed installations, while DC input supports mobile equipment or battery-backed systems.

Advanced Integration Capabilities

Redundant Power Configurations
Deploy dual 1769-PB2 modules with ORing diodes for N+1 redundancy in critical applications where single-point power failures are unacceptable (pharmaceutical batch processing, semiconductor fabrication). Consult Rockwell Automation Publication 1769-UM011 for redundant wiring diagrams.

Remote Monitoring Integration
While the 1769-PB2 lacks embedded diagnostics, pair with 1769-IQ16 digital input modules to monitor power supply status LEDs via CompactLogix ladder logic. Integrate alarm conditions into SCADA/HMI systems for predictive maintenance scheduling based on thermal cycling patterns.

Custom Panel Solutions
NINERMAS offers pre-engineered control panels with 1769-PB2 modules, circuit breakers, and terminal blocks for turnkey installations. Custom configurations include IP65-rated enclosures for washdown environments and NEMA 4X stainless steel housings for corrosive atmospheres.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (verified inventory status provided within 2 hours of inquiry)
Custom Configurations: 10-15 business days for panel integration or special testing requirements
Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures under rated operating conditions
Technical Support: Lifetime application engineering assistance via email/phone (8:00-18:00 CST, Monday-Friday)
Documentation Package: Includes installation manual, wiring diagrams, dimensional drawings, and UL certification letters

All shipments include anti-static packaging, shock-absorbing foam inserts, and moisture barrier bags meeting MIL-STD-2073 standards. International orders ship via DHL/FedEx with full customs documentation and HS code 8537109090 declaration.

Frequently Asked Questions

What is the maximum CompactLogix system size the 1769-PB2 can support?
The 1769-PB2 provides 2A @ 5V DC for processor and communication modules, plus 0.8A @ 24V DC for I/O power. A typical configuration supports one 1769-L33ER processor (0.8A), one 1769-AENTR EtherNet/IP adapter (0.15A), and 4-6 standard I/O modules. Consult individual module current specifications in Rockwell Automation Publication 1769-IN016 to calculate total system draw. Systems exceeding these limits require the 1769-PB4 (4A/2A) or additional power supplies.

Can I use the 1769-PB2 with 1769-PA2 AC power supplies in the same chassis?
Yes, the 1769-PB2 and 1769-PA2 share identical electrical and mechanical interfaces, allowing mixed deployment within a single CompactLogix system. This is common in retrofit scenarios where existing AC supplies are supplemented with DC modules for battery-backed UPS integration. Ensure total current draw does not exceed the sum of individual power supply ratings.

Does the 1769-PB2 require external fusing or circuit protection?
While the module includes internal overcurrent protection, Rockwell Automation recommends external branch circuit protection per NEC Article 430 and local electrical codes. Install a 2A slow-blow fuse or circuit breaker on the AC input line. For DC input applications, use appropriately rated fuses matching the upstream power source specifications.

How do I troubleshoot a non-functional 1769-PB2 module?
Verify input voltage is within 85-265V AC or 19.2-31.2V DC range using a multimeter. Check the green PWR LED—if illuminated, the module is receiving power and outputs are active. If the red FAULT LED is lit, inspect for output overload conditions (disconnect I/O modules sequentially to isolate). Ensure DIN rail mounting is secure and ambient temperature is below 60°C. Contact NINERMAS technical support for RMA procedures if hardware failure is suspected.

What are the energy efficiency characteristics of the 1769-PB2?
The module operates at approximately 80% efficiency under typical load conditions, dissipating 4-6W as heat. No forced-air cooling is required when mounted per manufacturer spacing guidelines (minimum 50mm clearance above/below). For energy auditing purposes, calculate annual consumption as: (Input Power × Operating Hours × $0.12/kWh) ≈ $25-35/year for 24/7 operation.

Is the 1769-PB2 compatible with legacy 1769-PA4 power supplies?
The 1769-PB2 uses the same backplane connector and mounting footprint as all 1769-series power supplies, ensuring backward compatibility with systems originally designed for 1769-PA4 modules. However, verify that your application does not require the higher current capacity of the PA4 (4A @ 5V DC) before substituting with the PB2 (2A @ 5V DC).
