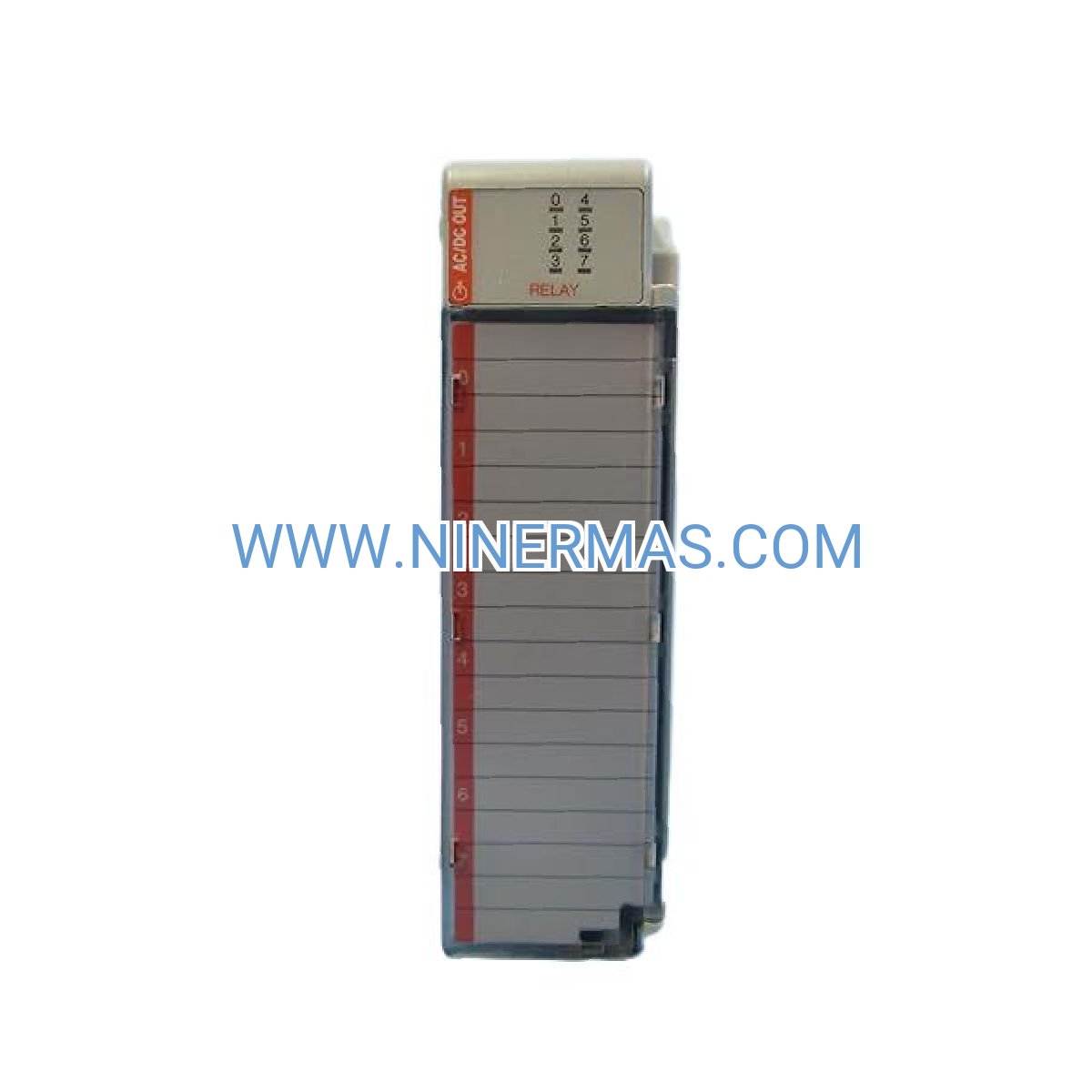

1769-OW8 Relay Output Module (Industrial-Grade Isolated Switching Solution)

The 1769-OW8 represents a professional-grade relay output interface designed specifically for Allen-Bradley CompactLogix automation platforms. This eight-channel module delivers electrically isolated Form C relay contacts, enabling reliable control of diverse AC and DC loads across manufacturing, process control, and infrastructure applications. Built to withstand demanding industrial conditions, it combines robust construction with intelligent diagnostics for mission-critical switching operations.

Engineered for system integrators and automation professionals who require dependable output control without compromising safety or performance, this module addresses the challenge of interfacing low-voltage logic signals with high-power field devices. Whether you're managing solenoid valves in a packaging line, controlling motor contactors in material handling systems, or switching pilot lights in process equipment, the 1769-OW8 provides the isolation and current capacity needed for industrial-grade applications.

Key differentiators include 2500V continuous isolation between logic and field circuits, hot-swap capability for zero-downtime maintenance, and removable terminal blocks that accelerate commissioning and troubleshooting. Factory-tested to OEM specifications and backed by comprehensive technical support, this module integrates seamlessly into your existing CompactLogix infrastructure.

Core Features & Benefits

→ Eight Isolated Relay Outputs
Form C contact configuration (SPDT) on all channels provides normally-open and normally-closed contacts for maximum application flexibility. Each output operates independently with 2A continuous current rating at 24-240VAC/DC, suitable for direct control of industrial loads without external amplification.

→ Superior Electrical Isolation
Continuous 2500V AC isolation between field wiring and backplane logic protects sensitive controller circuitry from voltage transients, ground loops, and electrical noise common in industrial environments. This isolation barrier enhances system reliability and extends equipment lifespan.

→ Hot-Swappable Architecture
Replace modules during system operation without powering down the entire control rack. Electronic keying prevents incorrect module installation, while automatic configuration download from the controller eliminates manual setup after replacement—reducing maintenance windows by up to 75%.

→ Removable Terminal Block Design
The included 1769-RTB18 terminal block allows pre-wiring before module installation and quick field wiring changes without disturbing existing connections. Color-coded terminals and clear labeling minimize wiring errors during commissioning and modifications.

✓ Visual Diagnostics
Individual LED indicators for each output channel provide instant status visibility, accelerating troubleshooting and reducing diagnostic time. Module status LED confirms backplane communication and power supply health.

✓ Conformal Coating Protection
Factory-applied conformal coating shields electronic components from moisture, dust, chemicals, and temperature extremes, ensuring reliable operation in harsh industrial environments including food processing, chemical plants, and outdoor installations.

Application Scenarios

Manufacturing Automation & Assembly Lines
Control pneumatic actuators, solenoid valves, and conveyor interlocks in automated assembly systems. The isolated relay outputs eliminate ground loop issues when interfacing with multiple power domains, while the 1 Hz switching frequency suits most discrete manufacturing applications. Typical deployment: controlling 8 pneumatic clamps on an automotive assembly fixture.

Process Control & Chemical Processing
Switch motor starters, pump contactors, and alarm annunciators in continuous process applications. The 2500V isolation protects sensitive PLC logic from electrical noise generated by large motor loads and variable frequency drives. Common use case: controlling chemical dosing pump contactors and level alarm indicators in water treatment facilities.

Building Automation & HVAC Systems
Interface with damper actuators, fan contactors, and status indicators in commercial building management systems. The dual voltage capability (AC/DC) accommodates diverse field device requirements without additional interface hardware. Example application: controlling 8 zone dampers in a multi-zone HVAC system.

Material Handling & Warehousing
Operate diverter gates, sortation actuators, and indicator lights in conveyor-based distribution systems. Hot-swap capability enables module replacement during off-peak hours without complete system shutdown. Real-world scenario: controlling package diverters and lane full indicators in a high-speed sortation system.

Infrastructure & Utilities
Manage pump controls, valve actuators, and remote alarm systems in water/wastewater treatment plants. Conformal coating protection ensures reliable operation in high-humidity environments. Deployment example: controlling lift station pumps and high-level alarm beacons.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OW8 when you need isolated relay outputs for switching AC or DC loads up to 2A per channel. For higher current requirements, consider using the relay contacts to control external contactors. For faster switching speeds (>1 Hz), evaluate solid-state output modules like the 1769-OB32. Ensure your CompactLogix power supply can provide adequate 5V DC current for all installed I/O modules (150mA per 1769-OW8).

Extended Functions

Electronic Keying & Configuration Management
The module supports electronic keying through RSLogix 5000/Studio 5000 software, preventing accidental installation of incorrect module types. Configuration data stored in the controller automatically downloads to replacement modules, eliminating manual reconfiguration and reducing commissioning errors.

Diagnostic Integration
Integrates with CompactLogix diagnostic capabilities to report module health, backplane communication status, and individual output faults. Diagnostic data accessible via HMI or SCADA systems enables predictive maintenance strategies and reduces unplanned downtime.

Customization Options
While the standard 1769-OW8 suits most applications, custom terminal block configurations and extended temperature range variants are available through Allen-Bradley's custom solutions program for specialized industrial requirements.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom configurations require 4-6 weeks manufacturing lead time. Expedited shipping options available for urgent requirements.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free replacement and technical support for covered failures.

Technical Support: Complimentary pre-sales application engineering assistance, post-sales configuration support, and troubleshooting guidance from certified automation specialists. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module includes installation instructions, wiring diagrams, technical specifications sheet, and quick-start guide. Complete user manual and programming examples available for download from manufacturer support portal.

Frequently Asked Questions

How do I protect relay contacts when switching inductive loads like solenoid valves?
Install suppression devices (RC snubbers for AC loads, flyback diodes for DC loads) across the inductive load to absorb voltage spikes during contact opening. This extends contact life and prevents electrical noise. Consult the user manual for specific suppression component values based on your load characteristics.

What is the maximum wire size the removable terminal block accepts?
The 1769-RTB18 terminal block accepts 12-22 AWG (0.25-3.3mm²) copper wire with a maximum stripping length of 7mm. Use ferrules for stranded wire to ensure reliable connections and prevent strand breakage.

Can I mix AC and DC loads on the same module?
Yes, each relay output operates independently and can switch different voltage types simultaneously. However, maintain proper wiring separation and follow electrical code requirements for mixed voltage installations to prevent cross-contamination and ensure safety.

Does the module require external power for the relay coils?
No external power needed. The module draws 150mA from the CompactLogix backplane 5V DC supply to energize relay coils. Switched loads require separate power sources connected through the relay contacts.

What happens to output states during controller mode changes or power loss?
Relay outputs de-energize (return to shelf state) when the controller enters Program mode or loses power, ensuring fail-safe operation. Configure your system logic to account for this behavior in safety-critical applications.

Is the 1769-OW8 suitable for high-speed counting or pulse output applications?
No, the mechanical relay design limits switching frequency to approximately 1 Hz. For high-speed applications requiring faster switching (>10 Hz), use solid-state output modules or specialty high-speed counter modules from the CompactLogix family.

Take the Next Step

Ready to integrate reliable relay output control into your CompactLogix system? Our automation specialists are available to discuss your specific application requirements, recommend optimal configurations, and provide detailed technical specifications. Contact us today for personalized assistance, volume pricing, or to request a formal quotation for your project.
