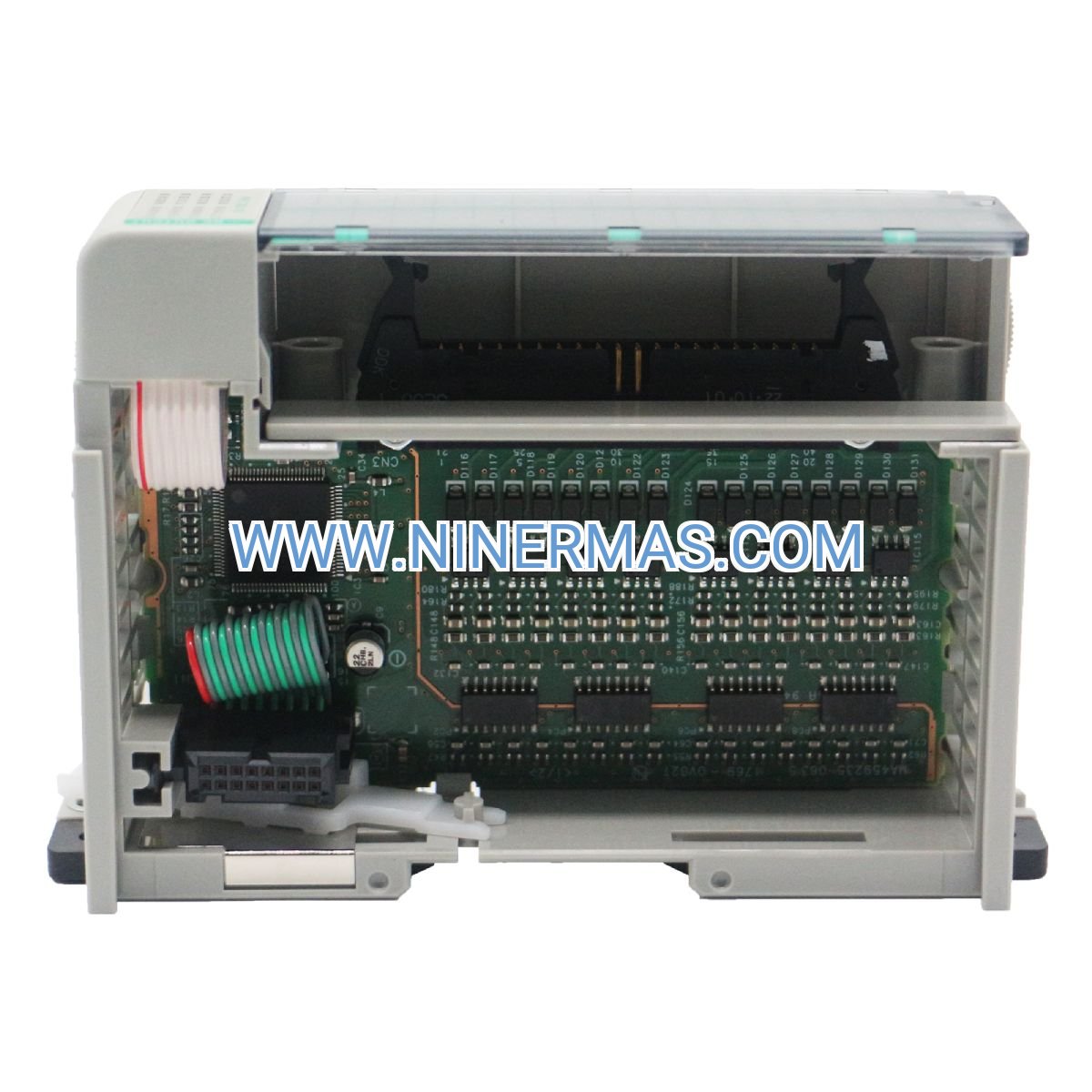

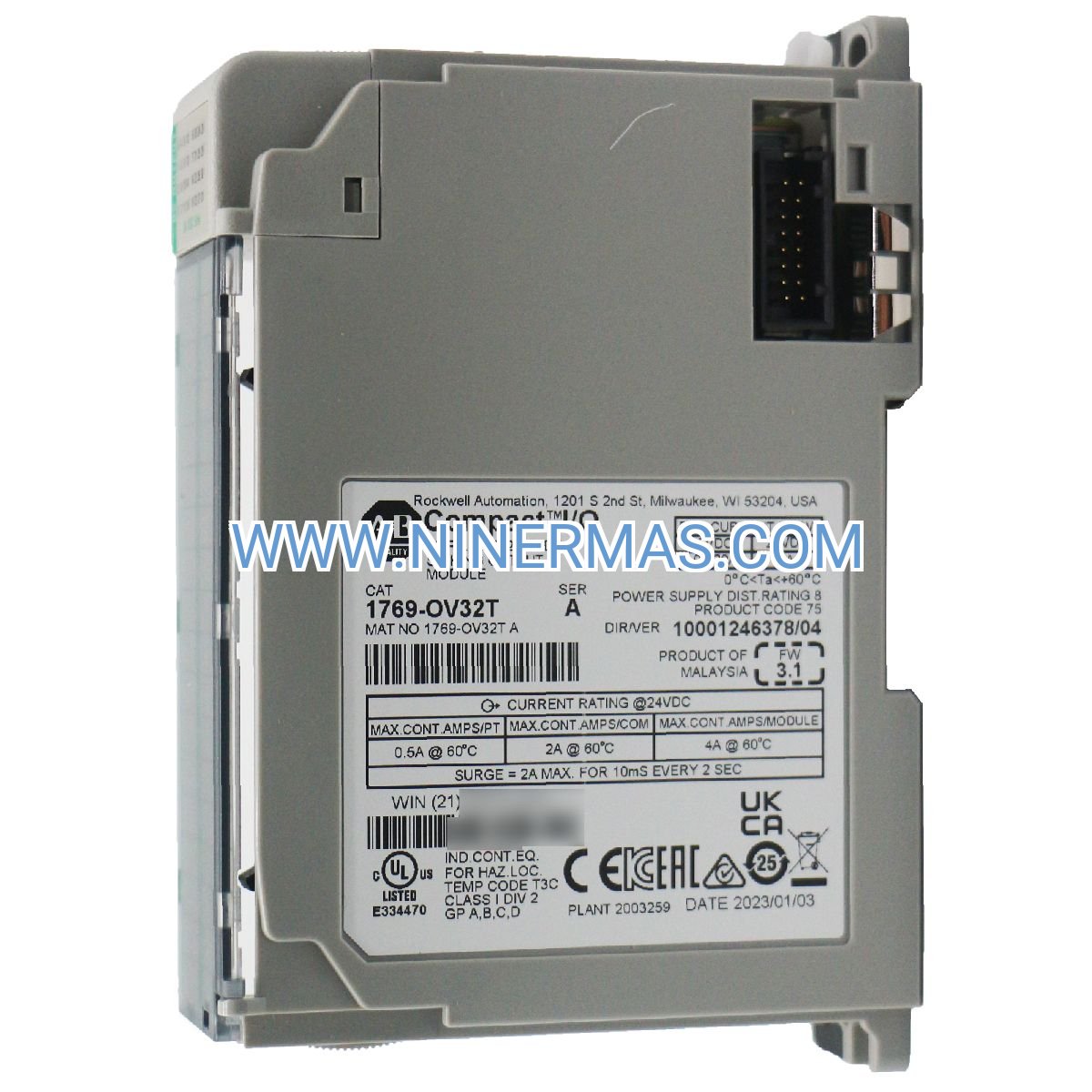

1769-OV32T CompactLogix Digital Output Module (Industrial-Grade 32-Channel Solution)

The 1769-OV32T is a high-density digital output module engineered for Allen-Bradley CompactLogix control platforms, delivering 32 independent 24VDC sink output channels in a compact DIN-rail form factor. Designed for demanding industrial environments, this module enables precise control of solenoid valves, indicator lights, motor starters, and relay coils across manufacturing, process automation, and material handling applications.

Built to withstand harsh operating conditions from 0°C to +60°C with 5-95% non-condensing humidity tolerance, the 1769-OV32T ensures reliable performance in factory floors, outdoor enclosures, and hazardous Class I Division 2 locations. Its UL 508 listing and CE compliance guarantee adherence to international safety standards, while the lightweight 230g design simplifies installation and reduces panel loading.

Whether you're expanding existing CompactLogix systems or designing new control architectures, this module provides the output density and environmental resilience required for mission-critical automation tasks. Each channel features independent diagnostics and short-circuit protection, minimizing downtime and maintenance costs.

Core Capabilities & Technical Advantages

→ High-Density Output Architecture
32 electronically isolated sink outputs in a single-slot footprint reduce panel space requirements by up to 60% compared to legacy 16-point modules, lowering installation costs and simplifying wiring harnesses.

→ Extreme Environment Certification
Operates reliably in -40°F to +140°F ambient temperatures with 30G shock resistance (panel-mounted) and 10-500 Hz vibration tolerance, meeting API 670 standards for rotating machinery protection systems.

✓ Hazardous Location Approval
C-UL certified for Class I Division 2 Groups A-D environments under CSA C22.2 No. 213, enabling deployment in chemical processing, oil & gas, and pharmaceutical facilities without additional enclosures.

✓ Advanced Diagnostics Integration
Real-time channel-level fault detection with RSLogix 5000 integration provides immediate notification of open loads, short circuits, and over-temperature conditions, reducing mean time to repair (MTTR) by 40%.

✓ EMC Immunity Compliance
4kV ESD contact discharge, 10V/m radiated immunity (80-1000 MHz), and 2kV surge protection ensure stable operation in electrically noisy industrial environments with VFDs, welders, and high-power switching equipment.

✓ Plug-and-Play Compatibility
Seamless integration with 1769-PA2, 1769-PA4, and 1769-PB4 power supplies via standard CompactLogix backplane eliminates custom wiring and reduces commissioning time to under 15 minutes per module.

Proven Application Scenarios

Automotive Assembly Lines
Controls pneumatic clamps, part ejectors, and conveyor diverters in body-in-white welding cells. The module's 5ms response time and 100,000-cycle contact life ensure synchronization with robotic spot welders operating at 60 welds/minute, reducing scrap rates from timing errors.

Water Treatment Facilities
Manages chemical dosing pumps, valve actuators, and alarm beacons in SCADA-controlled filtration systems. Conformal coating and IP20 ingress protection withstand 95% humidity environments, preventing corrosion-related failures common in chlorine and ozone exposure.

Food & Beverage Packaging
Drives label applicators, reject gates, and case sealers in high-speed bottling lines. UL 508 listing and washdown-compatible construction meet FDA 21 CFR Part 11 requirements for pharmaceutical and dairy processing, supporting audit compliance.

Material Handling Systems
Operates sortation diverters, barcode scanner triggers, and pallet stop gates in distribution centers processing 10,000+ parcels/hour. The module's 2000-meter altitude rating and -40°C cold-start capability enable deployment in unheated warehouses and high-elevation facilities.

Oil & Gas Wellhead Control
Activates emergency shutdown valves, flare igniters, and pump interlocks in offshore platforms. Class I Division 2 certification and 8kV air-gap ESD immunity protect against lightning-induced transients and explosive atmosphere risks in Zone 2 classified areas.

Technical Parameters & Selection Criteria

Key Selection Factors:

• For applications requiring >32 outputs, combine with 1769-OB16 or 1769-OW8 in same chassis
• Sink outputs require common positive (+24VDC) wiring; verify PLC output card polarity
• Maximum cable length: 100 meters (328 feet) with 18 AWG shielded twisted-pair
• Conformal coating recommended for humidity >85% or chemical vapor exposure

Extended Integration & Customization

EtherNet/IP Connectivity
When paired with 1769-L33ER or 1769-L36ERM controllers, the module supports distributed I/O architectures over EtherNet/IP networks, enabling remote monitoring via FactoryTalk View SE and mobile HMI apps. Real-time data exchange at 10ms RPI (Requested Packet Interval) facilitates predictive maintenance algorithms and OEE tracking.

Safety System Integration
While not SIL-rated, the 1769-OV32T can interface with GuardLogix safety controllers via standard I/O mapping for non-safety-critical shutdown functions. For SIL 2/3 applications, pair with 1769-IQ16F safety input modules and 1769-OW16 safety relay outputs.

Custom Configuration Services
NINERMAS offers pre-programmed modules with customer-specific I/O mapping, diagnostic thresholds, and firmware versions locked to match existing installations. Batch orders >50 units qualify for custom labeling, extended burn-in testing (168 hours), and serialized traceability documentation.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items shipped from Shanghai distribution center via DHL Express. Expedited 24-hour processing available for critical downtime situations (additional $50 fee).

Custom Orders: 10-15 business days for conformal-coated, extended-temperature, or pre-configured modules requiring factory customization.

Warranty Coverage: 12-month manufacturer defect warranty covering material and workmanship failures. Includes free firmware updates and technical support via email/phone during warranty period.

Technical Support: Lifetime access to application engineers for wiring diagrams, RSLogix programming examples, and troubleshooting assistance. Average response time: 4 hours during business hours (GMT+8).

Documentation Package: Includes installation manual (PDF), CAD drawings (DWG/STEP), RSLogix 5000 AOP (Add-On Profile), and sample ladder logic for common applications. All documents available for immediate download post-purchase.

Frequently Asked Questions

Q1: Can the 1769-OV32T module control 120VAC solenoid valves directly?
No, this module provides 24VDC sink outputs only. For 120VAC loads, use the 1769-OW16 relay output module or install external 24VDC control relays (e.g., Allen-Bradley 700-HLT series) rated for AC switching.

Q2: What is the maximum output current capacity per channel and total module?
Each channel supports 0.5A continuous with 0.75A inrush for 10ms. Total module capacity is 8A across all 32 points. For higher current requirements, use the 1769-OB32 (2A/point) or external solid-state relays.

Q3: Does this module support hot-swapping without shutting down the PLC?
Yes, when used with 1769-L3x controllers running firmware v20 or later and RIUP (Remove/Insert Under Power) enabled in RSLogix 5000. Always follow lockout/tagout procedures and verify output states before removal.

Q4: How do I wire sink outputs to PNP sensors and actuators?
Connect the common terminal to +24VDC supply. Wire each output channel to the load's negative terminal, with the load's positive connected to +24VDC. Use 18-22 AWG wire with ferrules for screw terminals.

Q5: Is conformal coating required for outdoor enclosure installations?
Conformal coating is recommended (not required) for environments with sustained humidity >85%, salt spray, or chemical vapors. Standard modules meet IP20; for IP67 protection, use 1769-IQ16F sealed I/O or NEMA 4X enclosures.

Q6: Can I mix 1769-OV32T modules with ControlLogix 1756 series in the same chassis?
No, CompactLogix 1769 and ControlLogix 1756 use incompatible backplanes. Use 1756-OB32 for ControlLogix systems or bridge via EtherNet/IP using a 1769-L3x as a remote I/O adapter.

Ready to Optimize Your Control System?

The 1769-OV32T delivers the output density, environmental resilience, and diagnostic intelligence required for modern industrial automation. Whether you're retrofitting legacy relay panels or designing greenfield projects, our application engineers can recommend the optimal I/O configuration for your specific requirements.

Next Steps:

• Add to cart for immediate checkout with DHL Express shipping
• Contact our team at sale@ninermas.com for bulk pricing (10+ units)
• Request a custom quote for pre-programmed or extended-temperature modules
• Download technical documentation and wiring diagrams from the product page

Questions about compatibility with your existing system? Call +0086 187 5021 5667 or email our technical support team for same-day assistance.
