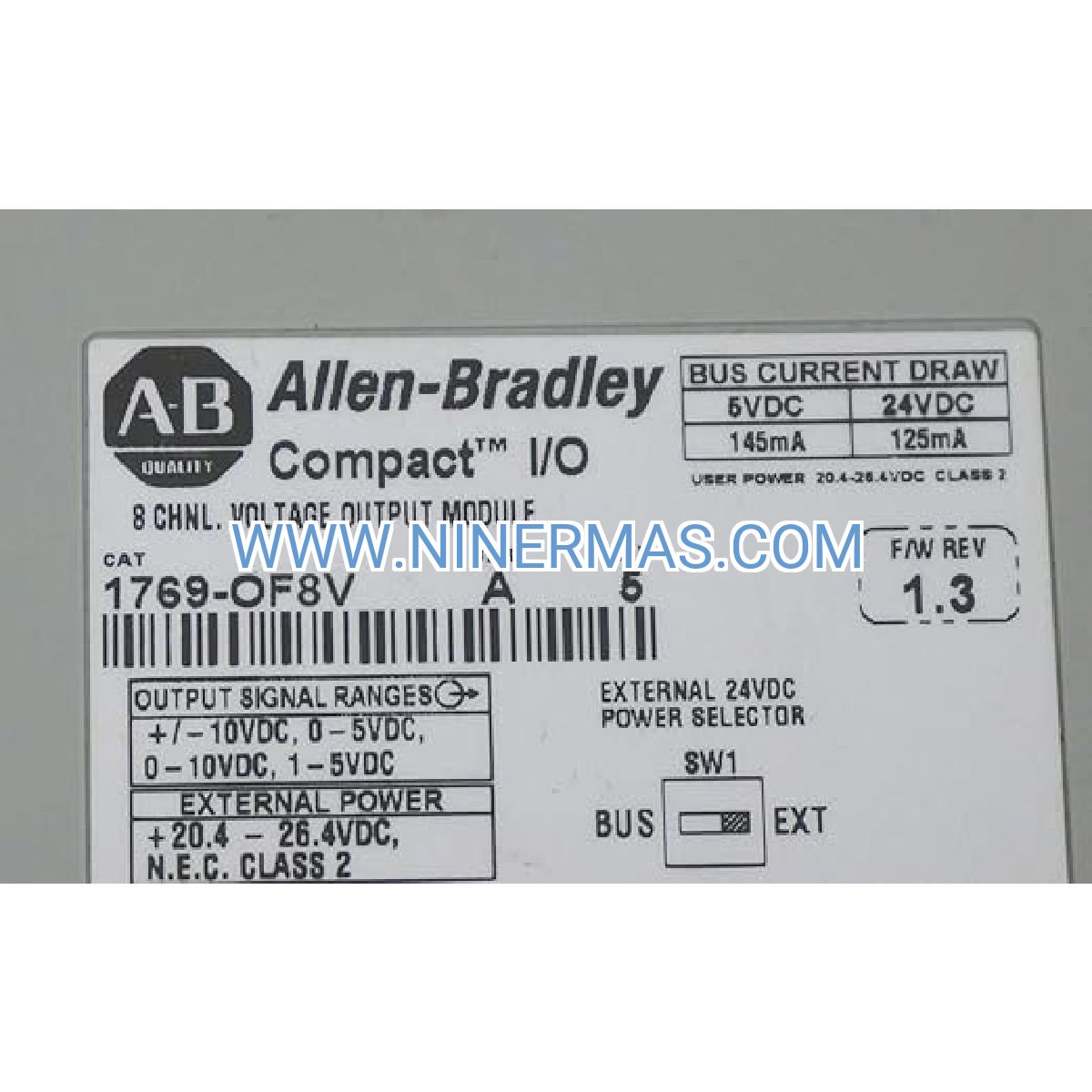

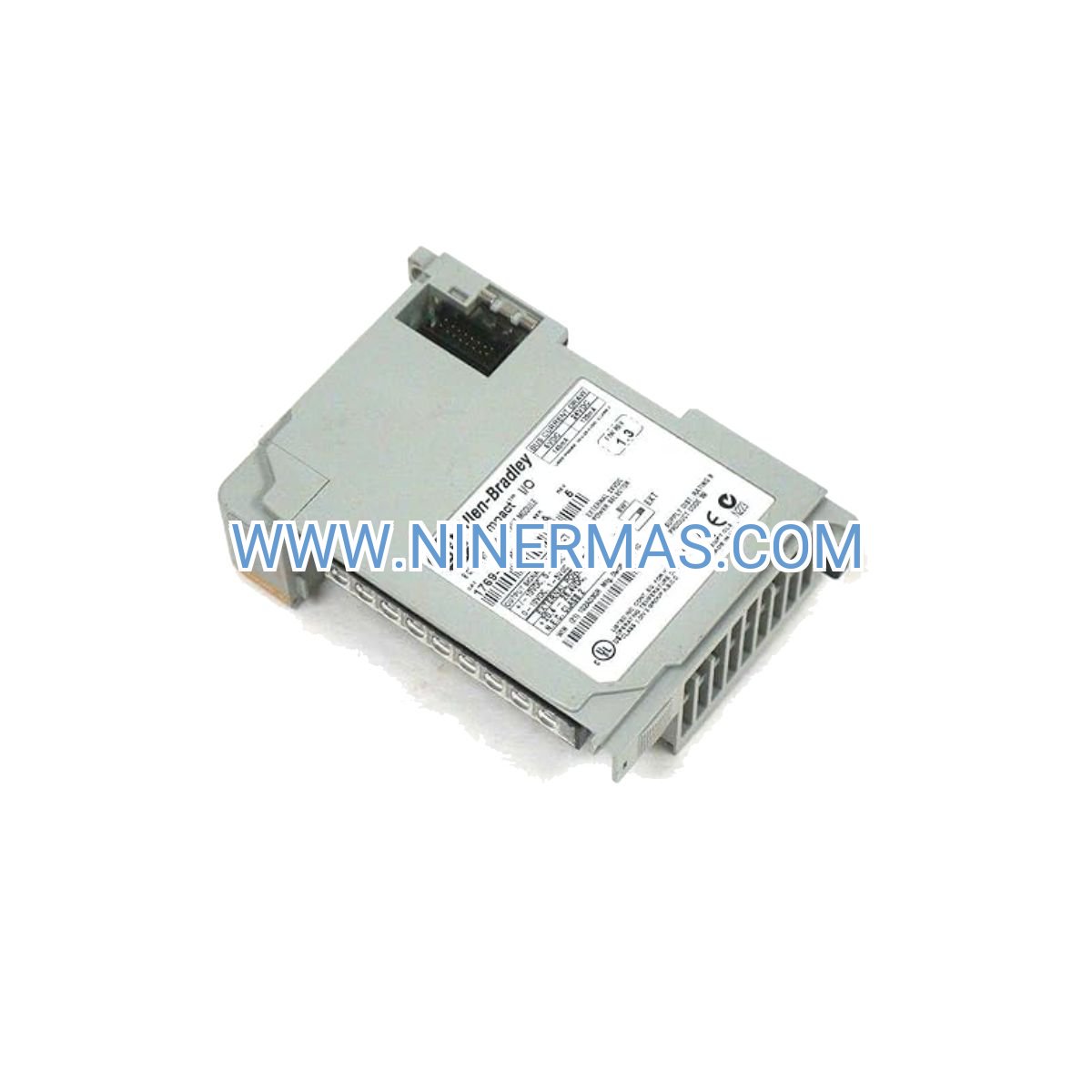

1769-OF8V Analog Voltage Output Module (Industrial-Grade CompactLogix I/O)

The 1769-OF8V represents a professional-grade solution for industrial voltage signal generation, delivering eight independent analog output channels with 16-bit resolution. Engineered for CompactLogix 1769 I/O platforms, this module transforms digital control commands into precise voltage signals that drive actuators, proportional valves, variable frequency drives, and analog instrumentation across manufacturing and process industries.

Industrial facilities face constant pressure to maintain tight process control while minimizing downtime. The 1769-OF8V addresses these challenges through hot-swappable architecture, removable terminal blocks for rapid maintenance, and comprehensive diagnostic capabilities that identify faults before they impact production. Whether you're retrofitting legacy systems or designing new automation solutions, this module integrates seamlessly into existing CompactLogix infrastructures.

Key differentiators include channel-to-backplane isolation for superior noise immunity in electrically harsh environments, configurable output ranges (±10V DC) to match diverse field device requirements, and factory calibration to ±0.1% accuracy—eliminating time-consuming field calibration procedures. Backed by UL/CE/RoHS certifications and a 12-month warranty, the 1769-OF8V delivers the reliability your critical control applications demand.

Core Features & Benefits

✓ Eight Independent Voltage Outputs
Control multiple field devices simultaneously with dedicated channels, each configurable for ±10V DC output range. Eliminates the need for external signal conditioning in most applications.

✓ 16-Bit Resolution for Precision Control
Achieve 0.0003V signal granularity, enabling smooth modulation of proportional valves and precise speed control of variable frequency drives. Reduces process variability and improves product quality.

✓ Hot-Swappable Design with RTB
Replace modules during system operation without shutting down the entire control network. Removable terminal blocks (RTB) preserve field wiring during module exchange, cutting maintenance time by 60%.

✓ Built-In Diagnostics & Status Indicators
Real-time detection of open-circuit, short-circuit, and over-range conditions through RSLogix/Studio 5000 software. LED indicators provide at-a-glance channel health status for rapid troubleshooting.

✓ Channel-to-Backplane Isolation
Protects sensitive control logic from electrical noise and ground loops common in industrial environments. Ensures signal integrity even when controlling high-power actuators.

✓ Factory-Calibrated Accuracy
Each module ships with ±0.1% full-scale accuracy certification, ready for immediate deployment. Reduces commissioning time and eliminates calibration equipment costs.

Application Scenarios

→ Chemical Processing & Pharmaceutical Manufacturing
Regulate reactor temperatures, control dosing pump speeds, and modulate flow control valves with precision voltage signals. The module's isolation capabilities prevent ground loops in multi-zone heating systems, while 16-bit resolution ensures consistent batch quality in pharmaceutical formulation processes.

→ Water & Wastewater Treatment Facilities
Drive variable frequency drives controlling lift station pumps, adjust chemical feed rates through analog dosing systems, and position actuated valves in filtration processes. Hot-swappable design enables maintenance during 24/7 operations without service interruptions.

→ Food & Beverage Production Lines
Control conveyor speeds, regulate mixing tank agitators, and adjust packaging machine parameters through analog voltage commands. Factory calibration ensures compliance with FDA process validation requirements.

→ HVAC & Building Automation Systems
Modulate damper positions in air handling units, control chilled water valve positions, and regulate VFD-driven fan speeds for energy-efficient climate control. Configurable update rates optimize response time versus system stability.

→ Material Handling & Packaging Equipment
Provide speed reference signals to servo drives, control tension in web processing applications, and regulate pneumatic actuator positions. Eight channels support complex multi-axis motion profiles in compact machine footprints.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OF8V when your application requires voltage output signals (±10V DC). For current output applications (4-20mA), consider the 1769-OF4CI or 1769-OF8C modules. If you need fewer channels, the 1769-OF4 (4-channel voltage) offers a cost-effective alternative. Verify that your CompactLogix controller firmware supports the module revision you're deploying—consult Rockwell Automation compatibility matrices for specific version requirements.

Extended Functions

Advanced Diagnostics Integration: The module supports comprehensive fault reporting through the controller's diagnostic object, enabling predictive maintenance strategies. Configure alarm thresholds in your HMI/SCADA system to receive notifications when output channels approach saturation or detect wiring faults.

Scalable I/O Architecture: Combine with digital I/O, specialty modules (temperature, motion, safety), and communication adapters in the same 1769 chassis. The modular design supports systems ranging from 4-point standalone machines to 32-module distributed control networks.

Software Configuration Flexibility: Utilize RSLogix 5000/Studio 5000 Add-On Instructions (AOIs) to create reusable control logic blocks for common analog output functions—PID loop outputs, ramp generators, signal scaling routines. Reduces programming time and standardizes control strategies across multiple machines.

Delivery & Service Assurance

Lead Time: In-stock modules ship within 1-2 business days. Standard delivery via DHL/FedEx/UPS typically arrives within 3-7 business days for domestic shipments, 7-14 days for international destinations. Expedited shipping options available for urgent project requirements.

Warranty Coverage: Every 1769-OF8V module includes a comprehensive 12-month warranty covering manufacturing defects and functional failures. Warranty service includes advance replacement options to minimize downtime during the rare event of module failure.

Technical Support: Our applications engineering team provides pre-sales consultation for system design questions, wiring diagrams, and configuration assistance. Post-purchase support includes troubleshooting guidance, firmware update recommendations, and integration support with third-party devices.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and quick-start configuration guides. Complete technical specifications, EDS files for RSLogix/Studio 5000, and CAD drawings available for download from our technical library.

Frequently Asked Questions

Q: What programming software is required to configure the 1769-OF8V analog output module?
A: Configuration requires RSLogix 5000 (version 16 or later) or Studio 5000 Logix Designer software. You'll need to add the module to your I/O configuration tree and configure output ranges, scaling parameters, and diagnostic settings through the module properties dialog.

Q: Can I use this voltage output module to control 4-20mA devices?
A: No, the 1769-OF8V generates voltage signals (±10V DC) only. For current loop applications requiring 4-20mA outputs, specify the 1769-OF4CI (4-channel) or 1769-OF8C (8-channel) current output modules instead.

Q: How does the hot-swap capability work without disrupting other I/O modules?
A: The 1769 backplane architecture isolates each module slot electrically and logically. When you remove a module, the controller detects the absence and flags a fault, but other modules continue normal operation. After inserting the replacement module, the controller automatically re-establishes communication and resumes output control.

Q: What is the maximum cable length between the module and field devices?
A: For voltage signals, we recommend maximum cable runs of 300 meters (1000 feet) using shielded twisted-pair cable. Longer distances may require signal repeaters or consideration of current loop outputs (4-20mA) which offer superior noise immunity over extended cable runs.

Q: Does the module require field calibration after installation?
A: No, each 1769-OF8V ships factory-calibrated to ±0.1% accuracy and includes a calibration certificate. Field calibration is unnecessary for most applications. If your process requires tighter accuracy tolerances, you can perform optional field calibration using precision voltage measurement equipment and the calibration utility in RSLogix/Studio 5000.

Q: Is the 1769-OF8V compatible with ControlLogix 1756 systems?
A: No, the 1769 series modules are designed exclusively for CompactLogix controllers and 1769 I/O chassis. For ControlLogix applications, use the 1756-OF8 or 1756-OF6VI analog output modules which mount in 1756 chassis.

Ready to Optimize Your Process Control?

The 1769-OF8V delivers the precision, reliability, and diagnostic capabilities your industrial automation systems demand. Whether you're upgrading existing CompactLogix installations or designing new control solutions, this module provides proven performance backed by comprehensive warranty coverage and expert technical support.

Contact our automation specialists today for application-specific recommendations, system design assistance, or volume pricing for multi-module projects. We're here to help you select the right I/O configuration for your unique control requirements.
