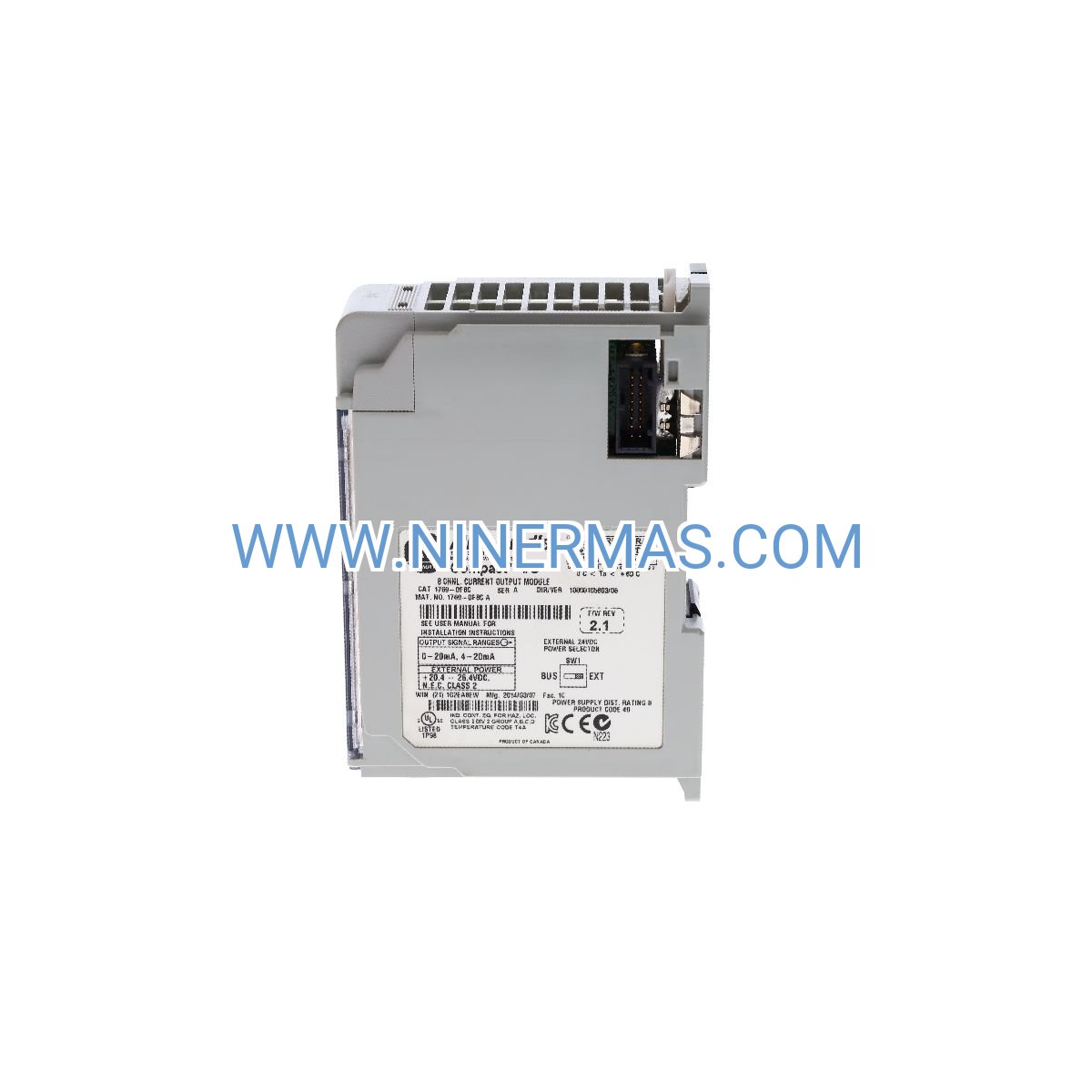

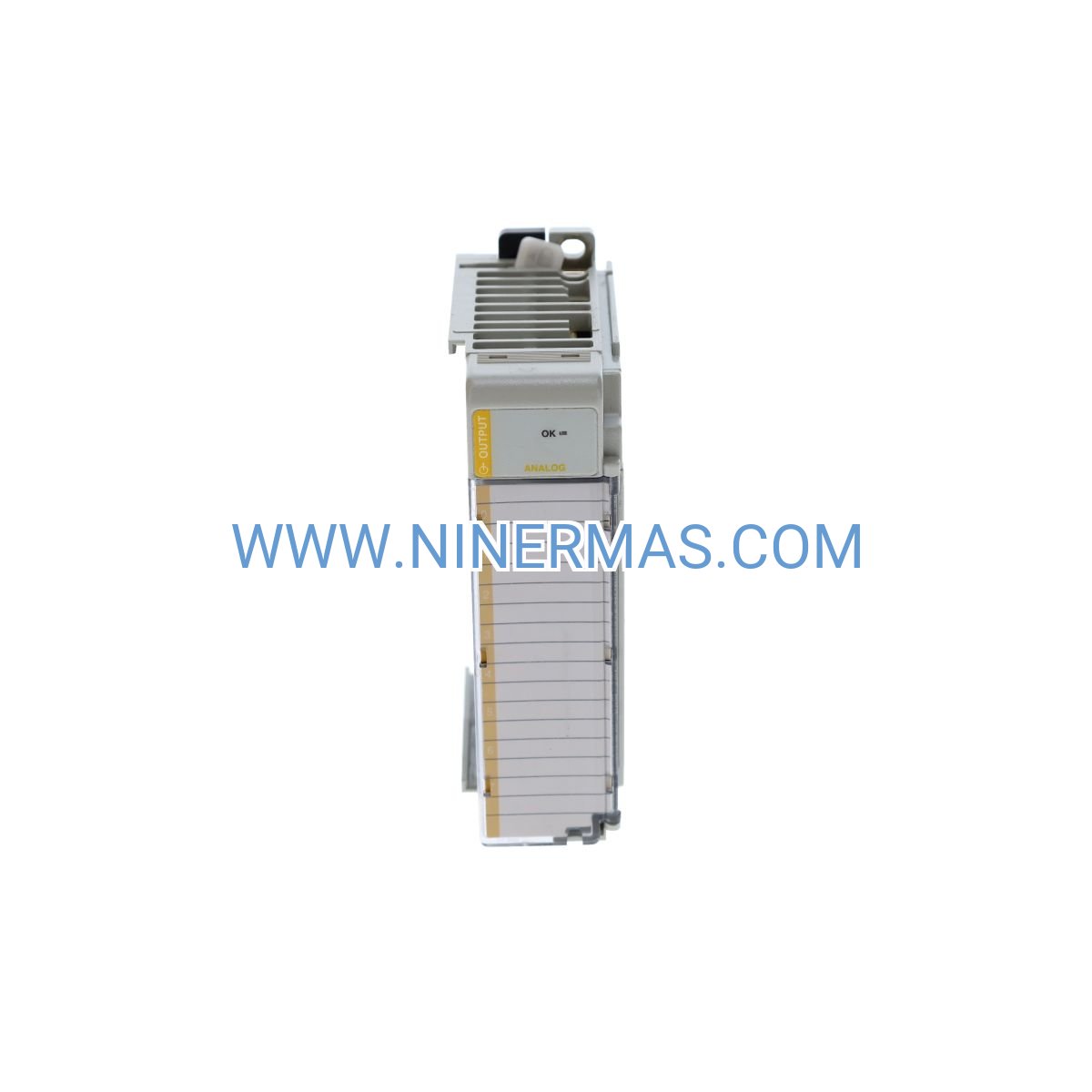

1769-OF8C Analog Current Output Module (Industrial-Grade 8-Channel Solution)

The 1769-OF8C represents a proven solution for industrial current loop control, delivering eight isolated 4-20mA outputs within the CompactLogix platform. This module transforms digital control signals into precise analog commands for field instrumentation, enabling seamless integration between your PLC logic and process equipment such as variable frequency drives, control valves, and pneumatic positioners.

Engineered for manufacturers and system integrators who demand reliability in harsh industrial environments, the 1769-OF8C addresses critical challenges in process automation: maintaining signal integrity across long cable runs, eliminating ground loop interference through channel isolation, and providing diagnostic feedback for predictive maintenance programs. Whether you're retrofitting legacy systems or designing new control architectures, this module offers the flexibility and performance required for modern manufacturing operations.

With factory calibration, hot-swappable design, and comprehensive fault detection, the 1769-OF8C minimizes commissioning time while maximizing uptime. Each channel operates independently, allowing mixed-range configurations within a single module to optimize your I/O density and reduce panel space requirements.

Core Features & Benefits

✓ Eight Isolated Current Outputs
Independent 4-20mA channels eliminate cross-talk and ground loop issues, ensuring signal integrity in electrically noisy environments. Each output can drive up to 600Ω loop resistance, accommodating multiple devices in series or long cable runs without signal degradation.

✓ 16-Bit Resolution for Precision Control
Achieve 0.0015% full-scale granularity, translating to 65,536 discrete output steps across the 4-20mA range. This precision enables smooth control of proportional valves, accurate VFD speed commands, and stable temperature regulation in critical processes.

✓ Factory-Calibrated Accuracy
Ships with NIST-traceable calibration certificates guaranteeing ±0.1% accuracy at 25°C. Calibration data resides in non-volatile memory, eliminating field calibration procedures and reducing installation costs by up to 40% compared to uncalibrated alternatives.

✓ Hot-Swap Capability
Replace modules under power without halting production or disrupting adjacent I/O. Electronic keying prevents incorrect module insertion, while automatic configuration download from the controller ensures zero-touch commissioning during maintenance events.

✓ Comprehensive Diagnostics
Real-time monitoring detects open circuits, short circuits, and over-current conditions on each channel. Fault status integrates directly into your RSLogix/Studio 5000 program, enabling automated alarm generation and reducing troubleshooting time by 60%.

✓ Configurable Output Ranges
Individually program each channel for 0-20mA or 4-20mA operation via software, supporting both live-zero and full-range applications without hardware modifications. This flexibility reduces spare parts inventory and simplifies standardization across multiple projects.

Application Scenarios

→ Variable Frequency Drive Control
Command motor speeds in conveyor systems, pump stations, and HVAC applications by providing 4-20mA setpoints to VFD analog inputs. The module's fast 10ms update time ensures responsive speed regulation, while isolated outputs prevent electrical noise from motor drives from corrupting control signals.

→ Proportional Valve Positioning
Regulate flow rates in chemical dosing, water treatment, and hydraulic systems with precise current commands to proportional solenoid valves. The 16-bit resolution enables smooth valve modulation, eliminating hunting behavior and reducing mechanical wear on valve components.

→ Temperature Process Control
Interface with SCR power controllers in plastics extrusion, heat treating, and food processing applications. Accurate current output ensures consistent heating profiles, reducing product defects and energy consumption by maintaining tight temperature tolerances.

→ Pneumatic System Regulation
Control I/P (current-to-pressure) transducers in automated assembly lines, packaging machinery, and material handling equipment. The module's ability to drive multiple devices in series allows centralized control of distributed pneumatic actuators from a single output channel.

→ Data Acquisition & Trending
Drive chart recorders, panel meters, and SCADA analog inputs for real-time process visualization. The 0-20mA range option supports legacy instrumentation, while the module's stability ensures accurate long-term trending for quality assurance and regulatory compliance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OF8C when your application requires current loop outputs for process control. If your instrumentation uses voltage signals (0-10V, ±10V), consider the 1769-OF8V instead. For mixed I/O requirements, the 1769-IF2OF2 combination module offers both input and output channels in a single slot. Verify that your field devices are rated for 4-20mA operation and that total loop resistance remains below 600Ω.

Extended Functions

Advanced Scaling & Linearization: Studio 5000 software provides built-in scaling functions to convert engineering units directly to current output values. Apply custom linearization curves for non-linear actuators or implement square-root extraction for flow measurement applications without external computation.

Redundancy Support: Deploy in ControlLogix redundant systems using 1769-L3xER controllers. The module supports seamless failover, maintaining output states during controller switchover events to prevent process upsets.

Third-Party Integration: Standard 4-20mA outputs ensure compatibility with instrumentation from any manufacturer. Interface with Siemens, Schneider Electric, or ABB field devices without protocol conversion, simplifying multi-vendor system integration.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-2 business days via express courier. Custom configurations or bulk orders (10+ units) typically ship within 5-7 business days. Expedited same-day shipping available for critical downtime situations.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes free replacement and return shipping for confirmed defects. Extended warranty options available for mission-critical applications.

Technical Support: Our application engineers provide pre-sale configuration assistance, wiring diagram review, and post-installation troubleshooting via phone, email, or remote desktop support. Average response time: under 2 hours during business hours.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and calibration certificates. Complete technical manuals, sample RSLogix code, and configuration spreadsheets available for download from our support portal.

Frequently Asked Questions

How do I configure different current ranges on individual channels?
Use the Module Properties dialog in RSLogix 5000 or Studio 5000 to independently set each channel for 0-20mA or 4-20mA operation. Configuration downloads automatically to the module during controller startup or when you perform an online module reconfiguration.

What field power supply voltage is required for the 1769-OF8C?
A separate 24VDC field power supply is mandatory to source the output current loops. The backplane 5VDC supply powers only the module logic. Ensure your field supply can deliver at least 200mA per active channel (1.6A total for all 8 channels).

Can this module drive multiple instruments from one output channel?
Yes, connect devices in series within the current loop. The same 4-20mA signal flows through all series-connected devices. Verify that combined loop resistance stays below 600Ω and all instruments are rated for current loop operation (not voltage input devices).

Does the 1769-OF8C support HART communication protocol?
No, this module provides standard analog current output only without HART overlay capability. For HART-enabled analog I/O, specify the 1769-IF4XOF2F module which supports both HART input and output channels.

What diagnostic information is available from the module?
The module reports open circuit, short circuit, and over-current faults for each channel via I/O status bits accessible in your controller program. Additionally, the module's status LEDs provide visual indication of power, communication, and fault conditions for rapid troubleshooting.

Is field calibration required after installation?
No, each module ships factory-calibrated with NIST-traceable certificates. Calibration data is stored in the module's non-volatile memory and does not require field adjustment. Recalibration is recommended only if the module is exposed to conditions outside its specified operating range or after 3 years of continuous operation.

Ready to Optimize Your Process Control?

Contact our technical sales team for application-specific recommendations, volume pricing, or to request a detailed quotation. We'll help you select the right I/O configuration for your CompactLogix system and provide integration support to ensure successful commissioning.
