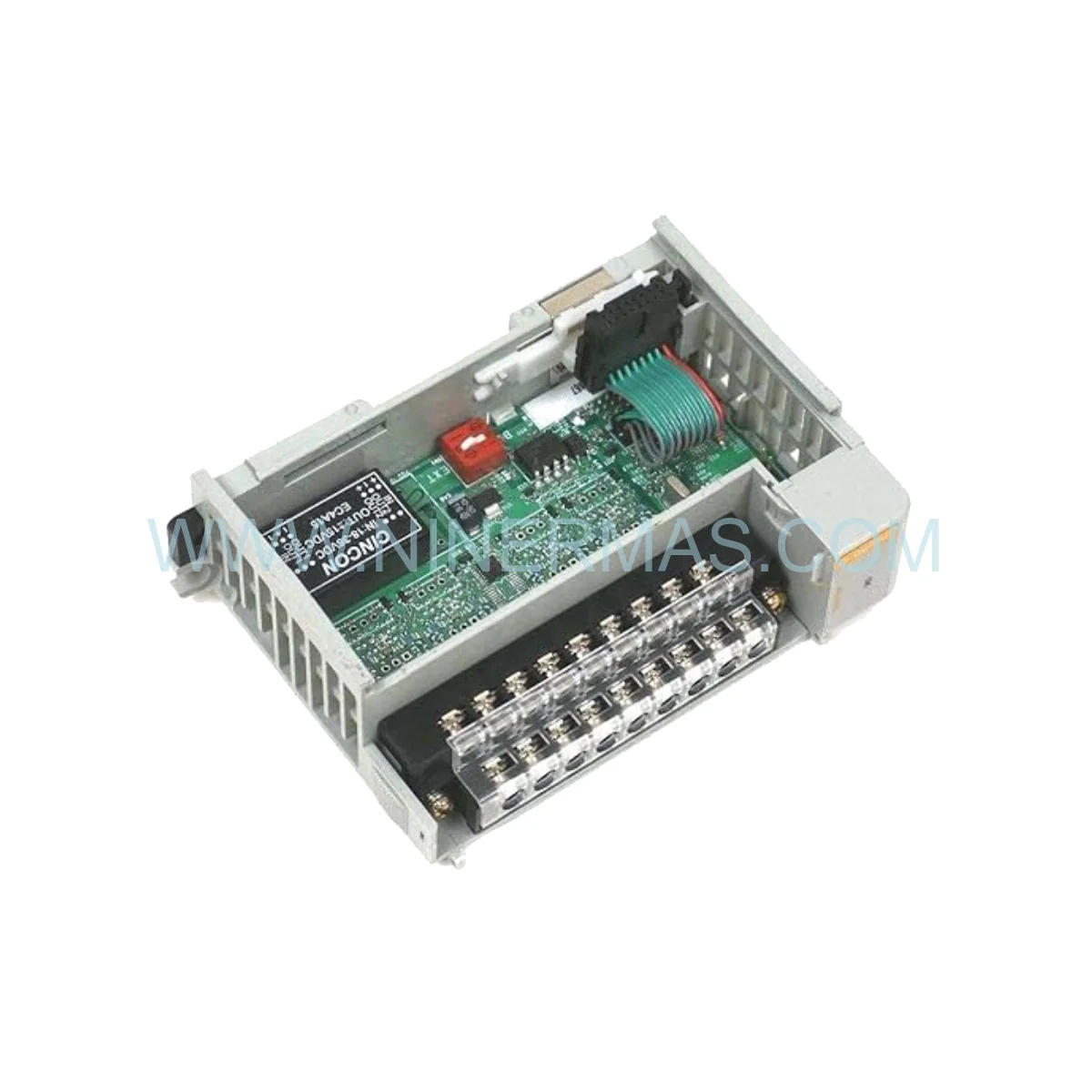

Allen-Bradley 1769-OF8 | Retrofit & System Modernization Analog Output

Allen-Bradley 1769-OF8 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and energy facilities, the Allen-Bradley 1769-OF8 stands out as a cornerstone component in any analog output modernization initiative. This 8-channel module plays a decisive role in elevating legacy control architectures to contemporary performance standards — bridging the gap between aging distributed control systems (DCS) and today’s precision-driven automation demands. The Allen-Bradley 1769-OF8 delivers 16-bit resolution output across independently configurable voltage and current channels, enabling engineers to retrofit existing panel layouts without redesigning the entire I/O infrastructure.

One of the most compelling advantages of this module in a retrofit context is its native backward compatibility with the 1769 CompactLogix backplane ecosystem. Whether you are migrating from a first-generation SLC 500 analog rack or consolidating a fragmented multi-vendor I/O network, the 1769-OF8 slots directly into existing chassis configurations — preserving wiring investments while unlocking modern diagnostic and communication capabilities. This hardware upgrade path eliminates the need for costly signal conditioning intermediaries or custom adapter panels.

From a total cost of migration perspective, deploying the 1769-OF8 as part of a phased retrofit strategy significantly reduces project risk. Its hot-swap capability means production lines remain operational during module replacement, and its compatibility with Studio 5000 / RSLogix 5000 ensures that existing ladder logic and function block programs require minimal rework. The result: a lower migration cost, faster commissioning timeline, and a measurable reduction in unplanned downtime during the transition period.

Upgrade Highlights & Compatibility

✅ Drop-in Legacy Compatibility: Fits standard 1769 I/O chassis — no mechanical or backplane modifications required for most retrofit scenarios.
16-Bit Output Precision: Delivers superior signal fidelity compared to older 12-bit analog modules, enabling tighter process control loops.
? Dual Output Mode per Channel: Each of the 8 channels independently supports 0-10V DC or 0-20mA / 4-20mA — maximizing field device compatibility.
Hot-Swappable Architecture: Replace or upgrade modules without system shutdown — critical for continuous-process industries.
? Studio 5000 Native Integration: Seamless Integration with existing CompactLogix and Compact GuardLogix programs — zero re-engineering of control logic.
Future-Proofing via EtherNet/IP: When paired with a compatible CompactLogix controller, the 1769-OF8 participates in EtherNet/IP-based diagnostics and remote monitoring — a key enabler for IIoT migration roadmaps.
? Certified for Global Deployment: UL, CE, C-Tick, and RCM compliance supports international retrofit projects across North America, Europe, and Asia-Pacific.

Modernization Use Cases & Success Stories

DCS Consolidation in Chemical Processing Plants:
A regional petrochemical facility operating a legacy Honeywell TDC 3000 DCS faced escalating spare parts costs and obsolescence risk. By migrating analog output functions to Allen-Bradley 1769-OF8 modules within a CompactLogix backbone, the engineering team achieved a 40% reduction in I/O cabinet footprint and eliminated dependency on discontinued DCS I/O cards. The 4-20mA output channels directly interfaced with existing Fisher control valves — zero field rewiring required.

Turbine Supervisory Instrumentation (TSI) Upgrade:
An independent power producer operating gas turbines with aging Bently Nevada 3300 Series TSI infrastructure integrated the 1769-OF8 as the analog output backbone for a new CompactLogix-based supervisory layer. The module’s 10ms per-channel update rate met the real-time performance demands of turbine speed and vibration setpoint transmission, while its channel-to-backplane isolation (250V AC continuous) ensured signal integrity in high-EMI turbine hall environments. This Performance Enhancement reduced alarm nuisance rates by over 30%.

Pharmaceutical Batch Process Retrofit:
A GMP-compliant bioreactor facility replaced end-of-life Siemens S5 analog output racks with 1769-OF8 modules, leveraging the module’s 16-bit resolution to achieve tighter pH and dissolved oxygen control — directly improving batch yield consistency. The Hardware Upgrade was completed during a scheduled maintenance window with no production loss, enabled by the module’s hot-swap design.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | Allen-Bradley 1769-OF8 | | **Output Channels** | 8 independently configurable analog outputs | | **Output Signal Types** | 0-10V DC, 0-20mA, 4-20mA (per channel) | | **Resolution** | 16-bit (vs. 12-bit legacy modules) | | **Channel Update Rate** | 10ms per channel | | **Backplane Isolation** | 250V AC continuous (channel-to-backplane) | | **Operating Temperature** | 0°C to 60°C (32°F to 140°F) | | **Power Consumption** | 1.5W @ 5V DC / 0.5W @ 24V DC | | **Chassis Compatibility** | 1769 CompactLogix / Compact GuardLogix backplane | | **Software Environment** | RSLogix 5000 / Studio 5000 (all versions) | | **Hot-Swap Support** | Yes — live replacement without system shutdown | | **Certifications** | UL, CE, C-Tick, RCM | | **Lifecycle Status** | Active — currently manufactured and supported | | **Retrofit Fit Assessment** | Direct replacement for legacy 1769-series analog output modules |

Supply Chain & Deployment Support

Original & Factory Sealed Stock:
All Allen-Bradley 1769-OF8 units are sourced as genuine, factory-sealed components with full manufacturer traceability. No refurbished, remarked, or counterfeit parts — critical for retrofit projects operating under functional safety or regulatory compliance requirements.

Expedited Global Logistics:
Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain ready stock with expedited air freight options to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific. Typical lead time for in-stock units: 3-7 business days door-to-door.

Technical Support for Obsolete & Legacy Hardware:
Our engineering support team specializes in Legacy Compatibility assessments — including cross-referencing discontinued analog output modules, advising on wiring adaptation strategies, and providing Studio 5000 add-on instruction (AOI) guidance for seamless commissioning of the 1769-OF8 in brownfield environments.

Retrofit FAQ (Upgrade Guide)

Q1: Can the Allen-Bradley 1769-OF8 physically replace older 1769-series analog output modules without panel modifications?
A: In the vast majority of retrofit scenarios, yes. The 1769-OF8 uses the standard 1769 single-slot form factor and backplane connector, making it a direct mechanical replacement for earlier-generation 1769 analog output modules. Terminal block wiring is preserved using the removable terminal block (RTB), eliminating the need to re-terminate field cables.

Q2: How does the 1769-OF8 communicate with legacy DCS or third-party supervisory systems during a phased migration?
A: The 1769-OF8 outputs standard 4-20mA or 0-10V DC analog signals that are universally compatible with legacy DCS analog input cards, SCADA systems, and third-party controllers. During a phased System Migration, the module can operate in parallel with existing analog infrastructure, allowing engineers to validate signal integrity before full cutover.

Q3: What is the recommended spare parts strategy for facilities running the 1769-OF8 in critical process applications?
A: Given the module’s Active lifecycle status, we recommend maintaining a minimum of one spare unit per four installed modules for critical loops. For facilities with extended maintenance intervals (12-24 months), a two-unit buffer per system is advisable. Our team can assist with a site-specific spare parts optimization analysis.

Q4: Is the 1769-OF8 compatible with Compact GuardLogix safety controllers in a safety-instrumented system (SIS) retrofit?
A: The 1769-OF8 is a standard (non-safety-rated) analog output module and is not SIL-certified for use in safety-instrumented functions. However, it is fully compatible with Compact GuardLogix controllers for standard process control tasks running alongside safety logic. For SIS output functions, consult Rockwell Automation’s safety I/O portfolio.

Q5: What programming changes are required when migrating from a legacy analog output module to the Allen-Bradley 1769-OF8?
A: Minimal rework is typically required. The 1769-OF8 uses standard Studio 5000 / RSLogix 5000 module profiles. Engineers need to update the I/O tree module definition and verify output scaling parameters (engineering units, clamp values). Existing ladder logic or function block output instructions referencing the analog output tags require no structural changes — only tag re-mapping if the slot address changes.

Q6: Can the 1769-OF8 support IIoT integration as part of a broader digital transformation roadmap?
A: Yes. When integrated within a CompactLogix or Compact GuardLogix system connected via EtherNet/IP, the 1769-OF8’s channel data — including output values, fault status, and diagnostic flags — is accessible to SCADA, MES, and cloud analytics platforms via standard OPC-UA or MQTT gateways. This makes it a viable Performance Enhancement component in both near-term retrofit projects and longer-term Industry 4.0 migration strategies.
