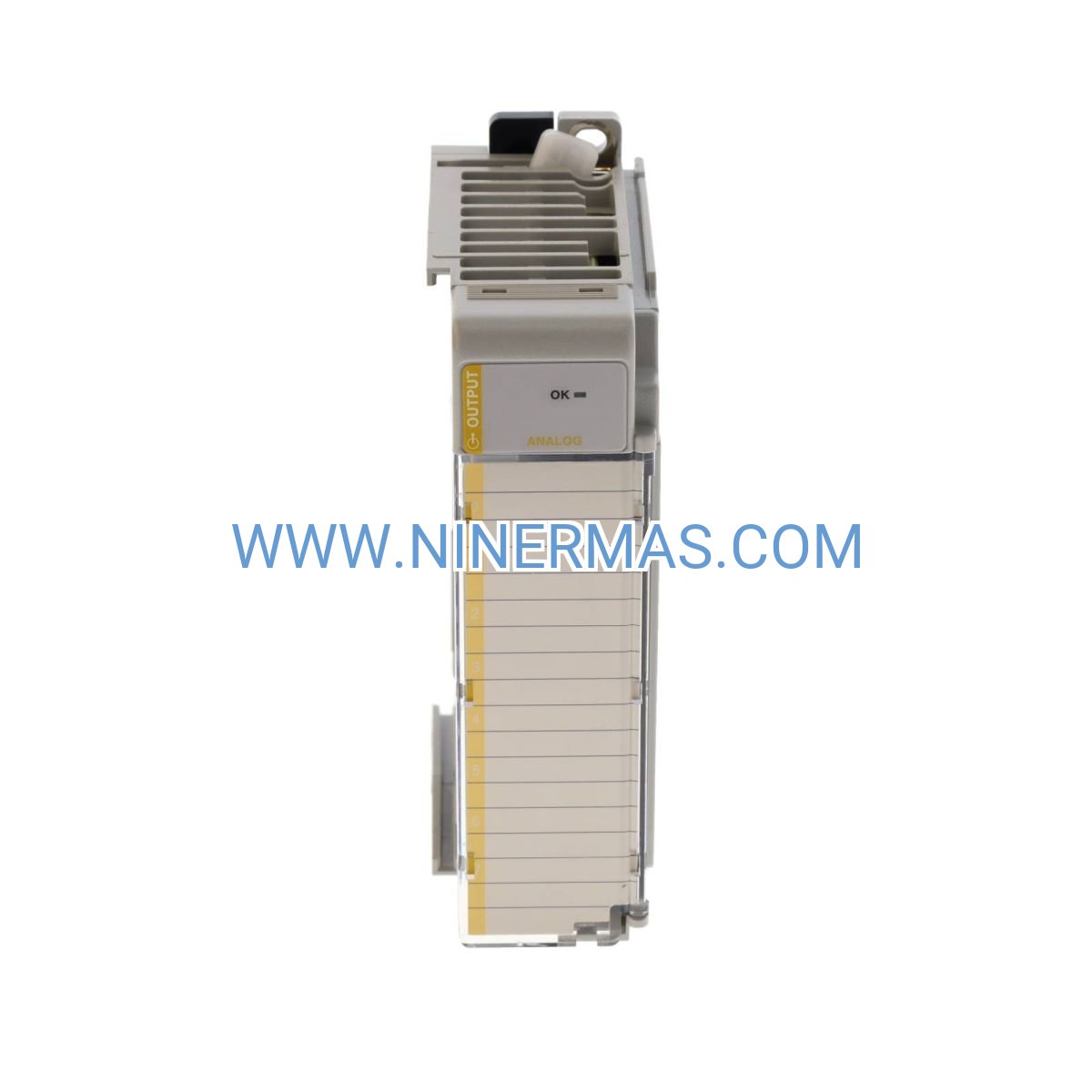

Allen-Bradley 1769-OF8 Analog Output Module (8-Channel CompactLogix I/O System)

The Allen-Bradley 1769-OF8 is an industrial-grade 8-channel analog output module designed for CompactLogix control systems. Through high-precision 16-bit D/A conversion and flexible voltage/current output configuration, it delivers accurate analog signals to field devices such as variable frequency drives (VFDs), control valves, actuators, and instrumentation—enabling precise process control, motion regulation, and real-time system monitoring.

Widely deployed in manufacturing automation, process industries, HVAC systems, and water treatment facilities, the 1769-OF8 addresses critical challenges including signal drift, output instability, integration complexity with legacy equipment, and limited diagnostic visibility. It is the preferred choice for design engineers, system integrators, OEM manufacturers, and plant maintenance teams.

Featuring standardized CompactLogix architecture with hot-swappable capability, comprehensive diagnostics, and multi-range output flexibility, the 1769-OF8 offers superior reliability, ease of maintenance, and seamless compatibility. Contact our application engineers for customized selection guidance, technical documentation, and quotation support.

Core Functions & Advantages

• High-Precision 16-Bit Resolution
  Delivers 16-bit D/A conversion accuracy with minimal linearity error, ensuring stable and repeatable analog signals for critical process control applications such as temperature regulation, pressure modulation, and flow rate adjustment.
• Flexible Multi-Range Output Configuration
  Supports both voltage (0–10 V) and current (0–20 mA, 4–20 mA) output modes on a per-channel basis, accommodating diverse field device requirements without additional signal conditioning hardware.
• Hot-Swappable Design for Minimal Downtime
  Enables module replacement during system operation without powering down the entire rack, significantly reducing maintenance windows and production interruptions in 24/7 manufacturing environments.
• Comprehensive Diagnostic & Fault Detection
  Equipped with channel-level diagnostics including open-circuit detection, short-circuit protection, and over-range alarms. Real-time status indicators and RSLogix integration facilitate rapid troubleshooting and predictive maintenance.
• Robust Industrial-Grade Construction
  Conformal-coated circuitry and wide operating temperature range (-20°C to +60°C) ensure reliable performance in harsh industrial environments including high humidity, vibration, and electromagnetic interference (EMI).
• Seamless CompactLogix Ecosystem Integration
  Native compatibility with 1769 I/O chassis, ControlLogix processors, and RSLogix 5000/Studio 5000 programming software. Supports EtherNet/IP, ControlNet, and DeviceNet communication protocols for flexible network topologies.

Typical Application Scenarios

The 1769-OF8 analog output module is engineered for applications demanding high signal accuracy, output stability, and continuous operation reliability, particularly in:

• Process Control & Chemical Manufacturing
  Regulates control valves, dosing pumps, and mixing actuators in batch processing, reactor temperature control, and chemical blending systems. Ensures precise material flow and composition consistency while minimizing waste and off-spec production.
• Variable Frequency Drive (VFD) Integration
  Provides speed reference signals (0–10 V or 4–20 mA) to VFDs controlling motors, pumps, fans, and conveyors. Enables smooth acceleration/deceleration profiles, energy optimization, and coordinated multi-motor operation in packaging, material handling, and HVAC systems.
• HVAC & Building Automation Systems
  Controls damper actuators, VAV boxes, chilled water valves, and variable-speed air handlers in commercial buildings, data centers, and cleanroom facilities. Maintains precise environmental conditions while optimizing energy consumption.
• Water & Wastewater Treatment
  Modulates chemical feed pumps, pH adjustment systems, and aeration blowers in municipal water treatment plants and industrial wastewater facilities. Supports compliance with discharge regulations and reduces chemical usage through closed-loop control.
• OEM Machine Builders & Custom Automation
  Integrates into proprietary control panels for packaging machinery, printing presses, textile equipment, and food processing lines. Provides standardized I/O architecture for global machine deployment with local service support.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standardized specifications and configuration options. Custom configurations are available based on project-specific requirements.

Selection Recommendations:
When selecting the 1769-OF8, consider the following factors: total number of analog outputs required, field device input specifications (voltage vs. current), required signal accuracy and resolution, environmental conditions (temperature, humidity, vibration), available backplane power budget, and communication network architecture. For applications requiring more than 8 outputs, multiple modules can be installed in the same chassis. If you need assistance, please provide your application parameters (device types, signal ranges, update rates, environmental conditions), and our engineers will recommend the optimal configuration.

Extended Features & Integration Capabilities

• RSLogix 5000 / Studio 5000 Integration
  Pre-configured Add-On Instructions (AOIs) and function blocks accelerate programming and commissioning. Supports online module replacement and automatic configuration download.
• Scalable I/O Architecture
  Mix-and-match with other 1769 digital I/O, analog input, specialty, and communication modules in the same chassis. Supports up to 16 modules per local chassis and distributed I/O via EtherNet/IP.
• Redundancy & High-Availability Options
  Compatible with ControlLogix redundant processor configurations for mission-critical applications requiring fault-tolerant control systems.
• Third-Party Device Compatibility
  Interfaces with industry-standard sensors, transmitters, and actuators from manufacturers including Siemens, ABB, Schneider Electric, Honeywell, and Emerson.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–5 business days from stock. Custom-configured panels or bulk orders may require 10–15 business days. Expedited shipping options available upon request.

Warranty: All Allen-Bradley 1769-OF8 modules are covered by a minimum 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty and service contracts available.

Technical Support: Comprehensive support includes remote troubleshooting assistance, on-site commissioning services (region-dependent), and access to certified Rockwell Automation distributors and system integrators worldwide.

Documentation Package: Each module ships with complete technical documentation including installation instructions, wiring diagrams, electrical schematics, configuration guidelines, and safety precautions. Electronic versions available in PDF format for download.

Quality Certifications: Manufactured in ISO 9001-certified facilities with full traceability. Complies with UL 508, CE marking (Low Voltage Directive, EMC Directive), and RoHS environmental standards.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1769-OF8 analog output module to existing field devices?
A: The 1769-OF8 uses removable terminal blocks (RTBs) for field wiring. Each channel supports either voltage or current output mode, configured via software. Ensure proper wire gauge (18–22 AWG recommended), shield grounding for noise immunity, and verify field device input impedance matches module specifications (voltage: >1 kΩ; current: <600 Ω). Refer to wiring diagrams in the installation manual for detailed connection procedures.

Q: What is the maximum number of 1769-OF8 modules I can install in a single CompactLogix chassis?
A: A standard 1769 CompactLogix chassis supports up to 16 I/O modules (including the processor slot). The actual number of 1769-OF8 modules depends on available backplane power budget (each module consumes ~1.5 W at 5 V DC). Consult the chassis power supply specifications and use the Rockwell Automation I/O Configuration Tool for accurate power calculations.

Q: What energy savings or performance improvements can I expect with the 1769-OF8?
A: While the module itself does not directly reduce energy consumption, its high-resolution output enables more precise control of VFDs, valves, and actuators—resulting in optimized process efficiency. Typical applications report 10–30% energy savings through improved setpoint tracking, reduced overshoot, and elimination of manual adjustments. Actual savings depend on system design, control strategy, and baseline performance.

Q: What are the environmental requirements for installing the 1769-OF8 module?
A: The module operates reliably in ambient temperatures from -20°C to +60°C and relative humidity up to 95% non-condensing. It must be installed in a NEMA-rated or IP-rated enclosure to protect against dust, moisture, and physical damage. Ensure adequate ventilation to prevent heat buildup, and avoid direct exposure to corrosive gases, excessive vibration (>2 g), or strong electromagnetic fields.

Q: Does the 1769-OF8 support remote monitoring and data acquisition?
A: Yes. When integrated with a CompactLogix controller and EtherNet/IP network, the module supports remote monitoring via FactoryTalk View HMI, SCADA systems, or cloud-based IoT platforms. Output values, diagnostic status, and fault conditions can be logged and transmitted using standard industrial protocols including Modbus TCP, OPC UA, and MQTT (via gateway devices).

Q: Can the 1769-OF8 be used with non-Rockwell Automation controllers?
A: The 1769-OF8 is designed exclusively for use with Allen-Bradley CompactLogix and ControlLogix controllers. It is not compatible with third-party PLCs or standalone operation. For multi-vendor system integration, consider using protocol gateways or selecting vendor-neutral I/O platforms.

Request a Quote & Engineering Support

To receive a detailed selection proposal, pricing quotation, or technical consultation, please provide the following information:

• Project name and application overview
• Number of analog output channels required
• Field device specifications (voltage/current input, impedance)
• Required signal accuracy and update rate
• Environmental conditions (temperature, humidity, enclosure type)
• Existing control system architecture (processor model, network protocol)
• Delivery timeline and installation location

Our application engineers will provide one-on-one selection assistance, system design recommendations, and competitive pricing within 24 hours.
