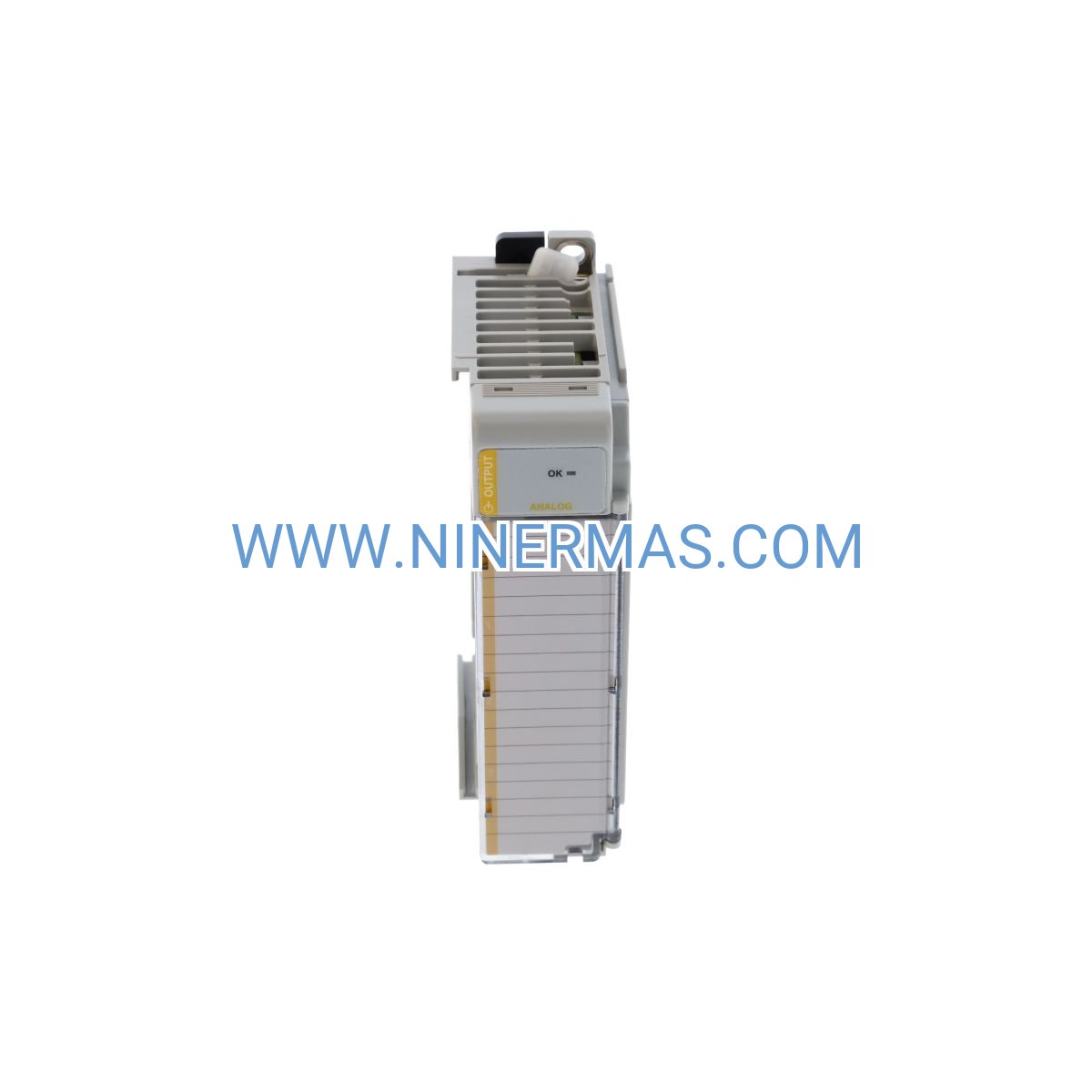

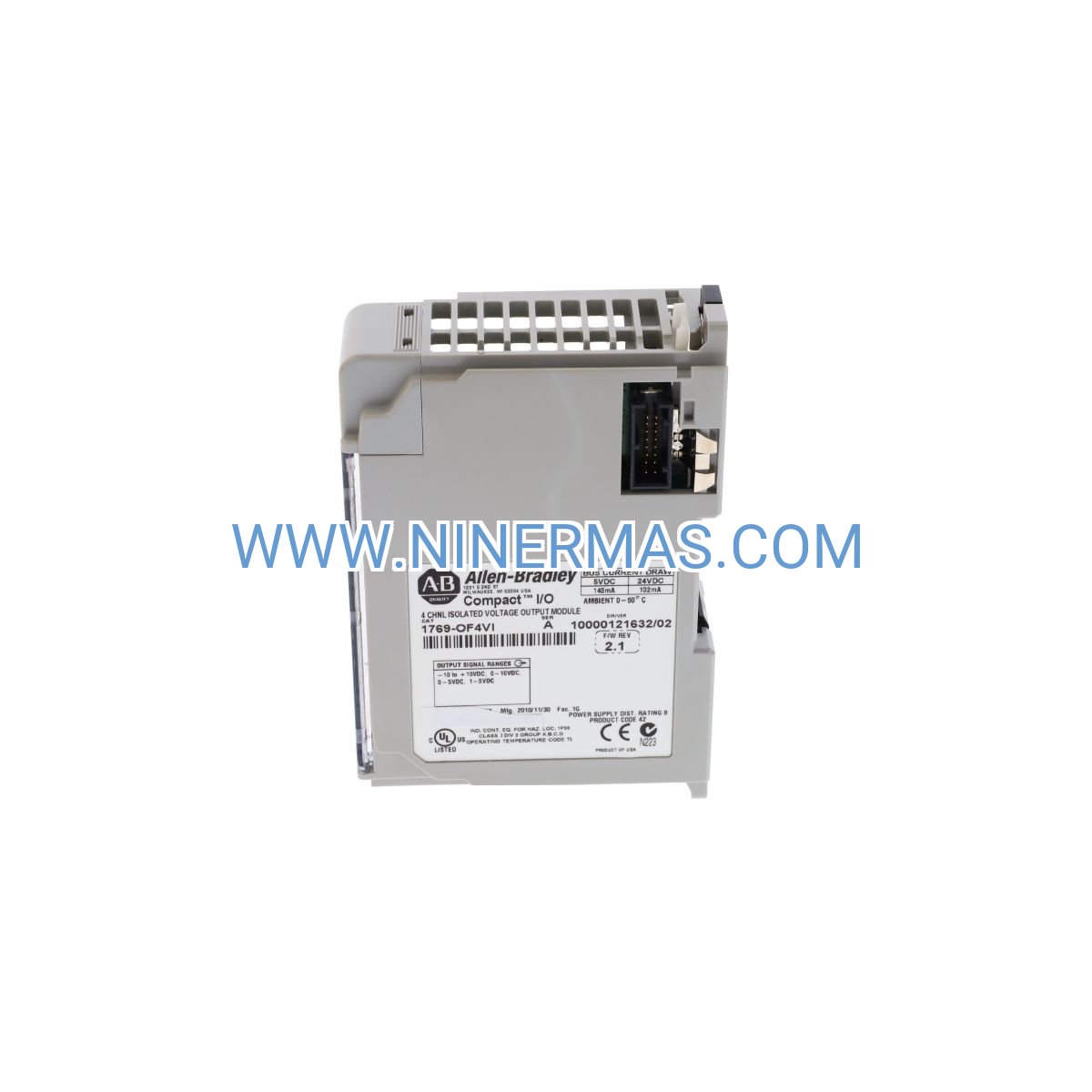

1769-OF4VI Analog Voltage Output Module (Industrial-Grade Precision Control)

The 1769-OF4VI represents a professional-grade solution for industrial voltage signal generation within CompactLogix automation architectures. This four-channel analog output module transforms digital control commands into precise ±10V DC analog signals, enabling seamless integration with variable frequency drives, servo amplifiers, proportional valves, and instrumentation systems across manufacturing, process control, and motion applications.

Designed for engineers who demand reliability in harsh industrial environments, the module features channel-to-channel isolation that eliminates ground loop interference while protecting downstream equipment from electrical noise. Whether you're retrofitting legacy analog systems or designing new control solutions, the 1769-OF4VI delivers the accuracy and stability required for critical process variables.

With factory-verified calibration, hot-swap capability, and proven compatibility within the Allen-Bradley ecosystem, this module reduces commissioning time while ensuring long-term operational consistency. Ideal for OEMs, system integrators, and maintenance teams seeking dependable analog output performance.

Core Features & Benefits

✓ Four Independent Isolated Channels
Each output operates independently with 250V channel-to-backplane isolation, preventing cross-talk and protecting sensitive equipment from ground potential differences. Deploy multiple control loops without electrical interference concerns.

✓ 16-Bit Resolution for Precise Control
Achieve 0.305 mV per bit granularity across the ±10V range, enabling smooth control of analog devices. Ideal for applications requiring fine-tuned speed references, valve positioning, or temperature setpoint adjustments.

✓ Factory-Calibrated Accuracy
Ships with ±0.15% full-scale accuracy at 25°C, verified through rigorous testing protocols. Maintains performance across 0-60°C operating range, reducing field calibration requirements and startup delays.

✓ Hot-Swappable Architecture
Replace modules during system operation without shutting down the entire chassis. Minimize production downtime during maintenance windows while maintaining process continuity.

✓ Seamless Studio 5000 Integration
Configure output ranges, scaling parameters, and diagnostic alarms through familiar RSLogix/Studio 5000 programming environment. Leverage built-in Add-On Instructions (AOIs) for rapid deployment.

✓ Robust Industrial Construction
UL Listed and CE marked for global compliance. Conformal coating protects circuitry from moisture, dust, and chemical exposure in demanding industrial settings.

Application Scenarios

→ Variable Frequency Drive Control
Generate 0-10V or ±10V speed reference signals for AC motor drives in conveyor systems, pumps, and fans. The module's fast 10ms update rate ensures responsive speed regulation without oscillation, while isolation prevents drive-induced electrical noise from affecting controller operation.

→ Proportional Valve Positioning
Control hydraulic or pneumatic proportional valves in material handling, injection molding, and packaging machinery. High resolution enables smooth valve actuation for precise flow control, reducing mechanical wear and improving product quality.

→ Process Temperature & Pressure Regulation
Interface with analog temperature controllers, pressure transducers, and flow meters in chemical processing, food & beverage, and pharmaceutical manufacturing. Isolated outputs protect expensive instrumentation from ground faults.

→ Servo Motion Systems
Provide analog command signals to servo amplifiers in pick-and-place robots, CNC machines, and automated assembly lines. 16-bit resolution supports smooth acceleration profiles and accurate positioning.

→ Building Automation & HVAC
Control damper actuators, variable air volume (VAV) boxes, and chilled water valves in commercial HVAC systems. Reliable performance across wide temperature ranges ensures year-round climate control.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OF4VI when your application requires voltage output signals (±10V) rather than current outputs (4-20mA). For current output applications, consider the 1769-OF4 or 1769-OF8C modules. If you need more than four channels, the 1769-OF8V provides eight voltage outputs in a single module slot.

Extended Functions

Diagnostic Capabilities: Built-in diagnostics monitor channel health, detect open-circuit conditions, and flag out-of-range values. Status indicators on the module faceplate provide at-a-glance operational feedback, while detailed fault information is accessible through controller logic.

Scaling & Engineering Units: Configure input/output scaling directly in Studio 5000 to match your process requirements. Convert raw integer values to engineering units (RPM, PSI, °F) for intuitive HMI displays and simplified troubleshooting.

Removable Terminal Block (RTB): Field wiring connects via a removable screw-terminal block, allowing pre-wiring and rapid module replacement without disturbing field connections. Color-coded terminal labels reduce installation errors.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-2 business days. Custom configurations or bulk orders typically ship within 5-7 business days. Express shipping available for urgent project requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Warranty includes free replacement and technical support throughout the coverage period.

Technical Support: Our application engineers provide pre-sales consultation, wiring assistance, and programming guidance. Post-installation support available via email, phone, and remote diagnostics.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and quick-start guide. Full user manual (Publication 1769-UM004) and EDS files available for download.

Frequently Asked Questions

Q: How do I configure the output voltage range for each channel on the 1769-OF4VI?
A: Use Studio 5000 (RSLogix 5000) to configure each channel independently. Navigate to the module configuration screen, select the desired channel, and choose ±10V from the output range dropdown. Changes take effect after downloading the configuration to the controller.

Q: What is the minimum load impedance required for stable operation?
A: The module requires a minimum load impedance of 1 kΩ per channel. For optimal accuracy and noise immunity, we recommend maintaining loads above 5 kΩ. Lower impedances may cause voltage droop and reduced accuracy.

Q: Can this module be used in ControlLogix 1756 chassis systems?
A: No, the 1769-OF4VI is designed exclusively for CompactLogix 1769 I/O chassis. For ControlLogix applications, use the 1756-OF4 or 1756-OF8 analog output modules, which offer similar functionality in the ControlLogix form factor.

Q: Does the module support current output mode in addition to voltage?
A: No, the 1769-OF4VI provides voltage outputs only (±10V DC). For current output applications (4-20mA), select the 1769-OF4 (4-channel current output) or 1769-OF8C (8-channel current output) modules.

Q: How is channel isolation beneficial in industrial control applications?
A: Channel isolation (250V continuous) prevents ground loops between the controller and field devices, eliminates electrical noise coupling, and protects the module from voltage transients. This is critical when interfacing with equipment operating at different ground potentials or in electrically noisy environments.

Q: What wiring practices ensure optimal signal integrity?
A: Use shielded twisted-pair cable for all analog connections, ground shields at one end only (typically at the module), route analog cables separately from power wiring, and maintain minimum bend radius per cable specifications. Refer to Publication 1770-4.1 for detailed wiring guidelines.

Ready to Integrate Precision Analog Control?

The 1769-OF4VI delivers the accuracy, isolation, and reliability your industrial automation project demands. Whether you're upgrading existing systems or designing new control architectures, our technical team is ready to assist with module selection, wiring guidance, and programming support.

Contact our automation specialists today: Request a quote, discuss application requirements, or schedule a technical consultation. Fast global shipping ensures your project stays on schedule.
