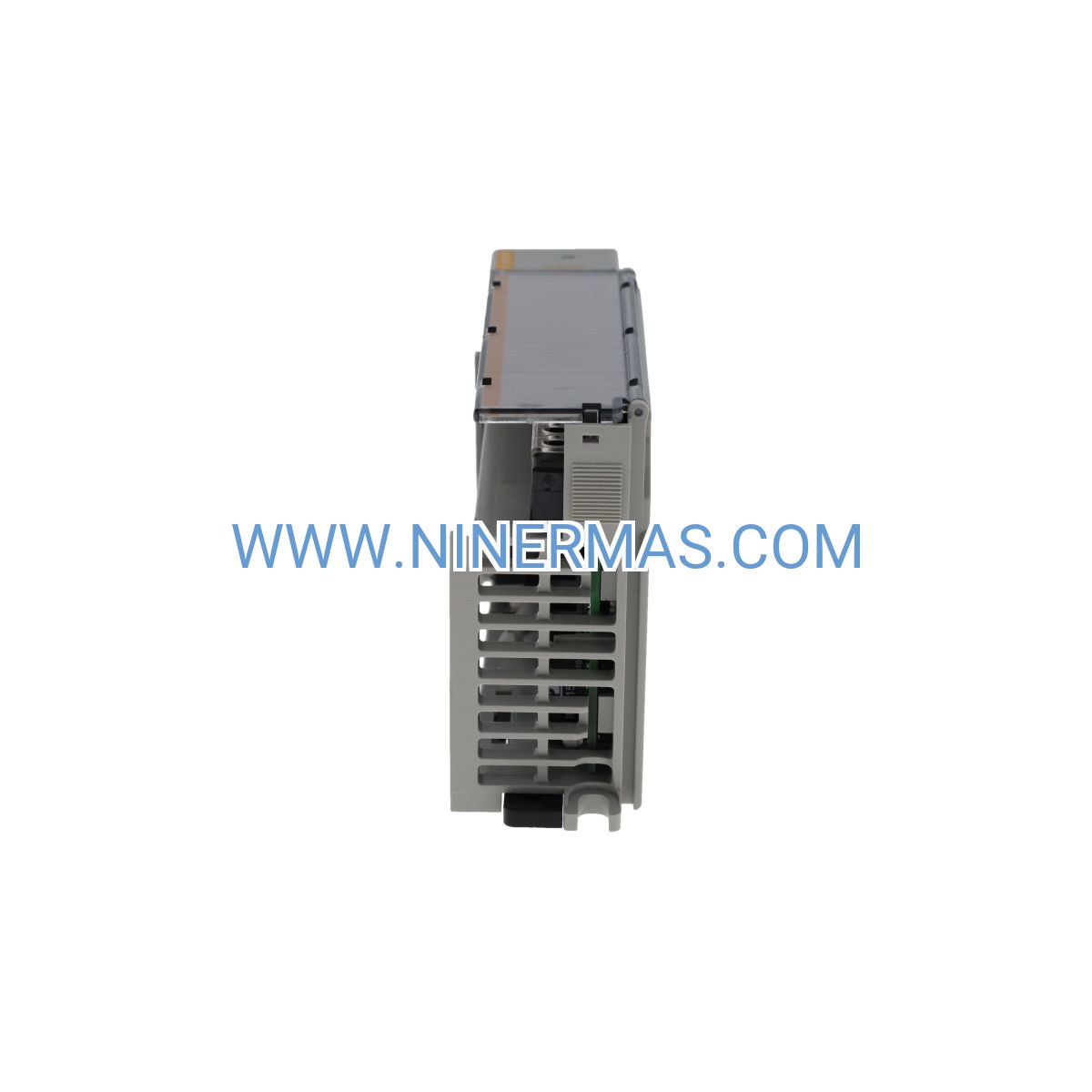

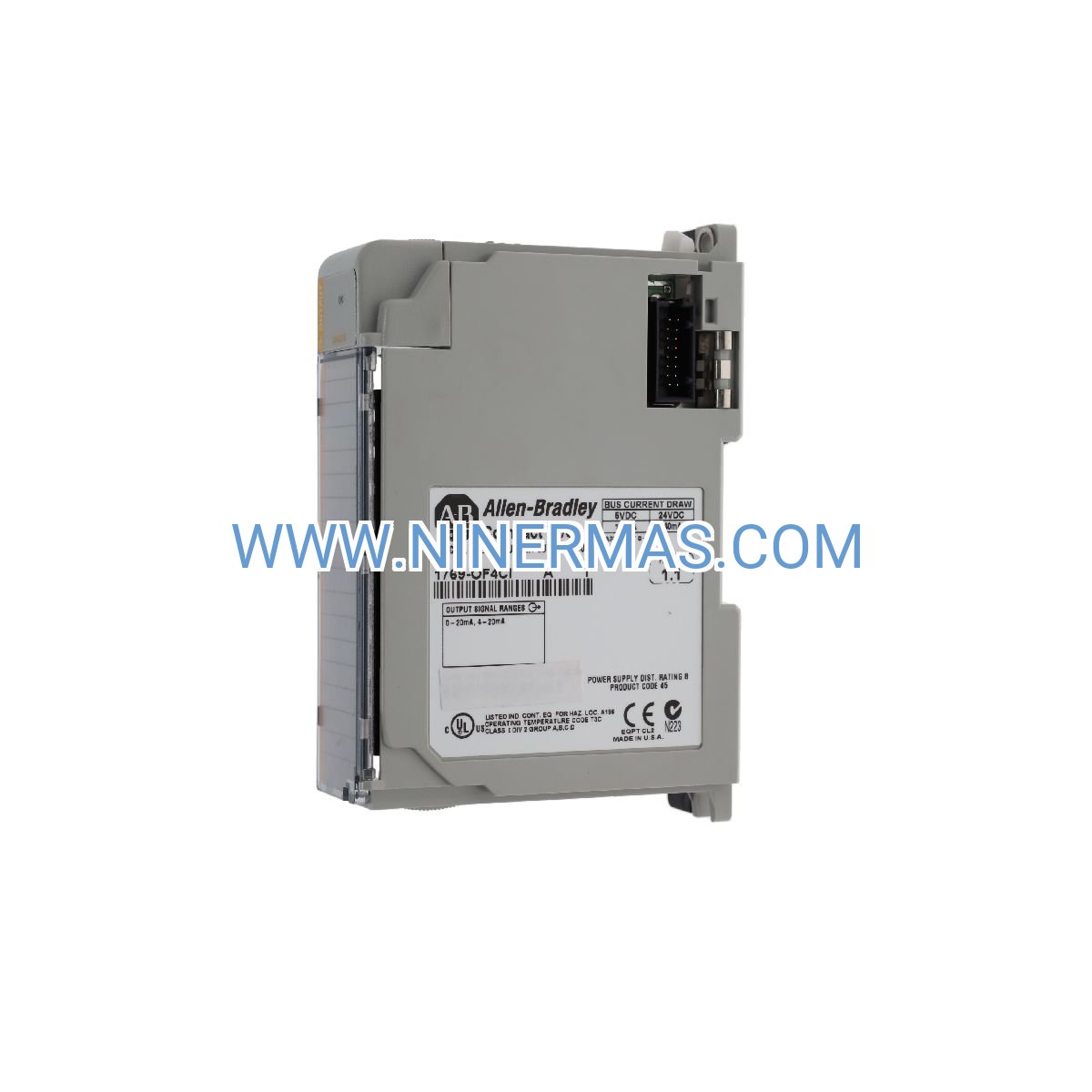

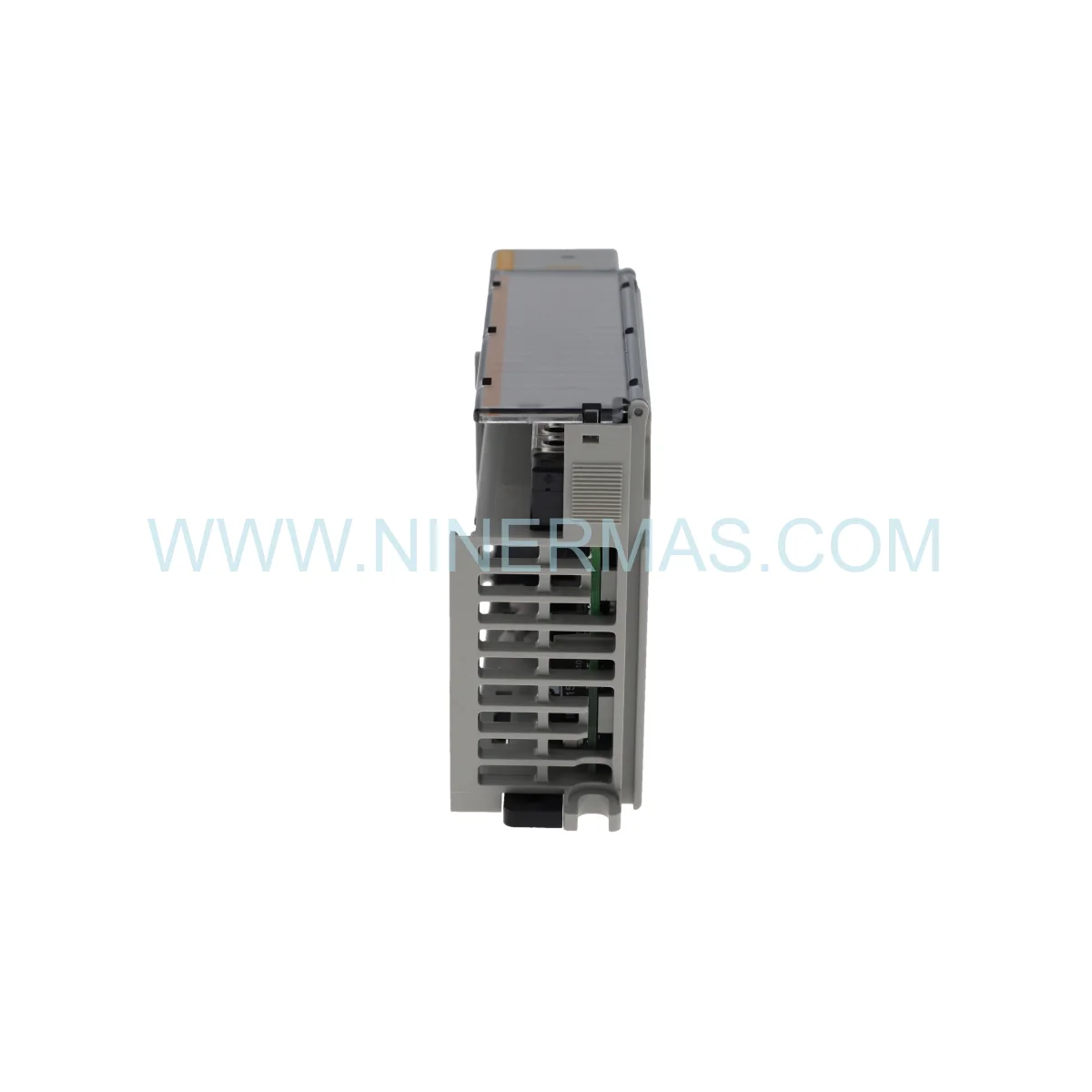

1769-OF4CI Four-Channel Analog Current Output Module (Industrial-Grade Process Control)

The 1769-OF4CI represents a robust solution for industrial environments demanding reliable analog signal transmission. Engineered for the CompactLogix automation platform, this four-channel current output module converts digital control signals into industry-standard 4-20mA loops, enabling seamless integration with variable frequency drives, control valves, and field transmitters across manufacturing, utilities, and process industries.

Designed for system integrators and plant engineers, the module addresses critical challenges in analog control: electrical noise immunity, signal integrity over long cable runs, and protection against ground potential differences. With reinforced 500V isolation and integrated overvoltage safeguards, it delivers consistent performance in electrically harsh environments where voltage-based signaling would fail.

Key differentiators include hot-swappable architecture for zero-downtime maintenance, compact single-slot footprint maximizing panel density, and comprehensive diagnostics that surface open-circuit and overload faults directly to your RSLogix programming environment—reducing troubleshooting time and unplanned downtime.

Core Features & Benefits

→ Four Independent Current Loops
Each channel operates autonomously with dedicated 4-20mA sourcing circuitry, allowing simultaneous control of multiple actuators or transmitters without cross-channel interference. Ideal for multi-zone temperature control or parallel process streams.

✓ Reinforced Electrical Isolation (500V AC)
IEC Class II reinforced insulation between output groups and system bus protects against ground faults and voltage transients common in motor control centers and high-power distribution environments. Meets stringent industrial safety standards for hazardous locations.

→ Glitch-Free Power Cycling
Proprietary circuit design eliminates current spikes during module power-up or controller mode transitions, preventing false actuator movements that could disrupt batch processes or trigger safety interlocks.

✓ Real-Time Fault Detection
Built-in diagnostics continuously monitor each channel for open-circuit conditions (broken wiring), short-circuits, and out-of-range loads. Fault status integrates with RSLogix 5000 alarm systems for proactive maintenance scheduling.

→ Tool-Free Installation & Replacement
DIN rail mounting with spring-loaded terminal blocks enables field technicians to swap modules in under 60 seconds without specialized tools—critical for minimizing production interruptions during emergency repairs.

✓ Extended Temperature Range Operation
Rated for 0-60°C ambient operation with conformal coating options for humidity and chemical resistance, making it suitable for outdoor enclosures, washdown areas, and tropical climates.

Typical Application Scenarios

VFD Speed Control in HVAC Systems
Municipal water treatment facilities use the 1769-OF4CI to modulate pump speeds based on real-time demand. The 4-20mA output directly interfaces with variable frequency drives controlling 50-500 HP motors, achieving 30-40% energy savings compared to fixed-speed operation while maintaining precise pressure setpoints across distribution networks.

Proportional Valve Positioning in Chemical Dosing
Pharmaceutical manufacturers rely on current-loop control for precise reagent metering. The module commands electro-pneumatic positioners on control valves, maintaining ±0.5% flow accuracy during batch reactions where ingredient ratios directly impact product quality and regulatory compliance.

Analog Setpoint Transmission to Legacy DCS
Refineries integrating new CompactLogix controllers with existing distributed control systems leverage the 1769-OF4CI as a protocol bridge. The 4-20mA outputs connect to DCS analog input cards, enabling gradual automation upgrades without wholesale system replacement—protecting capital investments while modernizing control strategies.

Multi-Zone Temperature Regulation
Plastics extrusion lines employ multiple 1769-OF4CI modules to control heating zones along barrel assemblies. Each channel drives a separate SCR power controller, maintaining melt temperatures within ±2°C across 8-12 zones to ensure consistent product dimensions and surface finish.

Remote Actuator Control in Oil & Gas
Offshore platforms utilize current loops for their immunity to electrical noise and ability to transmit over 1000+ meter cable runs. The module's 500V isolation protects against lightning-induced surges and cathodic protection system interference common in marine environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OF4CI when your application requires current-loop signaling (4-20mA) rather than voltage outputs. For voltage-based control (0-10V), consider the 1769-OF4VI. If you need more than four channels, the 1769-OF8C provides eight current outputs in a single module. Verify that your connected devices accept current-loop inputs and that total loop resistance stays within the 600Ω limit at your supply voltage.

Extended Functions

IoT Integration via EtherNet/IP: When paired with CompactLogix L3x controllers, output data streams to cloud-based analytics platforms through native EtherNet/IP connectivity. Monitor actuator performance trends, predict valve wear, and optimize control loop tuning using machine learning algorithms—no additional gateways required.

Advanced Scaling & Linearization: RSLogix 5000 programming environment supports custom scaling functions to match non-linear actuator characteristics. Apply square-root extraction for flow control valves or polynomial curves for specialized positioners, eliminating external signal conditioners.

Redundancy Configuration: Deploy dual 1769-OF4CI modules in hot-standby arrangements for critical control loops. Automatic failover logic in the controller ensures uninterrupted operation if the primary module faults—essential for safety instrumented systems (SIS) and continuous process industries.

Delivery & Service Assurance

Lead Time: Stock units ship within 24-48 hours via express courier. Custom-configured modules (special calibration ranges or conformal coating) require 7-10 business days for factory preparation.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Covers component failures, calibration drift beyond published specifications, and manufacturing defects. Excludes damage from improper wiring, overvoltage events, or environmental contamination.

Technical Support: Direct access to application engineers via email (sale@ninermas.com) and phone (+0086 187 5021 5667) during business hours (GMT+8). Support includes wiring diagrams, RSLogix code samples, troubleshooting guides, and replacement part cross-references.

Documentation Package: Each module ships with quick-start guide, full user manual (PDF), CAD drawings (DXF/STEP), and sample ladder logic for common applications. Firmware release notes and product bulletins available via online portal.

Frequently Asked Questions

Can this module drive 0-20mA devices, or is it limited to 4-20mA range?
The 1769-OF4CI supports software-configurable ranges including 0-20mA, 4-20mA, and custom spans. Configure via RSLogix 5000 module properties—no hardware jumpers required. Note that 0-20mA mode sacrifices the live-zero diagnostic capability inherent to 4-20mA signaling.

What happens to output channels during controller faults or power loss?
The module features configurable fault-state behavior: hold last value, ramp to zero, or jump to a predefined safe state (e.g., 4mA for fail-closed valves). Set preferences in the module configuration to match your process safety requirements.

Is external loop power required, or does the module source current internally?
The 1769-OF4CI is a current-sourcing module—it generates the 4-20mA signal internally using power from the CompactLogix backplane. No external 24V loop supply needed. Simply wire your two-wire transmitter or actuator directly to the output terminals.

How do I calculate maximum cable length for my application?
Maximum distance depends on wire gauge and loop resistance. Using 18 AWG shielded cable (≈6.4Ω per 1000ft) with a 250Ω load device: (600Ω max - 250Ω load) ÷ 12.8Ω per 1000ft = ~2700ft maximum. Always verify total loop resistance with a multimeter before energizing.

Does the module support HART communication over the 4-20mA signal?
No, the 1769-OF4CI is a standard analog output module without HART protocol capability. For HART-enabled analog I/O, consider third-party HART multiplexers that interface with CompactLogix via EtherNet/IP.

Can I mix this current output module with voltage input modules on the same backplane?
Yes, CompactLogix architecture allows any combination of I/O modules on a single chassis. The 500V isolation ensures that high-voltage input modules (e.g., 1769-IF4) won't interfere with the current output channels—no special slot positioning required.

Ready to Optimize Your Process Control?

Whether you're upgrading legacy 4-20mA systems or designing new automation architectures, the 1769-OF4CI delivers the reliability and precision your operations demand. Contact our application engineers today for technical consultation, custom configuration assistance, or volume pricing for multi-site deployments.
