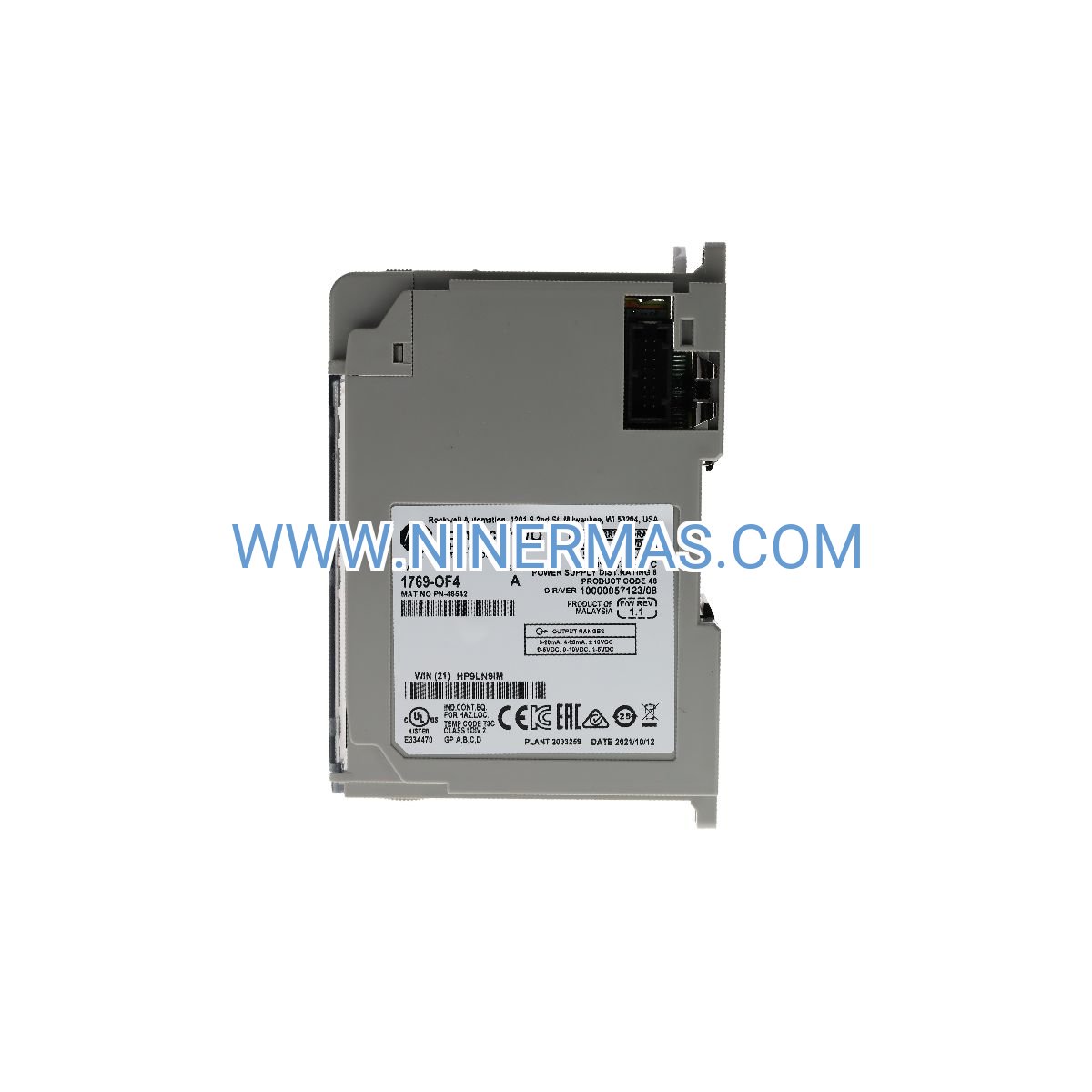

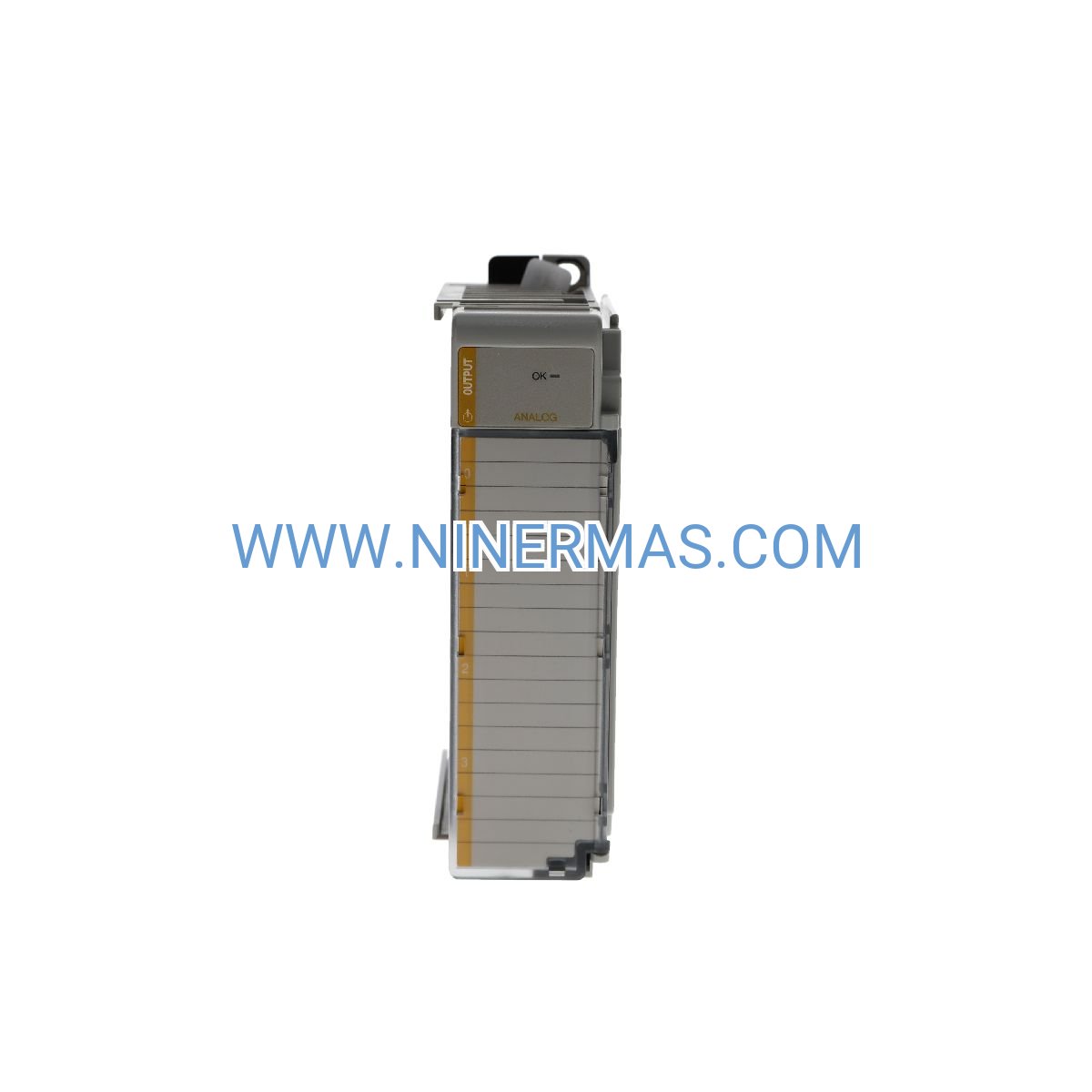

1769-OF4 Analog Output Module (Industrial-Grade 4-Channel Signal Converter)

The 1769-OF4 represents a professional-grade analog output solution engineered for demanding industrial environments where precision signal conversion drives operational excellence. This 4-channel module transforms digital control commands into accurate current and voltage outputs, enabling seamless integration between CompactLogix controllers and field instrumentation across manufacturing, process control, and building automation sectors.

Designed for system integrators and automation engineers who require flexible, reliable analog I/O expansion, the 1769-OF4 eliminates the complexity of signal conditioning while delivering 16-bit resolution for applications demanding tight process control. Whether you're retrofitting legacy systems or deploying new automation architectures, this module provides the versatility to interface with variable frequency drives, pneumatic positioners, chart recorders, and proportional valves without additional hardware modifications.

With hot-swappable capability, removable terminal blocks, and comprehensive diagnostic feedback, the 1769-OF4 minimizes downtime during installation, commissioning, and maintenance cycles—directly impacting your total cost of ownership and system availability metrics.

Core Features & Benefits

✓ Multi-Signal Flexibility: Each channel independently supports 0-20mA, 4-20mA, 0-10V, and ±10V output ranges, eliminating the need for multiple module types and reducing spare parts inventory.

✓ Superior Resolution: 16-bit digital-to-analog conversion delivers 0.0015% granularity, ensuring precise control of variable speed drives, proportional valves, and analog instruments in critical process loops.

✓ Rapid Update Performance: 10ms typical channel update rate supports fast-response applications including motion control, closed-loop positioning, and dynamic process regulation.

✓ Electrical Isolation: Channel-to-backplane isolation protects controller circuitry from ground loops, voltage transients, and electromagnetic interference common in industrial power distribution environments.

✓ Maintenance-Friendly Design: Hot-swap capability and removable screw terminals enable module replacement and wiring modifications without de-energizing the entire I/O rack, reducing planned and unplanned downtime.

✓ Integrated Diagnostics: Multi-color LED indicators provide real-time status feedback for module health, channel faults, and communication errors, accelerating troubleshooting and reducing mean time to repair.

Typical Application Scenarios

→ Chemical & Pharmaceutical Processing: Control proportional dosing pumps, modulating control valves, and variable frequency drives in batch reactors, blending systems, and continuous flow processes. The module's 4-20mA output capability ensures compatibility with industry-standard HART-enabled field devices while maintaining signal integrity over extended cable runs up to 600Ω loop resistance.

→ HVAC & Building Automation: Interface with damper actuators, VAV box controllers, and chilled water valve positioners in commercial building management systems. Voltage output modes (0-10V) directly drive economizer controls and fan speed modulators without requiring external signal converters, simplifying system architecture and reducing installation costs.

→ Water & Wastewater Treatment: Provide analog command signals to chemical feed pumps, aeration blowers, and clarifier mechanisms in municipal and industrial treatment facilities. The module's wide operating temperature range (0-60°C) and UL/CE certification ensure reliable operation in harsh outdoor enclosures and pump stations.

→ Packaging & Material Handling: Generate precise speed references for servo drives, tension control systems, and web handling equipment in converting, printing, and packaging lines. Fast 10ms update rates support dynamic speed changes and registration control in high-speed production environments.

→ Energy & Utilities: Interface with SCADA systems, panel meters, and data acquisition equipment for real-time monitoring of generator output, transformer loading, and distribution network parameters. Dual current/voltage capability accommodates diverse instrumentation requirements without module substitution.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OF4 when your application requires four or fewer analog outputs with mixed current/voltage requirements. For applications needing more than four outputs, consider the 1769-OF8 (8-channel voltage/current) or 1769-OF8C (8-channel current-only). If your system also requires analog inputs, the 1769-IF2OF2 combination module provides 2 inputs and 2 outputs in a single slot, optimizing rack space utilization.

Extended Functions

Advanced Scaling & Linearization: Studio 5000 programming environment enables custom scaling algorithms, square root extraction for flow measurement, and multi-point linearization tables to compensate for non-linear transducer characteristics.

Fault Detection & Alarming: Configure over-range, under-range, and wire-break detection with programmable alarm thresholds. Fault conditions trigger controller interrupts for immediate operator notification and automated shutdown sequences.

EtherNet/IP Integration: When installed in a CompactLogix chassis with an EtherNet/IP adapter, the module's I/O data and diagnostic information become accessible to remote HMI systems, SCADA platforms, and enterprise MES networks for centralized monitoring and predictive maintenance analytics.

Customization Options: Factory configuration services available for pre-programmed scaling parameters, custom terminal block labeling, and application-specific testing protocols to reduce commissioning time on large-scale projects.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom-configured modules require 7-10 business days for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to application engineers for configuration assistance, troubleshooting guidance, and integration support via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and digital access to full user manual, firmware release notes, and Studio 5000 Add-On Profile (AOP) for seamless software integration.

Frequently Asked Questions

Q: How do I configure each channel for different output signal types?
A: Signal type selection is performed through Studio 5000 software in the module configuration dialog. Each channel has independent current/voltage mode selection, eliminating the need for physical jumpers or DIP switches. Configuration changes take effect immediately upon download to the controller.

Q: What is the maximum cable length for 4-20mA current loop connections?
A: With the module's 600Ω maximum loop resistance specification, you can typically run 18 AWG shielded cable up to 1,500 feet (450 meters) for standard 4-20mA field devices. Actual distance depends on wire gauge, insulation type, and receiver input impedance.

Q: Can this module operate in hazardous area classifications?
A: The 1769-OF4 is designed for general-purpose industrial environments (Class I, Division 2 when properly installed). For Class I, Division 1 or Zone 0/1 applications, consider intrinsically safe barrier modules or explosion-proof enclosure solutions in conjunction with this module.

Q: Does the module require external power supplies for output signals?
A: No external power is required. The module derives all operating power from the CompactLogix backplane (5VDC and 24VDC rails). Ensure your chassis power supply has adequate capacity—each 1769-OF4 consumes 1.5W from the 5V bus and 0.8W from the 24V bus.

Q: Is firmware update capability available for future feature enhancements?
A: Yes, the module supports field firmware updates through Studio 5000 software using the ControlFLASH utility. Firmware updates can add new diagnostic features, improve performance, and ensure compatibility with newer controller firmware revisions.

Q: What diagnostic information is available for predictive maintenance programs?
A: The module reports channel-level fault status, over-range/under-range conditions, module temperature, backplane voltage levels, and cumulative operating hours. This data can be logged to controller memory or transmitted to SCADA systems for trend analysis and maintenance scheduling.

Take the Next Step

Ready to enhance your control system's analog output capabilities? Contact our technical sales team for application-specific recommendations, volume pricing, and integration support. We provide detailed technical documentation, sample ladder logic code, and configuration assistance to ensure successful project deployment.

Request a Quote: Email your system requirements, quantity needs, and delivery timeline to our sales team for a customized proposal within 24 hours.

Technical Consultation: Schedule a call with our application engineers to discuss wiring strategies, scaling configuration, and compatibility with your existing CompactLogix infrastructure.
