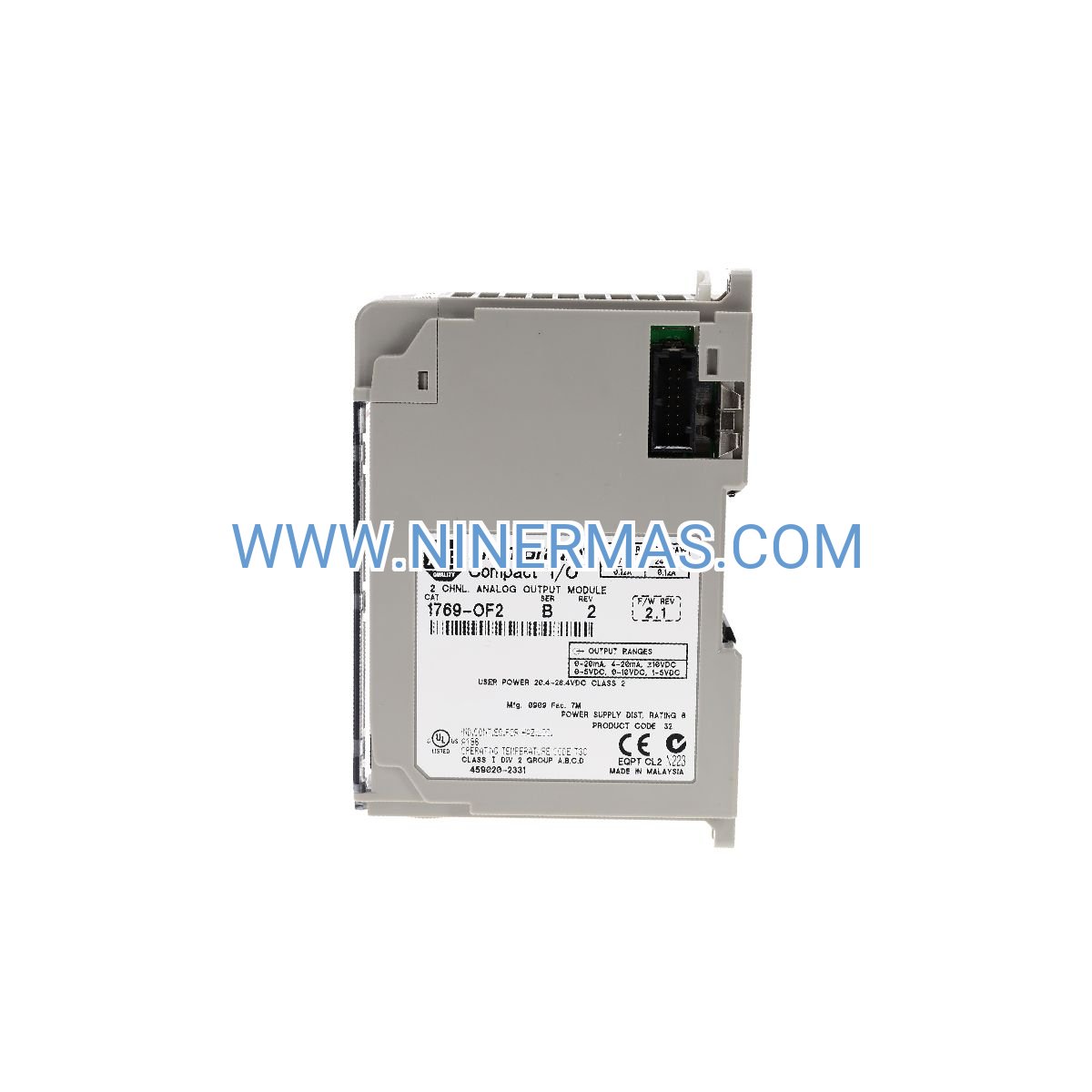

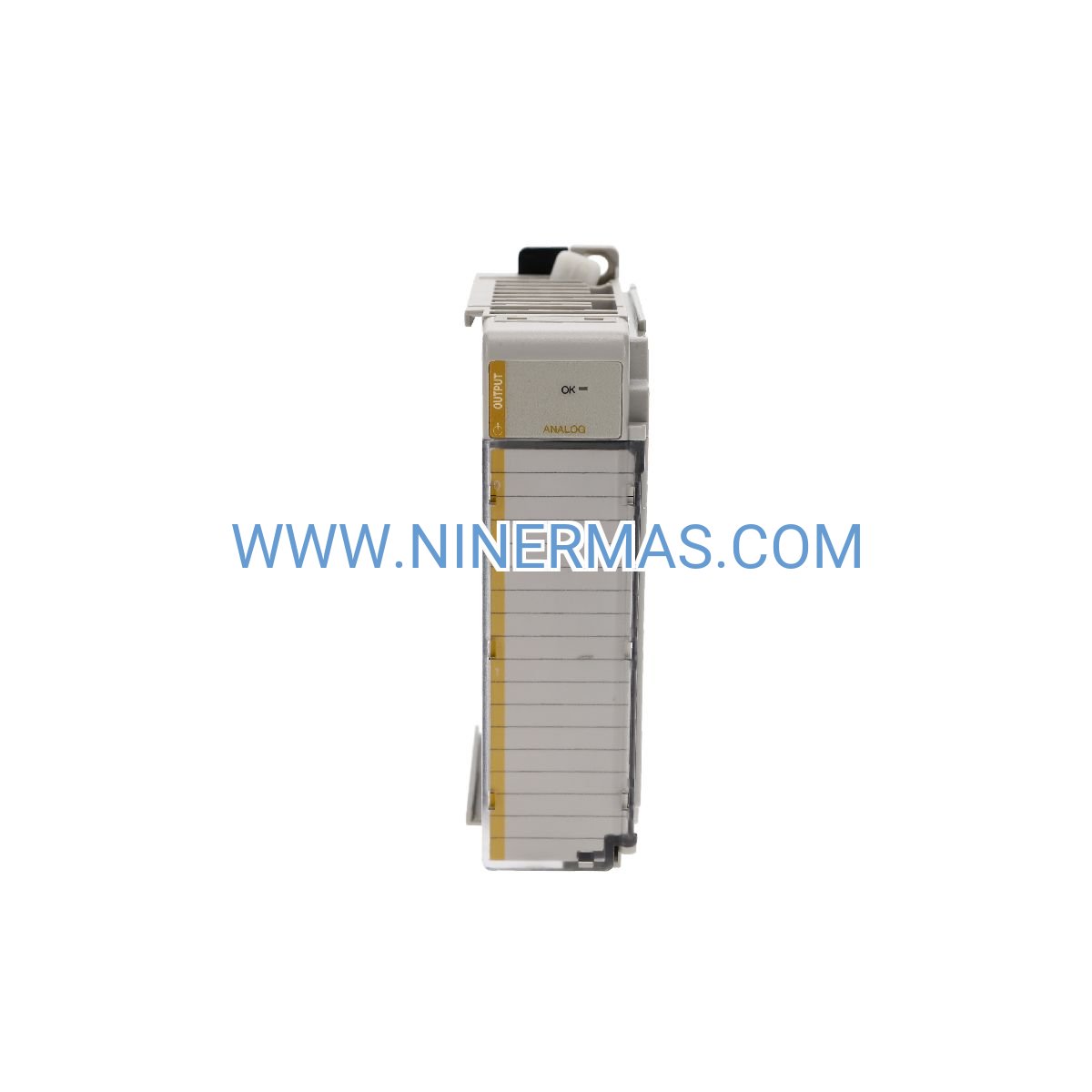

1769-OF2 Dual-Channel Analog Output Module (Industrial-Grade Signal Control)

The Allen-Bradley 1769-OF2 represents a professional-grade solution for industrial control applications demanding precise analog signal generation. Engineered for CompactLogix platforms, this dual-output module transforms digital control commands into accurate voltage or current signals that drive actuators, valves, variable frequency drives, and instrumentation across manufacturing, process control, and automation environments.

Designed for system integrators and automation engineers who require dependable analog control without field calibration overhead, the 1769-OF2 delivers factory-verified accuracy and flexible output configuration. Whether you're regulating process temperatures, positioning control valves, or commanding motor speeds, this module provides the signal integrity and reliability your critical operations demand.

With 14-bit resolution, software-selectable output ranges, and proven sigma-delta conversion technology, the 1769-OF2 eliminates signal drift concerns while maintaining ±0.35% accuracy across industrial temperature ranges—making it the trusted choice for applications where control precision directly impacts product quality, safety, and operational efficiency.

Core Capabilities & Technical Advantages

→ Factory-Calibrated Precision
Pre-calibrated at the Rockwell Automation facility to ±0.5% voltage accuracy and ±0.35% current accuracy at 25°C. Eliminates costly field calibration procedures and reduces commissioning time by up to 40% compared to modules requiring on-site adjustment.

→ Flexible Dual-Channel Architecture
Two independent analog outputs, each software-configurable for voltage (±10V, 0-10V, 0-5V, 1-5V DC) or current (0-20mA, 4-20mA) operation. Configure mixed output types on a single module to reduce hardware inventory and chassis slot consumption.

→ High-Resolution Signal Conversion
14-bit resolution (unipolar) and 14-bit plus sign (bipolar) ensures smooth control transitions and minimal quantization noise. Sigma-delta converter architecture delivers superior noise immunity in electrically harsh industrial environments.

✓ Rapid Update Performance
2.5ms maximum conversion time across both channels enables responsive control loops for dynamic processes. Supports demanding applications like servo positioning, fast-acting valve control, and real-time process regulation.

✓ Compact CompactLogix Integration
35mm width fits standard 1769 chassis configurations. Hot-swappable design with electronic keying prevents incorrect module insertion. Draws 120mA at 5V DC from backplane with optional external 24V DC power support for enhanced system flexibility.

✓ Industrial Environmental Resilience
Operates reliably across 0°C to 60°C (32°F to 140°F) ambient temperatures with 5-95% non-condensing humidity tolerance. Conformal coating protects circuitry from airborne contaminants, moisture, and corrosive atmospheres common in industrial settings.

Application Solutions Across Industries

Process Manufacturing & Chemical Production
Control valve positioning for flow regulation, pressure management, and batch recipe execution. The 4-20mA current output drives pneumatic valve positioners with loop-powered transmitter compatibility, while voltage outputs interface with electronic pressure regulators and proportional solenoid valves. Typical deployment: pharmaceutical mixing systems, food & beverage processing lines, chemical dosing stations.

HVAC & Building Automation Systems
Modulate damper actuators, variable air volume (VAV) boxes, and chilled water valves for precise climate control. The 0-10V output standard matches commercial HVAC actuator requirements, enabling direct integration without signal conditioning. Reduces energy consumption by 15-25% through optimized equipment staging and proportional control versus on/off operation.

Water & Wastewater Treatment
Command variable frequency drives (VFDs) for pump speed control, adjust chemical feed pumps for pH/chlorine dosing, and regulate aeration blowers for dissolved oxygen optimization. Current loop outputs provide noise-immune signaling over extended cable runs (up to 500Ω load resistance) common in municipal treatment facilities.

Material Handling & Conveyor Systems
Generate analog speed reference signals for belt conveyors, roller systems, and sortation equipment. Voltage outputs interface with DC motor controllers and servo amplifiers for synchronized multi-zone control. Enables smooth acceleration/deceleration profiles that reduce mechanical stress and product damage.

Machine Tool & CNC Operations
Provide spindle speed commands, feed rate control signals, and tool positioning references. High-resolution output ensures smooth surface finishes and dimensional accuracy in precision machining applications. Supports integration with legacy analog-input servo drives and spindle controllers.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 1769-OF2 when your application requires two or fewer analog outputs with standard voltage/current ranges. For applications needing more than two outputs, consider the 1769-OF4 (4-channel) or 1769-OF8C (8-channel) modules. If your process requires higher accuracy (±0.1% or better), evaluate the 1756-series ControlLogix analog modules with enhanced specifications.

Advanced Integration Features

Studio 5000 Programming Environment
Configure output ranges, scaling parameters, and diagnostic thresholds through RSLogix 5000 or Studio 5000 Logix Designer software. Module configuration data stores in the controller project file, enabling rapid system replication and standardized deployment across multiple machines or production lines.

Diagnostic Capabilities
Real-time fault detection monitors open-circuit conditions, over-current situations, and module health status. Diagnostic bits accessible through ladder logic enable predictive maintenance strategies and automated fault notification to SCADA/HMI systems.

Electronic Keying & Hot-Swap Support
Electronic keying prevents incorrect module installation and configuration mismatches. Hot-swappable design allows module replacement during system operation (when configured for compatible keying mode), minimizing downtime during maintenance activities.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 1-2 business days via expedited carrier. Custom-configured or bulk orders typically ship within 5-7 business days.

Warranty Coverage: All 1769-OF2 modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available upon request.

Technical Support: Our certified automation specialists provide pre-sales application consulting, configuration assistance, and post-installation troubleshooting support. Access to technical documentation, wiring diagrams, and sample ladder logic code included with purchase.

Documentation Package: Each module ships with installation instructions, specifications sheet, and quick-start configuration guide. Complete user manual and certification documents available for download from our technical library.

Frequently Asked Questions

Can the 1769-OF2 module output both voltage and current simultaneously on different channels?
Yes, each of the two output channels operates independently. You can configure Channel 0 for voltage output (e.g., 0-10V DC) and Channel 1 for current output (e.g., 4-20mA) simultaneously through software configuration in Studio 5000.

What is the maximum cable length for current loop outputs on the 1769-OF2?
Current outputs support up to 500Ω total loop resistance, which typically allows cable runs of 1,500-2,000 feet using 18 AWG wire (approximately 6.4Ω per 1,000 feet). Actual distance depends on wire gauge and load device resistance.

Does this analog output module require external power supply or calibration equipment?
No external calibration equipment is needed—the module arrives factory-calibrated and ready for installation. The module draws power from the CompactLogix backplane (5V DC and optionally 24V DC). An external 24V DC supply can be used if backplane power budget is constrained.

Is the 1769-OF2 compatible with ControlLogix 1756 chassis systems?
No, the 1769-OF2 is designed exclusively for CompactLogix 1769 I/O systems. For ControlLogix platforms, use the equivalent 1756-OF4 or 1756-OF8 analog output modules which offer similar functionality in the ControlLogix form factor.

How do I protect analog outputs from electrical noise in industrial environments?
Use shielded twisted-pair cable with shield grounded at one end (typically at the module). Route analog signal cables separately from high-voltage AC power and motor cables. The module's sigma-delta converter provides inherent noise rejection, but proper wiring practices enhance overall system immunity.

Can I use the 1769-OF2 for controlling servo motor amplifiers?
Yes, the voltage output modes (±10V DC) are compatible with most industrial servo amplifiers that accept analog velocity or torque command signals. Verify your servo amplifier's input impedance specification (typically >10kΩ) matches the module's voltage output drive capability.

Get Precision Analog Control for Your CompactLogix System

Ready to enhance your automation system with reliable analog output capability? The 1769-OF2 module delivers the accuracy, flexibility, and industrial durability your control applications demand. Contact our automation specialists today for application-specific recommendations, volume pricing, or technical consultation.

Request a quote now or speak with our team to discuss your analog I/O requirements and system integration needs.
