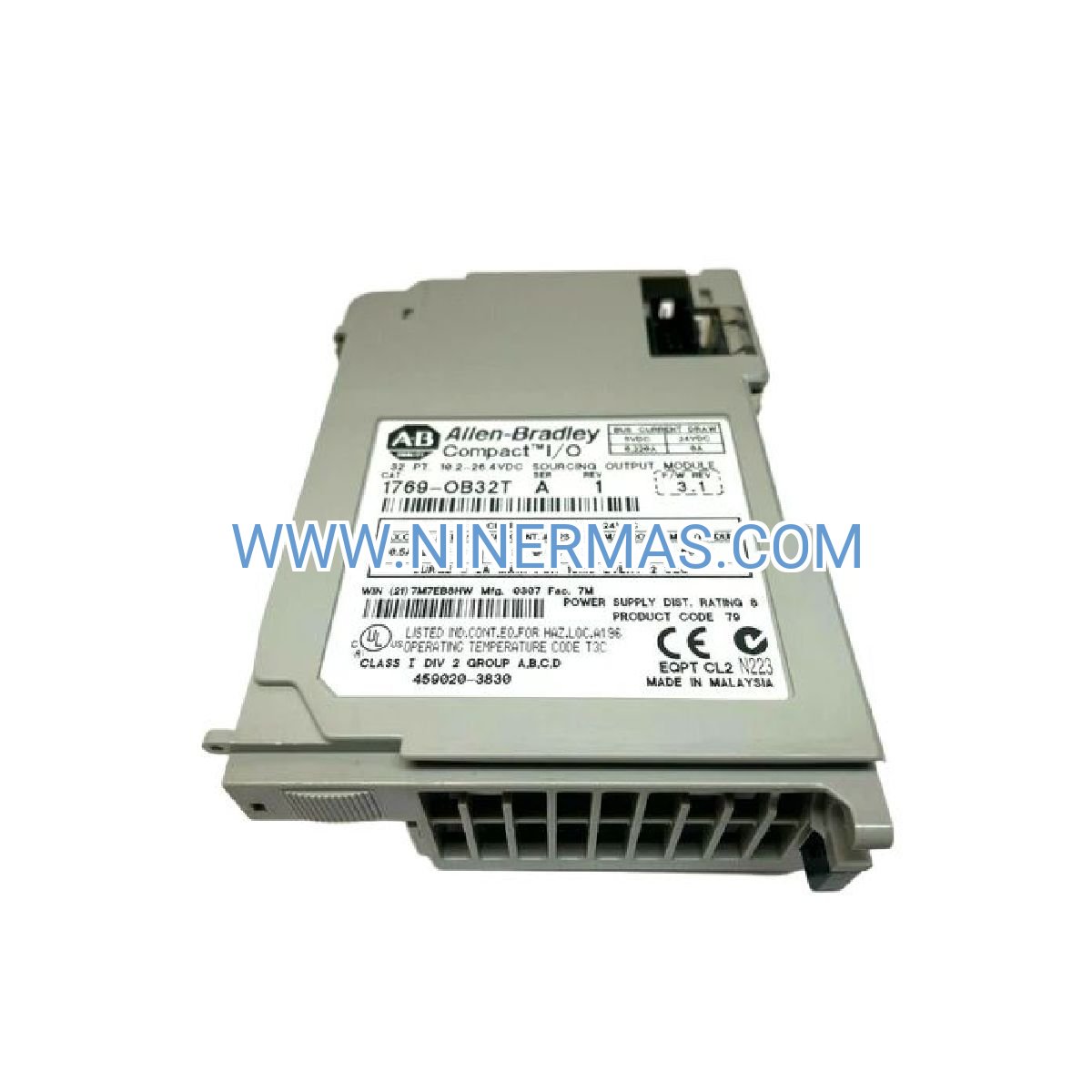

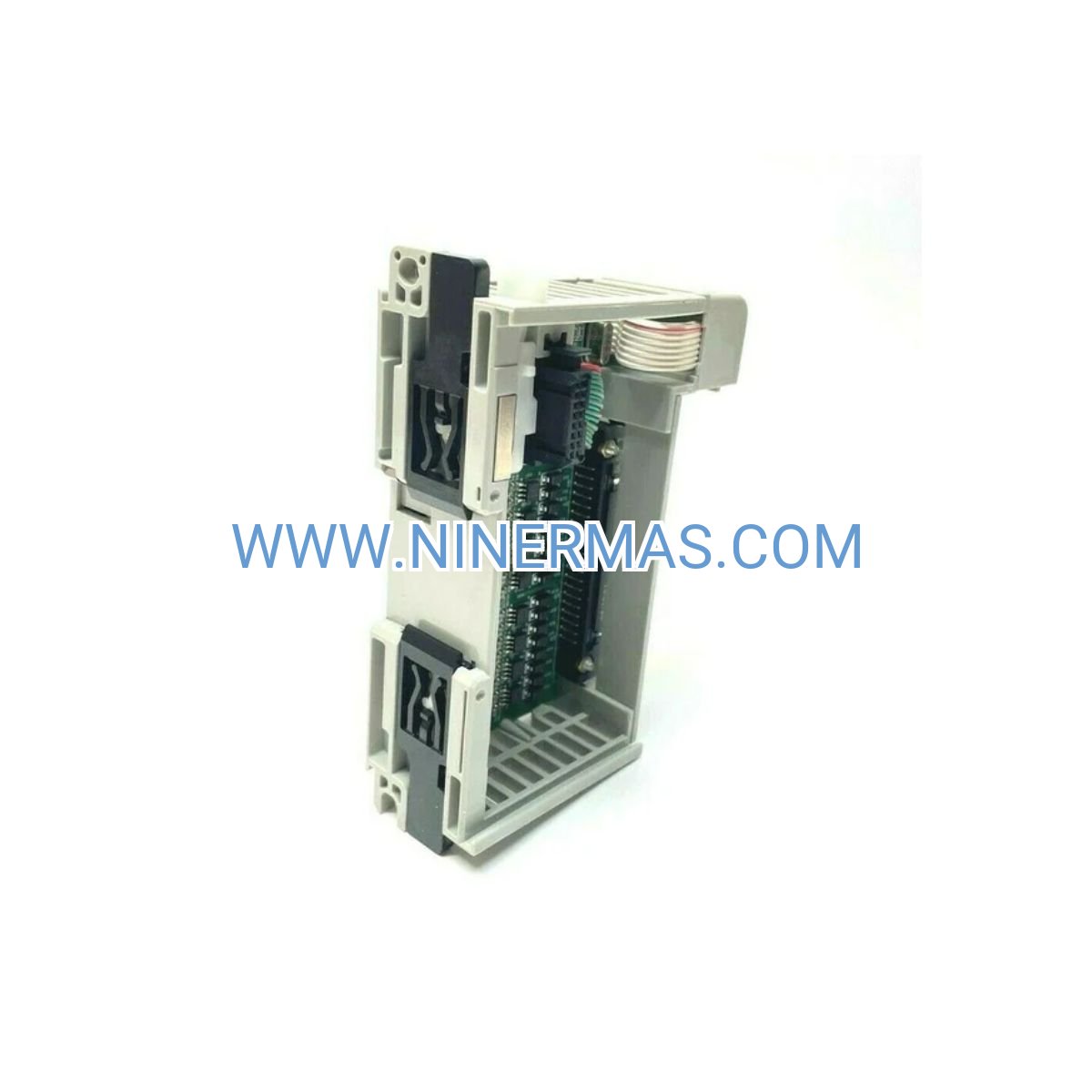

1769-OB32T Digital Output Module (Industrial-Grade 32-Point Sourcing Control)

The 1769-OB32T is a high-density digital output module engineered for CompactLogix and MicroLogix 1500 control platforms, delivering 32 electronically protected 24VDC sourcing outputs in a single-slot form factor. Designed for demanding industrial environments, this module combines removable terminal blocks, per-point diagnostic LEDs, and integrated overcurrent protection to provide reliable discrete control for solenoid valves, motor contactors, indicator lights, and pneumatic actuators across manufacturing, packaging, and process automation applications.

Built to withstand harsh factory conditions, the 1769-OB32T features conformal-coated circuitry, 1500V optical isolation, and electronic fault protection that eliminates the need for external fuses. Its hot-swappable design and tool-free terminal blocks enable rapid module replacement—reducing maintenance downtime to under 5 minutes while maintaining system continuity.

Whether you're upgrading legacy relay panels, expanding existing CompactLogix systems, or designing new automated production lines, the 1769-OB32T delivers the output density, diagnostic capabilities, and industrial ruggedness required for mission-critical discrete control applications. Contact our automation specialists today for application engineering support and expedited delivery.

Core Features & Technical Advantages

The 1769-OB32T incorporates advanced output management technologies that enhance system reliability, simplify troubleshooting, and reduce total cost of ownership:

• ✓ 32 High-Density Sourcing Outputs: Maximize I/O density with 32 discrete 24VDC outputs in a single chassis slot, reducing panel footprint by up to 60% compared to traditional relay-based systems while lowering wiring complexity and installation labor.
• ✓ Electronic Overcurrent Protection: Integrated current limiting on each output channel protects against short circuits and overload conditions without external fuses, automatically recovering when faults clear—eliminating nuisance trips and reducing spare parts inventory.
• ✓ Removable Terminal Blocks: Spring-loaded screw terminals accept 12-22 AWG wire and allow complete module replacement without field rewiring, cutting service time from hours to minutes during emergency repairs or planned upgrades.
• ✓ Per-Point Diagnostic LEDs: Individual status indicators for all 32 outputs provide instant visual confirmation of energized states, enabling technicians to isolate faults in seconds during commissioning, troubleshooting, and preventive maintenance.
• ✓ 1500V Optical Isolation: Galvanic isolation between logic circuits and field power protects sensitive controller electronics from voltage transients, ground loops, and electrical noise common in industrial power distribution systems.
• ✓ Conformal Coating Protection: Circuit board coating resists moisture, dust, chemical vapors, and temperature cycling in harsh environments including food processing, automotive paint shops, and outdoor enclosures.

Industrial Application Scenarios

The 1769-OB32T addresses critical discrete control challenges across diverse industrial sectors:

→ Packaging Line Automation
Controls pneumatic cylinders, product diverters, and reject gates in high-speed filling, capping, and labeling equipment. Millisecond response times ensure precise timing for 300+ cycles/minute operations, while diagnostic LEDs accelerate changeover procedures and reduce unplanned downtime by 40%.

→ Conveyor System Management
Operates motor starters, brake releases, and transfer mechanisms across multi-zone material handling networks in warehouses and distribution centers. Sourcing output architecture simplifies wiring for common-ground motor control circuits, cutting installation costs by 25%.

→ Process Valve Control
Energizes solenoid-operated isolation valves, flow control valves, and sample valves in chemical batch processing, water treatment, and pharmaceutical manufacturing. Electronic overcurrent protection prevents valve coil burnout from voltage spikes, extending valve service life by 3-5 years.

→ Assembly Line Coordination
Switches robotic grippers, part feeders, quality inspection gates, and torque tool enables in automotive, electronics, and appliance production. Hot-swappable design allows module replacement during scheduled breaks without halting entire production lines.

→ Machine Tool Operations
Activates coolant pumps, chip conveyors, tool changers, and workpiece clamps in CNC machining centers. Removable terminals enable rapid machine reconfiguration for new part programs without rewiring control panels.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OB32T when your application requires high-density 24VDC sourcing outputs with diagnostic capabilities. For sinking output requirements, consider the 1769-OB32 model. For relay outputs capable of switching AC loads or higher DC currents, evaluate the 1769-OW16 relay output module. Consult our application engineers for load compatibility verification and system architecture optimization.

Extended Capabilities & System Integration

Hot-Swap Functionality: Replace modules during system operation without disrupting other I/O or halting the controller. Electronic keying prevents incorrect module installation, while automatic configuration download from the controller ensures replacement modules match original settings within seconds of insertion.

Diagnostic Fault Reporting: Module communicates output faults, field power loss, and configuration mismatches to the controller via the backplane. Integrate fault data into HMI alarm systems, email notifications, or SMS alerts for proactive maintenance and rapid response to abnormal conditions.

Studio 5000 Integration: Outputs appear as discrete tags in Logix Designer software, supporting ladder logic, structured text, function block, and sequential function chart programming. Tag-based addressing simplifies code maintenance and enables reusable program templates across multiple machines.

Distributed I/O Architectures: Combine with 1769-ADN DeviceNet adapters or 1769-AENTR EtherNet/IP adapters to create remote I/O stations, reducing control panel wiring by up to 70% in large facilities with distributed equipment zones.

Delivery Timeline & Service Commitment

Standard Delivery: Factory-sealed units ship within 2-3 business days via express courier with full tracking and signature confirmation. Expedited same-day shipping available for critical production emergencies—contact our 24/7 support team for priority processing.

Warranty Coverage: Backed by comprehensive manufacturer warranty covering defects in materials and workmanship. Extended protection plans available for mission-critical applications requiring guaranteed replacement within 4 hours.

Technical Support: Certified Rockwell Automation engineers provide pre-sale application consultation, wiring diagram review, programming assistance, and commissioning support. Post-sale services include troubleshooting guidance, firmware updates, and lifecycle management planning.

Documentation Package: Each module ships with installation instructions, wiring diagrams, technical specifications, compliance certificates (CE, UL, CSA), and access to online programming examples and video tutorials.

Frequently Asked Questions

Q: Can the 1769-OB32T control AC solenoid valves or AC contactors?
A: No, this module provides 24VDC sourcing outputs only. For AC load switching, use the 1769-OW16 relay output module which supports 120/240VAC loads up to 2A per point. Alternatively, interface the 1769-OB32T with external electromechanical or solid-state relays rated for your AC voltage and current requirements.

Q: What is the maximum cable distance between the module and field devices?
A: For 24VDC circuits at 0.5A per point, maintain cable runs under 100 meters (330 feet) using 18 AWG wire to limit voltage drop below 10%. For longer distances, use 16 AWG or heavier wire, or install local 24VDC power supplies near remote device clusters to minimize voltage drop and improve noise immunity.

Q: How do I configure fault response behavior for critical outputs?
A: In Studio 5000 software, access the module properties and configure the "Program to Prescan" transition mode. Select "Hold Last State" to maintain output states during controller faults, or "Clear Outputs" to de-energize all points for fail-safe operation. Configure individual output forcing for testing and commissioning scenarios.

Q: Is the module suitable for SIL-rated safety applications?
A: The 1769-OB32T is a standard I/O module not certified for safety-critical functions. For SIL 2/3 applications, use Allen-Bradley GuardLogix safety controllers with 1791DS-IB12XOB8 safety I/O modules that meet IEC 61508 functional safety standards. The 1769-OB32T can control non-safety loads in machines with safety systems.

Q: Can I mix 12VDC and 24VDC loads on the same module?
A: Yes, the module's 10-31.2 VDC operating range supports both 12VDC and 24VDC loads. Wire the two output groups (points 0-15 and 16-31) to separate field power supplies—one at 12VDC and one at 24VDC—using the independent common terminals for each group. Verify load current remains within 0.5A per point limits.

Q: What diagnostic information is available for troubleshooting output failures?
A: The module provides module-level status (power, communication, configuration), per-point output state LEDs, and fault bits accessible in controller logic. Diagnostic data includes overcurrent detection, field power loss, and thermal shutdown conditions. Use RSLogix/Studio 5000 online monitoring to view real-time output states and fault history for rapid troubleshooting.

Ready to Optimize Your Discrete Control System?

The 1769-OB32T delivers the output density, diagnostic intelligence, and industrial durability required for modern automated production environments. Our automation specialists are ready to assist with module selection, system design, and expedited delivery to meet your project deadlines.

Contact us today: Email sale@ninermas.com or call +0086 187 5021 5667 for technical consultation, quantity pricing, and same-day shipping on in-stock inventory. Request a detailed wiring diagram, programming example, or application engineering review for your specific control requirements.
