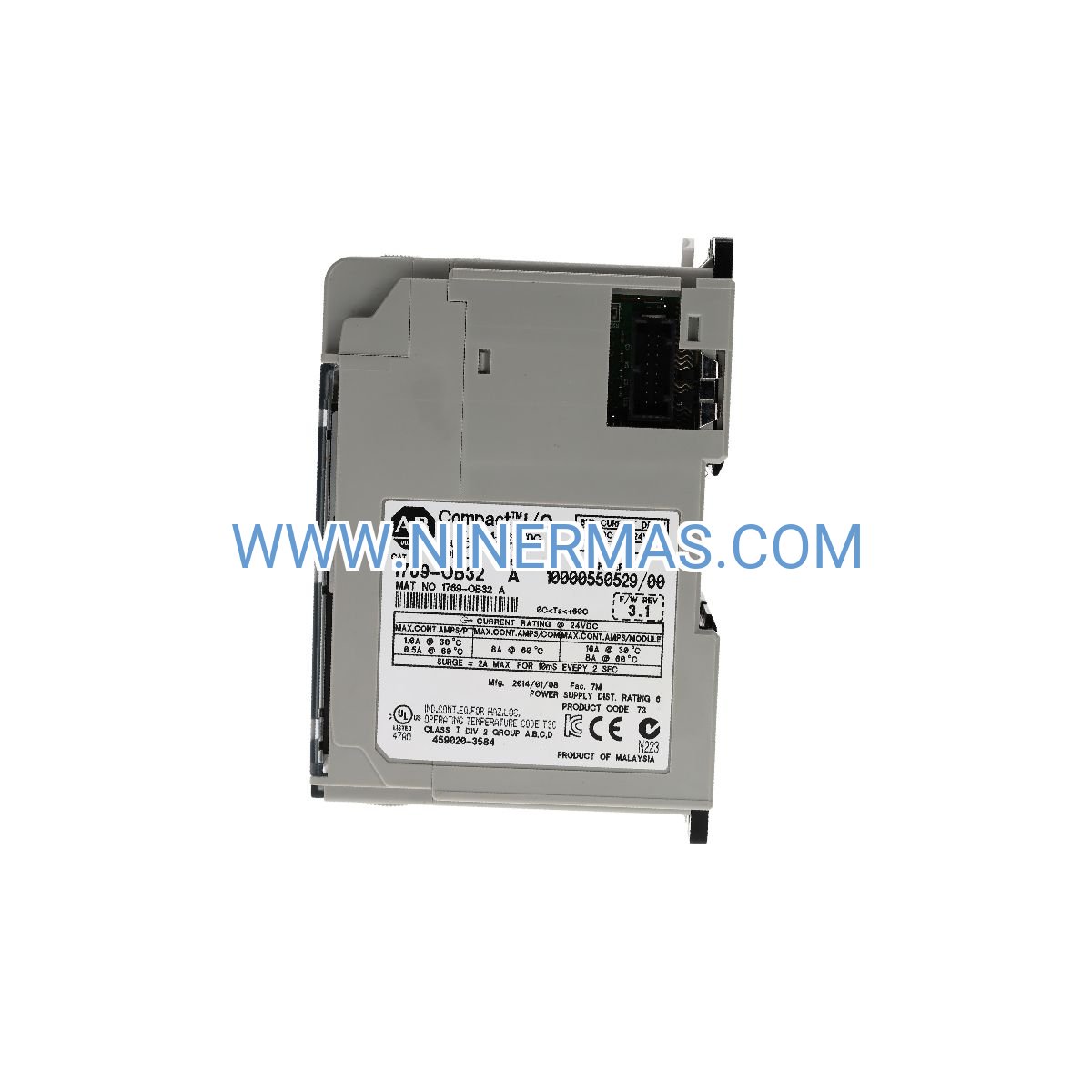

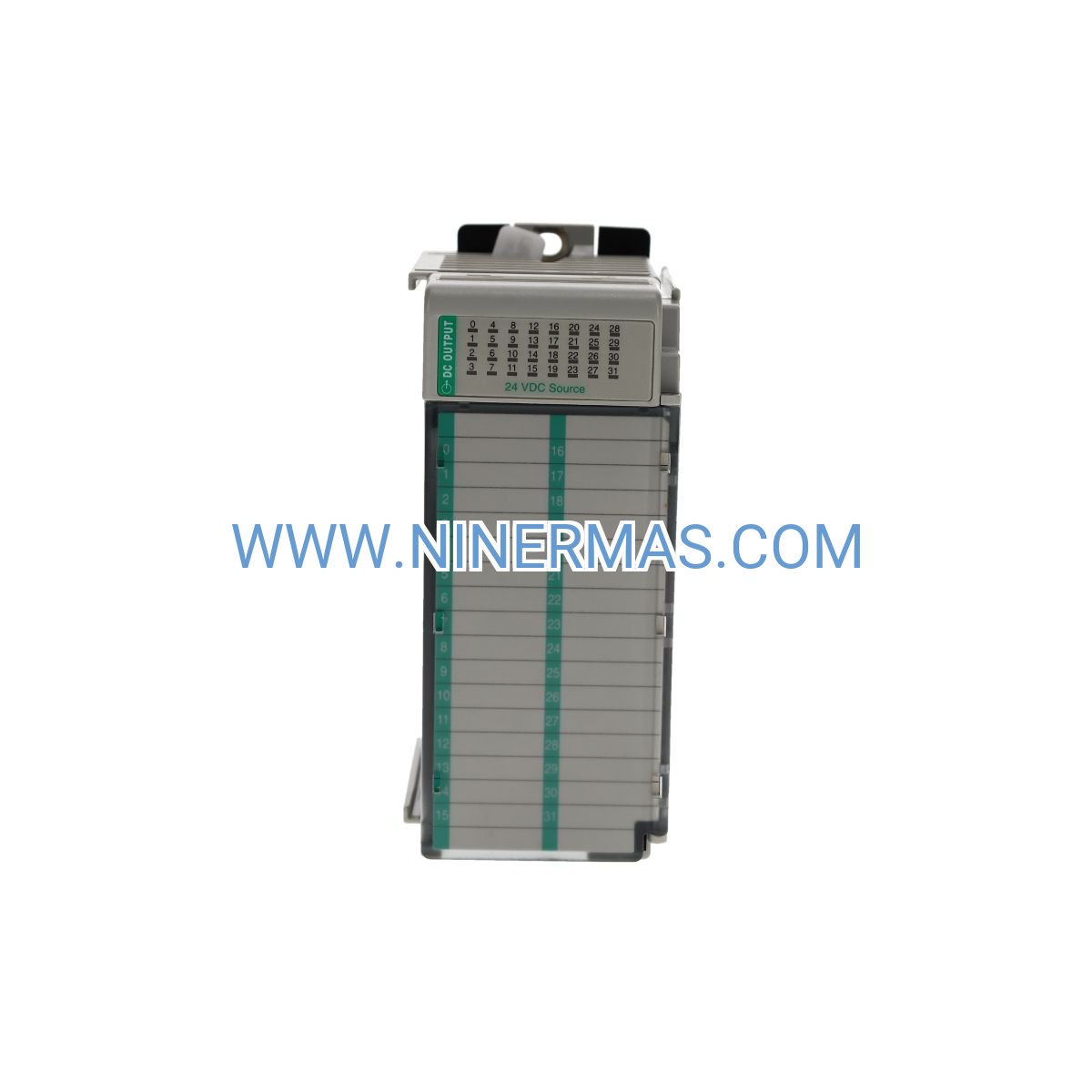

1769-OB32 Digital Output Module (Industrial-Grade 32-Channel Controller)

The 1769-OB32 represents a proven solution for discrete output control in CompactLogix automation architectures. This 32-channel digital output module operates on 24VDC systems and integrates directly into 1769 I/O chassis, providing reliable switching for solenoids, indicators, relays, and motor starters across manufacturing, process control, and material handling installations.

Designed for engineers and system integrators managing multi-point control applications, the module addresses common challenges including output density constraints, diagnostic visibility, and maintenance downtime. Its removable terminal block design and hot-swappable architecture enable service without full system shutdown, while per-channel LED diagnostics accelerate fault isolation.

Key differentiators include 1500V optical isolation for noise immunity, conformal coating for harsh-environment durability, and compatibility with Studio 5000 programming environments. Whether retrofitting legacy systems or deploying new installations, the 1769-OB32 delivers field-proven performance with UL 508 and CE certification.

Core Features & Benefits

→ High-Density Output Architecture
32 discrete outputs in a compact form factor reduce panel space requirements by up to 40% compared to modular relay solutions, lowering installation costs and simplifying wiring infrastructure.

→ Advanced Diagnostic Integration
Individual channel status LEDs combined with Studio 5000 fault reporting enable technicians to identify failed outputs in under 60 seconds, minimizing unplanned downtime and reducing mean time to repair (MTTR).

→ Flexible Current Handling
0.5A per point capacity supports direct control of pilot lights, small contactors, and pneumatic valve solenoids without external amplification, eliminating additional interface hardware.

→ Service-Friendly Design
Hot-swap capability and removable terminal blocks allow module replacement during scheduled maintenance windows without disrupting adjacent I/O or requiring full line shutdown.

→ Environmental Resilience
Conformal coating protection withstands humidity, dust, and chemical exposure common in food processing, automotive assembly, and wastewater treatment environments.

✓ Optical Isolation Protection
1500V channel-to-backplane isolation prevents ground loop interference and protects controller logic from field-side voltage transients.

Application Scenarios

Automated Assembly Lines
Control pneumatic actuators, part ejectors, and quality gates in high-speed production environments. The module's 20 Hz switching frequency supports rapid cycle operations while maintaining signal integrity across 50+ meter cable runs.

Conveyor & Material Handling Systems
Manage diverter gates, stop/start signals, and zone control logic for distribution centers and warehousing operations. Hot-swap capability enables module replacement during shift changes without halting material flow.

Process Control & Batch Operations
Sequence valve actuators, pump starters, and agitator motors in chemical processing and pharmaceutical manufacturing. Conformal coating ensures reliable operation in environments with airborne particulates and temperature fluctuations.

Packaging & Labeling Equipment
Drive label applicators, sealing mechanisms, and reject systems in food and beverage packaging lines. Per-channel diagnostics reduce troubleshooting time when addressing intermittent faults during production runs.

Building Automation & Energy Management
Control HVAC dampers, lighting contactors, and power distribution relays in commercial facilities. The module's wide operating voltage range (10-31.2 VDC) accommodates voltage drop in extended wiring installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OB32 when your application requires high-density 24VDC output control with diagnostic visibility. For AC output requirements, consider the 1769-OV32 variant. Applications demanding higher current per point (>0.5A) should evaluate relay-based output modules or external contactors. Verify chassis slot availability and backplane current budget before specifying additional I/O modules.

Extended Functions

Studio 5000 Integration: Full support for RSLogix 5000 and Studio 5000 Logix Designer environments enables advanced diagnostics, forced I/O testing, and online module replacement without program download.

EtherNet/IP Connectivity: When paired with CompactLogix controllers featuring Ethernet communication, the module supports remote monitoring and diagnostics via FactoryTalk View or third-party SCADA platforms.

Customization Options: Field-configurable sinking/sourcing operation allows adaptation to existing wiring infrastructure without hardware modification. Consult factory for custom conformal coating specifications for extreme-environment applications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom-configured or bulk orders (10+ units) typically require 7-10 business days for preparation and quality verification.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty includes replacement module and return shipping for confirmed manufacturing defects.

Technical Support: Pre-sales application engineering assistance available for system design, I/O point allocation, and compatibility verification. Post-sales support includes configuration guidance, troubleshooting protocols, and firmware update coordination.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and quick-start guide. Complete technical specifications, CAD drawings, and sample ladder logic available via download portal.

Frequently Asked Questions

What CompactLogix chassis models support the 1769-OB32 output module?
The module is compatible with all 1769 chassis variants including 1769-PB2, 1769-PB4, and 1769-PA series power supplies. Verify backplane current capacity (module draws 150mA at 5VDC) before installation.

Can I control inductive loads like solenoid valves directly with this module?
Yes, the module includes internal flyback diode protection for inductive loads up to 0.5A. For loads exceeding this rating or requiring faster switching, use external suppression networks per manufacturer guidelines.

How does the hot-swap capability work during module replacement?
The CompactLogix backplane supports online module insertion and removal. Use Studio 5000 to inhibit the module, disconnect field wiring, remove the module, install replacement, and re-enable via software—all without controller mode changes.

What is the maximum wire gauge for terminal block connections?
Removable terminal blocks accept 12-22 AWG copper conductors. Use ferrules for stranded wire to ensure reliable contact pressure and prevent strand breakage during installation.

Does the module require external power supply for output circuits?
Yes, field-side 24VDC power must be supplied separately. The module does not source output power—it provides switching only. Ensure power supply capacity matches total connected load current.

Is firmware update required for compatibility with newer controller revisions?
The 1769-OB32 uses hardware-based I/O processing and does not contain user-updateable firmware. Compatibility is maintained through controller firmware and EDS file updates available from Rockwell Automation.

Ready to Integrate?

Contact our application engineering team for system design consultation, compatibility verification, or volume pricing. We provide technical documentation, sample ladder logic, and configuration support to accelerate your project deployment.
