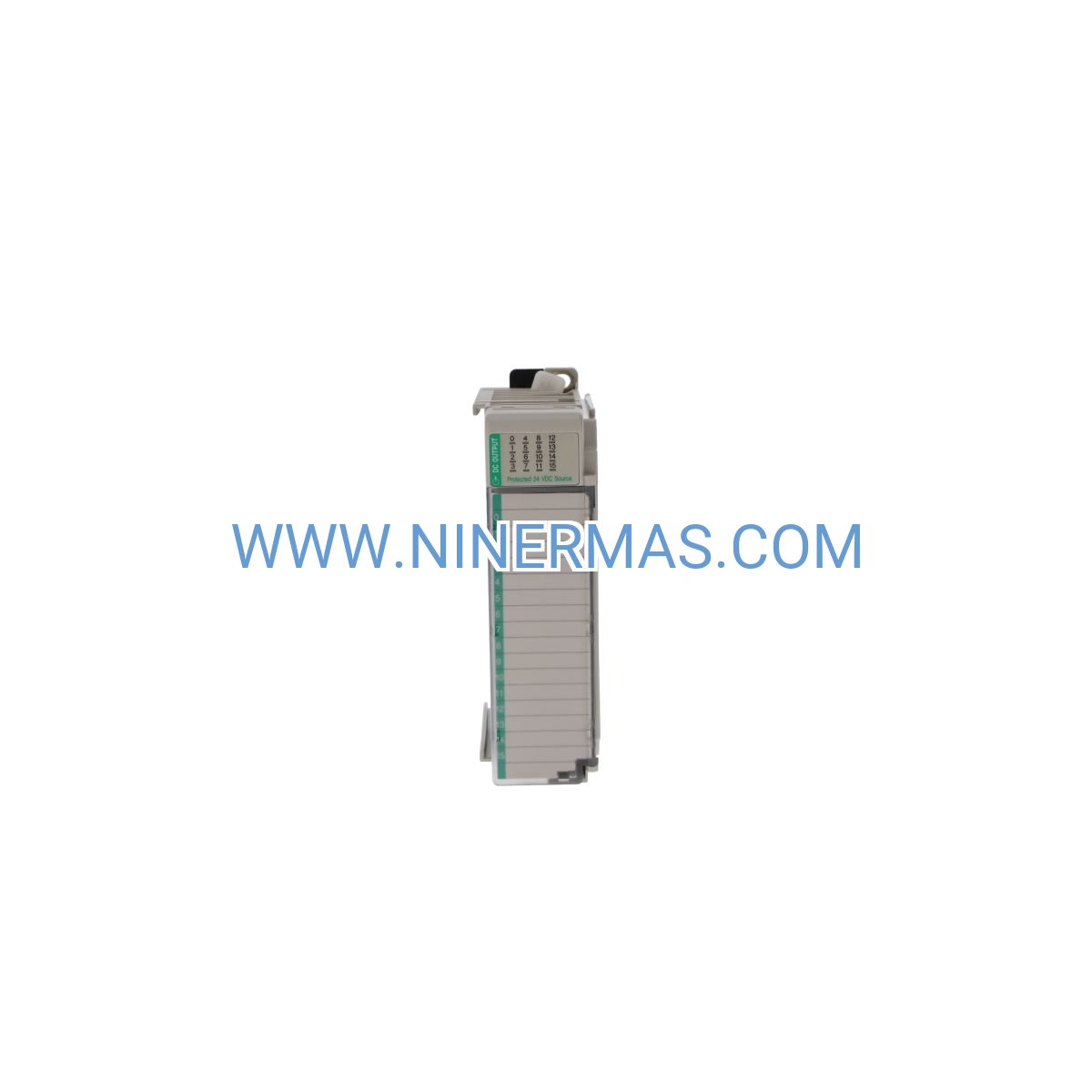

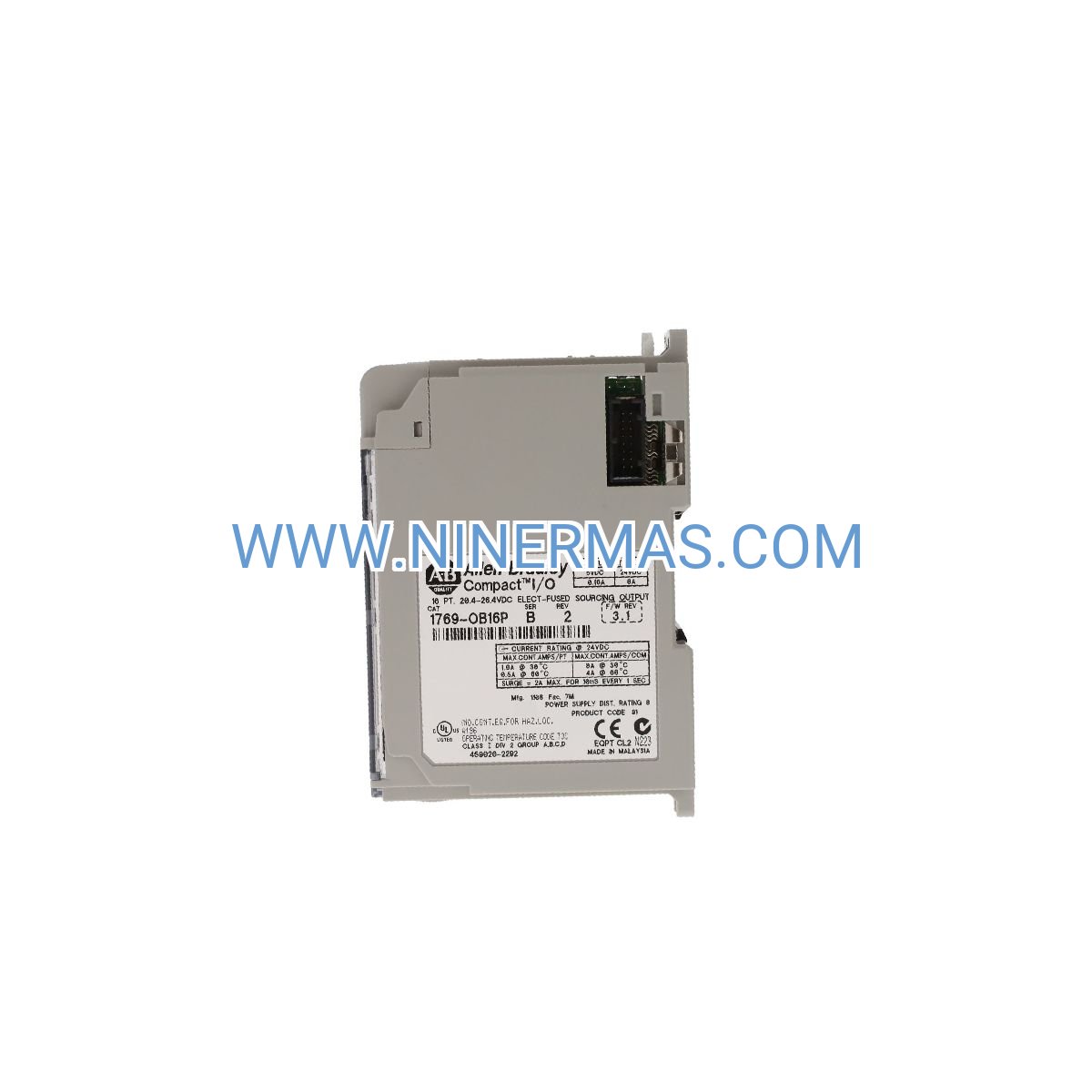

1769-OB16P Digital Output Module (Industrial-Grade Protected I/O Solution)

Engineered for mission-critical automation systems, the 1769-OB16P represents a proven solution for controlling high-reliability 24VDC loads across manufacturing, process control, and infrastructure applications. This CompactLogix-compatible output module combines 16 electronically protected channels with robust isolation architecture, delivering dependable performance in environments where downtime translates directly to revenue loss.

Designed for system integrators and plant engineers who demand both flexibility and fault tolerance, the 1769-OB16P addresses common challenges in industrial control: managing diverse load types, protecting against short-circuit conditions, and maintaining diagnostic visibility across distributed I/O networks. Whether you're retrofitting legacy systems or designing greenfield installations, this module provides the foundation for scalable, maintainable control architectures.

With thermal derating from 1.0A at 30°C to 0.5A at 60°C per channel, comprehensive 1200VAC isolation, and sub-2ms response characteristics, the 1769-OB16P delivers the performance headroom required for demanding applications while maintaining compatibility with standard 24VDC power infrastructure.

Core Features & Benefits

→ Electronic Short-Circuit Protection
Each output channel incorporates solid-state protection circuitry that automatically limits fault current without requiring fuse replacement. This translates to reduced maintenance overhead and faster recovery from wiring errors or load failures—critical advantages in 24/7 production environments.

→ Thermal Management Architecture
Dual current ratings (1.0A at 30°C, 0.5A at 60°C per point) enable precise load planning across temperature ranges. Total module capacity scales from 8.0A to 4.0A, allowing engineers to optimize cabinet cooling strategies while maintaining full operational capability.

→ High-Voltage Isolation Barrier
1200VAC output-to-backplane isolation protects sensitive controller electronics from field-side transients and ground potential differences. This isolation architecture is essential for installations spanning multiple buildings or interfacing with high-power equipment.

✓ Compact Footprint Design
35mm width conserves DIN rail real estate, enabling higher I/O density in space-constrained panels. Eight-module power supply distance rating supports flexible chassis configurations without intermediate power injection.

✓ Point-Level Diagnostics
Controller-accessible status monitoring for each output enables predictive maintenance strategies and rapid fault isolation. Diagnostic data integrates seamlessly with SCADA/HMI systems for centralized visibility.

✓ Wide Environmental Tolerance
0–60°C operating range with 5–95% non-condensing humidity specification ensures reliable operation in harsh industrial environments including foundries, chemical plants, and outdoor enclosures.

Application Scenarios

Automated Assembly Systems
Control pneumatic cylinders, part ejectors, and fixture clamps in high-speed assembly lines. The module's 1ms turn-on response supports cycle times under 500ms while electronic protection prevents production stoppages from accidental short circuits during tooling changes.

Chemical Batch Processing
Drive solenoid valves for reagent dosing, tank filling, and process sequencing in pharmaceutical and specialty chemical facilities. 1200VAC isolation protects against ground loops in multi-building installations, while diagnostic capabilities support 21 CFR Part 11 compliance documentation.

Water & Wastewater Treatment
Operate pump starters, valve actuators, and chemical feed systems in municipal treatment plants. Robust environmental ratings handle high-humidity pump rooms, and protected outputs tolerate the electrical noise generated by VFD-driven equipment.

Material Handling Networks
Manage conveyor diverters, sortation gates, and indicator lights across warehouse automation systems. Distributed I/O architecture via EtherNet/IP reduces wiring costs in large-footprint facilities while maintaining deterministic control performance.

Machine Safety Integration
Interface with safety relay modules and indicator towers in machinery guarding applications. While not safety-rated itself, the 1769-OB16P provides reliable control outputs for non-safety-critical functions within safety-integrated machine designs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OB16P when your application requires protected outputs for 24VDC loads up to 0.5A per channel in standard industrial temperature ranges. For higher current requirements, consider the 1769-OB32 series. For sink-type outputs, evaluate the 1769-OW16 module. For safety-rated applications, specify GuardLogix safety I/O modules.

Extended Functions

EtherNet/IP Integration: When paired with CompactLogix L3x or L4x controllers, the 1769-OB16P participates in producer/consumer data exchange across EtherNet/IP networks. This enables distributed control architectures where I/O modules can be located near process equipment while controllers remain in centralized control rooms—reducing copper wiring costs by up to 40% in large installations.

Advanced Diagnostics: Beyond basic output status, the module provides fault history logging accessible via RSLogix 5000/Studio 5000 software. Engineers can track intermittent short-circuit events, thermal derating conditions, and power supply anomalies for root-cause analysis and preventive maintenance scheduling.

Hot-Swap Capability: Under controlled conditions with appropriate power supply configurations, the 1769-OB16P supports online module replacement without shutting down the entire chassis. This feature minimizes downtime during planned maintenance or emergency repairs in redundant system architectures.

Delivery & Service Assurance

Lead Time: Stock units ship within 1–3 business days via express courier. Custom-configured chassis assemblies require 5–7 business days for integration testing and quality verification.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Direct access to application engineers with CompactLogix expertise for system design consultation, troubleshooting assistance, and integration guidance. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and digital access to full technical manuals, CAD models (STEP/DWG formats), and sample ladder logic routines.

Frequently Asked Questions

What power supply models are compatible with the 1769-OB16P module?
The module operates with 1769-PA2, 1769-PB2, 1769-PA4, and 1769-PB4 power supplies. Ensure your power supply provides sufficient 5VDC backplane current (160mA per module) and that the module is positioned within 8 slots of the power supply for proper voltage regulation.

Can I control inductive loads like solenoid valves directly with this module?
Yes, the 1769-OB16P is designed for inductive loads. However, install external flyback diodes across inductive loads to suppress voltage spikes during turn-off. The module's 2.0A surge rating (10ms duration) accommodates inrush current from most industrial solenoids rated under 0.5A steady-state.

How do I calculate total current budget for mixed loads?
Sum the steady-state current of all simultaneously active outputs. For example, if you're driving 8 outputs at 0.3A each and 4 outputs at 0.5A each, total current = (8 × 0.3A) + (4 × 0.5A) = 4.4A. At 60°C ambient, this exceeds the 4.0A module limit—reduce simultaneous loads or improve cabinet cooling to operate at lower temperatures.

What diagnostic information is available through the controller?
The controller can read individual output status (ON/OFF), detect short-circuit faults per channel, monitor module health status, and track thermal derating conditions. Configure diagnostic alarms in your ladder logic to trigger HMI notifications or automated shutdown sequences.

Is the 1769-OB16P suitable for controlling motor starters?
Yes, for starter coils rated 24VDC and drawing less than 0.5A. Verify starter coil specifications before selection. For three-phase motor control, the module typically drives the starter's control circuit rather than power contacts directly.

What is the maximum recommended wire gauge for output connections?
Use 14–22 AWG (0.5–2.5mm²) copper wire with 600V insulation rating. Removable terminal blocks accept both solid and stranded conductors. Torque terminal screws to 0.5–0.6 N⋅m (4.4–5.3 lb⋅in) per manufacturer specifications.

Ready to Integrate the 1769-OB16P Into Your Control System?

Our application engineering team is available to review your I/O requirements, recommend optimal module configurations, and provide integration support for CompactLogix systems. Contact us today for technical consultation, volume pricing, or to request CAD models and sample code for your specific application.
