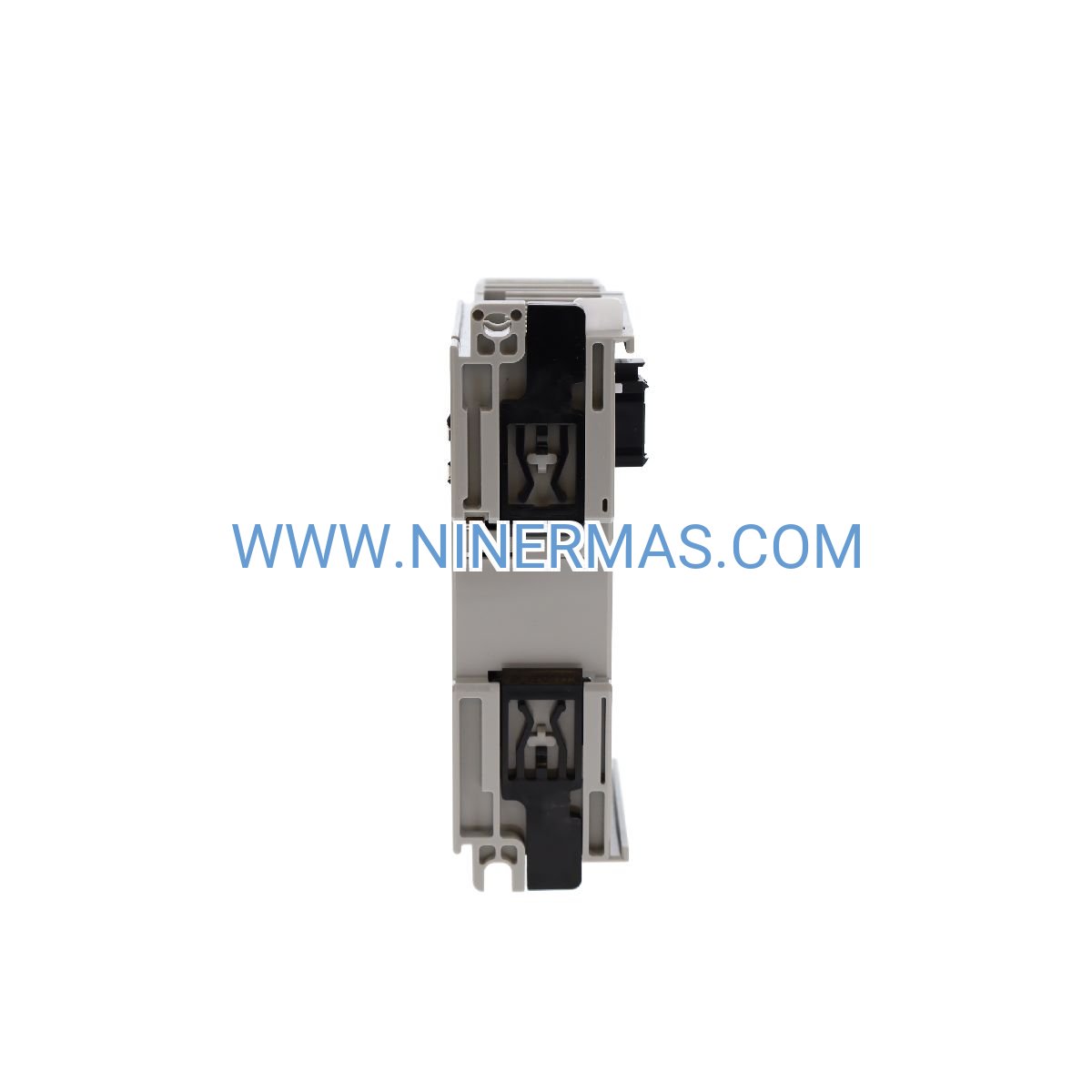

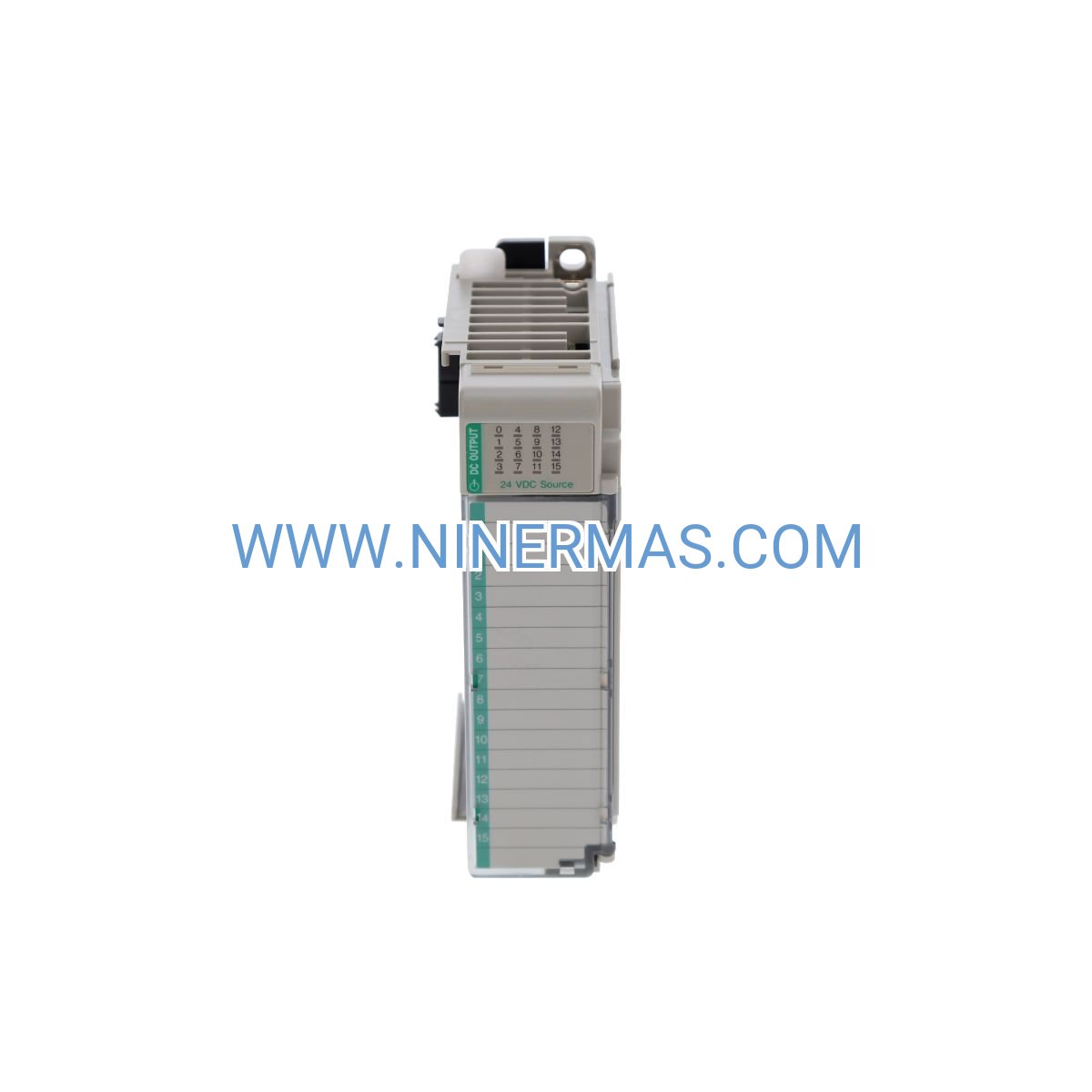

1769-OB16 Digital Output Module (Industrial-Grade 16-Channel Controller)

The 1769-OB16 represents a proven solution for discrete output control in Allen-Bradley CompactLogix architectures. This 16-channel module handles 24VDC switching operations across manufacturing floors, process automation lines, and machine control cabinets where reliability and diagnostic visibility are non-negotiable.

Built for system integrators and maintenance teams managing multi-zone production equipment, the module addresses common pain points: field device coordination, output fault isolation, and rapid module replacement during scheduled maintenance windows. Its removable terminal block design and electronic keying reduce commissioning time and prevent costly mis-wiring errors.

Key advantages include 1500V optical isolation for noise immunity, individual LED diagnostics for each output point, and compatibility with the full range of 1769 chassis configurations—from compact 4-slot assemblies to distributed 17-slot systems.

Core Features & Benefits

→ 16 Isolated Output Channels
Each point delivers 0.5A continuous current with independent status indication, enabling precise control of solenoid valves, pilot lights, relay coils, and motor starter circuits without cross-channel interference.

→ Hot-Swappable Architecture
Replace modules under power without halting production—critical for 24/7 operations in food processing, automotive assembly, and pharmaceutical packaging where downtime costs exceed $5,000 per hour.

→ 1ms Response Time
Fast switching performance supports high-speed conveyor indexing, pick-and-place sequencing, and synchronized multi-axis motion applications requiring sub-10ms cycle coordination.

→ Removable Terminal Blocks
Pre-wire replacement modules offline, then swap connectors in under 60 seconds—reducing mean time to repair (MTTR) by 40% compared to hardwired I/O systems.

→ Electronic Keying Protection
Firmware-enforced module identification prevents accidental installation of incompatible I/O types, safeguarding against configuration errors that could damage connected field devices.

→ Wide Operating Range
Functions reliably across 19.2-28.8VDC input voltage and 0-60°C ambient temperature, accommodating voltage sag during motor starts and temperature swings in non-climate-controlled enclosures.

Typical Application Scenarios

✓ Conveyor System Control
Coordinate start/stop signals for 16 independent conveyor zones in distribution centers, managing package routing, diverter gates, and accumulation zones with centralized PLC logic and distributed I/O placement.

✓ Pneumatic Valve Manifolds
Drive solenoid valve banks in automated assembly cells, controlling gripper actuation, part ejection, and fixture clamping with millisecond-precision timing for cycle times under 3 seconds.

✓ Process Alarm Annunciation
Activate stack lights, horns, and remote alarm panels in chemical batch systems, providing operators with immediate visual/audible notification of temperature excursions, level deviations, or equipment faults.

✓ Packaging Machine Indexing
Trigger stepper motor drivers, servo enables, and registration sensors in form-fill-seal equipment, blister packaging lines, and cartoning machines requiring synchronized motion across multiple stations.

✓ HVAC Damper Control
Operate motorized damper actuators, fan contactors, and heating element relays in building automation systems, integrating with BACnet/IP gateways for centralized energy management.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OB16 when your application requires sinking outputs (load connected to +24VDC). For sourcing output applications (load connected to 0V), specify the 1769-OB16P variant. Verify total current draw does not exceed 4A per common group (points 0-7 and 8-15 share separate commons). For loads exceeding 0.5A, use external interposing relays rated for your specific load current.

Extended Functions

Diagnostic Integration: Module status, point-level faults, and field power loss conditions are mapped to controller tags, enabling automated alarm notification via email, SMS, or SCADA integration through FactoryTalk View or Ignition platforms.

Forced I/O Capability: Override output states during commissioning or troubleshooting using RSLogix 5000/Studio 5000 force tables—essential for validating wiring, testing interlocks, and simulating fault conditions without modifying ladder logic.

Conformal Coating Option: Request factory-applied conformal coating (suffix "-CC") for installations in high-humidity, chemical vapor, or salt-spray environments such as wastewater treatment plants, marine applications, and mining operations.

Delivery & Service Assurance

Lead Time: Stock items ship within 1-2 business days via DHL/FedEx. Custom configurations (conformal coating, extended temperature testing) require 7-10 business days for factory preparation.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty includes advance replacement service—receive your replacement module before returning the defective unit to minimize production impact.

Technical Support: Access to application engineers for configuration assistance, troubleshooting guidance, and firmware compatibility verification. Support available via email, phone, and remote desktop sessions during your commissioning phase.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and dimensional drawings. Download the complete user manual (publication 1769-UM011), sample ladder logic, and EDS file from our technical library.

Frequently Asked Questions

Q: What is the maximum wire gauge for the terminal blocks?
A: The removable terminal blocks accept 14-22 AWG (0.5-2.5mm²) solid or stranded copper wire. Use ferrules for stranded wire to prevent strand breakage and ensure reliable contact pressure.

Q: Can this module drive inductive loads like solenoid valves?
A: Yes, each output includes internal flyback diode protection for inductive load suppression. For loads exceeding 0.5A or requiring AC switching, use external electromechanical or solid-state relays rated for your specific load.

Q: How do I monitor output current consumption?
A: The module does not provide per-point current measurement. Use external current sensors or calculate expected current based on connected load specifications. Monitor the "Field Power Lost" diagnostic bit to detect open field power wiring.

Q: Is the 1769-OB16 compatible with ControlLogix systems?
A: No, this module is designed exclusively for CompactLogix (1769) and MicroLogix 1500 chassis. For ControlLogix applications, specify the 1756-OB16D or 1756-OB16I output modules.

Q: What is the difference between the 1769-OB16 and 1769-OB16P?
A: The OB16 provides sinking outputs (transistor connects to 0V), while the OB16P provides sourcing outputs (transistor connects to +24VDC). Verify your field device wiring configuration before ordering.

Q: Can I use this module in a safety-rated application?
A: No, the 1769-OB16 is a standard I/O module and is not certified for safety functions. For SIL 2/SIL 3 or PLd/PLe applications, use GuardLogix controllers with 1791DS-IB16 or 1791DS-OB16 safety I/O modules.

Ready to Optimize Your Control System?

Request a detailed quotation including quantity pricing, lead time confirmation, and technical compatibility review for your specific CompactLogix configuration. Our team responds to all inquiries within 4 business hours with application-specific recommendations and integration support.
