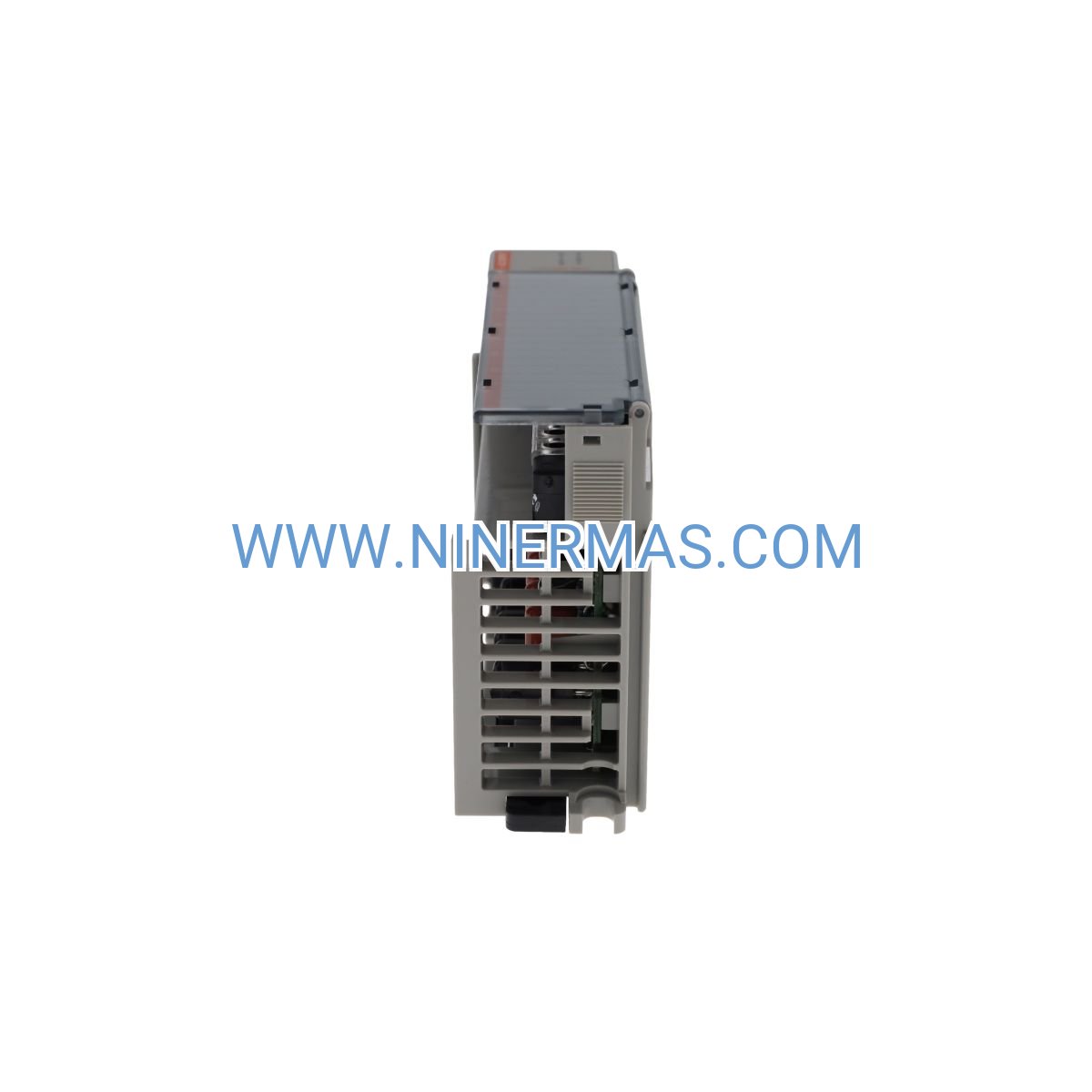

1769-OA8 CompactLogix AC Output Module (Industrial-Grade 8-Channel Controller)

The 1769-OA8 represents a proven solution for AC output control in mission-critical industrial environments. This 8-channel digital output module integrates seamlessly into CompactLogix architectures, delivering isolated 240VAC switching for solenoid valves, motor contactors, indicator panels, and AC-powered actuators across manufacturing, process automation, and infrastructure control applications.

Engineered for reliability in harsh industrial settings, the module combines compact single-slot design with robust electrical isolation, enabling safe control of high-voltage field devices while protecting sensitive PLC backplane circuitry. Whether you're retrofitting legacy systems or designing new automation solutions, the 1769-OA8 provides the flexibility and performance demanded by modern industrial operations.

With hot-swap capability, removable terminal blocks, and comprehensive diagnostic LEDs, this module minimizes maintenance downtime while maximizing system availability. Factory-calibrated and ready for immediate deployment, it's the intelligent choice for engineers seeking proven AC output control technology.

Core Features & Benefits

→ Eight Isolated AC Output Channels
Independent electrical isolation on each output protects your control system from field-side faults while enabling simultaneous control of multiple AC devices with enhanced safety margins.

→ Universal Voltage Compatibility (85-265VAC)
Adapts to global voltage standards and compensates for line fluctuations, reducing inventory complexity for multi-site operations and international deployments.

→ Space-Optimized Single-Slot Architecture
Maximizes I/O density in compact control cabinets, allowing up to 30 modules per bank while maintaining proper heat dissipation and serviceability clearances.

→ Hot-Swappable Module Design
Enables online replacement during scheduled maintenance windows without system shutdown, preserving production continuity and reducing mean time to repair (MTTR) by up to 60%.

✓ Removable Terminal Block System (1769-RTBN10)
Accelerates commissioning and module replacement by eliminating rewiring requirements—simply transfer the pre-wired terminal block to the new module.

✓ Per-Point LED Diagnostics
Individual output status indicators combined with module health LEDs enable rapid fault isolation, reducing troubleshooting time from hours to minutes.

Typical Application Scenarios

Automated Assembly Lines
Challenge: Coordinating pneumatic clamps, part ejectors, and conveyor diverters across multi-station assembly cells.
Solution: The 1769-OA8 controls up to 8 AC solenoid valves with precise timing, enabling synchronized material flow and reducing cycle time by 15-20%.

Chemical Batch Processing
Challenge: Reliable operation of mixing valves, heating elements, and transfer pumps in corrosive environments.
Solution: Isolated AC outputs prevent ground loops and electrical noise interference, ensuring consistent batch quality and regulatory compliance.

Water & Wastewater Treatment
Challenge: Managing chemical dosing pumps, filtration valves, and aeration blowers across distributed treatment stages.
Solution: Wide voltage range accommodates varying site electrical infrastructure while maintaining precise control over critical treatment processes.

Building HVAC Automation
Challenge: Zone-based control of damper actuators, fan motors, and heating/cooling valves in commercial facilities.
Solution: Compact footprint enables installation in space-constrained mechanical rooms while supporting energy-efficient scheduling algorithms.

Packaging & Labeling Systems
Challenge: High-speed switching of label applicators, product gates, and reject mechanisms with minimal electrical noise.
Solution: Factory-calibrated outputs deliver consistent switching performance at speeds up to 10 operations per second per channel.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-OA8 when your application requires AC voltage control (vs. DC alternatives like 1769-OB16), when you need electrical isolation between outputs, or when controlling inductive loads such as solenoid valves and motor starters. For higher point counts, consider the 1769-OA16 (16-point) or combine multiple OA8 modules for distributed I/O architectures.

Extended Functions

EtherNet/IP Integration: When paired with 1769-L3x or L4x controllers featuring integrated Ethernet ports, the module participates in distributed I/O networks, enabling remote monitoring via SCADA systems and cloud-based analytics platforms.

Advanced Diagnostics: Studio 5000 software provides real-time output current monitoring, fault history logging, and predictive maintenance alerts based on switching cycle counts and thermal performance trends.

Custom Configuration Options: Factory-configured modules available with pre-loaded I/O addressing, custom terminal block labeling, and application-specific firmware for OEM machine builders and system integrators.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24 hours via express courier. Custom-configured modules: 5-7 business days. Bulk orders (10+ units): contact for expedited production scheduling.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Unlimited access to certified automation engineers for configuration assistance, troubleshooting guidance, and system integration consulting. Average response time: <4 hours during business hours.

Documentation Package: Each module includes installation quick-start guide, wiring diagrams, Studio 5000 AOP (Add-On Profile) files, and dimensional drawings in PDF/DWG formats.

Frequently Asked Questions

What is the maximum switching frequency for the 1769-OA8 outputs?
The module supports switching rates up to 10 Hz per channel under resistive loads. For inductive loads (solenoid valves, contactors), limit switching to 5 Hz to maximize contact life and prevent nuisance tripping.

Can I use this module with 120VAC field devices?
Absolutely. The 85-265VAC operating range accommodates both 120VAC (North America) and 240VAC (Europe/Asia) devices without configuration changes, making it ideal for global machine builders.

How do I calculate power supply distance ratings?
The 1769-OA8 has a distance rating of 8 slots from the power supply. Sum the distance ratings of all modules between the power supply and the OA8—if the total exceeds the power supply's capacity, insert an additional power supply.

Is the module suitable for outdoor installations?
The open-style enclosure requires installation in a NEMA 12 or IP54-rated cabinet. For outdoor applications, use NEMA 4X enclosures with proper ventilation and temperature management.

What replacement parts should I stock for maintenance?
We recommend stocking spare 1769-RTBN10 terminal blocks (one per 5 modules) and replacement module doors (1769-RD). Keep one spare OA8 module for every 10 installed units in critical applications.

Does the module support remote I/O configurations?
Yes, when used with 1769-ADN DeviceNet adapters or 1769-AENTR EtherNet/IP adapters, the OA8 functions as remote I/O, enabling distributed control architectures up to 500 meters from the main controller.

Ready to Optimize Your AC Output Control?

The 1769-OA8 CompactLogix module delivers the reliability, flexibility, and performance your industrial automation system demands. Whether you're upgrading existing infrastructure or designing new control solutions, our team is ready to support your project from specification through commissioning.

Contact our automation specialists today: Request a technical consultation, volume pricing quote, or application-specific configuration guidance. Same-day shipping available on in-stock inventory.
