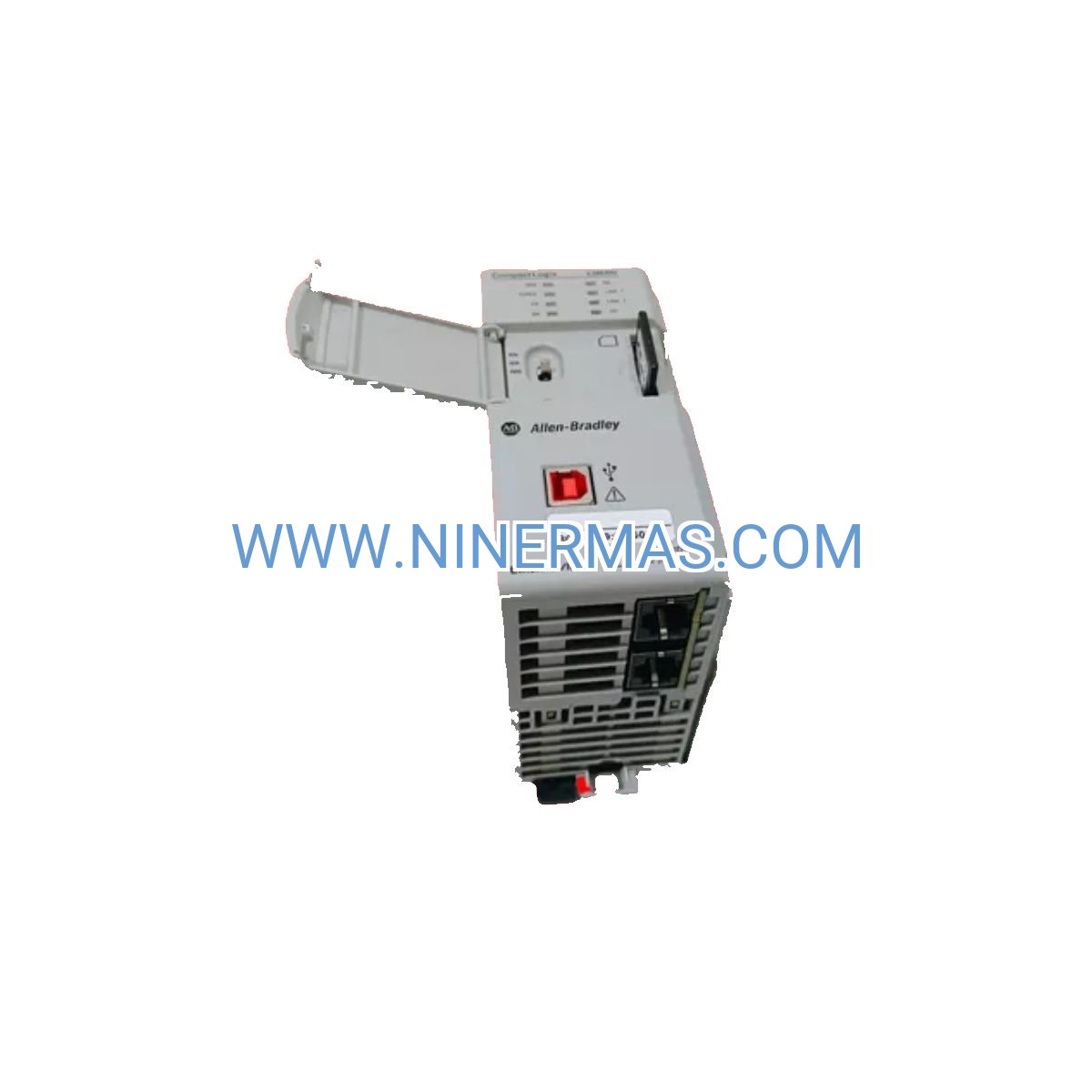

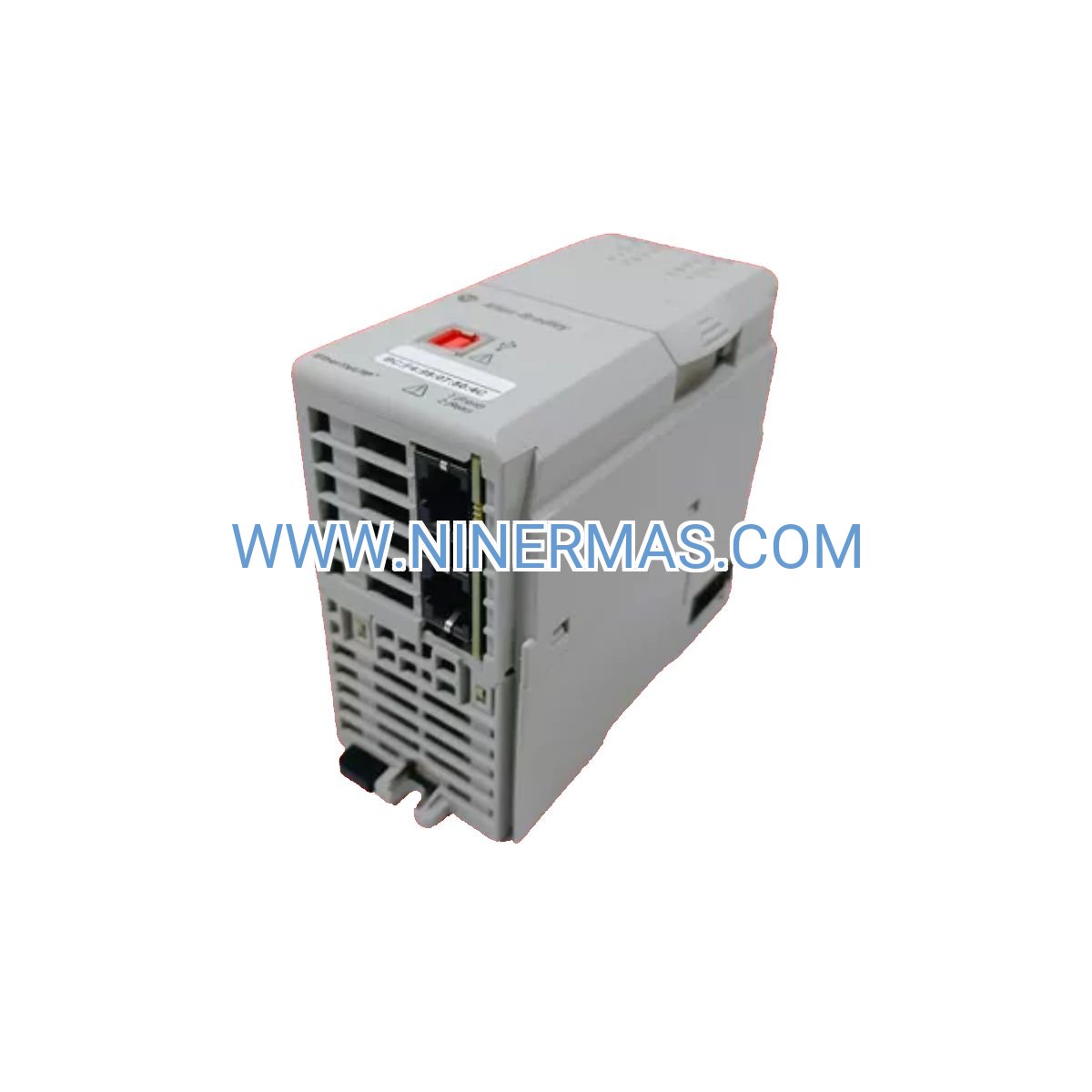

1769-L38ERM CompactLogix L3 Controller (Industrial-Grade Motion & Networking Platform)

The Allen-Bradley 1769-L38ERM is a high-performance CompactLogix 5370 L3 controller engineered for demanding industrial automation environments. Combining dual Ethernet ports with Device Level Ring (DLR) topology, 1MB user memory, and 4-axis CIP Motion™ with kinematics, this controller delivers robust network resiliency and precision motion control in a compact footprint. Whether you're orchestrating multi-axis robotics, coordinating distributed I/O across factory floors, or integrating motion-centric packaging lines, the 1769-L38ERM provides the scalability and reliability your operation demands.

Designed for system integrators and OEMs who require seamless EtherNet/IP™ communication, embedded USB programming, and expandable SD storage, this controller simplifies complex automation architectures while maintaining Allen-Bradley's legendary durability and support ecosystem.

Ready to upgrade your control infrastructure? Contact our technical team for application-specific guidance and volume pricing.

Core Capabilities & Technical Advantages

→ Dual Ethernet with DLR Network Resiliency
Two onboard copper Ethernet ports support Device Level Ring topology, ensuring automatic failover and uninterrupted communication even during cable breaks or switch failures—critical for 24/7 production environments.

→ 4-Axis CIP Motion™ with Kinematics Function
Integrated motion control over EtherNet/IP eliminates the need for separate motion cards. Execute coordinated multi-axis moves, cam profiles, and robotic kinematics directly from the controller, reducing system complexity and wiring costs.

→ 1MB User Memory for Moderate-to-Complex Applications
Sufficient memory headroom for ladder logic, structured text, motion profiles, and HMI tags—ideal for mid-scale machines with 8–16 distributed I/O nodes and moderate recipe/data logging requirements.

✓ Embedded USB & SD Card Expansion
Program, troubleshoot, and update firmware via the front-panel USB port. Expand non-volatile storage up to 2GB with standard SD cards for data logging, recipe storage, or firmware archives.

✓ Open Socket Capability for Third-Party Integration
Communicate directly with barcode scanners, RFID readers, printers, and MES servers using TCP/IP sockets—no gateway required. Streamline data exchange and reduce hardware costs.

✓ Modular I/O Expansion (Up to 8 Local Modules)
Mount up to eight 1769 Compact I/O modules on the same DIN rail for localized control, then extend with 16 EtherNet/IP nodes for distributed architectures—perfect for scalable machine designs.

Proven Applications Across Industries

Packaging & Material Handling Lines
Challenge: Synchronize conveyor speeds, servo-driven pick-and-place units, and labeling stations with sub-millisecond precision.
Solution: The 1769-L38ERM's 4-axis motion and DLR networking ensure coordinated motion profiles and zero-downtime communication, even during network faults. Reduce changeover times by 30% with recipe-based motion parameters stored on SD card.

Robotic Assembly Cells
Challenge: Control SCARA or Cartesian robots with complex kinematics while managing safety I/O and vision system integration.
Solution: Leverage built-in kinematics functions to simplify robot programming. Open socket capability allows direct communication with vision cameras and quality inspection systems, eliminating middleware.

Food & Beverage Processing
Challenge: Maintain sanitary design standards while coordinating multi-zone temperature control, CIP sequences, and batch tracking.
Solution: IP20-rated enclosure compatibility and wide operating temperature range (0–60°C) suit washdown-adjacent environments. USB port enables rapid recipe uploads without opening electrical panels.

Automotive Component Manufacturing
Challenge: Integrate legacy DeviceNet devices with modern EtherNet/IP infrastructure during phased upgrades.
Solution: The controller's multi-protocol support (EtherNet/IP, DeviceNet via adapter modules) bridges old and new systems, protecting capital investments while enabling incremental modernization.

Pharmaceutical Serialization Systems
Challenge: Track individual product codes with barcode printers and vision verification at line speeds exceeding 200 units/min.
Solution: Open socket communication with printers and scanners, combined with motion-synchronized triggers, ensures 100% traceability compliance without third-party gateways.

Technical Specifications & Selection Criteria

Selection Guidance:

• Choose 1769-L38ERM if: You need 1–4 servo axes, dual Ethernet for ring topology, and moderate memory (up to 500 rungs of ladder logic or equivalent ST/FBD).
• Upgrade to 1769-L3xER models if: Your application requires >4 motion axes or >1MB memory for complex recipes/data structures.
• Downgrade to 1769-L30ER if: Motion control is not required and you only need basic discrete/analog I/O with single Ethernet.

Advanced Integration & Customization Options

IoT & Cloud Connectivity
Pair with Allen-Bradley's Stratix industrial Ethernet switches and FactoryTalk Edge Gateway to publish real-time production metrics to cloud platforms (AWS IoT, Azure IoT Hub, ThingWorx). Enable predictive maintenance dashboards and remote diagnostics without compromising OT security.

Safety Integration
Combine with 1769-IQ16F GuardLogix safety I/O modules to implement SIL 2/PLd safety functions on the same network. Reduce cabinet space and wiring by consolidating standard and safety control in one CompactLogix chassis.

Custom Motion Profiles
Utilize Rockwell's Motion Analyzer software to design, simulate, and optimize cam profiles offline. Upload profiles via USB or Ethernet for rapid commissioning and reduced on-site tuning time.

Third-Party HMI Integration
Native support for Ignition SCADA, Wonderware, and Siemens WinCC via EtherNet/IP or Modbus TCP Add-On Instructions. No proprietary drivers required—simplify multi-vendor system architectures.

Delivery, Warranty & Technical Support

Lead Times

• Stock Units: Ships within 1–2 business days via DHL/FedEx Express
• Custom Configurations: 5–7 business days for pre-programmed controllers with customer-specific firmware
• Bulk Orders (10+ units): Contact for expedited production scheduling and volume discounts

Warranty Coverage

• Standard: 12-month manufacturer's warranty covering defects in materials and workmanship
• Extended: Optional 36-month extended warranty available (includes advance replacement and priority RMA processing)
• Exclusions: Damage from improper wiring, overvoltage, or unauthorized firmware modifications

Technical Support Included

• Pre-sales application engineering consultation (network sizing, motion calculations, I/O mapping)
• Startup assistance via phone/email (first 30 days post-delivery)
• Access to Rockwell Automation's Knowledgebase and Sample Code Library
• Firmware update notifications and security bulletins

Documentation Package

• Quick Start Guide (printed)
• User Manual (PDF, 300+ pages)
• Wiring diagrams and DIN rail mounting instructions
• Sample ladder logic for motion homing and I/O diagnostics
• Certificate of Conformity (CE/UL)

Frequently Asked Questions

Q1: Can the 1769-L38ERM controller replace an older SLC 500 system?
Yes, but migration requires logic conversion. Use Rockwell's SLC-to-Logix Conversion Tool to translate RSLogix 500 programs to Studio 5000 format. Expect 70–80% automatic conversion; manual adjustments needed for PID loops and specialty instructions. Budget 2–3 days for a typical 50-rung program.

Q2: What is the maximum servo drive count for motion applications?
The controller supports 4 physical axes via CIP Motion over EtherNet/IP. You can connect Kinetix 5500/5700 servo drives or third-party CIP Motion-compliant drives. For >4 axes, upgrade to 1769-L36ERM (8 axes) or 1769-L33ERM (16 axes).

Q3: How much energy savings can I expect versus relay-based control?
Typical installations report 15–25% energy reduction through optimized motion profiles (S-curve acceleration vs. trapezoidal), coordinated multi-machine scheduling, and sleep modes during idle periods. Actual savings depend on duty cycle and load characteristics.

Q4: What are the DIN rail mounting requirements?
Use 35mm × 7.5mm or 35mm × 15mm DIN rail (EN 50022 standard). Mount the controller first (leftmost position), then add I/O modules to the right. Ensure 50mm clearance above/below for ventilation. Maximum ambient temperature: 60°C.

Q5: Does the controller support remote monitoring and diagnostics?
Yes. Enable FactoryTalk Remote Access or configure VPN tunneling through Stratix switches for secure remote connectivity. Monitor controller health, download/upload programs, and perform online edits from anywhere with Studio 5000 Logix Designer.

Q6: Can I use non-Rockwell I/O modules with this controller?
Local expansion (1769 chassis) requires genuine Allen-Bradley modules. However, you can connect third-party EtherNet/IP I/O (e.g., Turck, Balluff, Murr Elektronik) as remote nodes. Verify ODVA conformance and test EDS files before deployment.

Take the Next Step Toward Smarter Automation

The 1769-L38ERM CompactLogix controller is your gateway to scalable, future-proof industrial control. Whether you're retrofitting legacy systems or designing greenfield installations, our team provides end-to-end support—from initial sizing to post-commissioning optimization.

Request a Quote: Email sale@ninermas.com with your I/O count, motion requirements, and delivery timeline.
Technical Consultation: Call +0086 187 5021 5667 to discuss network architecture, safety integration, or custom programming services.
Volume Pricing: Inquire about OEM partnership programs for orders of 25+ controllers annually.
