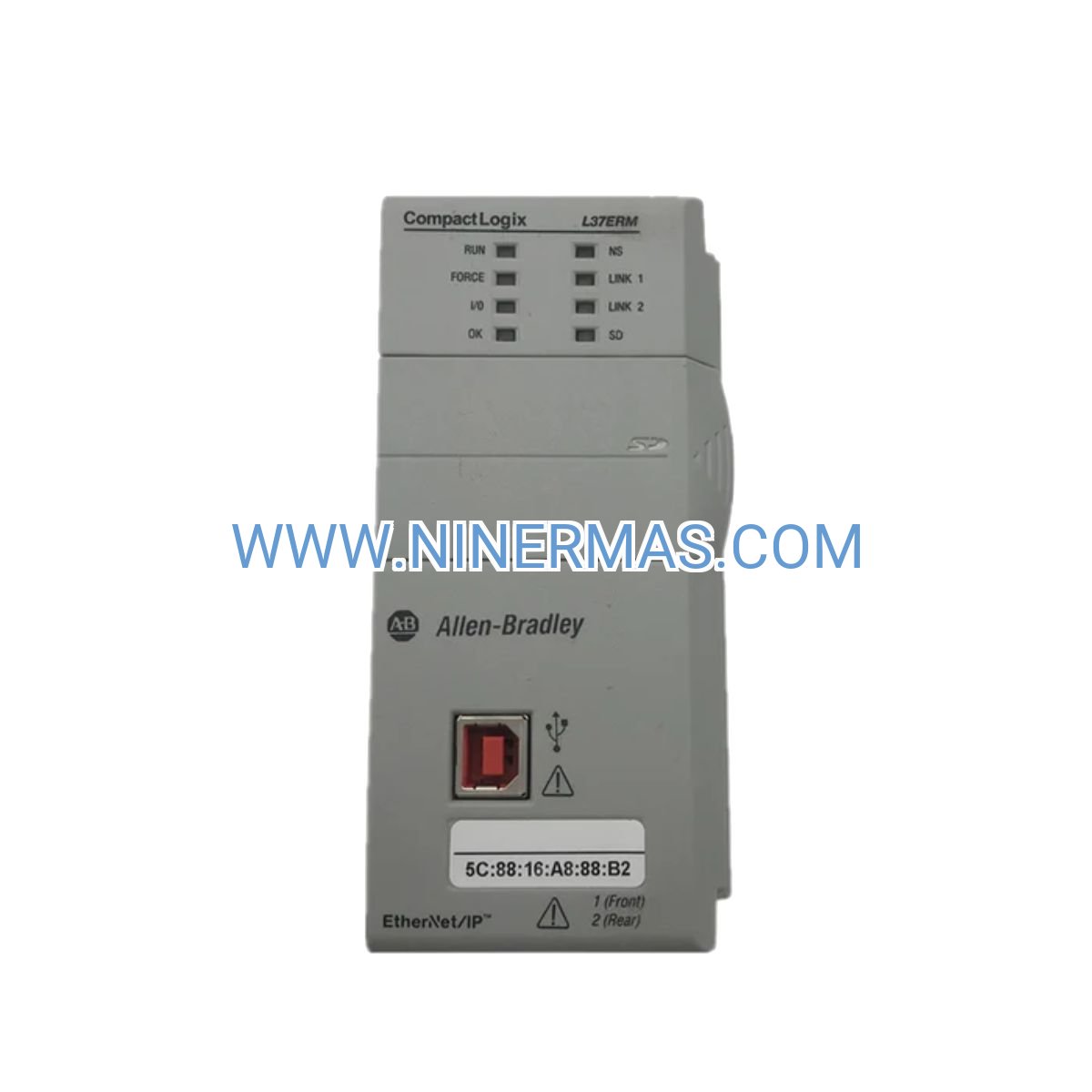

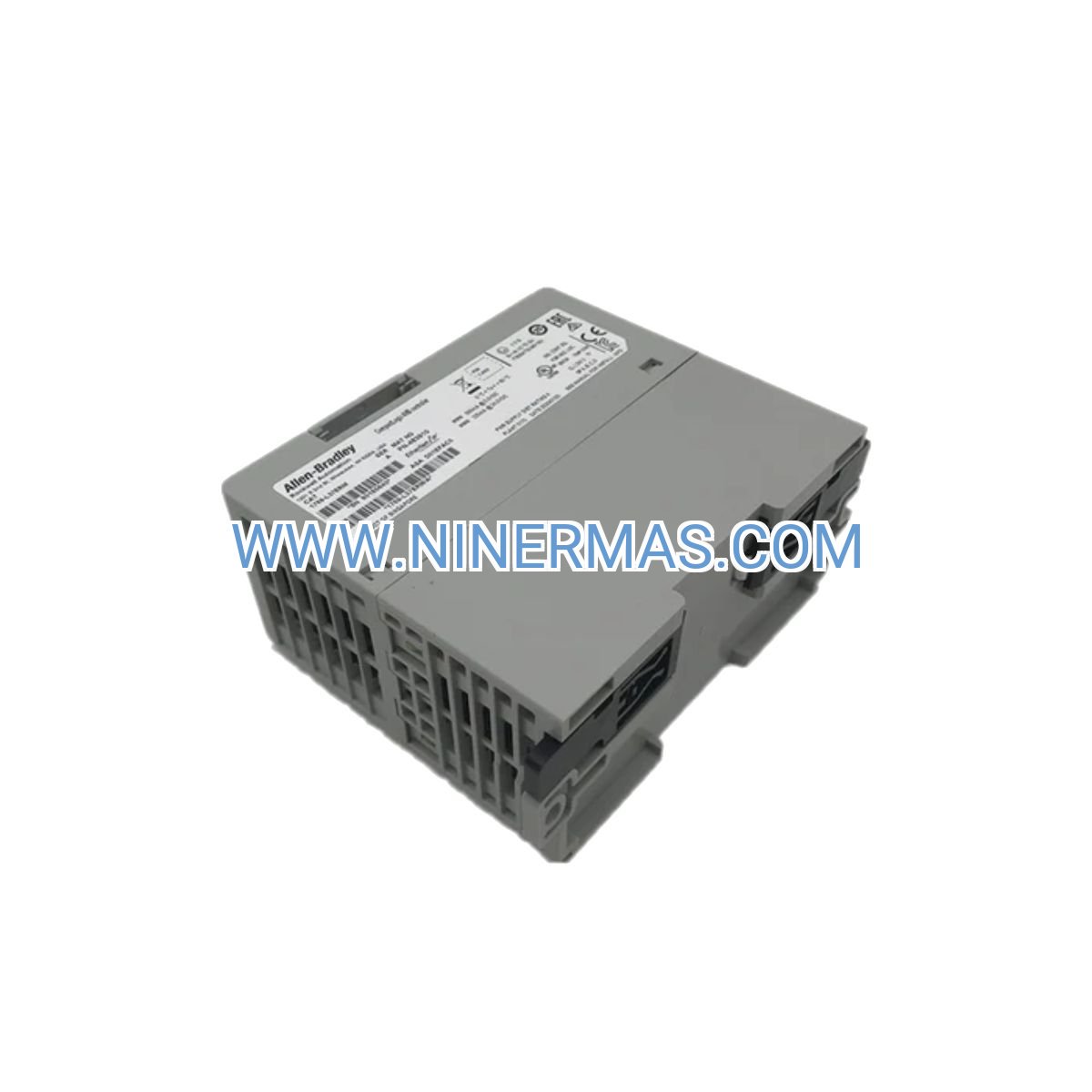

1769-L37ERM CompactLogix Controller (Industrial-Grade Automation Platform)

The 1769-L37ERM represents Allen-Bradley's advanced CompactLogix solution for demanding industrial environments requiring high-performance control, network redundancy, and integrated motion capabilities. Engineered with 4MB user memory, dual 10/100 Mbps Ethernet ports supporting Device Level Ring (DLR) topology, and native 16-axis CIP Motion with kinematics, this controller eliminates the need for separate motion processors while delivering enterprise-grade reliability.

Designed for manufacturers seeking scalable automation architectures, the L37ERM supports up to 30 local 1769 I/O modules and 64 EtherNet/IP nodes, enabling seamless expansion as production demands evolve. Its compact footprint (89mm × 105mm) and DIN-rail mounting simplify installation in space-constrained control cabinets.

Whether you're modernizing legacy systems or deploying new production lines, the 1769-L37ERM delivers the processing power, connectivity, and motion control precision required for competitive manufacturing operations.

Core Features & Business Value

→ 4MB High-Capacity Memory
Execute complex ladder logic, structured text programs, recipe management, and data logging without performance degradation. Ideal for applications requiring extensive alarm handling, batch processing, or multi-product manufacturing workflows.

✓ Dual Ethernet with DLR Redundancy
Maintain network continuity during cable failures or switch malfunctions. DLR topology automatically reroutes communications within milliseconds, minimizing unplanned downtime and protecting production schedules in mission-critical operations.

✓ Integrated 16-Axis CIP Motion Control
Eliminate standalone motion controllers and reduce system complexity. Execute coordinated multi-axis movements, cam profiles, electronic gearing, and position synchronization directly from the PLC—lowering hardware costs by 20-30% compared to distributed motion architectures.

✓ Scalable I/O Architecture (30 Local Modules)
Expand digital inputs/outputs, analog channels, specialty modules (temperature, weight, vision) without controller replacement. Future-proof your investment as automation requirements grow from pilot lines to full-scale production.

✓ EtherNet/IP Connectivity (64 Nodes)
Integrate HMIs, drives, I/O blocks, and third-party devices over standard Ethernet infrastructure. Leverage ODVA-certified CIP protocol for seamless interoperability across multi-vendor automation ecosystems.

✓ Onboard SD Card Storage (1GB Included)
Store programs, firmware, recipes, and audit logs locally. Enable rapid controller replacement during maintenance windows—technicians simply swap the SD card to restore full configuration in under 5 minutes.

Typical Application Scenarios

Automated Packaging Lines
Challenge: Coordinating filling stations, capping machines, labelers, and case packers with sub-millisecond timing accuracy.
Solution: The L37ERM's 16-axis motion control synchronizes servo drives for precise product positioning, while DLR redundancy ensures continuous operation during 24/7 production shifts. Result: 15-20% throughput improvement and 99.7% uptime.

Robotic Assembly Cells
Challenge: Managing pick-and-place robots, vision systems, torque tools, and quality inspection stations in automotive component manufacturing.
Solution: Integrated motion control handles robot path planning and tool coordination, while 4MB memory supports complex decision logic for defect routing and statistical process control. Result: 40% reduction in integration time versus separate PLC/motion controller systems.

Material Handling Conveyors
Challenge: Controlling 20+ conveyor zones with dynamic routing, accumulation, and merge/divert logic in distribution centers.
Solution: EtherNet/IP connectivity links distributed I/O blocks across 300+ meters, while DLR topology maintains communications during cable damage from forklift traffic. Result: 30% lower installation costs versus hardwired I/O.

Pharmaceutical Batch Processing
Challenge: Executing FDA 21 CFR Part 11-compliant recipe management with full audit trails and electronic signatures.
Solution: 4MB memory stores 500+ product recipes with ingredient tracking, while SD card logging provides tamper-proof batch records for regulatory compliance. Result: 50% faster product changeovers and simplified validation documentation.

CNC Machine Tool Integration
Challenge: Coordinating spindle control, tool changers, coolant systems, and part probing in precision machining centers.
Solution: CIP Motion kinematics enable 5-axis interpolation for complex tool paths, while high-speed I/O responds to tool breakage detection within 2ms. Result: 25% improvement in surface finish quality and 60% reduction in scrap rates.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose L37ERM when you need motion control + network redundancy in a single platform
• For applications requiring >16 axes, consider ControlLogix 5580 controllers
• If safety-rated I/O is required, pair with GuardLogix safety modules or upgrade to GuardLogix controller
• For basic discrete control without motion, 1769-L33ER offers cost savings with 2MB memory
• Verify power supply capacity: recommend 1769-PA4 (10A) for systems with >15 I/O modules

Extended Functions

IoT & Industry 4.0 Integration
Leverage built-in OPC UA server capabilities (via Studio 5000 add-on) to publish real-time production data to MES/ERP systems, cloud analytics platforms, and mobile dashboards. Enable predictive maintenance by streaming vibration, temperature, and cycle count data to Azure IoT Hub or AWS IoT Core.

Advanced Motion Profiles
Execute electronic camming for packaging applications, flying shear operations in converting lines, and registration control for printing presses. Built-in kinematics functions support SCARA, delta, and Cartesian robot configurations without third-party libraries.

Customization Options
Conformal coating available for high-humidity or chemical exposure environments. Extended temperature models (-25°C to 70°C) support outdoor installations and thermal processing applications. Custom firmware configurations available for OEM machine builders requiring application-specific function blocks.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom configurations (conformal coating, extended temp) require 4-6 weeks manufacturing lead time.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance issues. Advance replacement available for critical applications—replacement units ship within 24 hours of claim approval.

Technical Support: Access to certified Rockwell Automation engineers for application assistance, troubleshooting, and programming guidance. Remote diagnostics support via TeamViewer or AnyDesk for rapid issue resolution.

Documentation Package: Each controller includes installation manual, quick-start guide, wiring diagrams, sample ladder logic programs, and Studio 5000 configuration files. Downloadable resources include 3D CAD models (STEP/IGES), panel layout templates, and integration guides for common drives/I/O modules.

Frequently Asked Questions

What programming software is required for the 1769-L37ERM controller?
You'll need Rockwell Automation's Studio 5000 Logix Designer (version 21 or later recommended). The software supports ladder logic, function block diagram, structured text, and sequential function chart programming languages. A single Studio 5000 license covers programming, configuration, diagnostics, and online monitoring for all CompactLogix and ControlLogix platforms.

Can I expand the I/O capacity beyond 30 local modules?
Yes—while the controller supports 30 local 1769 modules on the backplane, you can add unlimited distributed I/O via EtherNet/IP using POINT I/O, ArmorBlock I/O, or Flex I/O adapters. The 64-node EtherNet/IP limit applies to total network devices (I/O adapters, drives, HMIs combined), but each adapter can host 8-16 I/O modules, effectively supporting 500+ I/O points.

How does Device Level Ring redundancy improve uptime compared to standard Ethernet?
DLR topology creates a physical ring where each device has two Ethernet connections. If a cable is cut or a switch fails, the ring automatically reconfigures within 3-5 milliseconds—faster than a single PLC scan cycle. Standard star topology requires manual cable replacement and system restart, causing 15-60 minutes of downtime per incident. In 24/7 operations, DLR typically prevents 8-12 hours of annual downtime.

Is the 1769-L37ERM suitable for safety-rated applications?
This is a standard controller and does not provide SIL-rated safety functions. For applications requiring safety interlocks (emergency stops, light curtains, safety gates), you have two options: (1) Add GuardLogix safety I/O modules to the 1769 backplane for distributed safety I/O while keeping the L37ERM for standard control, or (2) Upgrade to a GuardLogix 5370 controller for integrated safety and standard control in a single processor.

What motion control capabilities are included without additional licensing?
The L37ERM includes full CIP Motion functionality for 16 axes at no additional cost: coordinated motion (cam, gearing, position sync), kinematics (Cartesian, SCARA, delta robots), electronic gearing ratios, S-curve acceleration profiles, and position/velocity/torque control modes. You only need to purchase compatible servo drives (Kinetix 5500/5700 series recommended) and configure axis parameters in Studio 5000.

Can I use this controller to replace an older SLC 500 or PLC-5 system?
Yes—Rockwell provides migration tools in Studio 5000 to convert SLC 500 and PLC-5 programs to Logix format. However, you'll need to replace I/O modules (1746/1771 series are incompatible with 1769 backplane) and update HMI tags. Budget 40-60 hours of engineering time for a typical 500-rung program migration, including I/O mapping verification and functional testing. The performance improvement typically justifies the investment—scan times improve 5-10× and network diagnostics reduce troubleshooting time by 70%.

Ready to Modernize Your Automation Infrastructure?

The 1769-L37ERM delivers the processing power, network resilience, and motion control precision required for competitive manufacturing. Whether you're upgrading legacy systems or deploying new production lines, our engineering team provides application support, configuration assistance, and rapid delivery to keep your project on schedule.

Contact our automation specialists today: Share your I/O count, motion axis requirements, and network topology—we'll provide a complete bill of materials with power supply sizing, I/O module recommendations, and Studio 5000 configuration templates within 24 hours.
