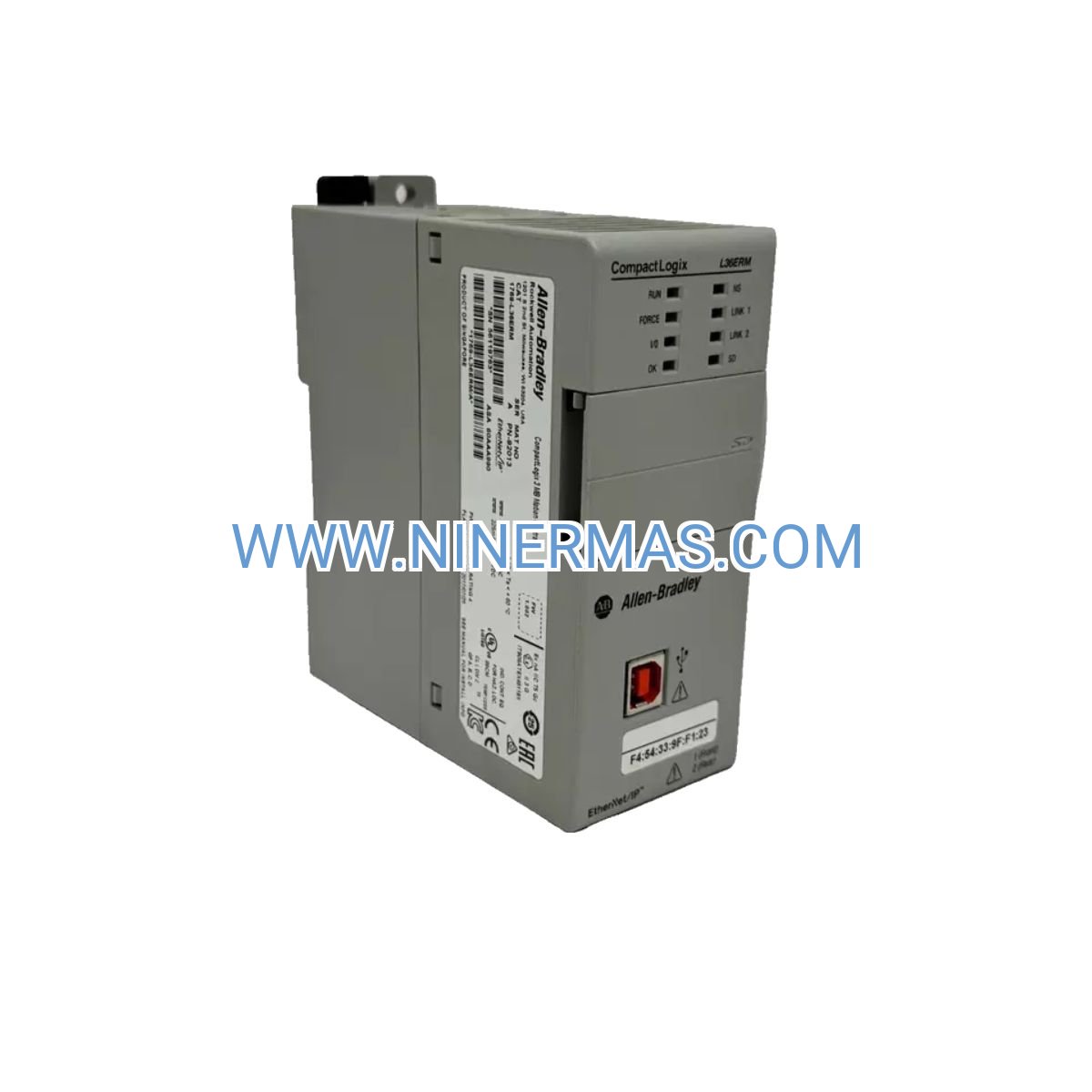

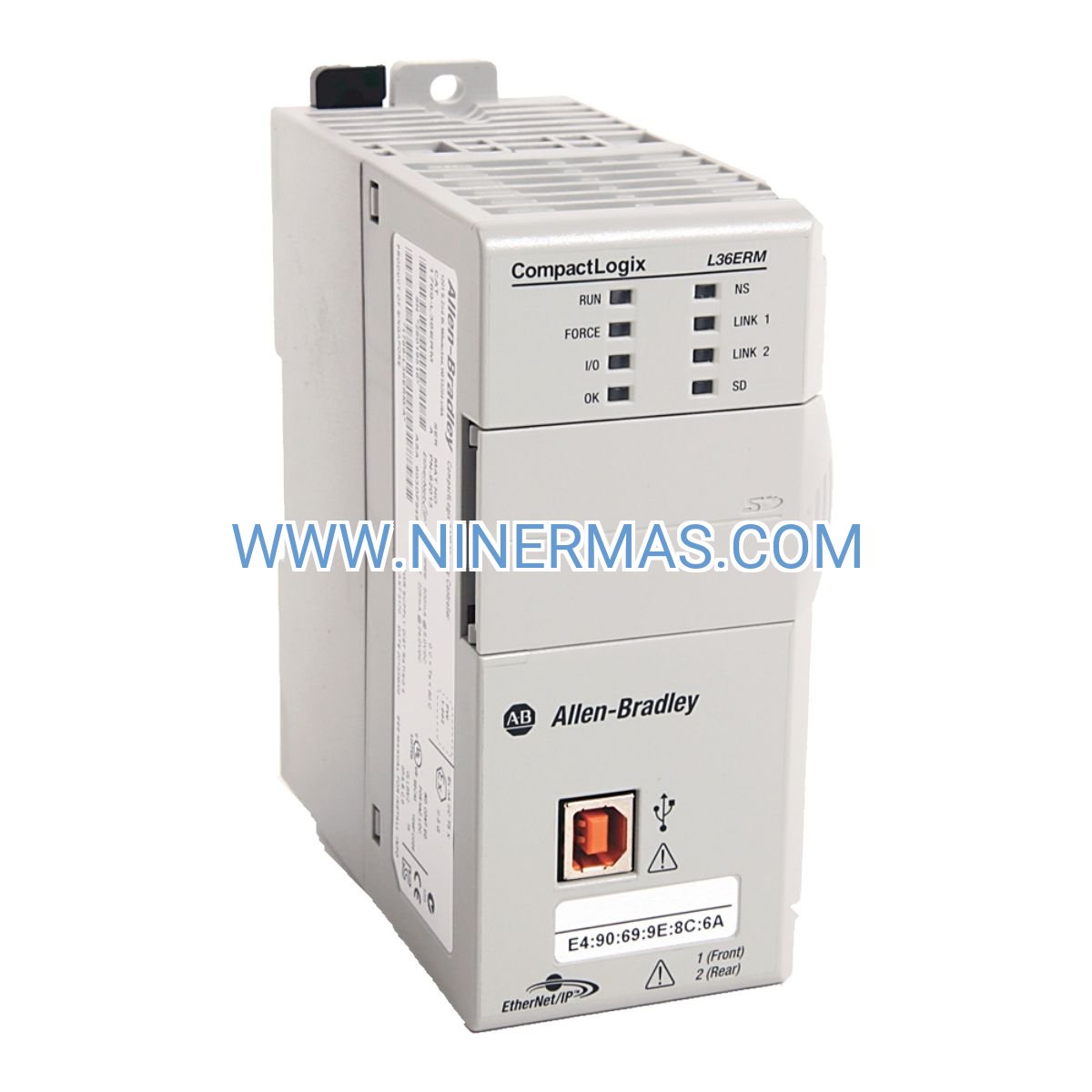

1769-L36ERM Industrial-Grade Motion Controller

The 1769-L36ERM represents a breakthrough in industrial motion control technology, delivering synchronized multi-axis coordination for demanding manufacturing environments. Built on the CompactLogix 5370 L3 platform, this controller combines 3MB of expandable user memory with dual embedded EtherNet/IP communication ports to orchestrate up to 16 servo axes with microsecond-level precision.

Designed for manufacturers who demand reliability in high-throughput production lines, the 1769-L36ERM eliminates motion control complexity through integrated CIP Motion™ protocol and advanced kinematics algorithms. Whether you're coordinating robotic pick-and-place operations, synchronizing packaging line components, or managing multi-spindle machining centers, this controller provides the deterministic performance critical to maintaining production uptime and product quality.

With factory-calibrated motion profiles and plug-and-play integration into Rockwell Automation's Integrated Architecture®, the 1769-L36ERM reduces commissioning time by up to 40% compared to traditional motion control systems. Dual Ethernet ports enable Device Level Ring (DLR) topology for network redundancy, ensuring your production line stays operational even during network disruptions.

Core Features & Business Value

→ 16-Axis Coordinated Motion Control
Orchestrate complex multi-axis movements with CIP Motion™ technology. Achieve ±0.001° positioning accuracy for precision assembly, synchronized gantry systems, and coordinated robotic cells. Reduces scrap rates by maintaining tight tolerances across all motion axes.

✓ 3MB High-Capacity User Memory
Store extensive motion programs, recipe databases, and diagnostic logs without external storage. Supports up to 1000 motion instruction blocks and 500 cam profiles simultaneously. Eliminates program size constraints that limit production flexibility.

→ Dual Embedded EtherNet/IP Ports
Deploy Device Level Ring (DLR) topology for automatic network failover in under 3ms. Communicate with up to 250 I/O modules and 100 servo drives on a single network. Reduces wiring costs by 30% versus traditional star topology configurations.

✓ Deterministic Real-Time Performance
Execute motion control loops at 1ms update rates with guaranteed scan time consistency. Jitter-free servo command generation ensures smooth velocity profiles and vibration-free operation. Critical for applications requiring ISO 10791-6 contouring accuracy.

→ Integrated Kinematics Engine
Built-in support for Cartesian, SCARA, Delta, and custom kinematic transformations. Convert tool-path coordinates to joint-space commands automatically. Simplifies programming for 3D pick-and-place, robotic welding, and articulated assembly systems.

✓ Hot-Swappable I/O Expansion
Add or replace up to 30 local I/O modules without powering down the controller. Supports 4000 digital I/O points and 500 analog channels. Minimizes production downtime during maintenance and system upgrades.

Application Scenarios

High-Speed Packaging & Labeling Lines
Synchronize product infeed conveyors, rotary fillers, capping stations, and labeling applicators with electronic line-shaft control. The 1769-L36ERM maintains phase relationships between up to 16 packaging stations, enabling speeds exceeding 600 packages/minute while compensating for product size variations. Reduces changeover time by 50% through recipe-based motion profiles stored in controller memory.

Automotive Assembly & Welding Cells
Coordinate multi-robot welding sequences with conveyor tracking and fixture positioning systems. Position accuracy within ±0.05mm ensures consistent weld quality across body panels and chassis components. Integrated safety I/O interfaces with GuardLogix® safety controllers for collaborative robot applications meeting ISO/TS 15066 requirements.

CNC Machining Centers & Metal Fabrication
Drive 5-axis milling machines, laser cutting systems, and waterjet equipment with G-code compatible motion control. Contouring velocities up to 5000mm/sec with look-ahead trajectory planning minimize cycle times on complex 3D geometries. Spindle synchronization enables thread milling and gear hobbing operations without mechanical gearboxes.

Printing, Converting & Web Handling
Maintain registration accuracy within ±0.1mm across multi-color printing presses and laminating lines operating at 300 meters/minute. Electronic cam profiles replace mechanical gearboxes for cut-to-length, perforating, and slitting operations. Tension control algorithms prevent web breaks and material waste on delicate substrates.

Material Handling & Warehouse Automation
Orchestrate automated storage/retrieval systems (AS/RS) with coordinated crane movements, conveyor merges, and robotic palletizing. The controller manages up to 16 independent material flow zones with collision avoidance and priority-based routing. Throughput rates exceed 1200 totes/hour in high-density distribution centers.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-L36ERM when your application requires 9-16 coordinated motion axes. For 1-8 axes, consider the 1769-L33ERM (2MB memory). If your application needs safety-rated motion control, integrate with a GuardLogix® 5580 controller. Ensure your Studio 5000 Logix Designer® software is version 21 or later for full motion instruction support.

Extended Functions

IoT & Industry 4.0 Integration: The controller supports FactoryTalk® Analytics for real-time OEE monitoring and predictive maintenance. Export motion performance data via OPC-UA for integration with MES/ERP systems. Cloud connectivity through FactoryTalk® Hub enables remote diagnostics and firmware updates.

Advanced Motion Capabilities: Electronic gearing ratios up to 1:10,000 for precision synchronization. Cam profile editor supports 256 segments per cam with polynomial interpolation. Flying shear and registration control for continuous web applications. Torque limiting and homing routines built into motion instruction set.

Customization Options: Available with conformal coating for harsh environments (order suffix /B). Extended temperature models (-25°C to 70°C) available for outdoor installations. Custom motion function blocks can be developed using Add-On Instructions (AOI) in Studio 5000.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom configurations (conformal coating, extended temp) require 4-6 weeks. Expedited shipping available for critical downtime situations.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes firmware updates and technical support via phone/email. Extended warranty plans available for up to 5 years.

Technical Support: Pre-sales application engineering assistance for motion system sizing and network architecture design. Post-sales support includes Studio 5000 programming guidance, motion tuning optimization, and troubleshooting. On-site commissioning services available in major industrial regions.

Documentation Package: Each controller ships with installation quick-start guide, wiring diagrams, and safety compliance certificates. Full user manual, motion instruction reference, and sample code libraries available via digital download. CAD models (STEP, DXF) provided for panel layout design.

Frequently Asked Questions

How does the 1769-L36ERM compare to legacy SLC 500 motion controllers?
The L36ERM offers 10× faster scan times, 8× more memory, and native EtherNet/IP communication versus SLC 5/05 with 1746-M16 motion modules. Migration tools in Studio 5000 convert legacy ladder logic to Logix Designer format, typically reducing code size by 30%.

What servo drive brands are compatible with this motion controller?
Fully compatible with Kinetix® 5500, 5700, and 6500 servo drives via CIP Motion. Also supports third-party drives with EtherNet/IP adapters (Yaskawa, Bosch Rexroth, SEW Eurodrive) using generic axis profiles. Consult compatibility matrix in publication 1769-UM002 for specific drive models.

Can I achieve sub-millisecond motion control update rates?
Yes, the controller supports Coarse Update Period (CUP) down to 0.5ms when using high-performance Kinetix drives and optimized network configurations. Requires dedicated motion network separate from standard I/O traffic. Consult motion system capacity worksheet for axis count limitations at faster update rates.

What programming skills are required to implement motion control?
Basic proficiency in Studio 5000 Logix Designer and ladder logic is required. Motion-specific instructions (MAM, MAJ, MAPC) use function-block syntax similar to standard control instructions. Rockwell Automation offers 3-day motion control training courses (Course #CCN146) covering kinematics, tuning, and troubleshooting.

Is the controller suitable for outdoor or washdown environments?
Standard models are IP20 rated for enclosed panel mounting. For outdoor installations, specify conformal-coated version (suffix /B) and install in NEMA 4X enclosure. Not suitable for direct washdown exposure—use IP67-rated Compact GuardLogix controllers for food/beverage applications requiring frequent cleaning.

How do I size the power supply for a CompactLogix motion system?
The L36ERM controller draws 8W. Add power consumption of all I/O modules (typically 2-5W each) plus 20% safety margin. For a system with 10 I/O modules, a 1769-PA4 power supply (10W controller + 40W I/O + 20% = 60W total) provides adequate capacity. Servo drives require separate 480V AC or 650V DC power supplies.

Take the Next Step

Ready to upgrade your motion control system? Contact our application engineers for a free motion system assessment. We'll analyze your axis count, speed requirements, and I/O needs to configure the optimal CompactLogix solution. Request a formal quotation with lead times, or schedule a live demonstration of the 1769-L36ERM controlling a multi-axis test stand.
