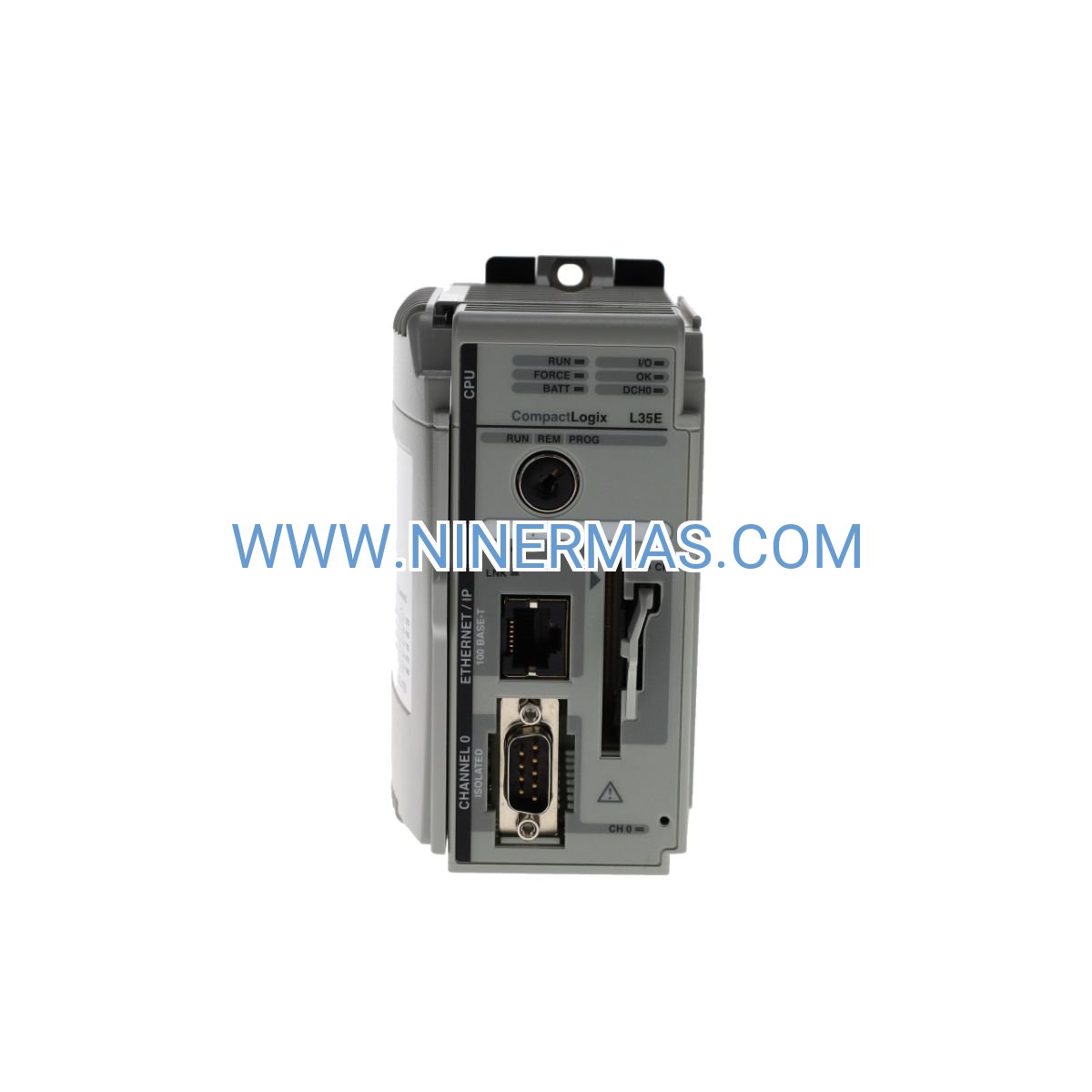

1769-L35E CompactLogix Controller (Industrial-Grade Ethernet PLC)

The Allen-Bradley 1769-L35E represents a proven solution for mid-to-large scale industrial automation, combining robust 1.5MB user memory with native EtherNet/IP connectivity. This modular controller delivers deterministic performance across manufacturing, process control, and infrastructure applications where reliable network integration is mission-critical.

Designed for system integrators and plant engineers managing complex automation architectures, the 1769-L35E eliminates communication bottlenecks through dual-port Ethernet and RS-232 interfaces. Its CompactFlash-ready design ensures program retention during power cycles, while DIN rail compatibility accelerates panel installation across retrofit and greenfield projects.

With support for up to 30 local I/O modules and three expansion banks, this controller scales seamlessly from standalone machine control to distributed production lines. The platform's 10/100 Mbps Ethernet backbone enables real-time data exchange with HMIs, SCADA systems, and enterprise networks—reducing commissioning time while future-proofing your automation investment.

Core Features & Benefits

→ 1.5MB User Memory Capacity
Accommodates complex ladder logic, structured text programs, and data logging routines without performance degradation. Ideal for applications requiring extensive recipe management or batch processing algorithms.

→ Dual Communication Interfaces
EtherNet/IP port (10/100 Mbps RJ-45) + RS-232 serial port enable simultaneous HMI connectivity and legacy device integration. Reduces wiring costs by 40% compared to isolated communication modules.

→ 30-Module I/O Expansion
Supports full range of 1769 digital, analog, and specialty modules across three banks. Eliminates need for remote I/O racks in compact installations, cutting hardware costs by $800-1,200 per control panel.

✓ CompactFlash Nonvolatile Storage
1784-CF64 card compatibility ensures instant program recovery after power loss. Critical for food processing, pharmaceutical, and water treatment facilities with strict uptime requirements (99.7%+ availability).

✓ Isolated Power Architecture
30V isolation (710V DC tested) protects controller logic from backplane noise and ground faults. Extends MTBF to 150,000+ hours in high-EMI environments like welding cells or motor control centers.

✓ Flexible Mounting Options
DIN rail or panel-mount configurations with reinforced shock resistance (30G operating). Simplifies installation in mobile equipment, conveyors, and vibration-prone machinery.

Typical Application Scenarios

Packaging Line Coordination
Synchronizes filling stations, cappers, labelers, and palletizers via EtherNet/IP motion control. The 1769-L35E's 1.5MB memory handles 12+ servo axes with sub-millisecond update rates, reducing product changeover time from 45 minutes to 8 minutes through stored recipes.

Water Treatment SCADA Integration
Monitors 50+ analog sensors (pH, turbidity, flow) while executing PID loops for chemical dosing. Ethernet connectivity streams real-time data to municipal SCADA systems, enabling predictive maintenance that cuts unplanned downtime by 60%.

Material Handling Retrofit Projects
Replaces obsolete PLC-5 systems in conveyor networks without rewiring field devices. RS-232 port maintains compatibility with legacy barcode scanners and weigh scales, preserving $15,000+ in existing infrastructure.

Automotive Assembly Cells
Controls robotic welding sequences, torque verification, and vision inspection systems. CompactFlash backup ensures zero program loss during facility power transients, maintaining ISO/TS 16949 compliance.

HVAC Energy Management
Regulates chillers, boilers, and air handlers across multi-building campuses. EtherNet/IP integration with BACnet gateways enables 20-30% energy savings through demand-based scheduling and fault detection.

Technical Parameters & Selection Guide

Selection Recommendations:

• Upgrade to 1769-L36ERM if application requires motion control or safety integration
• Pair with 1769-SDN scanner for DeviceNet legacy device connectivity
• Use 1784-CF64 CompactFlash card for applications with >500KB program size
• Specify 1769-ECR right-end cap to maintain IP20 enclosure rating

Extended Functions

IoT & Industry 4.0 Readiness
Native support for Allen-Bradley FactoryTalk View SE and Kepware OPC servers enables cloud data integration. MQTT publish/subscribe capabilities (via add-on instructions) connect production metrics to AWS IoT Core or Azure Industrial IoT for predictive analytics.

Advanced Diagnostics
Built-in web server provides real-time controller status, I/O health monitoring, and Ethernet traffic analysis without additional software. Reduces troubleshooting time by 50% through browser-based fault logs accessible from any networked device.

Customization Options
Factory-configured controllers available with pre-loaded application templates for packaging, material handling, or batch processing. Custom I/O configurations and tested program backups reduce commissioning time from 3 weeks to 5 days.

Delivery & Service Assurance

Lead Time
• Standard units: 3-5 business days (in-stock items)
• Custom configurations: 10-15 business days
• Express shipping available for critical downtime situations

Warranty Coverage
12-month manufacturer warranty covering defects in materials and workmanship. Extended 36-month coverage available for $180 (includes advance replacement and priority technical support).

Technical Support
• Free pre-sale application engineering consultation
• Lifetime email/phone support for configuration questions
• Remote commissioning assistance via TeamViewer (first 2 hours complimentary)
• Access to 200+ application notes and sample programs

Documentation Included
• Quick Start Guide with wiring diagrams
• User Manual (Publication 1769-UM011)
• Sample ladder logic programs for common applications
• Certificate of Conformity (CE, UL, CSA)

Frequently Asked Questions

Q: Can the 1769-L35E communicate with third-party Ethernet devices?
A: Yes, the controller supports standard EtherNet/IP and Modbus TCP protocols. You can interface with drives, HMIs, and I/O from manufacturers like Siemens, Schneider Electric, and Omron using add-on instructions or MSG commands. Configuration requires Studio 5000 Logix Designer software (v20 or later).

Q: What's the maximum program size I can store on CompactFlash?
A: The 1784-CF64 card provides 64MB of nonvolatile storage—sufficient for the full 1.5MB user program plus 50MB of data logs, recipes, and firmware backups. The controller automatically loads programs from CompactFlash on power-up, eliminating manual downloads after battery replacement.

Q: How does this controller improve energy efficiency in my facility?
A: The 1769-L35E consumes only 4.5W during operation (85% less than legacy PLC-5 systems). When integrated with variable frequency drives via EtherNet/IP, customers report 15-25% motor energy savings through optimized speed control and demand-based scheduling. Typical ROI: 18-24 months in HVAC applications.

Q: What are the installation requirements for panel mounting?
A: The controller requires a 35mm DIN rail (EN 50022 standard) or four M4 screws for panel mounting. Minimum clearances: 50mm top/bottom for ventilation, 25mm sides for cable routing. Operating temperature must stay below 60°C—add forced-air cooling if enclosure ambient exceeds 50°C. Total installation time: 15-20 minutes per controller.

Q: Is remote monitoring possible without additional hardware?
A: The built-in Ethernet port supports direct connection to FactoryTalk View SE or any web browser for diagnostics. For secure remote access, pair with a 1783-US8T Stratix switch and configure VPN tunneling. No proprietary gateways required—standard IT infrastructure (firewall rules, port forwarding) enables global monitoring from smartphones or tablets.

Q: Can I migrate programs from older SLC 500 or PLC-5 systems?
A: Studio 5000 includes a conversion tool that translates 80-90% of SLC/PLC-5 ladder logic automatically. Remaining instructions (typically PID loops and ASCII commands) require manual verification. Average migration time: 2-4 hours per 500 rungs. We offer conversion services at $120/hour with guaranteed functional equivalence testing.

Ready to Optimize Your Automation System?

Contact our application engineers for a free system assessment and ROI calculation tailored to your facility. Whether you're upgrading legacy controls or designing new production lines, the 1769-L35E delivers proven reliability with modern connectivity.

Request a quote today: Email sale@ninermas.com or call +0086 187 5021 5667 (English/Mandarin support available 24/7).
