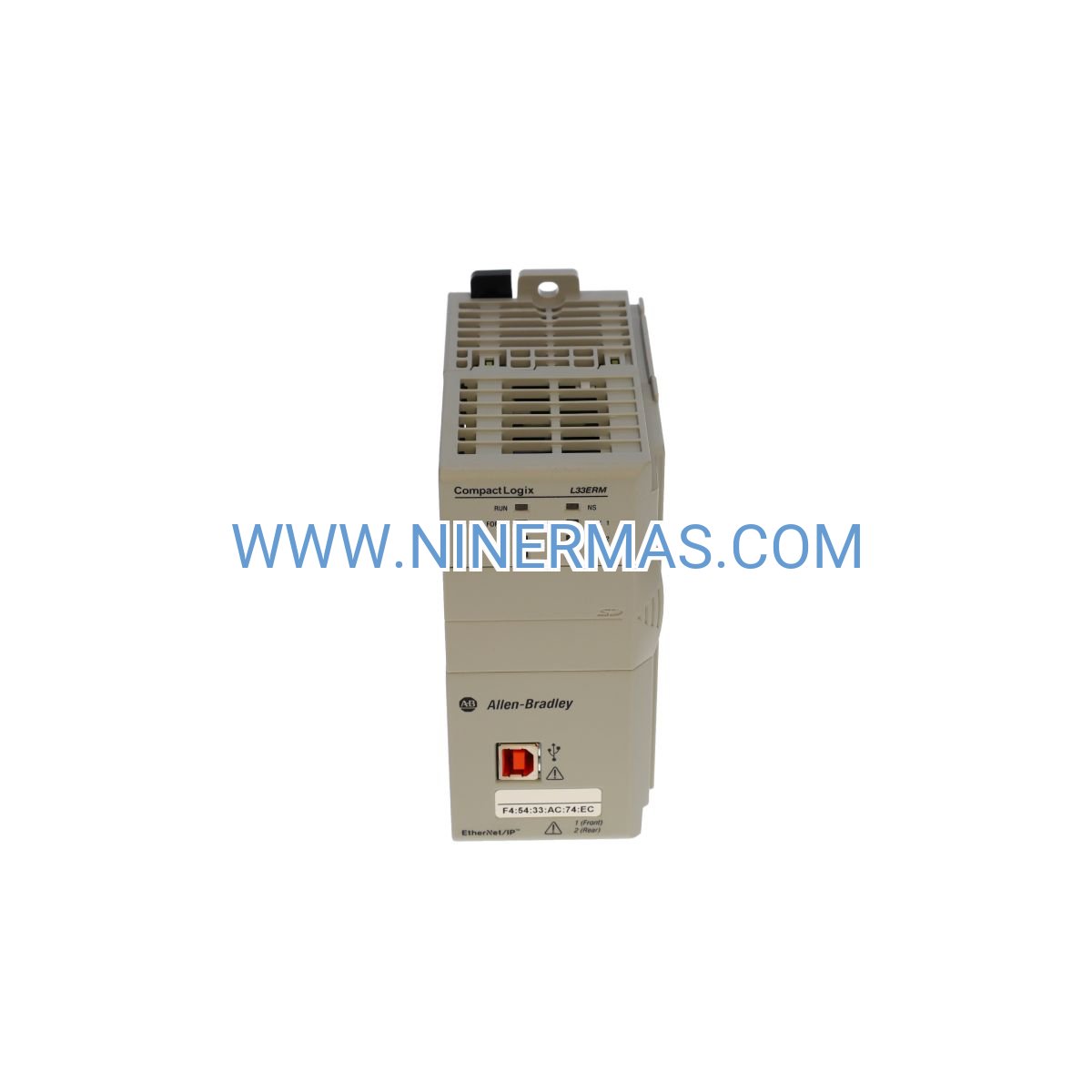

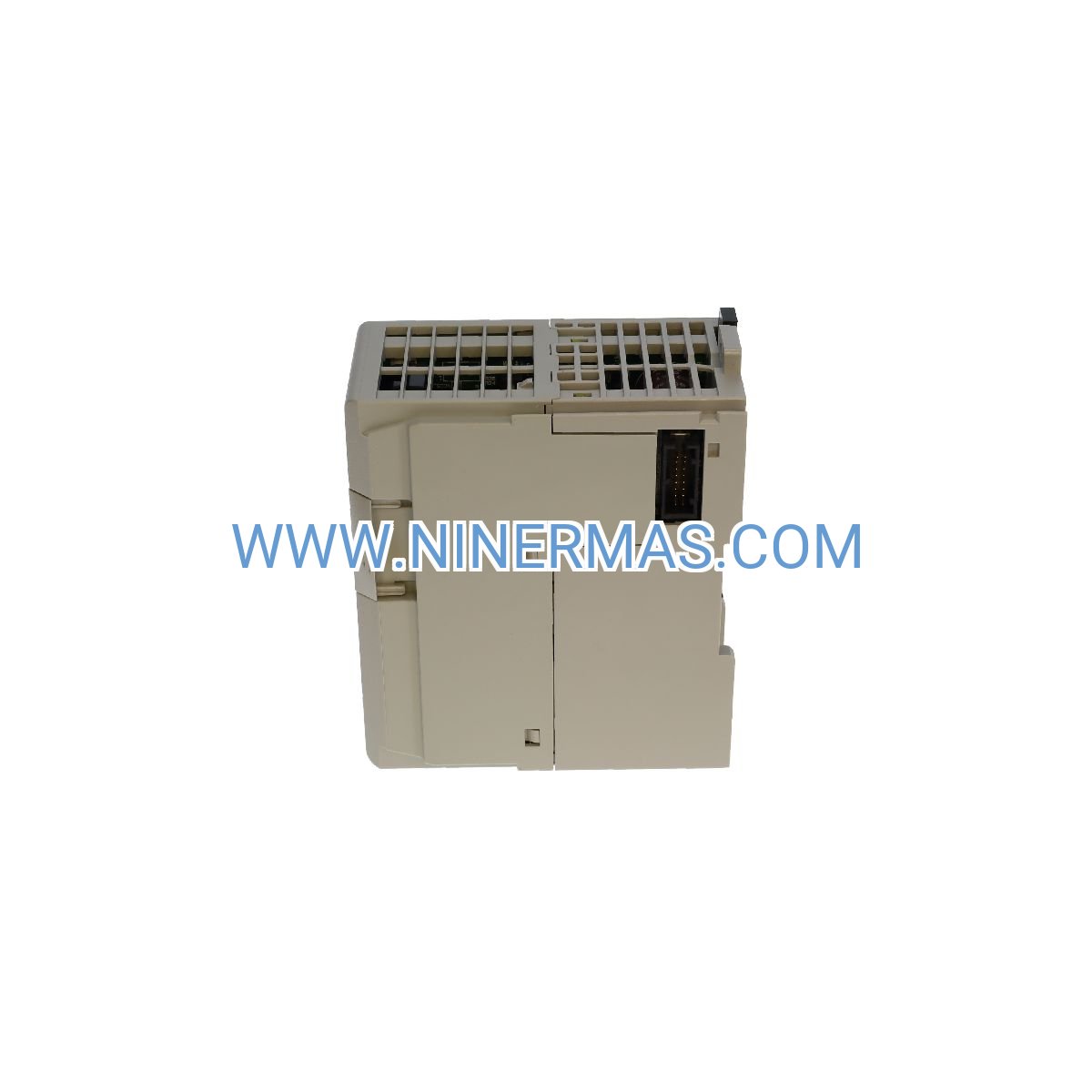

1769-L33ERM CompactLogix Motion Controller (Industrial-Grade Precision Automation)

The 1769-L33ERM represents a breakthrough in integrated motion control technology, combining advanced logic processing with synchronized multi-axis motion capabilities in a compact, DIN-rail mountable form factor. Engineered for manufacturers who demand precision, reliability, and seamless integration, this controller delivers exceptional performance across packaging, assembly, material handling, and converting applications.

Designed for OEMs and system integrators operating in fast-paced production environments, the 1769-L33ERM eliminates the complexity of separate motion and logic controllers. With 2MB of user memory and support for up to 8 coordinated axes, it provides the computational power and flexibility needed for sophisticated automation challenges while maintaining the simplicity of a unified programming environment.

Whether you're synchronizing servo-driven packaging lines, coordinating robotic assembly cells, or managing high-speed material handling systems, the 1769-L33ERM delivers the performance, diagnostics, and network connectivity essential for modern industrial automation. Factory-tested and certified to global standards, it's ready to integrate into your Integrated Architecture ecosystem.

Core Features & Technical Advantages

The 1769-L33ERM combines robust hardware with intelligent software capabilities:

• ✓ 8-Axis CIP Motion™ Support: Coordinate up to 8 servo or stepper axes with interpolated motion profiles, electronic gearing, and cam profiling for complex synchronized operations
• ✓ 2MB User Memory: Ample program and data storage for sophisticated motion algorithms, recipe management, and data logging without performance degradation
• ✓ Dual Embedded Ethernet/IP Ports: Enable device-level ring topology (DLR) for network redundancy, reduce wiring costs, and support simultaneous HMI and SCADA connections
• ✓ 16 Local I/O Module Expansion: Scale your system with digital, analog, specialty, and safety I/O modules on the same backplane without additional racks
• ✓ High-Speed Execution Engine: Sub-millisecond task execution ensures deterministic control for time-critical motion applications and rapid response to process changes
• ✓ Studio 5000 Integration: Unified development environment for logic, motion, safety, and drives reduces engineering time and simplifies troubleshooting

Industrial Application Scenarios

→ Packaging & Filling Operations

Synchronize multiple servo axes for bottle filling, capping, labeling, and case packing. The 1769-L33ERM's electronic gearing capabilities maintain precise registration between conveyors, fillers, and applicators, reducing product waste and increasing throughput by up to 25% compared to mechanical cam systems.

→ Automated Assembly Lines

Coordinate robotic pick-and-place operations with conveyor indexing and part presentation. Integrated motion control eliminates timing delays between discrete operations, reducing cycle times and improving product quality through repeatable positioning accuracy of ±0.01mm.

→ Material Handling & Sortation

Manage high-speed conveyor networks with dynamic speed control, zone accumulation, and diverter synchronization. Dual Ethernet ports enable real-time communication with warehouse management systems while maintaining deterministic control of physical processes.

→ Converting & Web Processing

Execute precision web tension control, registration correction, and flying shear operations for printing, laminating, and cutting applications. Advanced motion algorithms compensate for material variations and maintain product quality across varying production speeds.

→ CNC & Machine Tool Applications

Deliver multi-axis interpolated motion for milling, routing, and laser cutting operations. The controller's high-speed execution engine supports complex tool path calculations while maintaining smooth motion profiles and minimizing mechanical stress.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 1769-L33ERM when your application requires 4-8 coordinated motion axes with moderate program complexity. For applications requiring more than 8 axes or larger memory capacity, consider the 1769-L37ERM (4MB) or 1769-L38ERM (5MB). For basic logic control without motion requirements, the 1769-L32E provides cost-effective Ethernet connectivity.

Extended Capabilities & Integration Options

IoT & Industry 4.0 Readiness: Native support for MQTT, OPC UA, and RESTful APIs enables seamless integration with cloud platforms, MES systems, and analytics dashboards. Collect real-time production data, monitor equipment health, and implement predictive maintenance strategies without third-party gateways.

Advanced Motion Functions: Built-in support for electronic camming, gearing, registration, and coordinated motion simplifies complex machine sequences. Pre-configured function blocks accelerate development and reduce commissioning time by up to 40%.

Customization & OEM Solutions: Available with custom firmware configurations, pre-loaded application templates, and private labeling options for OEM partners. Contact our engineering team to discuss volume pricing and technical support packages.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-sealed OEM configurations

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended warranty options available for critical applications.

Technical Support: Lifetime access to our application engineering team for installation guidance, programming assistance, and troubleshooting support. Remote diagnostics and on-site commissioning services available upon request.

Documentation Package: Each unit includes installation manual, quick-start guide, wiring diagrams, sample code library, and access to online training resources.

Frequently Asked Questions

Q: How does the 1769-L33ERM compare to standalone motion controllers?
A: Unlike dedicated motion controllers, the 1769-L33ERM integrates logic and motion in a single platform, eliminating the need for separate processors and reducing system complexity. This unified architecture reduces engineering time by 30-50% and simplifies diagnostics through a single programming interface.

Q: What communication protocols are supported for motion drives?
A: The controller supports CIP Motion over Ethernet/IP for Kinetix servo drives, as well as generic Ethernet/IP communication for third-party drives. Analog and pulse-train outputs are available through compatible I/O modules for legacy drive integration.

Q: Can I upgrade from a non-motion CompactLogix controller?
A: Yes, the 1769-L33ERM is backward-compatible with existing 1769 I/O modules and can often be a drop-in replacement for L32E or L35E controllers. Motion functionality is added through Studio 5000 configuration without hardware changes to the I/O system.

Q: What is the maximum network update rate for motion axes?
A: The controller supports Coarse Update Periods (CUP) as fast as 1ms for motion axes, with typical configurations running at 2-4ms depending on axis count and network loading. This ensures smooth motion profiles and rapid response to position commands.

Q: Is redundancy supported for critical applications?
A: While the L33ERM itself does not support controller redundancy, the dual Ethernet ports enable Device Level Ring (DLR) topology for network redundancy. For full controller redundancy, consider the ControlLogix platform with redundant processors.

Q: What training resources are available for new users?
A: Rockwell Automation offers comprehensive training through authorized distributors, including Studio 5000 programming courses, motion control fundamentals, and application-specific workshops. We also provide access to online tutorials, sample code libraries, and technical documentation.

Take the Next Step in Automation Excellence

Ready to streamline your motion control architecture and reduce engineering complexity? Contact our technical sales team for application consultation, system sizing, and competitive quotations. We offer volume discounts for OEM partners and provide comprehensive pre-sales support to ensure the 1769-L33ERM meets your specific requirements.

Request a Quote: Email us your application details for same-day response
Technical Consultation: Schedule a call with our motion control specialists
Sample Code: Download pre-configured motion templates for common applications
