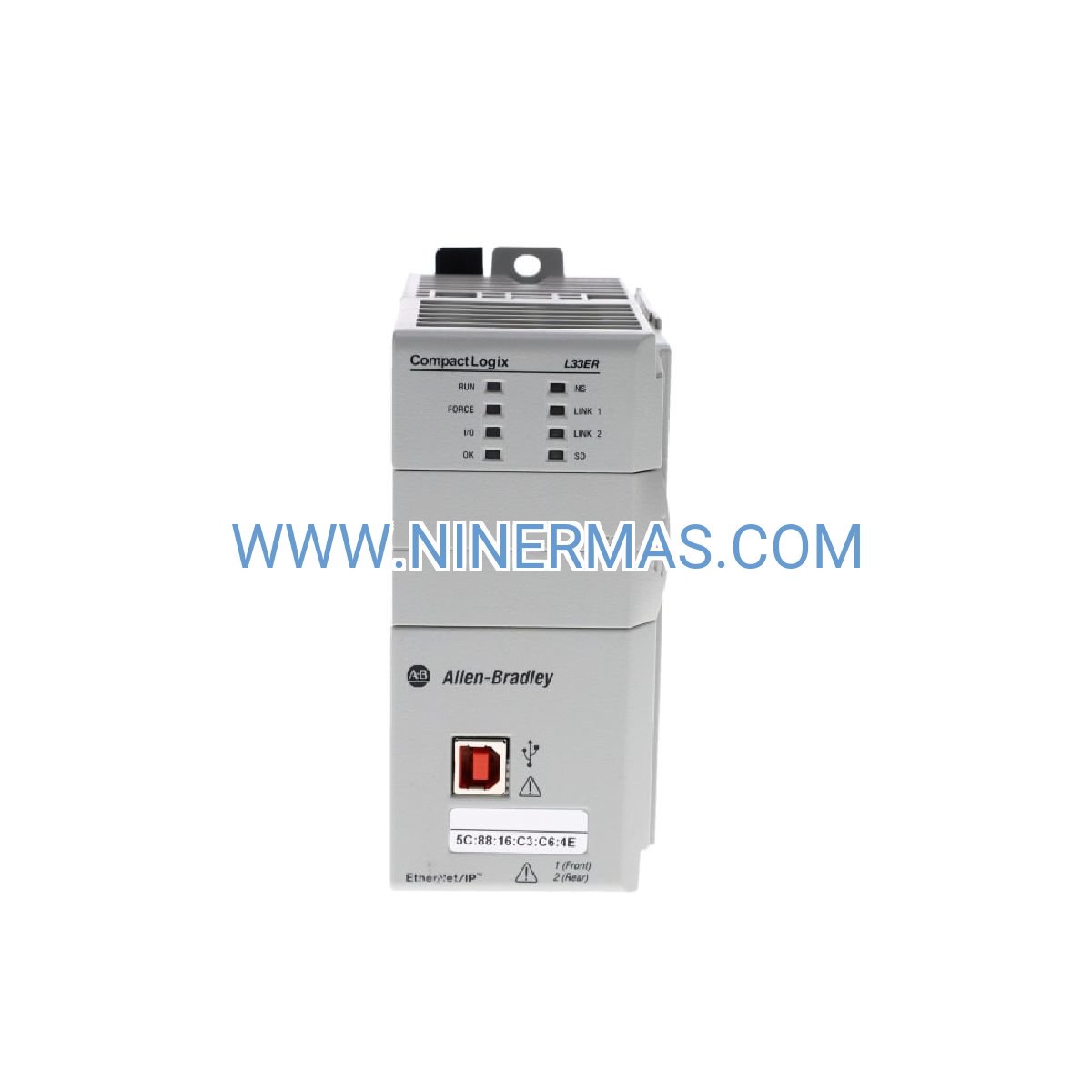

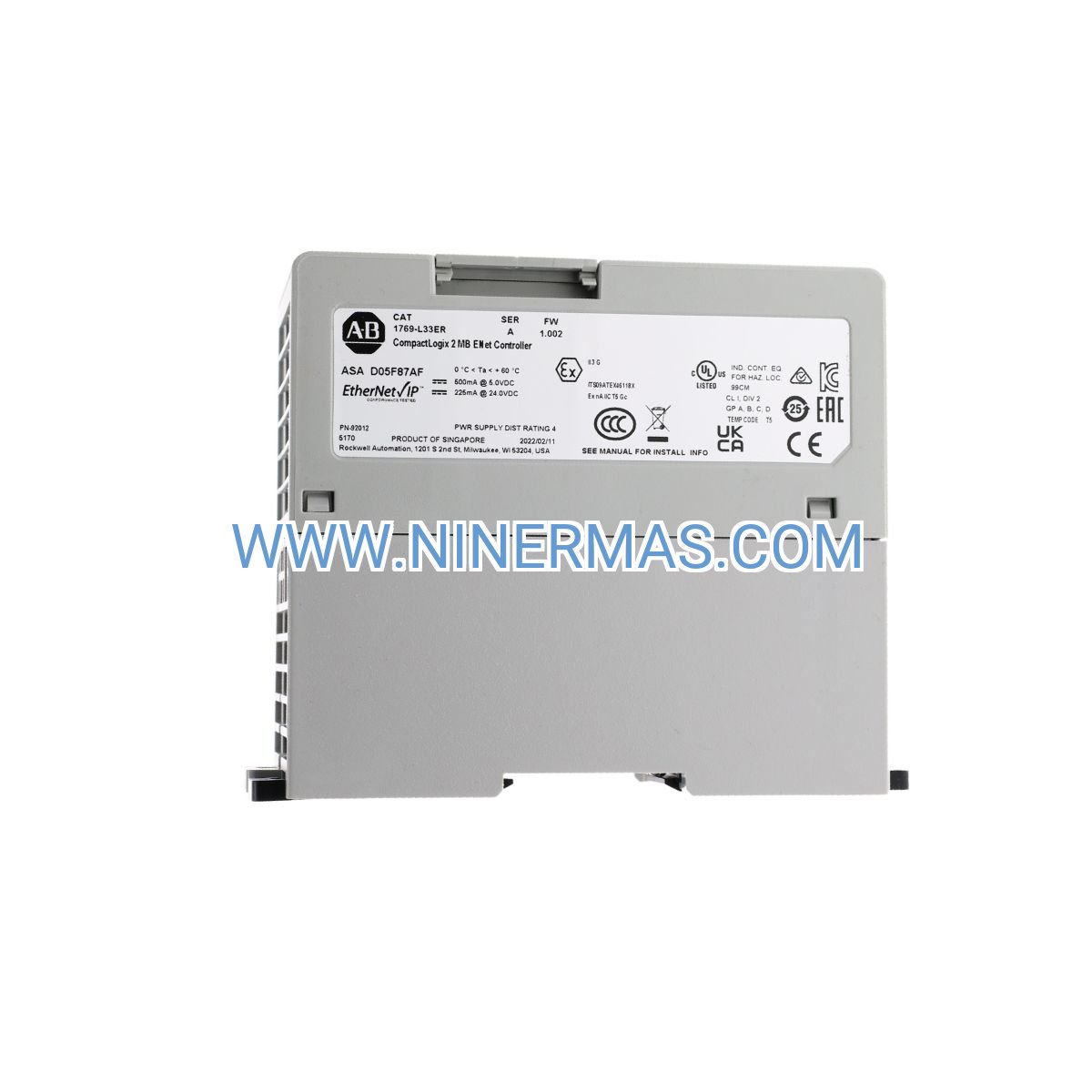

1769-L33ER Programmable Automation Controller (Industrial-Grade CompactLogix Platform)

The 1769-L33ER represents Allen-Bradley's next-generation CompactLogix 5370 L3 controller architecture, purpose-built for mission-critical industrial automation where network reliability and processing capacity cannot be compromised. This programmable logic controller combines 2MB of user-accessible memory with redundant EtherNet/IP communication infrastructure, delivering the performance headroom and fault tolerance required in 24/7 manufacturing operations.

Designed for system integrators and plant engineers managing complex production lines, the 1769-L33ER addresses the fundamental challenge of maintaining continuous control while scaling distributed I/O networks. Its dual embedded Ethernet ports eliminate single points of failure through Device Level Ring topology, while the expanded memory footprint accommodates sophisticated logic programs, recipe management, and real-time data logging without performance degradation.

Key differentiators include native support for 16 local I/O modules without additional racks, conformal coating options for harsh industrial environments, and seamless integration with Studio 5000 engineering tools—enabling faster commissioning, simplified troubleshooting, and unified programming across your automation ecosystem.

Core Capabilities & Business Value

✓ Dual EtherNet/IP Architecture
Two independent 10/100 Mbps Ethernet ports support simultaneous connections to HMI systems, SCADA networks, and distributed I/O—while DLR protocol automatically reroutes traffic during cable failures, maintaining sub-second recovery times that prevent costly production interruptions.

✓ 2MB User Memory Capacity
Store complex ladder logic, structured text programs, function blocks, and historical data buffers within a single controller—reducing the need for external data servers and enabling advanced diagnostics, predictive maintenance algorithms, and batch recipe storage directly at the machine level.

✓ Modular I/O Scalability
Expand control points up to 16 local 1769-series modules (digital, analog, specialty) without chassis upgrades—providing the flexibility to adapt to changing production requirements while protecting your initial hardware investment through incremental expansion.

→ High-Speed Execution Engine
Optimized processor delivers deterministic scan times under 10ms for typical applications, ensuring precise timing for motion coordination, synchronized material handling, and time-sensitive process control where millisecond-level accuracy impacts product quality.

→ Industrial-Hardened Construction
Operates reliably across 0°C to 60°C ambient temperatures with optional conformal coating for protection against moisture, dust, and chemical exposure—meeting the durability standards of automotive assembly, food processing, and chemical manufacturing environments.

→ Unified Programming Environment
Fully compatible with Studio 5000 Logix Designer's common development platform—allowing engineers to reuse code libraries, standardize programming practices, and reduce training overhead across ControlLogix, CompactLogix, and GuardLogix controller families.

Industrial Application Scenarios

Packaging & Labeling Systems
Coordinate high-speed servo drives, vision inspection cameras, and product tracking databases in pharmaceutical blister packaging or beverage bottling lines. The dual Ethernet architecture enables simultaneous communication with line-side HMIs and plant-level MES systems while maintaining real-time control loop performance.

Automated Material Handling
Manage conveyor networks, sortation systems, and AS/RS interfaces in distribution centers where DLR network redundancy prevents single-point failures from halting entire warehouse operations. The 2MB memory supports complex routing algorithms and inventory tracking logic without external processing.

Process Control & Batching
Execute multi-stage recipe management, PID loop control, and regulatory compliance reporting in chemical mixing, water treatment, or food ingredient batching applications. Integrated data logging capabilities satisfy FDA 21 CFR Part 11 audit trail requirements without third-party historians.

Assembly Line Automation
Orchestrate robotic work cells, torque tool verification, and quality gate inspections in automotive component assembly or electronics manufacturing. The controller's deterministic performance ensures synchronized motion profiles and error-proofing sequences that maintain six-sigma quality standards.

Energy Management Systems
Monitor power consumption, demand response triggers, and equipment runtime analytics across facility HVAC, compressed air, and lighting systems. Native Ethernet connectivity simplifies integration with building management systems and utility demand-response programs for cost optimization.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1769-L33ER when your application requires network redundancy (DLR), moderate program complexity (up to 2MB), and local I/O expansion without motion control. For applications needing integrated motion axes, consider the 1769-L37ERM (4MB + motion). For smaller programs under 750KB without redundancy requirements, the 1769-L32E offers cost optimization.

Advanced Integration Capabilities

IoT & Industry 4.0 Connectivity
Leverage built-in OPC UA server functionality (via Studio 5000 add-on profiles) to publish real-time production data directly to cloud analytics platforms, edge computing gateways, or enterprise historians—eliminating middleware complexity and reducing IT/OT integration costs by up to 40%.

Cybersecurity Features
Implement role-based access control, encrypted communications (via FactoryTalk Policy Manager), and change-of-state logging to meet IEC 62443 industrial cybersecurity standards—protecting critical infrastructure from unauthorized access while maintaining compliance audit trails.

Customization & Expansion Options
Integrate third-party EtherNet/IP devices (drives, vision systems, RFID readers) using Add-On Profiles (AOPs), or develop custom communication protocols via Studio 5000 Logix Designer's structured text and function block programming—enabling unique machine functionality without proprietary hardware lock-in.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-sealed packaging
Custom Configuration: 4-6 weeks for pre-programmed controllers with customer-specific logic
Warranty Coverage: 12-month manufacturer defect warranty from shipment date
Technical Support: Email/phone assistance for configuration, troubleshooting, and integration guidance
Documentation Package: User manual, wiring diagrams, sample ladder logic, and Studio 5000 project templates included

Frequently Asked Questions

How does the 1769-L33ER's dual Ethernet configuration improve system uptime?
The Device Level Ring (DLR) protocol automatically detects network cable breaks or switch failures and reroutes communication through the alternate path within 3 milliseconds—preventing production stoppages that would otherwise require manual intervention and cost thousands in downtime.

What is the maximum I/O point count supported by this controller?
With 16 local modules plus distributed EtherNet/IP I/O, you can configure systems exceeding 4,000 digital I/O points and 500 analog channels—sufficient for mid-sized production lines, packaging machines, or process skids without requiring ControlLogix-class hardware.

Can I retrofit this controller into existing 1769 CompactLogix systems?
Yes—the 1769-L33ER maintains backward compatibility with legacy 1769 I/O modules and uses the same mounting hardware, power supplies, and wiring terminations. Existing ladder logic can be imported into Studio 5000 with minimal modifications, typically requiring only Ethernet configuration updates.

Does this model support remote firmware updates over Ethernet?
Firmware updates are performed via Studio 5000 Logix Designer over EtherNet/IP connections, allowing centralized management of controller revisions across multiple machines without physical access to control panels—reducing maintenance windows and travel costs for multi-site operations.

What programming languages are compatible with the 1769-L33ER?
Studio 5000 supports IEC 61131-3 languages including Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Chart (SFC)—enabling engineers to select the most efficient programming method for motion control, process logic, or data handling tasks.

How does memory capacity affect long-term system scalability?
The 2MB user memory accommodates approximately 50,000-80,000 ladder logic rungs (depending on instruction complexity), plus data tables for recipe storage, alarm histories, and production counters—providing 3-5 years of expansion headroom for typical manufacturing applications before requiring controller upgrades.

Get Started with Your Automation Project

Ready to enhance your control system reliability with dual-network redundancy? Contact our automation specialists for application-specific configuration guidance, Studio 5000 project templates, or volume pricing for multi-machine deployments. We provide pre-sales technical consultations to ensure the 1769-L33ER meets your performance, scalability, and budget requirements.
