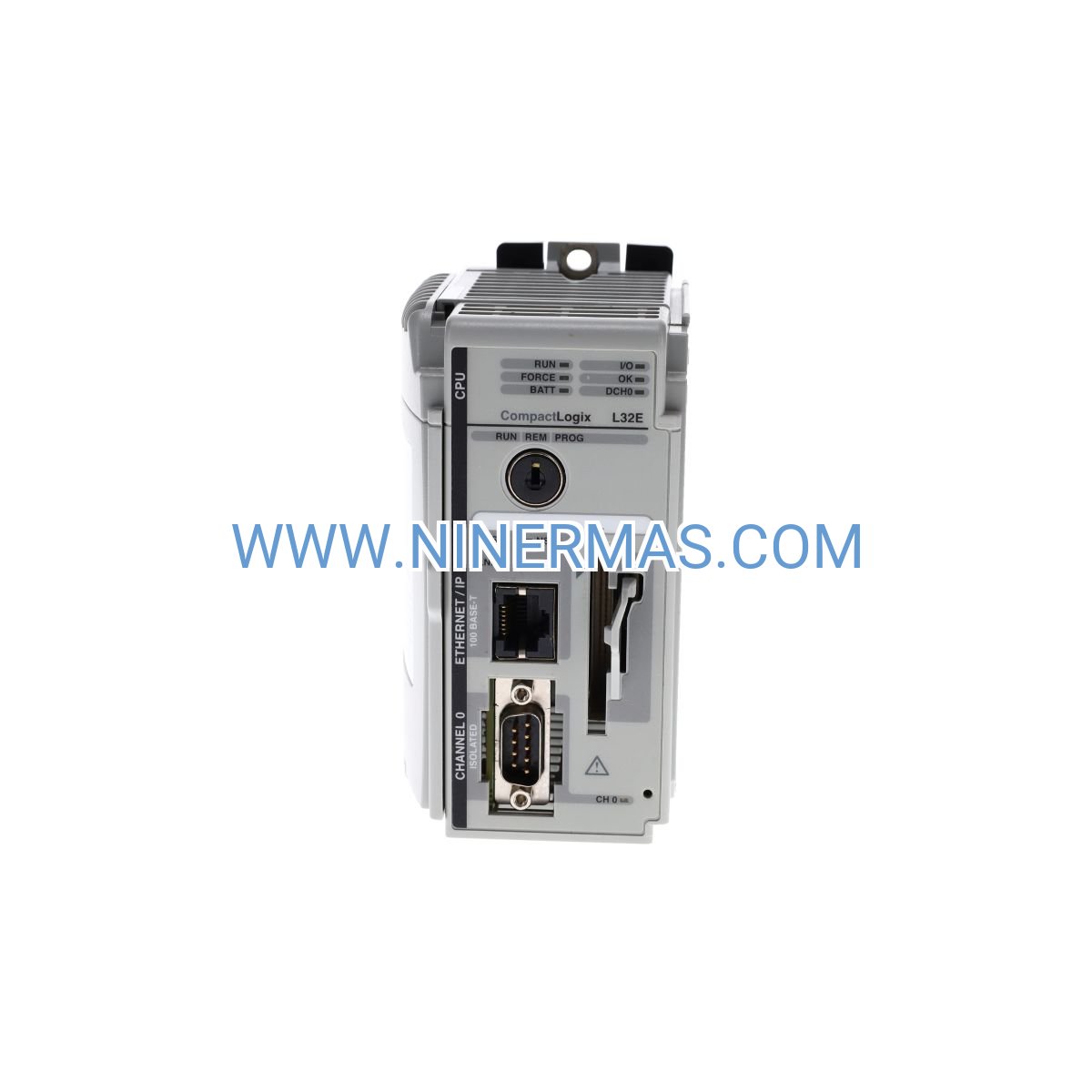

1769-L32E CompactLogix Ethernet Controller (Industrial-Grade Modular PLC)

The 1769-L32E represents Allen-Bradley's proven CompactLogix 5370 platform, delivering industrial-strength programmable logic control for mid-scale automation environments. Engineered with 750KB user memory and native Ethernet/IP connectivity, this controller bridges legacy serial devices with modern plant networks while supporting up to 30 local I/O modules across three expansion banks. Whether you're retrofitting aging control systems or designing greenfield installations, the 1769-L32E provides the processing headroom and communication flexibility demanded by manufacturing, packaging, and process industries.

Built for engineers who require deterministic control without sacrificing network transparency, this controller integrates seamlessly into distributed architectures while maintaining compatibility with Rockwell's Studio 5000 ecosystem. Its compact DIN-rail footprint and open-style enclosure simplify panel integration, while dual communication ports eliminate the need for protocol converters in mixed-technology environments.

From batch processing to material handling, the 1769-L32E delivers reliable execution with industrial-grade environmental ratings, making it the logical choice for applications where uptime, scalability, and vendor support are non-negotiable.

Core Capabilities & Technical Advantages

→ Scalable I/O Architecture
Supports up to 30 local 1769 I/O modules distributed across three banks, enabling incremental system expansion without controller replacement. Add analog inputs, high-speed counters, or specialty modules as process requirements evolve.

✓ Dual-Port Communication
Embedded 10/100BASE-T Ethernet port for plant-wide EtherNet/IP networks, plus fully isolated RS-232 serial port supporting DF1, DH-485, and ASCII protocols at speeds up to 38.4 Kbps—ideal for integrating barcode scanners, weigh scales, and legacy HMIs.

✓ 750KB User Memory
Ample program and data storage for complex ladder logic, structured text routines, and recipe management. Optional 1784-CF128 CompactFlash card provides non-volatile backup and rapid program deployment across multiple machines.

✓ Industrial Environmental Compliance
IEC 61000-4 certified for electrostatic discharge (8kV air/6kV contact), electrical fast transient (3kV), and vibration resistance (5g, 10–500Hz). Operates reliably in temperatures from 0 to 60°C with conformal coating protection against moisture and contaminants.

✓ Studio 5000 Integration
Full compatibility with RSLogix 5000 and Studio 5000 Logix Designer for unified programming, online edits, and diagnostics. Leverage add-on instructions, tag-based addressing, and integrated motion libraries for faster commissioning.

✓ Low Power Consumption
Draws only 660mA @ 5V DC and 90mA @ 24V DC (5.5W total dissipation), minimizing heat generation and allowing higher module density in compact enclosures.

Application Scenarios & Industry Use Cases

1. Automated Packaging Lines
Challenge: Coordinating form-fill-seal machines, checkweighers, and case packers with real-time recipe changes.
Solution: The 1769-L32E's Ethernet/IP connectivity enables synchronized motion control and HMI recipe downloads, while RS-232 integration captures weight data from legacy scales without protocol gateways.

2. Chemical Batch Processing
Challenge: Precise ingredient dosing with traceability and alarm management.
Solution: Utilize 750KB memory for multi-recipe storage and PID loop control, with Ethernet connectivity to SCADA for batch reporting and regulatory compliance documentation.

3. Conveyor & Sortation Systems
Challenge: Managing distributed I/O across 100+ meters of conveyor with minimal wiring.
Solution: Deploy 1769-L32E as zone controller with remote I/O over EtherNet/IP, reducing copper runs and enabling centralized diagnostics through Studio 5000.

4. CNC Machine Tool Control
Challenge: Interfacing spindle drives, tool changers, and coolant systems with operator touchscreens.
Solution: Leverage modular I/O expansion for mixed signal types (analog spindle speed, digital limit switches) while maintaining deterministic scan times under 10ms.

5. Water/Wastewater Treatment
Challenge: Remote monitoring of pump stations with cellular gateway integration.
Solution: 1769-L32E's Ethernet port connects to industrial routers for VPN access, enabling remote troubleshooting and firmware updates without site visits.

Technical Specifications & Selection Criteria

Selection Guidance:
Choose the 1769-L32E when your application requires 500–750KB memory, moderate I/O density (20–30 modules), and dual Ethernet/serial connectivity. For motion-intensive applications, consider the 1769-L33ERM with integrated axis control. If memory exceeds 750KB, upgrade to the 1769-L35E (1.5MB) or 1769-L36ERM (3MB) models.

Extended Integration & Customization Options

CompactFlash Memory Expansion
Install optional 1784-CF128 (128MB) or 1784-CF512 (512MB) cards for non-volatile program storage, firmware updates, and data logging. Enables rapid controller cloning for multi-machine deployments.

IoT & Cloud Connectivity
Pair with Stratix industrial Ethernet switches and FactoryTalk Edge Gateway for secure MQTT publishing to AWS IoT Core, Azure IoT Hub, or on-premise historians. Maintain OT/IT segmentation with firewall-protected VLANs.

Motion Control Add-Ons
Integrate 1769-SDN DeviceNet scanner or 1769-AENTR EtherNet/IP adapter for coordinated motion with Kinetix servo drives. Supports electronic camming, gearing, and multi-axis interpolation via Studio 5000 Motion Analyzer.

Safety System Integration
Combine with GuardLogix safety I/O modules (1769-IQ16F, 1769-OW16) for SIL 2/PLd safety functions within the same chassis, reducing panel footprint and wiring complexity.

Delivery, Warranty & Technical Support

Lead Time: In-stock units ship within 1–3 business days. Custom configurations (pre-loaded programs, tested assemblies) require 5–7 business days.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Covers controller hardware; excludes damage from improper installation, overvoltage, or environmental contamination.

Technical Assistance: Our applications engineers provide pre-sale sizing support, post-sale configuration guidance, and troubleshooting via email/phone. Access to Studio 5000 sample code, wiring diagrams, and integration checklists included with purchase.

Documentation Package: Each unit ships with quick-start guide, safety summary, and links to full user manual (publication 1769-UM011). Firmware release notes and obsolescence bulletins available via Rockwell Automation Product Compatibility & Download Center.

Frequently Asked Questions

Q: Which CompactLogix power supply modules are compatible with the 1769-L32E?
A: Use 1769-PA2 (85–265V AC), 1769-PB2 (24V DC), 1769-PA4 (85–265V AC, 4A), or 1769-PB4 (24V DC, 4A). The controller has a distance rating of 4 modules from the power supply.

Q: Can I use this controller for high-speed counting or pulse train output?
A: Yes, add 1769-HSC high-speed counter modules (up to 1MHz) or 1769-SM2 stepper modules for pulse/direction control. The controller's scan time supports deterministic I/O updates for motion applications.

Q: What Ethernet protocols does the 1769-L32E support beyond EtherNet/IP?
A: Native support for EtherNet/IP (implicit/explicit messaging), Modbus TCP (via add-on instruction), and socket-based ASCII communication. Third-party protocols require gateway devices or custom function blocks.

Q: How do I enable remote access for troubleshooting without exposing the controller to the internet?
A: Deploy a Stratix 5400 managed switch with firewall rules, then establish site-to-site VPN using FactoryTalk Remote Access or third-party VPN routers (Ewon, Secomea). Never expose controller ports directly to WAN.

Q: Is the 1769-L32E suitable for redundant control systems?
A: No, CompactLogix controllers do not support hot-backup redundancy. For mission-critical applications requiring failover, specify ControlLogix 1756-L7x series with redundancy modules.

Q: What programming software version is required?
A: Minimum RSLogix 5000 v20 or Studio 5000 Logix Designer v21. For latest firmware compatibility and enhanced diagnostics, use Studio 5000 v33 or newer.

Ready to Integrate the 1769-L32E Into Your Control System?

Contact our automation specialists for application-specific sizing, I/O module recommendations, and volume pricing. We provide pre-configured systems with tested code libraries to accelerate your commissioning timeline.

Request a quote: sales@indctrlhub.com | +0086 187 5021 5667
Technical inquiries: Include your I/O count, communication requirements, and environmental conditions for tailored recommendations.
