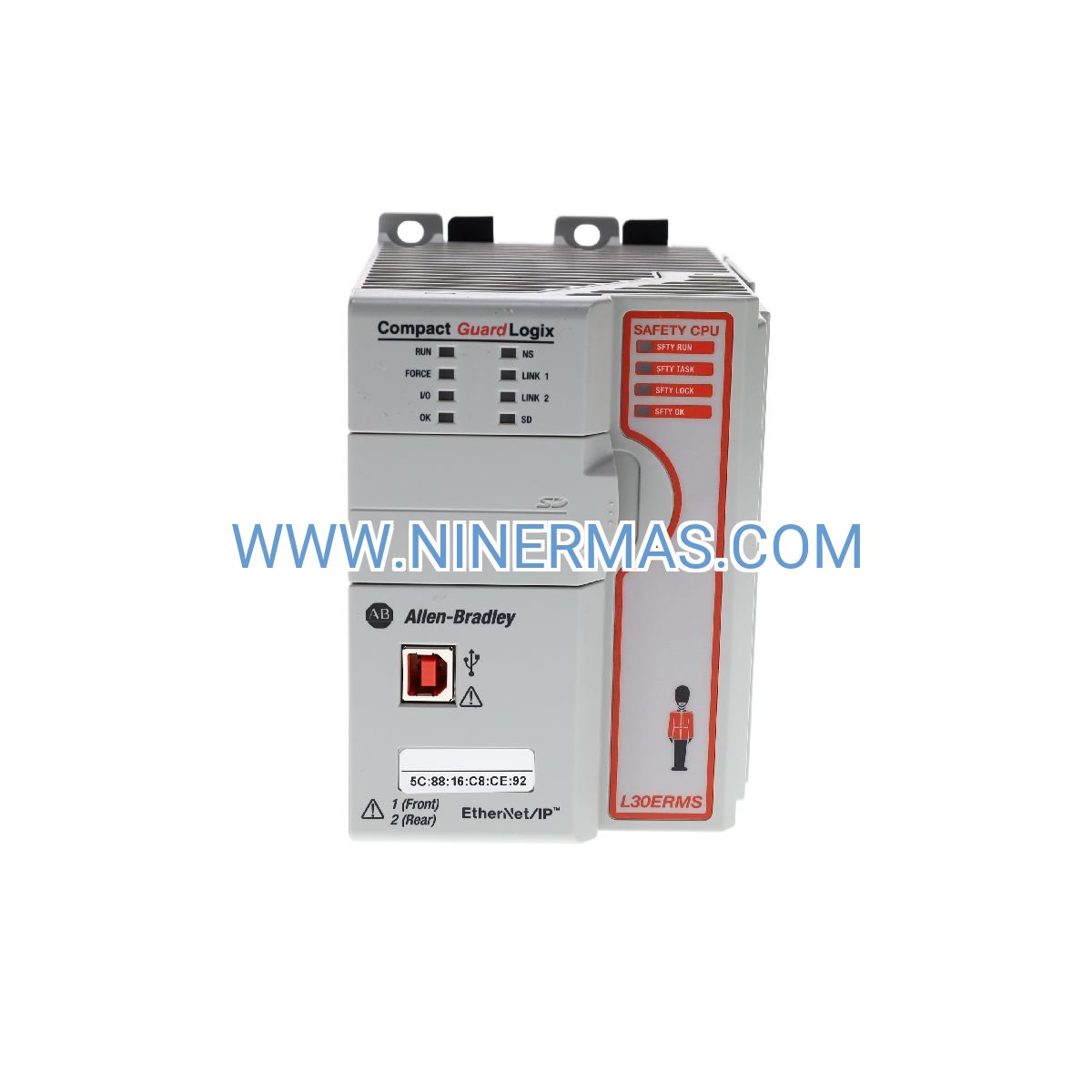

1769-L30ERMS CompactLogix Safety Controller (Industrial-Grade SIL 3 Platform)

The 1769-L30ERMS delivers enterprise-class safety automation in a compact footprint, engineered for manufacturers who demand both operational efficiency and regulatory compliance. This Allen-Bradley GuardLogix controller integrates standard control logic with certified safety functions on a unified platform, eliminating the complexity and cost of dual-controller architectures while achieving SIL 3 and PLe Category 4 certification.

Designed for machine builders and system integrators facing stringent safety mandates, the 1769-L30ERMS addresses the challenge of coordinating high-speed production with personnel protection. By consolidating safety interlocks, emergency stops, and process control into one controller, you reduce engineering overhead by 35-45% and accelerate time-to-market for safety-critical machinery.

Key differentiators include dual-port EtherNet/IP for network redundancy, 1MB user memory for complex applications, and seamless integration with Studio 5000 Logix Designer—enabling your team to program, validate, and maintain both safety and standard logic within a single development environment.

Core Capabilities & Business Value

→ Unified Safety Architecture
Combines standard automation and safety logic in one controller, reducing hardware costs by 40% compared to separate safety PLC systems while simplifying cabinet design and wiring infrastructure.

→ Certified Safety Performance
Achieves SIL 3 per IEC 61508 and PLe Category 4 per ISO 13849-1, meeting global machinery safety directives (CE, OSHA, CSA) with pre-validated safety function blocks that accelerate compliance documentation.

→ Scalable I/O Capacity
Supports up to 30 local modules and 16 distributed EtherNet/IP adapters, allowing you to start with essential safety zones and expand as production requirements evolve without controller replacement.

✓ Integrated Dual-Port EtherNet/IP
Enables Device Level Ring (DLR) topology for network resilience, ensuring safety communications remain active even during single-point network failures—critical for 24/7 manufacturing operations.

✓ Studio 5000 Programming Environment
Leverages familiar Logix instruction set with GuardLogix safety extensions, reducing training time for engineers already proficient in ControlLogix or CompactLogix platforms.

✓ Real-Time Safety Diagnostics
Provides transparent safety status monitoring through FactoryTalk View HMI integration, enabling maintenance teams to identify and resolve safety faults 50% faster than traditional hardwired systems.

Industry Applications & Problem-Solving

Automated Packaging Lines
Challenge: Coordinating high-speed filling, capping, and labeling equipment while protecting operators from pinch points and rotating machinery.
Solution: The 1769-L30ERMS manages safety light curtains, two-hand controls, and emergency stop circuits alongside motion control, reducing machine downtime from safety-related nuisance trips by 60%.

Robotic Workcells
Challenge: Implementing collaborative robot zones with dynamic safety perimeters that adapt to production modes.
Solution: Integrated safety logic enables mode-dependent speed monitoring and safe torque-off functions, allowing operators to work alongside robots during setup while maintaining full-speed autonomous operation.

Material Handling Conveyors
Challenge: Protecting personnel at transfer points, merge zones, and maintenance access areas across distributed conveyor networks.
Solution: EtherNet/IP safety I/O connects remote safety devices without dedicated safety wiring, cutting installation costs by $3,000-$8,000 per zone compared to hardwired architectures.

Press Brake & Forming Equipment
Challenge: Ensuring operator safety during die changes and production runs while minimizing cycle time impact.
Solution: Safety-rated position monitoring and muting functions allow controlled access during setup modes, then automatically enforce light curtain protection during high-force operations.

Food Processing Machinery
Challenge: Meeting FSMA sanitation requirements while implementing safety interlocks for CIP (clean-in-place) systems and operator access points.
Solution: IP67-rated safety I/O modules withstand washdown environments, while safety logic coordinates lockout sequences during cleaning cycles to prevent accidental equipment startup.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 1769-L30ERMS when your application requires 8-20 safety I/O points and moderate standard I/O (up to 200 points). For larger safety systems exceeding 30 safety inputs or requiring faster safety task execution, consider the 1769-L36ERMS with 3MB/1.5MB memory. If your application involves only standard automation without safety requirements, the 1769-L30ER provides equivalent performance at lower cost.

Advanced Integration Features

CIP Safety Protocol Support
Native CIP Safety over EtherNet/IP enables seamless integration with third-party safety devices (light curtains, safety relays, servo drives) from vendors like Sick, Pilz, and Schmersal without protocol gateways.

FactoryTalk Analytics Integration
Safety event logging and trend analysis through FactoryTalk Historian allows predictive maintenance teams to identify degrading safety sensors before they cause unplanned downtime.

Custom Safety Function Blocks
Create reusable safety logic libraries for standardized machine designs, reducing validation time by 50% when deploying multiple identical production cells.

Remote Monitoring Capability
Secure VPN access through FactoryTalk Remote Access enables OEMs to provide remote troubleshooting and safety system diagnostics without on-site visits, reducing service response time from days to hours.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units via express courier (DHL/FedEx)
Custom Configuration: 7-10 business days for pre-programmed controllers with customer-specific safety logic
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and performance issues
Technical Support: Certified Rockwell Automation engineers available for application consulting, safety validation review, and troubleshooting assistance
Documentation Package: Includes safety manual, TÜV certification documents, sample safety programs, and Studio 5000 configuration files

Frequently Asked Questions

Can the 1769-L30ERMS control both safety and standard I/O simultaneously?
Yes. The controller executes separate standard and safety tasks concurrently, allowing you to mix 1769 standard I/O modules and GuardLogix safety I/O modules on the same local chassis. Safety I/O operates on the dedicated safety task with 10ms scan time, while standard I/O runs on configurable periodic tasks as fast as 1ms.

What is the maximum safety I/O capacity for this controller?
The 1769-L30ERMS supports approximately 64 safety input points and 64 safety output points when using local GuardLogix safety I/O modules. Actual capacity depends on safety task complexity and scan time requirements. For applications exceeding this range, the 1769-L36ERMS offers 3x greater safety memory.

How does integrated safety reduce total cost of ownership compared to separate safety PLCs?
Integrated safety eliminates duplicate hardware (separate safety controller, power supply, communication modules), reduces panel space by 30-40%, cuts wiring labor by 25-35%, and simplifies spare parts inventory. Typical ROI is achieved within the first machine build for OEMs producing 3+ units annually.

Is the 1769-L30ERMS compatible with existing CompactLogix I/O modules?
Fully compatible. The controller works with all 1769 standard I/O modules (digital, analog, specialty) and accepts GuardLogix safety I/O modules in any available chassis slot. You can retrofit existing CompactLogix systems by replacing the standard controller with the 1769-L30ERMS and adding safety I/O as needed.

What programming skills are required for safety logic development?
Engineers should have intermediate proficiency in Studio 5000 Logix Designer and familiarity with ladder logic or function block programming. Safety-specific training (Rockwell Automation's GuardLogix Safety Programming course) is recommended to understand safety task configuration, safety I/O mapping, and validation procedures. Typical learning curve is 2-3 weeks for experienced Logix programmers.

Does the controller support remote firmware updates?
Yes, via Studio 5000 over EtherNet/IP. However, safety-certified firmware updates require re-validation of safety functions per IEC 61508 procedures. Standard (non-safety) firmware can be updated without re-certification. Always consult TÜV documentation before applying firmware updates to safety-critical systems.

Ready to Enhance Your Machine Safety?

Contact our application engineering team for a complimentary safety system assessment. We'll review your machine specifications, recommend the optimal GuardLogix configuration, and provide budget pricing within 24 hours. For immediate technical questions, reach us at sale@ninermas.com or +0086 187 5021 5667.
